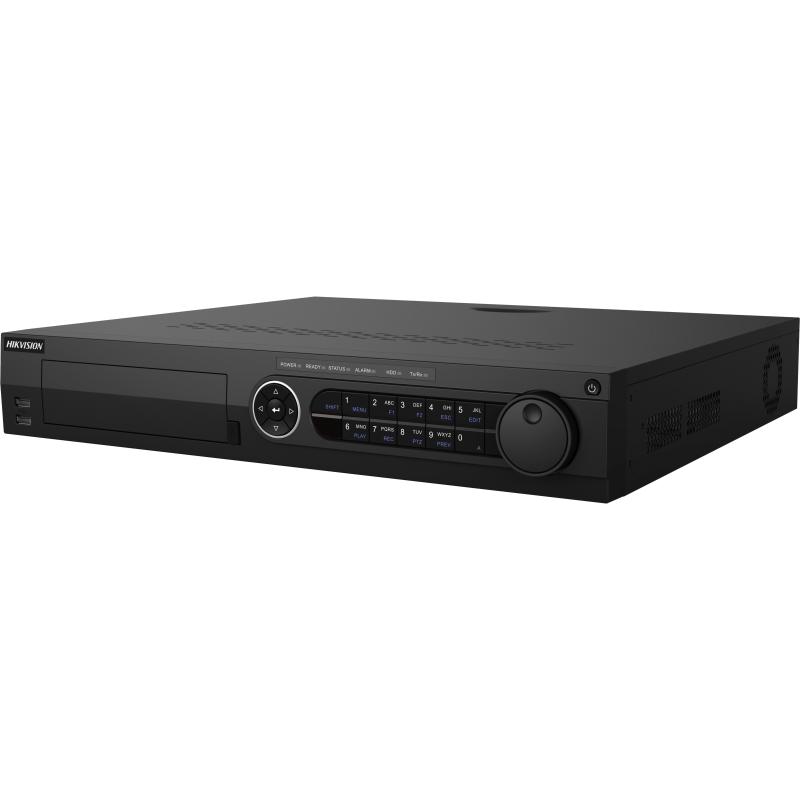

Hikvision IDS-7316HUHI-M4-S AcuSense 16-Channel Hybrid DVR, 5 MP, H.265 Pro+, 4 SATA Bays

Price:

1,638.02


Hikvision iDS-7216HUHI-M2/XT AcuSense 16-Channel Turbo HD DVR, H.265 Pro+, Facial Recognition, 2 HDD Bays
Hikvision iDS-7216HUHI-M2/XT AcuSense 16-Channel Turbo HD DVR, H.265 Pro+, Facial Recognition, 2 HDD Bays
1,336.50
1,336.50
Hikvision IDS-7332HUHI-M4-S AcuSense 5 MP 32-Channel 1.5U DVR, 4 SATA, H.265 Pro+
Hikvision IDS-7332HUHI-M4-S AcuSense 5 MP 32-Channel 1.5U DVR, 4 SATA, H.265 Pro+
2,685.28
2,685.28

Hikvision IDS-7316HUHI-M4-S AcuSense 16-Channel Hybrid DVR, 5 MP, H.265 Pro+, 4 SATA Bays

https://arcip.com.au/web/image/product.template/9785/image_1920?unique=12e6e76
The Hikvision IDS-7316HUHI-M4-S is a professional 16-channel AcuSense DVR that records up to 8 MP full-channel with H.265 Pro+ compression, cutting storage costs without sacrificing image quality. AcuSense deep learning on all 16 analog channels classifies human and vehicle targets to eliminate false alarms. Four SATA bays (up to 12 TB each) with RAID 0/1/5/6/10 support and 1 eSATA port deliver up to 48 TB of redundant storage. Dual Gigabit Ethernet interfaces, 18–34 IP camera channels, and compatibility with Hik-Connect, ONVIF, and SADP ensure seamless integration into any surveillance network.

1,638.02 1638.02 AUD 1,638.02 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • HDD Bays
  • Max Resolution
  • Video Channels
  • Video Compression
  • Network Ports
  • Brand Series

This combination does not exist.

Hikvision H.265 AcuSense DVR Hybrid DVR 16-Channel 5MP
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-7316HUHI-M4-S
Hikvision IDS-7316HUHI-M4-S — 5 MP AcuSense 16-Channel Hybrid DVR, H.265 Pro+, 4 SATA Bays, Deep Learning Perimeter Protection
Key Features
  • Deep learning-based perimeter protection with human and vehicle classification on up to 8 channels (ch 1–4 and 9–12)
  • Motion Detection 2.0 enabled by default across all 16 analog channels — eliminates false alarms caused by leaves, lights, and environmental movement
  • 16 analog inputs (HDTVI/AHD/CVI/CVBS) plus 18–34 IP camera channels for a fully hybrid deployment
  • 8 MP full-channel recording with H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 compression, reducing storage costs without sacrificing image quality
  • 4 SATA + 1 eSATA interfaces supporting up to 12 TB per drive, with RAID 0/1/5/6/10 for data redundancy
  • Dual 4K/2K HDMI outputs: HDMI 2 supports 4K (3840 × 2160)@30 Hz; HDMI 1 and VGA at up to 1920 × 1080@60 Hz for flexible multi-monitor setups
  • Dual Gigabit Ethernet interfaces (2 × RJ45 10/100/1000 Mbps) with 320 Mbps total bandwidth and up to 128 simultaneous remote connections
  • 16 alarm inputs and 4 alarm outputs with RS-232, RS-485 (full-duplex), and keyboard interfaces for integration with access control and POS systems
  • POS triggered recording with transaction data overlay for retail and hospitality environments
  • 16-channel synchronous 1080p@30 fps playback with quick search by object type or event
  • Operating temperature −10 °C to 55 °C, power consumption ≤ 35 W (without HDD)
  • Compatible with Hik-Connect, DDNS, ONVIF, SADP, iSCSI, NFS, and SNMP for comprehensive network management
Specifications
Video & Audio
IP Video Input18-ch (expandable to 34-ch); up to 12 MP; H.265+/H.265/H.264+/H.264
Analog Video Input16-ch BNC (1.0 Vp-p, 75 Ω); coaxitron connection supported
HDTVI Input3K, 4 MP, 1080p25/30, 720p25/30
AHD Input4 MP, 1080p25/30, 720p25/30
HDCVI Input1080p25/30, 720p25/30
CVBS InputPAL/NTSC
CVBS Output1-ch BNC (1.0 Vp-p, 75 Ω); PAL: 704 × 576, NTSC: 704 × 480
HDMI 1 Output1-ch; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI 2 Output1-ch; 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
VGA Output1-ch; 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Video Output ModeHDMI1/VGA simultaneous output; HDMI2/VGA independent output
Audio Input4-ch RCA (2.0 Vp-p, 1 kΩ)
Audio Output2-ch RCA (Linear, 1 kΩ)
Two-Way Audio1-ch RCA (2.0 Vp-p, 1 kΩ) independent
Synchronous Playback16-ch
Recording
Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution8 MP / 3K / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rate (Main Stream)8 MP@8 fps; 3K@12 fps; 5 MP@12 fps; 4 MP@15 fps; 3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P) / 30 fps (N)
Frame Rate (Sub Stream)WD1/4CIF/CIF@25 fps (P) / 30 fps (N)
Video Bitrate32 Kbps to 10 Mbps
Dual StreamSupported
Stream TypeVideo; Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps
HDD & Storage
SATA Interfaces4 × SATA
eSATASupported
Max Capacity per DiskUp to 12 TB
RAID SchemesRAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Decoding Capability16-ch 1080p@30 fps
Network
Total Bandwidth320 Mbps
Remote Connections128
Network Interface2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet
Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
Interface
USBFront: 2 × USB 2.0; Rear: 1 × USB 3.0
Serial InterfaceRS-232, RS-485 (full-duplex), keyboard
Alarm In / Out16 / 4
General
Power Supply100 to 240 VAC, 50 to 60 Hz
Power Consumption≤ 35 W (without HDD)
Working Temperature−10 °C to 55 °C (14 °F to 131 °F)
Working Humidity10% to 90%
Form Factor1.5U Rack-Mountable
Chassis440 × 399 × 72 mm
Weight≤ 5 kg (without HDD)
Frequently Asked Questions

What is the IDS-7316HUHI-M4-S and how many channels does it support?

The Hikvision IDS-7316HUHI-M4-S is a 16-channel 5 MP 1.5U H.265 AcuSense DVR. It supports 16 analog camera inputs (HDTVI/AHD/CVI/CVBS) simultaneously with 18 IP channels, expandable to a total of 34 IP camera channels when analog inputs are replaced. This makes it suitable for both existing analog infrastructure and new IP camera deployments.

What is AcuSense technology and how does it work on this DVR?

AcuSense is Hikvision’s deep learning-based analytics engine. On the IDS-7316HUHI-M4-S, it enables Motion Detection 2.0 across all 16 analog channels to classify motion events as human or vehicle, dramatically reducing false alarms from leaves, animals, or lighting changes. Perimeter protection with human/vehicle analysis is active on up to 8 channels (channels 1/2/3/4/9/10/11/12), triggering alerts only for genuine intrusions.

How many HDDs can the IDS-7316HUHI-M4-S accommodate and what is the maximum storage capacity?

The IDS-7316HUHI-M4-S has 4 internal SATA interfaces plus 1 eSATA port for external expansion. Each drive supports up to 12 TB, giving a potential internal capacity of up to 48 TB across four drives. RAID modes 0, 1, 5, 6, and 10 are all supported for data redundancy and performance, making it well suited for high-availability surveillance deployments.

What display outputs does the DVR provide?

The DVR features two HDMI outputs and one VGA output. HDMI 2 supports up to 4K (3840 × 2160)@30 Hz for a large-format monitor or video wall. HDMI 1 and VGA output simultaneously at up to 1920 × 1080@60 Hz. A CVBS output is also included. HDMI 2 can operate independently from the HDMI 1/VGA pair, enabling a two-monitor control room setup.

What network protocols and remote access options are available?

The IDS-7316HUHI-M4-S ships with dual Gigabit Ethernet interfaces delivering 320 Mbps total bandwidth and supports up to 128 simultaneous remote connections. It is compatible with TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, and SNMP. Hik-Connect provides easy cloud-based remote viewing on mobile and desktop without requiring port-forwarding.

Is the IDS-7316HUHI-M4-S compatible with third-party IP cameras via ONVIF?

Yes. The IDS-7316HUHI-M4-S supports ONVIF-compliant IP cameras from third-party manufacturers on its IP channel inputs, accepting resolutions up to 12 MP. It also natively supports Hikvision H.265+, H.265, H.264+, and H.264 IP cameras. This open compatibility protects existing investments and allows staged migration from analog to full IP systems.

Professional Overview

The Hikvision IDS-7316HUHI-M4-S is a professional-grade 16-channel AcuSense hybrid DVR engineered for security integrators who require high-definition recording, intelligent analytics, and flexible camera compatibility in a single 1.5U rack chassis. By combining deep learning-based perimeter protection with support for both legacy analog coaxial cameras and modern IP cameras up to 12 MP, it delivers a cost-effective upgrade path that eliminates the need to replace existing cabling infrastructure. The iDS prefix designates the AcuSense product line, meaning every motion event is assessed by an onboard neural network before triggering an alarm or recording segment.

Recording performance centres on H.265 Pro+ compression, which substantially reduces bitrate and storage consumption compared to older H.264 codecs without any loss of forensic image quality. Full-channel recording at up to 8 MP resolution is maintained across all 16 analog channels simultaneously, with per-channel encoding options spanning 8 MP down to CIF for bandwidth-sensitive remote sites. Four internal SATA bays — each accepting drives up to 12 TB — plus an eSATA port provide up to 48 TB of internal capacity, while RAID 0, 1, 5, 6, and 10 modes protect critical evidence footage against drive failure in mission-critical deployments.

Connectivity is comprehensive: dual Gigabit Ethernet interfaces aggregate to 320 Mbps and carry traffic from up to 128 concurrent remote sessions, while support for ONVIF, SADP, Hik-Connect, iSCSI, NFS, and SNMP integrates the recorder into existing network management and VMS platforms. The front panel includes two USB 2.0 ports for quick backup or mouse control, complemented by a rear USB 3.0 for high-speed archival. RS-232, RS-485 (full-duplex), and a keyboard interface enable PTZ camera control and POS integration — with transaction data overlaid directly onto the recorded video stream. Operating from 100 to 240 VAC and consuming no more than 35 W without drives, the IDS-7316HUHI-M4-S is energy-efficient for 24/7 continuous recording in retail, commercial, and government environments.

Designed for demanding security applications where precision matters, the Hikvision IDS-7316HUHI-M4-S pairs advanced AI analytics with robust hardware to deliver reliable, scalable video surveillance that grows with your site. Available from Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor 1.5U Rack
HDD Bays 4 SATA
Max Resolution 8 MP
Video Channels 16-Channel
Video Compression H.265 Pro+
Network Ports Dual Gigabit
Brand Series AcuSense
IDS-7316HUHI-M4-S_Datasheet.pdf
Download
