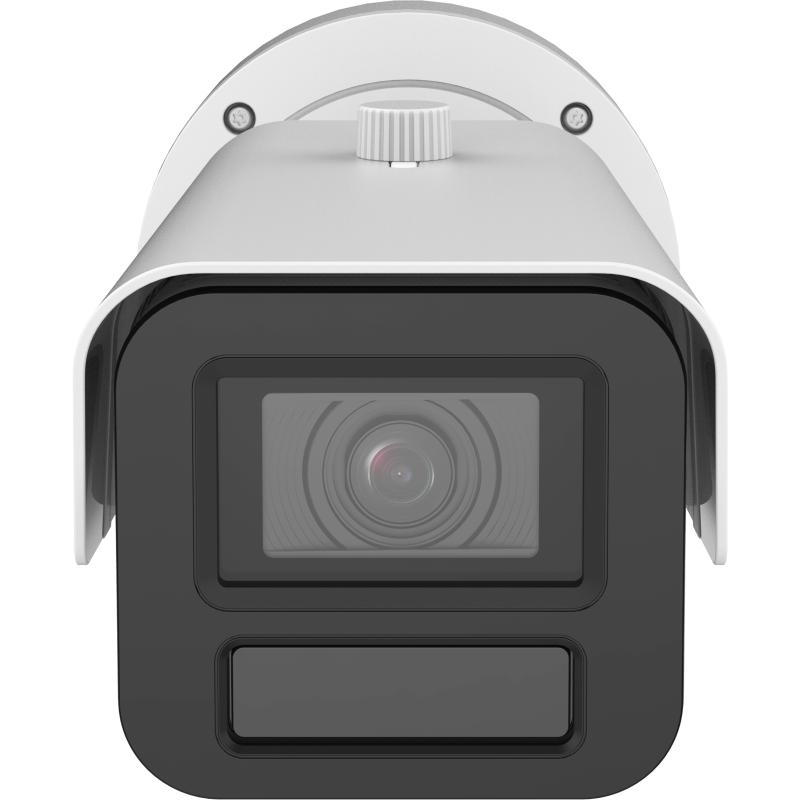

Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM DeepinView 4 MP ANPR Varifocal Bullet Network Camera, 2.8–12 mm Motorised, IR 60 m, IP67/IK10

https://arcip.com.au/web/image/product.template/9780/image_1920?unique=12e6e76
The Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM is a 4 MP DeepinView motorised varifocal bullet camera engineered for demanding outdoor ANPR and perimeter applications. Its DarkFighter 2.0 sensor delivers colour detail down to 0.0005 lux while 150 dB Wide Dynamic Range handles extreme backlit scenes. The built-in deep-learning engine recognises license plates at ≥98 % accuracy across 4 regions and more than 124 countries/regions, and classifies vehicle type, colour, brand, and driving direction without a separate analytics server. An aluminium-alloy body rated IP67, IK10, and NEMA 4X anti-corrosion with a built-in heater and EIS makes it equally at home on coastal infrastructure, car parks, and industrial sites. Backed by a 3-year Australian warranty and available from stock at ARC IP Networks.

1,921.70 1921.7 AUD 1,921.70 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera Bullet DeepinView ANPR DarkFighter 4MP LPR
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
IDS-2CD7A46G2-P-IZHSY-2.8-12MM
Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM — 4 MP DeepinView ANPR Varifocal Bullet, 2.8–12 mm Motorised Lens, DarkFighter 2.0, IR 60 m, IP67/IK10

Features

  • DeepinView ANPR Engine — on-board deep learning achieves license-plate recognition at ≥98 % accuracy for vehicles and motorcycles across 4 global regions and more than 124 countries/regions, with blocklist/allowlist support for up to 10,000 records.
  • DarkFighter 2.0 Low-Light Technology — colour imaging to 0.0005 lux and monochrome to 0.0001 lux (F1.2, AGC ON) for clear footage in near-darkness without supplemental lighting.
  • 150 dB Adaptive Wide Dynamic Range — resolves both bright headlights and shadowed plate characters in a single frame, critical for drive-through lane and entry/exit monitoring.
  • Motorised 2.8–12 mm P-iris Varifocal Lens — remote electronic zoom and focus with auto/semi-auto/manual modes; HFOV 106° to 41.8° provides flexible installation geometry from close-range lot monitoring to longer-range lane capture.
  • Perimeter Protection — deep-learning line crossing, intrusion, region entrance, and region exit with human and vehicle target classification greatly reduces false alarms from foliage, lights, and animals.
  • Vehicle Attribute Detection — classifies vehicle type, colour, brand, and driving direction; supports combined event alarm triggering for multi-condition alert workflows.
  • High Frame Rate — up to 2 MP @ 120 fps and 4 MP @ 60 fps in monitoring mode for crisp capture of fast-moving vehicles.
  • H.265+ Compression — up to five simultaneous streams with H.265+/H.265/H.264+/H.264/MJPEG; reduces bandwidth and storage by up to 70 % versus H.264 at comparable quality.
  • Built-in Heater and EIS — integrated heater maintains performance in rain, snow, and frost; Electronic Image Stabilisation compensates for vibration on poles and gantries.
  • NEMA 4X Anti-Corrosion (-Y Variant) — aluminium-alloy body with IP67 dust/water, IK10 vandal resistance, and NEMA 4X corrosion protection for coastal, industrial, and chemical-plant environments.
  • On-Board microSD Storage — supports microSD/SDHC/SDXC cards up to 1 TB for edge recording independent of the NVR network.
  • Rich Interface Set — 2 alarm inputs/2 outputs, RS-485, Wiegand (CardID 26-bit/SHA-1 26-bit/Hik 34-bit/NEWG 72-bit), audio line in/out, and 12 VDC/100 mA power output for peripheral sensors.

Specifications

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. Illumination (Colour)0.0005 lux @ F1.2, AGC ON
Min. Illumination (B/W)0.0001 lux @ F1.2, AGC ON; 0 lux with IR
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter; Blue glass module (less ghost phenomenon)
Wide Dynamic Range150 dB (Adaptive)
SNR≥ 52 dB
Image StabilisationEIS
Lens (2.8–12 mm)
Focal Length2.8 mm to 12 mm
ApertureF1.38 to F2.53
Iris TypeP-iris
FocusAuto, Semi-auto, Manual
Horizontal FOV106° to 41.8°
Vertical FOV55.4° to 23.6°
Diagonal FOV130° to 48.1°
Illuminator
Supplement Light TypeIR
IR Wavelength850 nm
IR Range (2.8–12 mm)Monitoring: 60 m
Smart Supplement LightYes
DORI (2.8–12 mm, Wide End)
Detect (D)60 m
Observe (O)23.8 m
Recognise (R)12 m
Identify (I)6 m
DORI (2.8–12 mm, Tele End)
Detect (D)151.7 m
Observe (O)60.2 m
Recognise (R)30.3 m
Identify (I)15.2 m
Video & Audio
Main Stream (Monitoring Mode, 60 Hz)Up to 60 fps (2688×1520, 1280×720); up to 120 fps (1920×1080)
Main Stream (Smart Mode, 60 Hz)30 fps (2688×1520, 1920×1080, 1280×720)
Sub-Stream30 fps (1280×720, 704×480, 640×480)
Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio TypeMono sound
Deep Learning Features
ANPR / LPRLicense plate recognition ≥98 % accuracy; capture rate ≥99 %; vehicles and motorcycles (checkpoint scenario); >124 countries/regions
Vehicle Attribute DetectionType, colour, brand, driving direction; vehicle and non-vehicle counting
Vehicle Capture SpeedFront installation: up to 120 km/h; Side installation: up to 80 km/h
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting; human & vehicle target classification
MetadataIntrusion/line-crossing/region detection; road traffic metadata
Capture ModesLicense Plate Mode, Vehicle Mode, Vehicle Priority Mode
Network
ProtocolsTCP/IP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, Bonjour, SSL/TLS, ARP, WebSocket
Simultaneous Live ViewUp to 20 channels
APIISAPI, SDK, ISUP, OTAP, ONVIF (Profile S, G, T, M)
On-Board StoragemicroSD/SDHC/SDXC up to 1 TB; NAS (NFS, SMB/CIFS)
Interface
Ethernet1 × RJ45 10M/100M/1000M self-adaptive
Alarm2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Audio1 × line in (3.5 mm, 3.3 Vpp max.), 1 × line out (3.5 mm, 3.3 Vpp max.)
RS-485 (-Y)Half duplex; HIKVISION, Pelco-P, Pelco-D, self-adaptive
Wiegand (-Y)CardID 26-bit, SHA-1 26-bit, Hik 34-bit, NEWG 72-bit
Power Output (-Y)12 VDC, max. 100 mA
General / Environmental
Power SupplyPoE IEEE 802.3at Type 2, Class 4 (42.5–57 V); 12 VDC ±20 %; 24 VAC ±20 %
Max. Power Consumption22.6 W
MaterialAluminium alloy body
Ingress ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Anti-Corrosion (-Y)NEMA 4X (NEMA 250-2018)
Operating Temperature−40 °C to 65 °C; Humidity ≤95 % non-condensing
Storage Temperature−40 °C to 65 °C; Humidity ≤95 % non-condensing
Dimensions (with -Y)Ø140 mm × 377.4 mm
CertificationsCE, RCM (AS/NZS CISPR 32:2015), IP67, IK10, NEMA 4X
HeaterBuilt-in (yes)
Built-in G-SensorYes (vibration detection)

DeepinView FAQ — IDS-2CD7A46G2-P-IZHSY-2.8-12MM

What is the IDS-2CD7A46G2-P-IZHSY-2.8-12MM and what makes it suited to ANPR applications?

The Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM is a 4 MP DeepinView ANPR motorised varifocal bullet camera featuring an on-board deep-learning engine for license plate recognition (LPR). It achieves a recognition rate of ≥98 % and a capture rate of ≥99 % for vehicles and motorcycles in checkpoint scenarios, supporting blocklist/allowlist databases with up to 10,000 records. The P-iris motorised 2.8–12 mm lens allows remote adjustment of zoom and focus without climbing a ladder, and the DORI Identify distance extends to 15.2 m at the tele end for confident plate reads on multi-lane approaches.

What is the Hikvision DeepinView series and how does it differ from AcuSense?

The Hikvision DeepinView series (iDS- prefix) carries a dedicated deep-learning co-processor for advanced AI analytics that go beyond the person/vehicle classification offered by the AcuSense range. DeepinView cameras support ANPR/LPR, vehicle attribute detection (type, colour, brand, direction), road traffic metadata, and perimeter protection with target-type alarm triggering — all processed entirely on the camera edge. The iDS-2CD7A46G2-P-IZHSY is a prime example: it delivers licence-plate recognition across 124+ countries with no external analytics server required.

How does DarkFighter 2.0 technology improve night-time performance?

DarkFighter 2.0 uses a large 1/1.8" progressive-scan CMOS sensor paired with a fast F1.38 aperture at the wide end and advanced noise-reduction algorithms. The result is usable colour video down to 0.0005 lux and near-zero-lux B/W capture at 0.0001 lux before the 850 nm IR illuminator activates. This means car parks, driveways, and roadways remain visible in moonlight or even overcast-night conditions without additional lighting infrastructure, reducing both cost and light-pollution impact.

What does the -Y suffix mean and why is NEMA 4X anti-corrosion important?

The -Y suffix on Hikvision products indicates MODERATE anti-corrosion protection conforming to NEMA 4X (NEMA 250-2018). This is designed for environments with moderate corrosion demands such as coastal areas approximately 2 km from the shoreline, sites affected by acid rain, and light industrial settings. On the IDS-2CD7A46G2-P-IZHSY-2.8-12MM it is combined with IP67 ingress protection and IK10 impact resistance, making the camera suitable for fuel stations, ports, coastal car parks, and marine industrial facilities where standard aluminium housings would corrode prematurely.

What power options does the IDS-2CD7A46G2-P-IZHSY-2.8-12MM support?

The camera supports three power methods: PoE IEEE 802.3at Type 2, Class 4 (42.5–57 V, drawing up to 22.6 W), 12 VDC ±20 % via terminal block, and 24 VAC ±20 % via terminal block. The PoE option simplifies installation by carrying both power and data over a single Cat-5e/6 cable, while the DC/AC inputs allow integration with legacy power infrastructure at access-control gateposts or traffic gantries.

What frame rate and resolution does this camera support for vehicle capture?

In monitoring mode at 60 Hz, the IDS-2CD7A46G2-P-IZHSY-2.8-12MM delivers up to 4 MP (2688×1520) at 60 fps for full-resolution vehicle capture, or up to 120 fps at 1080p for high-speed capture of vehicles up to 120 km/h in a front-facing checkpoint scenario and 80 km/h in a side-facing lane scenario. H.265+ compression keeps storage requirements low across all five simultaneous output streams.

Professional Overview

The Hikvision IDS-2CD7A46G2-P-IZHSY-2.8-12MM is a 4 MP DeepinView ANPR motorised varifocal bullet network camera built around a 1/1.8" progressive-scan CMOS sensor with DarkFighter 2.0 low-light technology. Its motorised P-iris 2.8–12 mm lens covers a horizontal field of view from 106° down to 41.8°, enabling a single camera model to serve both close-range entry/exit monitoring and longer-range multi-lane toll or checkpoint approaches. Target applications include car park entry systems, fuel-station forecourts, gated communities, traffic enforcement points, port access gates, and any site where automated license plate management is required.

The on-board deep-learning co-processor delivers license plate recognition at ≥98 % accuracy and a capture rate of ≥99 %, covering vehicles and motorcycles in checkpoint scenarios across 4 global regions and more than 124 countries/regions. It simultaneously classifies vehicle type, colour, brand, and driving direction — all within the camera itself, removing the cost and latency of a separate analytics server. Perimeter protection (line crossing, intrusion, region entrance/exit) with human/vehicle target filtering is also available, dramatically reducing false alarms from foliage, flag movement, or stray animals. The camera supports blocklist and allowlist databases of up to 10,000 records for autonomous gate-trigger and alert workflows.

Image quality is anchored by 150 dB Adaptive WDR, which resolves both the bright halogen headlamps of an approaching vehicle and the shadowed plate characters in the same frame. H.265+ compression supports five simultaneous streams at up to 4 MP @ 60 fps (monitoring mode), cutting storage and bandwidth costs by up to 70 % versus H.264. A built-in heater ensures consistent optics in freezing temperatures, while Electronic Image Stabilisation (EIS) corrects for pole sway and vibration on gantries. On-board microSD storage up to 1 TB provides resilient edge recording independent of network connectivity, and the rich interface set — including 2-in/2-out alarm contacts, RS-485, Wiegand, and audio line in/out — integrates cleanly with access control and intercom systems.

Constructed from aluminium alloy and rated IP67 (dust- and jet-water-proof), IK10 (vandal-proof), and NEMA 4X anti-corrosion, the IDS-2CD7A46G2-P-IZHSY-2.8-12MM is engineered for the harshest outdoor environments including coastal sites, chemical plants, and storm-exposed transport infrastructure. It is powered by PoE IEEE 802.3at Type 2, 12 VDC, or 24 VAC (max. 22.6 W) and operates continuously from −40 °C to 65 °C. Backed by a 3-year Australian warranty. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired (RJ45 1000M)
Night Vision IR (DarkFighter 2.0)
Resolution 4 MP
Camera Type Bullet
Lens 2.8–12 mm motorised varifocal
Smart Features DeepinView ANPR / Perimeter Protection
Ingress Protection IP67, IK10, NEMA 4X
Power PoE 802.3at / 12 VDC / 24 VAC
IR Range 60 m
Audio / Alarm Audio in/out + 2×2 alarm I/O
Deep Learning Features ANPR / Vehicle Attributes / Perimeter Protection
IDS-2CD7A46G2-P-IZHSY-2.8-12MM_Datasheet.pdf
Download
