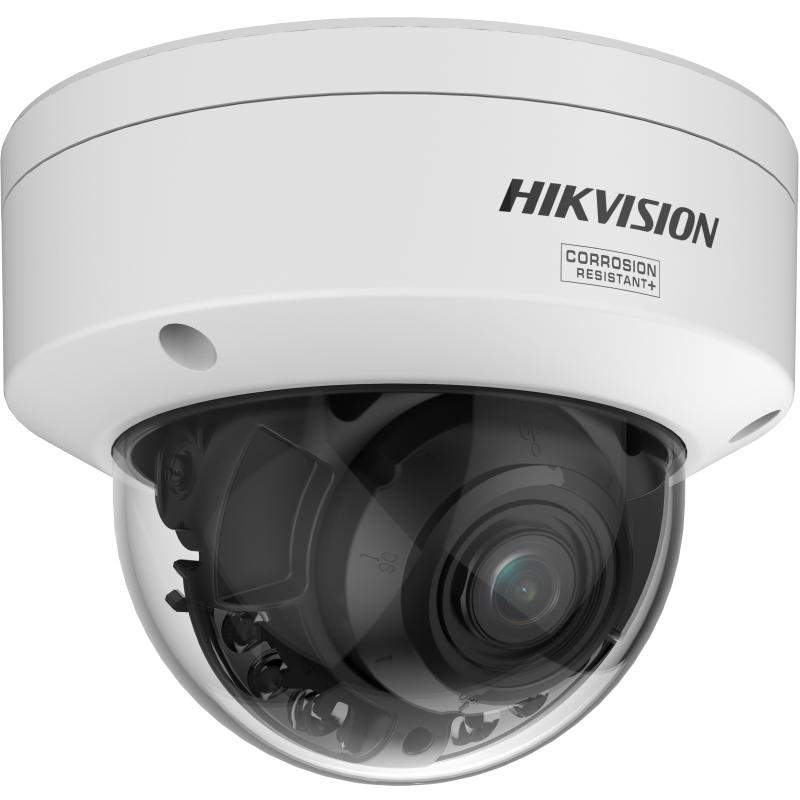

Hikvision DS-2CD3787G3T-LIZSUY Darkfighter 2.0 8 MP Varifocal Dome Network Camera, 2.7–13.5 mm, Smart Hybrid Light, NEMA 4X

https://arcip.com.au/web/image/product.template/9758/image_1920?unique=12e6e76
The DS-2CD3787G3T-LIZSUY delivers 3840 × 2160 (8 MP) resolution with Hikvision Darkfighter 2.0 technology for 24/7 full-colour imaging in near-zero-light environments. Its motorised varifocal 2.7–13.5 mm lens (F1.2) enables remote zoom and focus adjustment without a ladder, providing a horizontal field of view from 112.3° to 41.2°. Smart Hybrid Light integrates IR and white-light LEDs up to 40 m in three selectable modes for flexible night-time deterrence and identification. Onboard 1.5 TOPS deep-learning AI classifies persons and vehicles to minimise false alarms, with perimeter protection events including line crossing and intrusion detection. NEMA 4X anti-corrosion housing rated IP67/IK10, PoE+ (IEEE 802.3at), dual built-in microphone, 2 × alarm I/O and up to 512 GB microSD local recording make this camera the comprehensive outdoor solution for demanding Australian installations.

906.02 906.02 AUD 906.02 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Night Vision
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision IP Camera 4K 8MP Smart Hybrid Light Varifocal Darkfighter Dome Anti-Corrosion
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-2CD3787G3T-LIZSUY
Hikvision DS-2CD3787G3T-LIZSUY — 8 MP Darkfighter 2.0 Motorised Varifocal Dome, 2.7–13.5 mm, Smart Hybrid Light, NEMA 4X Anti-Corrosion, IP67/IK10

Features

  • Darkfighter 2.0 technology — 24/7 vivid colour imaging using an F1.2 super-aperture lens, high-performance 1/1.8" CMOS sensor and advanced light utilisation, delivering full-colour footage even in near-zero-light conditions (0.001 lux colour, 0 lux with supplemental light).
  • 8 MP 4K Ultra HD resolution — 3840 × 2160 progressive scan at up to 25/30 fps, delivering exceptional detail for licence plate capture, face recognition and forensic review across large areas.
  • Smart Hybrid Light — integrates IR (850 nm) and white light in a single illuminator up to 40 m range, with three selectable supplemental lighting modes: IR only, white light only, or automatic switching.
  • Motorised varifocal lens 2.7–13.5 mm — remote zoom and focus via software or controller, with auto-iris (max. F1.2), horizontal FOV from 112.3° (wide) to 41.2° (tele), ideal for flexible deployment without a ladder.
  • NEMA 4X anti-corrosion design (-Y suffix) — provides moderate corrosion protection, rated for coastal areas up to 2 km from the shoreline and acid-rain environments, extending operational lifespan in harsh outdoor conditions.
  • Deep learning — person & vehicle classification — AI-powered target filtering at the camera edge reduces nuisance alarms from animals, foliage or environmental triggers; perimeter protection includes line crossing, intrusion, region entrance and region exiting.
  • HIK AI-ISP noise reduction — hardware-accelerated image signal processing (1.5 TOPS computing power) delivers superior SNR (≥ 52 dB) and scene-adaptive 130 dB WDR, producing clear images under mixed artificial and natural lighting.
  • HEOP 2.0 open edge computing — 1.5 TOPS dedicated AI accelerator with 40 MB memory, 450 MB smart RAM and 2 GB eMMC supports third-party AI apps via OpendevSDK; compatible with Caffe, PyTorch, TensorFlow, PaddlePaddle and ONNX frameworks.
  • Built-in arrayed dual-microphone — environment noise filtering captures clear audio for two-way communication; paired with line input/output terminals and 2 × alarm I/O for integrated deterrence workflows.
  • IP67 / IK10 rated metal housing — fully dust-tight and water-resistant to IEC 60529, plus vandal-resistant to IEC 62262 IK10, suitable for exposed outdoor locations including car parks, industrial sites and critical infrastructure perimeters.
  • Pan/tilt/rotate adjustment — 355° pan, 75° tilt, 355° rotate for precise aiming; microSD card slot supports up to 512 GB local recording for ANR and edge-buffered footage retention.
  • PoE+ and 12 VDC power — powered via IEEE 802.3at Class 4 PoE+ (max. 18 W) or 12 VDC; ONVIF Profile S/T/G and Hikvision ISAPI/SDK ensure compatibility with third-party VMS platforms.

Specifications

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Max. Resolution3840 × 2160 (8 MP / 4K)
Min. IlluminationColour: 0.001 lux @ (F1.2, AGC ON); 0 lux with supplemental light
Shutter Time1 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
SNR≥ 52 dB
Wide Dynamic Range130 dB
Image StabilisationElectronic Image Stabilisation (EIS)
Lens
Lens TypeMotorised varifocal
Focal Length2.7–13.5 mm
Horizontal FOV112.3° (wide) – 41.2° (tele)
Vertical FOV58.1° (wide) – 23.1° (tele)
Diagonal FOV137.4° (wide) – 47.3° (tele)
ApertureMax. F1.2
Iris TypeAuto-iris
Depth of Field1 m to ∞
Lens MountIntegrated
DORI
Wide ModeDetection: 89.2 m  •  Observation: 35.4 m  •  Recognition: 17.8 m  •  Identification: 8.9 m
Tele ModeDetection: 220.0 m  •  Observation: 87.3 m  •  Recognition: 44.0 m  •  Identification: 22.0 m
Illuminator
Supplement Light TypeSmart Hybrid Light — IR and White Light
Supplement Light RangeUp to 40 m
Smart Supplement LightYes — 3 selectable modes
IR Wavelength850 nm
Video & Audio
Main Stream (50 Hz)25 fps @ 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720
Main Stream (60 Hz)30 fps @ 3840 × 2160 / 3200 × 1800 / 2688 × 1520 / 1920 × 1080 / 1280 × 720
Sub-Stream25/30 fps @ 1280 × 720 / 640 × 480 / 640 × 360
Video CompressionH.265+, H.265, H.264+, H.264, MJPEG
Video Bit Rate32 Kbps to 16 Mbps
Bit Rate ControlCBR, VBR
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Audio TypeMono sound
Audio CompressionG.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Built-in MicrophoneArrayed dual-microphone with environment noise filtering
Audio Sampling Rate8 kHz / 16 kHz / 32 kHz / 48 kHz
Smart Features & Deep Learning
Computing Power1.5 TOPS
Open PlatformHEOP 2.0 OpendevSDK (C, C++); Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Target ClassificationPerson and Vehicle detection via deep learning
Face CaptureYes
People CountingYes
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting; target-type alarm filtering (human & vehicle)
Smart EventsScene change detection, audio exception detection, defocus detection
Image EnhancementBLC, HLC, 3D DNR, Distortion Correction, Defog
Privacy Mask8 programmable polygon privacy masks
e-PTZPatrol and Auto Tracking
Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP
APIONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP
Simultaneous Live ViewUp to 6 channels
SecurityHTTPS encryption, 802.1X authentication, IP address filter, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Web BrowserChrome 91+, Firefox 88+, Edge 91+, Safari 13+ (plug-in free)
Interface
Ethernet1 × RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StoragemicroSD/microSDHC/microSDXC card slot, up to 512 GB
Audio InterfaceBuilt-in arrayed dual-microphone; 1 × line input (two-core terminal, max. 3.3 Vpp); 1 × line output (two-core terminal, max. 3.3 Vpp)
Alarm I/O2 × input, 2 × output (max. 24 VDC/24 VAC, 1 A)
Power Output12 VDC, max. 100 mA
General & Environmental
Power Supply12 VDC ± 25%, 1.35 A, max. 16.2 W; PoE IEEE 802.3at Class 4, max. 18 W
Housing MaterialMetal
Ingress ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Anti-Corrosion RatingNEMA 4X (NEMA 250-2018) — moderate protection level
DimensionsØ141 × 112 mm
Operating Temperature−30 °C to 60 °C; humidity ≤ 95% non-condensing
Storage Temperature−30 °C to 60 °C; humidity ≤ 95% non-condensing
CertificationsCE-EMC, CE-LVD, CE-RoHS, WEEE, RCM (AS/NZS CISPR 32:2015), IC (ICES-003)
Warranty3 years (Australian standard)

Darkfighter 2.0 FAQ — DS-2CD3787G3T-LIZSUY

What is the DS-2CD3787G3T-LIZSUY and what series does it belong to?

The DS-2CD3787G3T-LIZSUY is an 8 MP (4K) motorised varifocal dome network camera from Hikvision’s Darkfighter 2.0 Ultra Series. It features a 1/1.8" progressive scan CMOS sensor, a 2.7–13.5 mm motorised varifocal lens with auto-iris (max. F1.2), and Smart Hybrid Light (IR + white light) up to 40 m. The -Y suffix denotes a NEMA 4X anti-corrosion coating rated for moderate coastal and acid-rain environments. It is designed for demanding outdoor security applications requiring both 4K detail and reliable low-light colour imaging.

What does Darkfighter 2.0 technology mean for this camera?

Darkfighter 2.0 combines a large-format 1/1.8" sensor, F1.2 super-aperture lens, and Hikvision’s HIK AI-ISP image signal processing to produce vivid, full-colour images in extremely low-light conditions — down to 0.001 lux in colour mode, and effectively 0 lux when the Smart Hybrid Light is active. Unlike standard day/night cameras that switch to black-and-white at night, Darkfighter 2.0 cameras maintain colour fidelity 24/7, which significantly aids operator identification of clothing colours, vehicle colours and other critical scene details. The 130 dB Wide Dynamic Range further ensures usable images in scenes with strong backlighting or mixed natural and artificial light.

What is the Smart Hybrid Light on the DS-2CD3787G3T-LIZSUY and how does it work?

Smart Hybrid Light integrates both 850 nm IR illuminators and white-light LEDs into a single module, covering a range of up to 40 m. The camera offers three supplemental lighting modes: IR only (covert operation, greyscale image), white light only (colour night vision, visible deterrent), or automatic mode where the camera selects the appropriate light source based on ambient conditions or event triggers. In automatic mode, white light can be activated specifically when a person or vehicle is detected, providing a brief visible deterrent while recording full-colour evidence, then reverting to IR to conserve energy. This tri-mode capability makes the camera highly flexible across retail, industrial, car park and perimeter scenarios.

What is the DORI range and detection capability of the DS-2CD3787G3T-LIZSUY?

The DS-2CD3787G3T-LIZSUY supports a wide zoom-range DORI specification. In wide-angle mode (2.7 mm): Detection 89.2 m, Observation 35.4 m, Recognition 17.8 m, Identification 8.9 m. In tele mode (13.5 mm): Detection 220.0 m, Observation 87.3 m, Recognition 44.0 m, Identification 22.0 m. The motorised varifocal lens allows operators to achieve the optimal balance between field of view and subject resolution. The camera’s deep-learning engine classifies detected targets as persons or vehicles, reducing false-positive alarms triggered by animals, foliage or environmental movement.

What does the -Y suffix mean on the DS-2CD3787G3T-LIZSUY and where can it be installed?

The -Y suffix indicates a NEMA 4X anti-corrosion design per NEMA 250-2018, which Hikvision classifies as “moderate protection.” This rating is suitable for installations in coastal areas approximately 2 km or more from the coastline, and locations affected by acid rain or industrial atmospheric pollution. Combined with its IP67 dust and water-resistance (IEC 60529) and IK10 vandal resistance (IEC 62262), the camera is well-suited for outdoor perimeters, transport infrastructure, ports, commercial facilities and car parks. The metal housing further ensures longevity in high-UV or corrosive atmospheric environments.

Does the DS-2CD3787G3T-LIZSUY support PoE and what VMS platforms are compatible?

Yes. The DS-2CD3787G3T-LIZSUY supports IEEE 802.3at PoE+ (Class 4, max. 18 W) for single-cable network and power delivery, as well as 12 VDC power (max. 16.2 W). For management, the camera integrates natively with Hikvision iVMS-4200, Hik-Connect and Hik-Central. It also supports ONVIF Profile S, Profile T and Profile G, along with Hikvision ISAPI, SDK and ISUP — ensuring broad compatibility with third-party VMS platforms. The HEOP 2.0 open platform with 1.5 TOPS computing allows deployment of custom AI apps at the edge, and the microSD card slot (up to 512 GB) enables local recording and Auto Network Replenishment (ANR).

Professional Overview

The Hikvision DS-2CD3787G3T-LIZSUY is an 8 MP (4K) Darkfighter 2.0 Ultra Series motorised varifocal dome network camera designed for professional outdoor security deployments where superior low-light colour performance, flexible remote focus and durable construction are paramount. Built around a large 1/1.8" progressive scan CMOS sensor and an F1.2 super-aperture motorised 2.7–13.5 mm varifocal lens, it delivers 3840 × 2160 resolution at up to 25 fps (50 Hz) or 30 fps (60 Hz), making it an ideal choice for perimeter surveillance, car parks, retail precincts, transport hubs, educational campuses and critical infrastructure.

The camera’s defining advantage lies in its Darkfighter 2.0 imaging technology, which combines the high-sensitivity sensor with Hikvision’s HIK AI-ISP processing, 130 dB Wide Dynamic Range and Electronic Image Stabilisation to produce clear, actionable footage under virtually any lighting condition. Minimum illumination of 0.001 lux in colour mode — dropping to 0 lux when the Smart Hybrid Light is engaged — ensures full-colour scene capture after dark without the need for external lighting infrastructure. Smart Hybrid Light integrates 850 nm IR illuminators and white-light LEDs in a single 40 m-range module, selectable in three modes: IR only, white light only, or automatic event-driven activation for deterrence or identification workflows.

Onboard deep learning (1.5 TOPS, HEOP 2.0 platform) powers person-and-vehicle classification that reduces nuisance alarms at the sensor rather than relying on back-end server analytics. Perimeter protection events — line crossing, intrusion, region entrance and region exiting — can be restricted to human or vehicle targets specifically, while Face Capture and People Counting extend the camera’s analytical capability to operational intelligence use cases. The open HEOP 2.0 SDK (supporting C/C++ and major AI frameworks including PyTorch, TensorFlow and ONNX) allows integrators to deploy proprietary AI applications directly on the 2 GB eMMC edge compute substrate, future-proofing installations against evolving analytical requirements. Audio capability is comprehensive: an arrayed dual-microphone with noise filtering captures ambient sound, complemented by line-level audio input/output terminals and two alarm I/O channels for bidirectional communication and automated response workflows.

Constructed in a metal dome housing rated IP67 (IEC 60529) for dust and water ingress, IK10 (IEC 62262) for vandal resistance, and NEMA 4X for moderate anti-corrosion performance, the DS-2CD3787G3T-LIZSUY is built to endure Australia’s coastal and industrial atmospheric conditions with a 3-year manufacturer’s warranty. Power options include IEEE 802.3at PoE+ Class 4 (max. 18 W) and 12 VDC, and the camera ships with ONVIF Profile S/T/G support, Hikvision ISAPI/SDK/ISUP integration and a microSD card slot (up to 512 GB) for on-camera ANR recording. Australian stock from ARC IP Networks.

Brand Hikvision
Network Connectivity Wired
Night Vision Smart Hybrid Light (IR + White Light)
Resolution 8 MP (4K)
Camera Type Dome
Lens 2.7–13.5 mm motorised varifocal
Smart Features Darkfighter 2.0 + Person/Vehicle AI
Ingress Protection IP67 / IK10 / NEMA 4X
Power PoE+ (802.3at) / 12 VDC
IR Range Up to 40 m (Smart Hybrid Light)
Audio / Alarm Built-in dual-mic + 2× alarm I/O
DS-2CD3787G3T-LIZSUY_Datasheet.pdf
