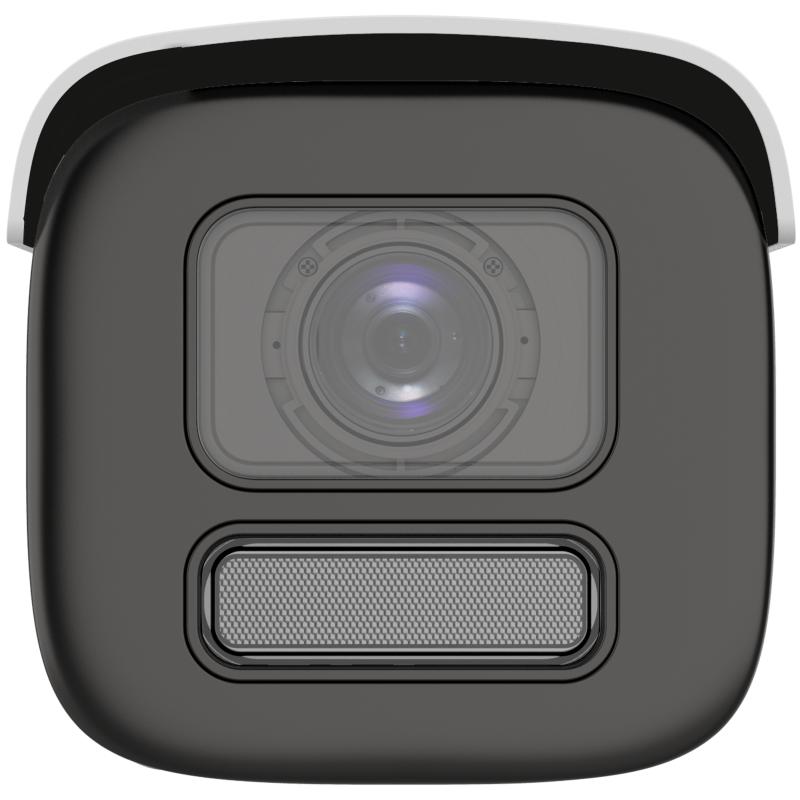

Hikvision DS-2CD3666G2HT-LIZSY-2.7-13.5M Smart Hybrid Light 6 MP Motorized Varifocal Bullet Network Camera, 2.7-13.5 mm, 60 m IR

https://arcip.com.au/web/image/product.template/9770/image_1920?unique=12e6e76
The DS-2CD3666G2HT-LIZSY-2.7-13.5M is a 6 MP Smart Hybrid Light motorized varifocal bullet camera from Hikvision's Ultra Series. It features a 2.7-13.5 mm motorized lens with remote zoom and focus, 850 nm IR plus white-light dual illumination up to 60 m, and 120 dB WDR for challenging lighting. On-board 1.5 TOPS deep learning delivers line crossing, intrusion detection, face capture, and people counting with human/vehicle classification. Rated IP67 weatherproof and IK10 vandal resistant with full audio, alarm I/O, and microSD edge storage to 512 GB.

650.19 650.19 AUD 650.19 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Resolution
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Lens Type
  • Focal Length
  • Vandal Resistance
  • Compression

This combination does not exist.

In stock online
Bullet Camera Hikvision IP Camera AcuSense Smart Hybrid Light 6MP Ultra Series Deep Learning Motorized Varifocal
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
DS-2CD3666G2HT-LIZSY-2.7-13.5M
Hikvision DS-2CD3666G2HT-LIZSY-2.7-13.5M — 6 MP Smart Hybrid Light Motorized Varifocal Bullet Network Camera, 2.7–13.5 mm Motorized Varifocal, Smart Hybrid Light with up to 60 m IR Range

Key Features

  • 6 MP High-Resolution Imaging — 1/1.8” Progressive Scan CMOS sensor captures 3200 × 1800 resolution at up to 25/30 fps, delivering crisp detail for licence plates, faces, and perimeter surveillance.
  • Smart Hybrid Light Technology — Combines 850 nm IR illumination with white-light strobe for colour-accurate alarm evidence at night; up to 60 m supplemental light range with smart intensity adjustment to prevent over-exposure.
  • Motorized Varifocal Lens 2.7–13.5 mm — Remote zoom and focus via the Hikvision client reduces installation time and allows precise framing without physically accessing the camera; horizontal FOV 112.3° wide to 41.2° tele.
  • 120 dB Wide Dynamic Range — High-performance WDR circuitry simultaneously captures bright and shadowed scene areas, ensuring readable detail in high-contrast environments such as building entrances and car parks.
  • Deep Learning Perimeter Protection — Line crossing, intrusion, region entrance and region exiting with human/vehicle classification reduces false alarms caused by small animals, debris, or lighting changes.
  • Face Capture & People Counting — On-board deep learning engine (1.5 TOPS) supports face capture and occupancy analytics without an external server; 40 MB system memory, 350 MB smart RAM, 2 GB eMMC.
  • H.265+ Efficient Compression — H.265+ cuts bandwidth and storage requirements by up to 50 % compared with H.264 while maintaining full 6 MP image quality.
  • IP67 Weatherproofing & IK10 Vandal Resistance — All-metal housing (front cover, body, and bracket) withstands dust ingress, heavy rain, and up to 20 J of impact energy, suitable for exposed external mounting.
  • Hikvision Embedded Open Platform (HEOP 2.0) — Run third-party analytics applications directly on-camera; supports Caffe, PyTorch, TensorFlow, PaddlePaddle, and ONNX frameworks via C/C++ SDK.
  • PoE & 12 VDC Dual Power — IEEE 802.3at Class 4 PoE (max 18 W) or 12 VDC ± 25%; simplifies cable runs and allows UPS-backed switch power during mains outages.
  • MicroSD Edge Storage up to 512 GB — Local recording protects evidence if network connectivity is interrupted; Auto Network Replenishment (ANR) backfills the NVR once the link is restored.
  • Audio & Alarm I/O — One audio input and one output (line-level terminal blocks); two alarm inputs and two relay outputs (24 VDC/VAC, 1 A) for integration with access control, strobe lights, or sirens.

Technical Specifications

Camera
Image Sensor1/1.8” Progressive Scan CMOS
Max. Resolution3200 × 1800
Min. IlluminationColor: 0.0028 Lux @ (F1.2, AGC ON); 0 Lux with supplemental light
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter with auto switching
Wide Dynamic Range120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR, Defog
Privacy Mask4 programmable polygon privacy masks
Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 90°, Rotate: 0° to 360°
Lens
Lens TypeMotorized varifocal lens
Focal Length2.7 to 13.5 mm
Horizontal FOV112.3° (wide) to 41.2° (tele)
Vertical FOV58.1° (wide) to 23.1° (tele)
Diagonal FOV137.4° (wide) to 47.3° (tele)
Iris TypeDC iris
ApertureF1.2
FocusAuto, Semi-auto, Manual
Lens MountIntegrated
Depth of Field1 m to ∞
Illuminator
Supplement Light TypeIR & White Light
IR Wavelength850 nm
Supplement Light RangeUp to 60 m
Smart Supplement LightYes — auto intensity adjustment
DORI
Wide (2.7 mm)Detect: 89 m  •  Observe: 35 m  •  Recognise: 18 m  •  Identify: 9 m
Tele (13.5 mm)Detect: 220 m  •  Observe: 87 m  •  Recognise: 44 m  •  Identify: 22 m
Smart Features & Deep Learning
Computing Power1.5 TOPS
Open ResourcesSystem Memory: 40 MB; Smart RAM: 350 MB; eMMC Storage: 2 GB
HEOP PlatformHEOP 2.0 with OpendevSDK; supports C, C++
Deep Learning FrameworksCaffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting (human & vehicle)
Face CaptureYes
People CountingYes
Basic EventsMotion detection (human/vehicle), video tampering, exception
Smart EventsScene change, audio exception, defocus detection
Video & Audio
Main Stream (50 Hz)25 fps @ 3200×1800, 2688×1520, 1920×1080, 1280×720
Main Stream (60 Hz)30 fps @ 3200×1800, 2688×1520, 1920×1080, 1280×720
Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
Bit Rate ControlCBR, VBR
ROI5 fixed regions for main stream and sub-stream
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate8 kHz / 16 kHz / 32 kHz / 48 kHz
Environment Noise FilteringYes
Network
ProtocolsTCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, SRTP
Simultaneous Live ViewUp to 6 channels
APIONVIF Profile S/G/T, ISAPI, SDK, ISUP
Users/HostUp to 32 users; 3 levels: administrator, operator, user
Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
On-Board StoragemicroSD/microSDHC/microSDXC up to 512 GB
Client SoftwareiVMS-4200, Hik-Connect, Hik-Central
General & Environmental
Power12 VDC ± 25%, max. 14.5 W (coaxial plug)  |  PoE IEEE 802.3at Class 4, max. 18 W
MaterialMetal front cover, metal body, metal bracket
Dimensions (L × W × H)334 mm × 97.9 mm × 95.7 mm
Ingress ProtectionIP67 (IEC 60529-2013)
Vandal ResistanceIK10 (IEC 62262:2002)
Operating Temperature−30 °C to 60 °C; humidity ≤ 95% non-condensing
Storage Temperature−30 °C to 60 °C; humidity ≤ 95% non-condensing
Interface1 × RJ45 10/100 M; 1 audio in; 1 audio out; 2 alarm in; 2 alarm out; 1 microSD slot; reset key; 12 VDC power output 100 mA
ApprovalCE-EMC, CE-LVD (EN 62368-1), UL 62368-1, CB, CE-RoHS, IP67, IK10
Included AccessoryDS-1260ZJ Junction Box

Frequently Asked Questions

What resolution does the DS-2CD3666G2HT-LIZSY-2.7-13.5M deliver?

The DS-2CD3666G2HT-LIZSY-2.7-13.5M captures video at up to 3200 × 1800 (6 MP) at 25 fps (50 Hz) or 30 fps (60 Hz). It uses a 1/1.8” Progressive Scan CMOS sensor and compresses footage with H.265+ to reduce storage and bandwidth consumption by up to 50 % versus H.264.

What is Smart Hybrid Light and how does it work on this camera?

Smart Hybrid Light is a Hikvision technology that combines 850 nm infrared illumination with white-light LEDs in a single camera. In normal night operation the IR illuminator delivers covert black-and-white video up to 60 m. When an alarm is triggered (via perimeter protection or motion detection), the camera automatically switches to white-light mode to capture full-colour evidence and optionally act as a visual deterrent. The smart intensity control prevents over-exposure when objects are close to the lens.

What perimeter protection and deep learning features are built into this Hikvision Ultra Series camera?

The DS-2CD3666G2HT-LIZSY is part of Hikvision's Ultra Series SmartIP range and runs a 1.5 TOPS deep learning engine on-board. It supports line crossing detection, intrusion, region entrance, and region exiting — each able to filter alarms by human or vehicle classification to minimise false triggers. Additional analytics include face capture, people counting, scene change detection, audio exception detection, and defocus detection. The HEOP 2.0 platform also allows third-party AI applications to be loaded directly onto the camera using TensorFlow, PyTorch, Caffe, PaddlePaddle, or ONNX frameworks.

How far can this camera detect, observe, recognise, and identify objects?

At the widest focal setting (2.7 mm, 112.3° HFOV) the DORI distances are: Detect 89 m, Observe 35 m, Recognise 18 m, Identify 9 m. At the telephoto end (13.5 mm, 41.2° HFOV) the distances extend to: Detect 220 m, Observe 87 m, Recognise 44 m, Identify 22 m. The motorized lens allows remote adjustment between these extremes without physical access to the camera.

Is the DS-2CD3666G2HT-LIZSY suitable for harsh outdoor environments in Australia?

Yes. The camera carries IP67 certification (IEC 60529-2013) for complete dust exclusion and water ingress protection in heavy rain, and IK10 vandal resistance (IEC 62262:2002) to withstand 20 J impact energy. The all-metal construction (front cover, body, and bracket) handles operating temperatures from −30 °C to 60 °C, covering the full range of Australian climate conditions from alpine to tropical. Power is flexible: IEEE 802.3at PoE or 12 VDC.

What storage options does the DS-2CD3666G2HT-LIZSY support?

The camera supports three complementary storage layers. A built-in microSD/microSDHC/microSDXC slot accepts cards up to 512 GB for continuous or event-triggered edge recording. Auto Network Replenishment (ANR) automatically backfills any recording gaps to the NVR once network connectivity is restored. For server-side storage, the camera supports NAS via NFS or SMB/CIFS. Together these options ensure footage is preserved even during network or NVR outages.

Professional Overview

The Hikvision DS-2CD3666G2HT-LIZSY-2.7-13.5M is a professional-grade 6 megapixel Smart Hybrid Light motorized varifocal bullet camera engineered for demanding perimeter and wide-area surveillance applications. It occupies Hikvision's Ultra Series SmartIP tier, combining the optical flexibility of a remote-zoom motorized varifocal lens with the scene-adaptive illumination of Smart Hybrid Light, high-performance 120 dB WDR, and an on-board 1.5 TOPS deep learning processor — all within a vandal-resistant IP67/IK10 metal housing that operates from −30 °C to 60 °C.

The 2.7–13.5 mm motorized lens delivers a horizontal field of view from 112.3° at the wide end down to 41.2° at the telephoto end, with DORI detection distances ranging from 89 m (wide) to 220 m (tele). Remote focus and zoom via iVMS-4200, Hik-Connect, or any ONVIF-compliant VMS eliminate the need for physical access during commissioning and re-focusing after post-installation adjustments. The F1.2 aperture and 0.0028 Lux minimum colour illumination further extend low-light performance before the Smart Hybrid Light activates.

On-board deep learning enables perimeter protection (line crossing, intrusion, region entrance, region exiting) with human and vehicle classification, face capture, and people counting — reducing false alarms compared with legacy pixel-based motion detection. The HEOP 2.0 open platform allows integrators to deploy custom or third-party analytics directly on the camera edge node, supporting Caffe, PyTorch, TensorFlow, PaddlePaddle, and ONNX model formats via a C/C++ SDK. Connectivity options include ONVIF Profile S/G/T, ISAPI, and ISUP, ensuring compatibility with Hikvision and third-party VMS platforms.

Ideal for retail centres, logistics warehouses, industrial sites, transportation infrastructure, and critical national infrastructure requiring long-range identification capability, the DS-2CD3666G2HT-LIZSY-2.7-13.5M is backed by Hikvision's five-year warranty program. Australian stock from ARC IP Networks.

Brand Hikvision
Form Factor Bullet
Resolution 6 MP (3200 × 1800)
Smart Features Smart Hybrid Light
Ingress Protection IP67
Power PoE (802.3at) / 12 VDC
IR Range 60 m
Lens Type Motorized Varifocal
Focal Length 2.7-13.5 mm
Vandal Resistance IK10
Compression H.265+
DS-2CD3666G2HT-LIZSY-2.7-13.5M_Datasheet.pdf
