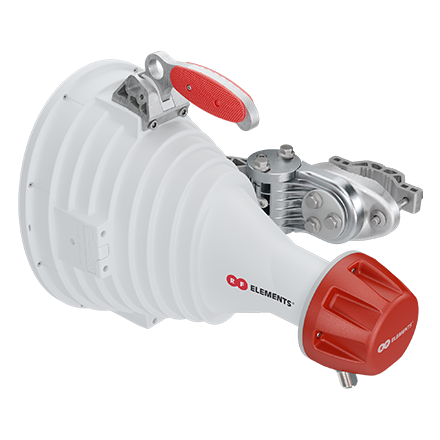

RF Elements HG3-CC-A30 Asymmetrical Horn CC 30° 20.5 dBi 5 GHz Carrier Class N-type Antenna

https://arcip.com.au/web/image/product.template/3500/image_1920?unique=874d354

RF Elements HG3-CC-A30 is a 5 GHz carrier class asymmetrical horn sector antenna with 20.5 dBi gain across 5180 - 6000 MHz, H 30° / V 30° azimuth at −6 dB and a 35 dB front-to-back ratio. It uses two N-female connectors (carrier class) and is rated IP55.

$ 722.93 722.93 AUD $ 722.93 incl. GST

Not Available For Sale


  • Brand
  • Frequency Band
  • Antenna Gain
  • Beam Width
  • Antenna Type
  • Connector
  • Polarization
  • Mounting

This combination does not exist.

5 GHz RF Elements Horn Antenna WISP Antenna Sector Antenna Asymmetrical Horn 30° Point-to-Multipoint Carrier Class
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal

RF Elements HG3-CC-A30 at a glance

The RF Elements HG3-CC-A30 is a 5 GHz carrier class asymmetrical horn sector antenna: 20.5 dBi across 5180 - 6000 MHz with 30° azimuth coverage at −6 dB and a 35 dB front-to-back ratio. Horn antennas have very low side lobes, which cuts the noise a sector hears and lets more sectors share a tower. It uses two N-female bulkhead connectors, so connectorised radios connect by RF jumpers. RF Elements lists it among its discontinued products.

ARC IP Networks is an authorised RF Elements reseller in Australia. We supply the genuine RF Elements HG3-CC-A30 at competitive prices, from Australian stock, with the full manufacturer's warranty and a GST tax invoice.

Gain20.5 dBi
Frequency5180 - 6000 MHz
Azimuth −6 dBH 30° / V 30°
Elevation −6 dBH 20° / V 20°
Front-to-back35 dB
Connector2 x N-female (carrier class)
Weight4.5 kg
RatingIP55

Best for

  • 30° long-range sectors with connectorised radios
  • N-type radio installs
  • Replacing earlier carrier class horns

Consider instead

Key features

20.5 dBi gain, 5180 - 6000 MHz

H 30° / V 30° azimuth and H 20° / V 20° elevation at −6 dB

35 dB front-to-back ratio, very low side lobes

Carrier class: 2 x N-female bulkhead connectors

IP55 rated, 160 km/h wind survival

Pole mount 36-80 mm, ± 25° Elevation, ± 20° Azimuth

RF Elements HG3-CC-A30 specifications

Performance

Frequency Range5180 - 6000 MHz
Gain20.5 dBi
Azimuth Beam Width -3 dBH 21° / V 21°
Elevation Beam Width -3 dBH 15° / V 15°
Azimuth Beam Width -6 dBH 30° / V 30°
Elevation Beam Width -6 dBH 20° / V 20°
Beam Efficiency (defined up to first null)95%
Front-to-Back Ratio35 dB
VSWR Max 5180-6000 MHz1.8
PolarizationDual Linear H + V
Impedance50 Ohm

Technical Data

Radio Connection2x N Female Bulkhead Connector
Antenna TypeHorn
MaterialsUV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel
EnvironmentalIP55
Pole Mounting Diameter36-80 mm (recommend as close to 80 mm as possible)
Temperature-35°C to +55°C (-31°F to +131°F)
Wind Survival160 km/hour
Wind Loading67 N at 160 km/hour
Mechanical Adjustment± 25° Elevation, ± 20° Azimuth

Physical

Weight4.5 kg – single unit (subject to change)
Weight incl. package6.6 kg / 14.6 lbs (subject to change)
Single Unit Retail Box435 × 360 × 250 mm / 17.1 × 14.2 × 9.8 inch (subject to change)

Specifications from RF Elements' official product documentation for the HG3-CC-A30, checked October 2026.

The RF Elements HG3-CC-A30 in depth

What it is

This is RF Elements' carrier class asymmetrical horn, 30°: wide azimuth with narrower elevation for range, plus two N-female bulkhead connectors for connectorised radios. RF Elements' current equivalent is the AH30-CC.

Why horns reduce noise

Conventional sector antennas have large side lobes that pick up interference from neighbouring sectors and towers. RF Elements horns have a symmetrical beam with very low side lobes, so each sector hears mainly its own clients. That keeps signal-to-noise and modulation higher and makes it practical to reuse frequencies on one tower.

Connection

This carrier class model has two N-female bulkhead connectors for connectorised radios using RF jumpers.

Availability

RF Elements lists this model among its discontinued products. We sell remaining Australian stock while it lasts; ask us about the current RF Elements replacement.

Frequently asked questions

Straight answers about the RF Elements HG3-CC-A30 from the ARC IP Networks team. Last reviewed October 2026.

It is a 5 GHz carrier class asymmetrical horn sector antenna from RF Elements: 20.5 dBi, 5180 - 6000 MHz, H 30° / V 30° azimuth at −6 dB, 35 dB front-to-back, 2 x N-female (carrier class) connector.

Horn antennas have a clean, symmetrical beam with very low side lobes and back lobes. That rejects interference from other sectors and towers, keeps modulation higher and makes frequency reuse on one tower practical.

Connectorised 5 GHz radios through two N-type RF jumpers.

On a pole of 36-80 mm with the supplied bracket, with ± 25° Elevation, ± 20° Azimuth adjustment.

RF Elements lists the HG3-CC-A30 among its discontinued products. We sell remaining Australian stock while it lasts; ask us about the current RF Elements replacement if you need more units.

ARC IP Networks is an authorised RF Elements reseller and supplies the genuine RF Elements HG3-CC-A30 at competitive prices from Australian stock, with the full manufacturer's warranty and a GST tax invoice. Trade and project pricing is available.

Buy the RF Elements HG3-CC-A30 in Australia

ARC IP Networks is an authorised RF Elements reseller, supplying genuine RF Elements horn, dish and sector antennas and TwistPort adaptors at competitive prices to ISPs, integrators and businesses across Australia.

  • Genuine RF Elements products, never grey import.
  • Australian stock with Australia-wide delivery.
  • Full manufacturer's warranty and local pre-sales help with antenna selection.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a horn-based sector?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right RF Elements antenna for your network.

Brand RF Elements
Frequency Band 5.18-6.4 GHz
Antenna Gain 22 dBi
Beam Width 30°
Antenna Type Symmetrical Horn
Connector Carrier Class (N-type)
Polarization Dual-Slant ±45°
Mounting Pole Mount 40-80mm
