Synology HAT3320-20T 20TB Plus Series 3.5in SATA HDD 7200rpm 1GB Cache CMR for Synology NAS

Price:

$ 1,320.59


Synology DS225+ 2-Bay NAS Intel Celeron J4125 2GB DDR4 2.5GbE + 1GbE (Diskless)
Synology DS225+ 2-Bay NAS Intel Celeron J4125 2GB DDR4 2.5GbE + 1GbE (Diskless)
$ 629.44
$ 629.44
Synology HAT3300-4T 4TB Plus Series 3.5in SATA HDD 5400rpm 256MB Cache CMR for Synology NAS
Synology HAT3300-4T 4TB Plus Series 3.5in SATA HDD 5400rpm 256MB Cache CMR for Synology NAS
$ 394.94
$ 394.94

Synology HAT3320-20T 20TB Plus Series 3.5in SATA HDD 7200rpm 1GB Cache CMR for Synology NAS

https://arcip.com.au/web/image/product.template/15494/image_1920?unique=6bbe47d

Synology HAT3320-20T Plus Series 20 TB 3.5in SATA hard drive for Synology NAS. SATA 6 Gb/s interface, 512e sectors, 7,200 rpm helium-sealed design with 1 GB cache and CMR recording. Maximum sustained transfer speed 295 MB/s (typical). Rated for 180 TB/year workload and 1,200,000-hour MTBF for 24/7 operation, with over 500,000 hours of Synology compatibility and stress testing. Firmware updates install directly through Synology DSM. 4.35 W active idle, 7.62 W average operating power. Weight 730 g. 3-year limited warranty. Genuine Synology from ARC IP Networks, authorised Synology reseller with Australian stock.

$ 1,320.59 1320.59 AUD $ 1,320.59 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
HAT3320-20T

Synology HAT3320-20T at a glance

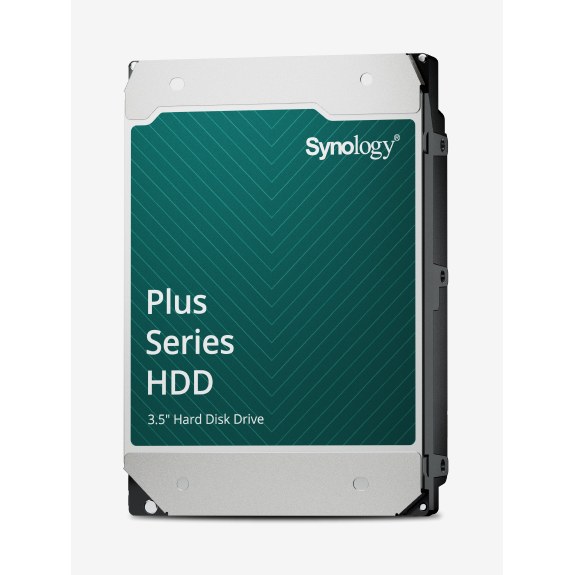

The Synology HAT3320-20T is a 20 TB Plus Series 3.5" SATA 6 Gb/s hard drive built for 24/7 operation in Synology home and small office NAS systems. It spins at 7,200 rpm with a 1 GB cache and CMR recording, delivers up to 295 MB/s sustained transfer, and is rated for 180 TB/year workload with a 1,200,000-hour MTBF.

ARC IP Networks is an authorised Synology reseller in Australia. We supply the genuine Synology HAT3320-20T from Australian stock.

Capacity20 TB, 3.5" SATA
Speed7,200 rpm, 295 MB/s
Reliability1.2M hours MTBF
Warranty3 years

Best for

  • Populating Synology DiskStation and RackStation systems in homes and small offices
  • Always-on file sharing and backup storage in multi-user environments
  • Large media, surveillance archive and backup libraries that need the highest Plus Series capacity per bay

Key features

20 TB capacity in a 3.5" form factor with a SATA 6 Gb/s interface and 512e sector size.

Conventional magnetic recording (CMR) for consistent write performance over the drive's life.

7,200 rpm helium-sealed design with 1 GB cache and up to 295 MB/s maximum sustained transfer speed.

Rated for 180 TB/year workload and a 1,200,000-hour MTBF for 24/7 NAS operation.

Validated through over 500,000 hours of compatibility and stress testing in Synology systems.

Firmware updates are notified and installed directly in Synology DSM, without removing the drive.

Synology reports up to 36% faster sequential reads than similar-class third-party drives in its testing (12 drives on an RS2423RP+, RAID 5).

Power draw of 4.35 W active idle and 7.62 W average operating power.

Listed by Synology as an optional Plus Series drive for the DS925+, DS425+ and DS1525+.

Synology HAT3320-20T specifications

Synology HAT3320-20T technical specifications
SpecificationValue
General
Capacity20 TB
Form factor3.5"
InterfaceSATA 6 Gb/s
Sector size512e
Drive designHelium-sealed
Recording technologyCMR
Performance & Reliability
Rotational speed7,200 rpm
Cache1 GB
Max sustained transfer (typical)295 MB/s
MTBF1,200,000 hours
Workload rating180 TB/year
Warranty3 years
Power
Supply voltage12 V (±10%) / 5 V (+10/-7%)
Active idle (typical)4.35 W
Average operating power (random read/write 4KB Q1)7.62 W
Environment
Operating temperature5°C to 60°C
Non-operating temperature-40°C to 70°C
Operating shock490 m/s² (2 ms)
Non-operating shock1,960 m/s² (2 ms)
Operating humidity5% to 90% RH, non-condensing
Acoustics (idle / seek, typical)20 dB / 32 dB
Physical & Certification
Size (H x W x D)26.1 mm x 101.85 mm x 147 mm
Weight730 g
CertificationsCE, RCM, BSMI, KC, UKCA, UL, TUV, ICES, RoHS

Figures from Synology's official product specifications.

The Synology HAT3320-20T in depth

Built for Synology systems

Synology Plus Series HDDs are designed for the reliability, endurance and performance needs of 24/7 storage in Synology home and small business NAS. The 20 TB HAT3320-20T uses CMR recording, a 7,200 rpm helium-sealed design and a 1 GB cache, delivering up to 295 MB/s sustained transfer.

Endurance and testing

The drive is rated for 180 TB/year workload and a 1,200,000-hour MTBF, and Plus Series drives go through over 500,000 hours of compatibility and stress testing. Synology covers it with a 3-year limited warranty.

Simple firmware maintenance

DSM notifies you when new drive firmware is available and installs it in place, so there is no need for third-party tools or removing disks from the NAS.

Frequently asked questions

Straight answers about the Synology HAT3320-20T from the ARC IP Networks team. Last reviewed October 2026.

It uses conventional magnetic recording (CMR); Synology states the Plus Series is 100% CMR for consistent write performance.

It spins at 7,200 rpm with a 1 GB cache and a SATA 6 Gb/s interface, with a maximum sustained transfer speed of 295 MB/s (typical).

Synology lists the HAT3300 Plus Series as an optional drive for systems including the DS925+, DS425+ and DS1525+, and promotes the series for the RS422+ and DS223. Check Synology's compatibility list for your exact model.

The 20 TB model is rated for a 1,200,000-hour MTBF and a 180 TB/year workload.

Synology provides a 3-year limited warranty from the purchase date.

ARC IP Networks is an authorised Synology reseller and supplies the HAT3320-20T from Australian stock.

Explore the full Synology range: Shop all Synology · NAS and storage guides

Buy the Synology HAT3320-20T in Australia

ARC IP Networks is an authorised Synology reseller, supplying Synology NAS, rackmount storage, drives, surveillance and backup appliances to homes, businesses and integrators across Australia.

  • Genuine Synology with the full manufacturer's warranty, supplied from Australian stock.
  • Australian stock, shipped Australia-wide.
  • Local pre-sales help sizing drives, RAID and backup for your NAS.
  • Trade and project pricing available.

Planning a Synology storage project?

Ask ARC IP Networks for project pricing or a NAS and drive bundle quote, or call us to check the right Synology model for your data.

Brand Synology
