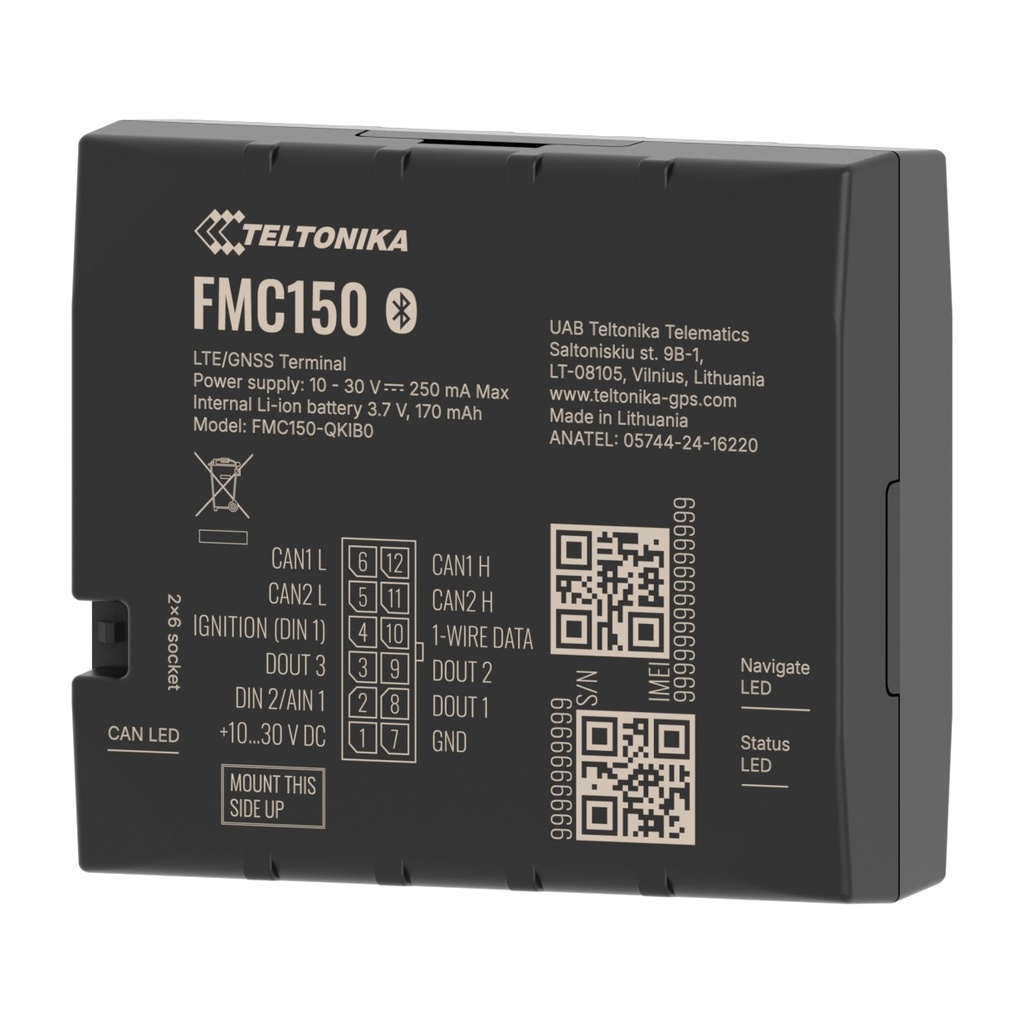

Teltonika FMC150 4G LTE Cat 1 GPS Tracker with Integrated CAN Data Processor

https://arcip.com.au/web/image/product.template/15759/image_1920?unique=6bbe47d

Teltonika FMC150 advanced 4G LTE Cat 1 GPS tracker with integrated CAN data processor (order code FMC150UAXW01). Reads fuel level, consumption, odometer, speed, RPM and pedal position from light vehicles, EVs, trucks and buses. Internal GNSS and cellular antennas, GPS/GLONASS/Galileo/BeiDou, Bluetooth 4.0 + LE, 2 CAN interfaces, 1-Wire, negative input, 10-30 V DC input, 170 mAh backup battery, IP41, 65 x 56.6 x 20.6 mm, 55 g. Genuine Teltonika from ARC IP Networks, authorised Teltonika reseller with Australian stock.

$ 197.47 197.47 AUD $ 197.47 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
FMC150

Teltonika FMC150 at a glance

The Teltonika FMC150 is an advanced 4G LTE Cat 1 vehicle GPS tracker with an integrated CAN data processor, so it reads fuel level, fuel consumption, odometer, speed, RPM and pedal position directly from light vehicles, EVs, trucks and buses. It has internal GNSS and cellular antennas, Bluetooth LE and a 170 mAh backup battery in a 65 x 56.6 x 20.6 mm housing.

ARC IP Networks is an authorised Teltonika reseller in Australia. We supply the Teltonika FMC150 from Australian stock.

NetworkLTE Cat 1, 2G fallback
CAN data2 CAN interfaces
GNSSGPS, GLONASS, Galileo, BeiDou
Backup battery170 mAh Li-Ion

Best for

  • Fleets that need real fuel and odometer data without a separate CAN adapter
  • Logistics, delivery and utility vehicles including EVs, trucks and buses
  • Car sharing and rental operators needing CAN-based trip data

Key features

2-in-1 design: GPS tracker and CAN adapter in one housing.

Reads fuel level, total fuel consumption, wheel speed, distance, engine RPM and accelerator pedal position (LV-CAN parameters).

4G LTE Cat 1 with fallback to 2G (GSM).

Internal high-gain GNSS and cellular antennas; GPS, GLONASS, Galileo, BeiDou and QZSS.

Bluetooth 4.0 + LE for temperature/humidity sensors, OBDII dongle and other LE sensors.

Negative input for easier accessory installation; 1-Wire and 2 CAN interfaces.

10-30 V DC input with overvoltage protection and a 170 mAh backup battery.

Scenarios including Green Driving, crash, towing, unplug and jamming detection, immobiliser and geofences.

Configuration and FOTA updates over USB or Bluetooth with Teltonika Configurator, plus SMS and GPRS commands.

Teltonika FMC150 specifications

Teltonika FMC150 technical specifications
SpecificationValue
Module
TechnologyLTE Cat 1/GSM/GPRS/GNSS/Bluetooth LE
Module optionsFMC150-QJIB0: Quectel EG915U-EU; FMC150-QKIB0: Quectel EG915U-LA
SIMMicro-SIM or eSIM
GNSS
SystemsGPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Tracking sensitivity-165 dBm
Position accuracy< 2.5 CEP
Hot / warm / cold start< 1 s / < 25 s / < 35 s
Interfaces
CAN interfaces2
1-Wire1
USB2.0 Micro-USB
LED indication3 status LEDs
Memory128 MB internal flash
Bluetooth4.0 + LE
Power
Input voltage10 - 30 V DC with overvoltage protection
Backup battery170 mAh Li-Ion 3.7 V (0.63 Wh)
Physical & Environment
Dimensions65 x 56.6 x 20.6 mm (L x W x H)
Weight55 g
Operating temperature (without battery)-40 °C to +85 °C
Humidity5% to 95% non-condensing
Ingress protectionIP41
RegulatoryCE/RED, E-Mark, RCM, RoHS, REACH

Figures from Teltonika's official product information.

The Teltonika FMC150 in depth

Tracker and CAN adapter in one

The FMC150 combines a 4G LTE Cat 1 GPS tracker with an integrated CAN data processor. With the default LV-CAN software it reads fuel level, fuel consumption, odometer, CAN speed and pedal position from a wide range of light vehicles, electric vehicles, trucks and buses, without a separate CAN adapter.

Built for fleet scenarios

Internal high-gain antennas, Bluetooth LE sensor support and an accelerometer enable Green Driving, crash detection, towing and unplug alerts, immobiliser control and geofencing, while the backup battery keeps reporting if external power is cut.

Frequently asked questions

Straight answers about the Teltonika FMC150 from the ARC IP Networks team. Last reviewed October 2026.

With the default LV-CAN software it reads fuel level, total fuel consumption, vehicle speed, driven distance, engine RPM and accelerator pedal position.

Yes. Teltonika lists light vehicles, electric vehicles, trucks and buses as supported vehicle types.

10-30 V DC from the vehicle, with overvoltage protection and a 170 mAh internal backup battery.

The FMC150 is hardware only. It needs a data SIM and a tracking platform or server that accepts Teltonika devices; it is configured with the free Teltonika Configurator.

ARC IP Networks is an authorised Teltonika reseller and supplies the FMC150 from Australian stock.
