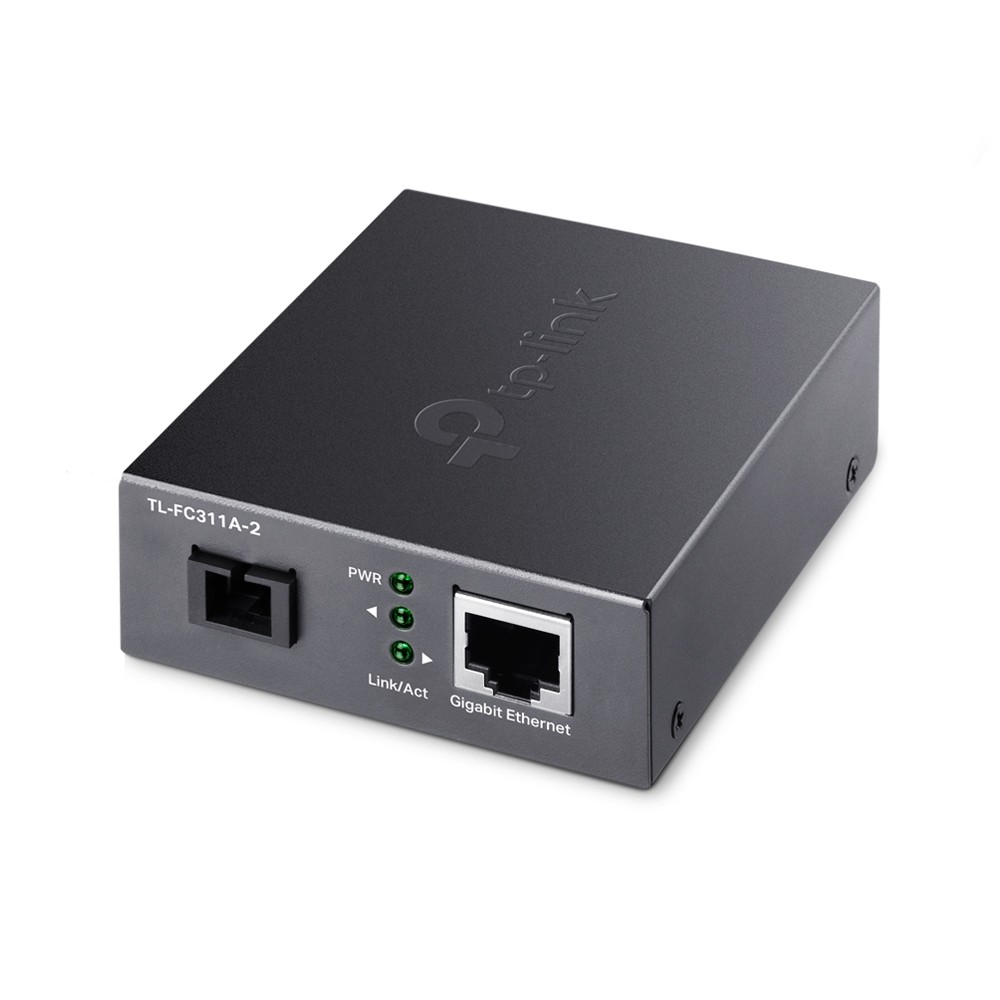

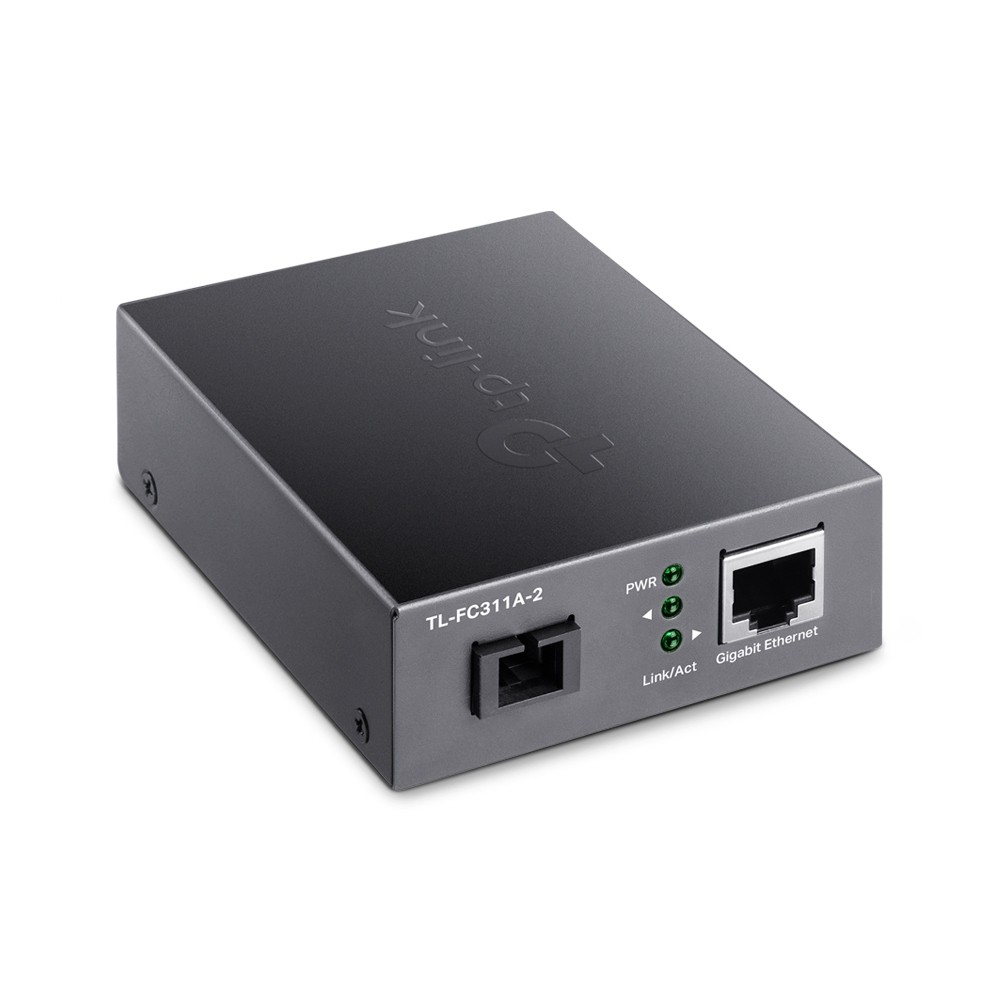

TP-Link FC311A-2 Gigabit WDM Media Converter

https://arcip.com.au/web/image/product.template/11385/image_1920?unique=0bbdb30

The TP-Link FC311A-2 is a Gigabit WDM Media Converter that converts between electrical and optical signals, with one gigabit SC fibre port and one 10/100/1000 Mbps RJ45 port with auto MDI/MDIX. WDM technology lets it transmit and receive over a single 9/125 µm single-mode fibre, transmitting at 1550 nm and receiving at 1310 nm, and it extends fibre distance up to 2 km. The matching unit for the other end is the TP-Link FC311B-2. Power comes from an included 5 V / 0.6 A adapter. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 36.76 36.76 AUD $ 36.76 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
FC311A-2
Barcode
6935364072896

The TP-Link FC311A-2 is a Gigabit WDM Media Converter with one gigabit SC fibre port and one 10/100/1000 Mbps RJ45 port, converting between electrical and optical signals. Using WDM, it sends and receives over one 9/125 µm single-mode fibre (TX 1550 nm, RX 1310 nm) and extends fibre distance up to 2 km. TP-Link pairs it with the FC311B-2 at the other end.

FC311A-2 overview

The FC311A-2 is a gigabit media converter that provides a gigabit RJ45 port and a gigabit SC fibre port and converts between electrical and optical signals. TP-Link describes its gigabit media converters as a way to easily extend the distance of an existing gigabit network, building long-range point-to-point connections. The TP-Link datasheet names connecting factory automation equipment, the network in another building and a remote surveillance system as typical uses. The RJ45 port is a 10/100/1000 Mbps auto-negotiation port with auto MDI/MDIX, and the converter auto-negotiates half-duplex or full-duplex transfer mode.

The key technology is WDM (wavelength division multiplexing). Instead of a pair of fibres, the FC311A-2 sends and receives data simultaneously over one single-mode fibre, using two channels of different wavelengths, which TP-Link says gives strong anti-interference ability and saves half of the cable deployment cost. The FC311A-2 transmits at 1550 nm and receives at 1310 nm. That means the device at the other end of the fibre must transmit at 1310 nm and receive at 1550 nm. TP-Link names its FC311B-2 as a product that works with the FC311A-2, so the two are installed as a pair, one at each end of the link.

The fibre side uses 9/125 µm single-mode fibre through an SC/UPC connector, and the FC311A-2 extends fibre distance up to 2 km. TP-Link makes the same gigabit WDM converter in 2 km and 20 km versions (FC311A-2 and FC311B-2 for 2 km, FC311A-20 and FC311B-20 for 20 km), and in the datasheet the A-2 and A-20 differ only in transmission distance, as do the B-2 and B-20, so choose the version that matches your fibre run. On the copper side, the TP-Link datasheet specifies 2-pair UTP/STP of Cat 5 or above for 100BASE-TX and 4-pair UTP/STP of Cat 5e or above for 1000BASE-TX, each up to 100 m. TP-Link lists the supported standards as IEEE 802.3i, 802.3u, 802.3ab and 802.3z.

The FC311A-2 measures 94.5 x 73.0 x 27.0 mm (3.7 x 2.9 x 1.1 in) and runs from an external 5 V / 0.6 A power adapter, which is included. Status is shown by PWR and Link/Act LEDs. It is rated for an operating temperature of 0 to 50 °C (32 to 122 °F) at 10 to 90% RH non-condensing, and for storage from -40 to 70 °C (-40 to 158 °F) at 5 to 90% RH non-condensing. In the box are the media converter, a power adapter and an installation guide. When ordering, remember that a WDM link needs a complementary unit at each end: the FC311A-2 (1550 nm TX / 1310 nm RX) at one end and the FC311B-2 (1310 nm TX / 1550 nm RX) at the other.

Key features

Gigabit fibre to copper

Converts between electrical and optical signals with a gigabit SC fibre port and a gigabit RJ45 port.

WDM over one fibre

Sends and receives over a single single-mode fibre, which TP-Link says saves half of the cable deployment cost.

Up to 2 km

Extends fibre distance up to 2 km over 9/125 µm single-mode fibre.

1550 nm TX / 1310 nm RX

Works with a unit that transmits at 1310 nm and receives at 1550 nm, such as the TP-Link FC311B-2.

10/100/1000 Mbps RJ45

Auto-negotiation RJ45 port with auto MDI/MDIX, for Cat 5e cable at gigabit speed up to 100 m.

Auto duplex negotiation

Auto-negotiation of half-duplex and full-duplex transfer mode.

Strong anti-interference

Two channels of different wavelengths on one fibre, with strong anti-interference ability according to TP-Link.

Compact, low-voltage power

Measures 94.5 x 73.0 x 27.0 mm and runs from the included 5 V / 0.6 A power adapter, with PWR and Link/Act LEDs.

FC311A-2 specifications

At a glance

Gigabit SC fibre port
10/100/1000 Mbps RJ45
WDM, single fibre
Up to 2 km
1550 nm TX / 1310 nm RX
9/125 µm single-mode
5 V / 0.6 A adapter
0-50 °C operating
FC311A-2 full specifications
Network
Standards and ProtocolsIEEE 802.3i, 802.3u, 802.3ab, 802.3z
Hardware Features
Interface1× Gigabit SC Fibre Port; 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network MediaSingle-mode Fibre; UTP category 5, 5e cable (maximum 100m)

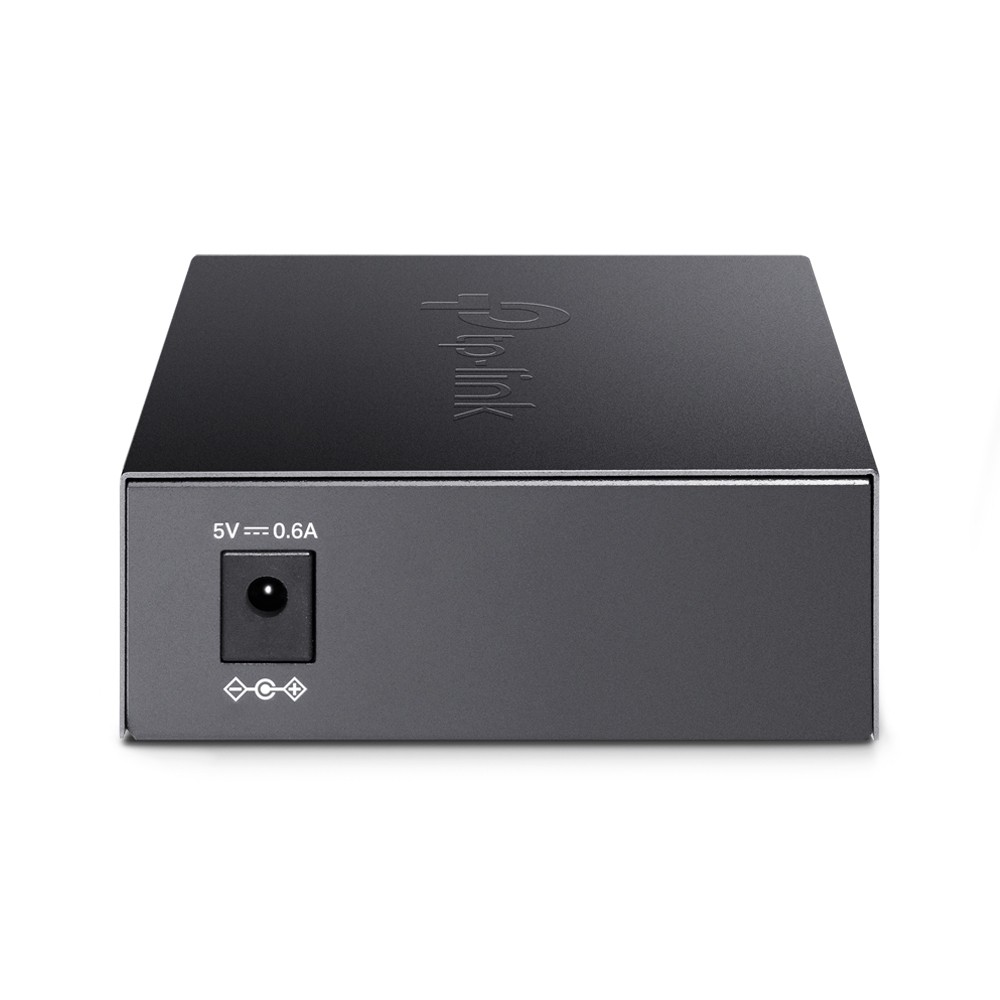

Power SupplyExternal Power Adapter: 5 V/0.6 A

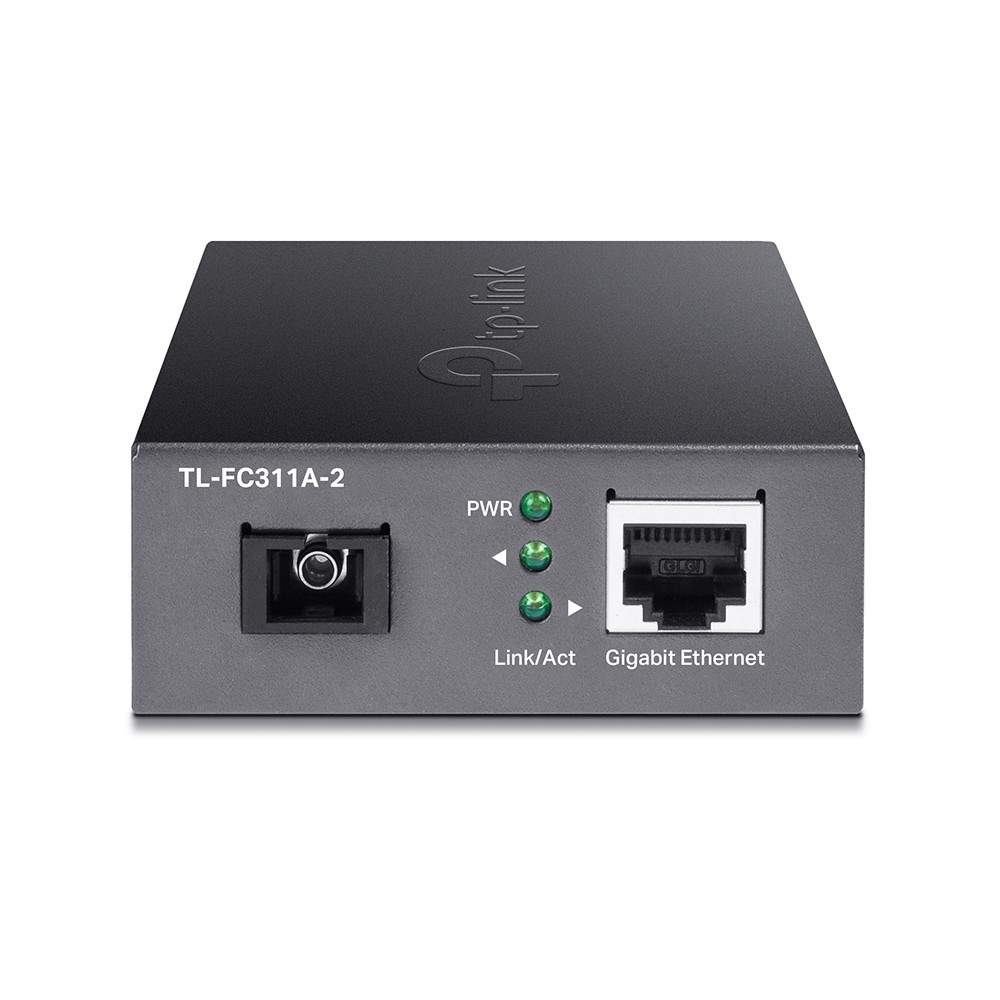

LEDPWR, Link/Act
Wave Length1550 nm TX, 1310 nm RX
Dimensions ( W x D x H )3.7×2.9×1.1 in (94.5×73.0×27.0 mm)
Media Converter & Module
Fibre Type9/125 μm single-mode fibre (≤2 km)
Environment
Operating Temperature0˚C to 50˚C (32˚F to 122˚F)
Storage Temperature-40˚C to 70˚C (-40˚F to 158˚F)
Operating Humidity10% to 90% RH non-condensing
Storage Humidity5% to 90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Media Converter TL-FC311A-2
  • Power Adapter
  • Installation Guide

Source: TP-Link's published package contents.

Who the FC311A-2 is for

Single-fibre gigabit links

  • One single-mode fibre carries TX and RX
  • Up to 2 km fibre distance
  • Pairs with the FC311B-2

Reaching another building

  • Point-to-point link over fibre
  • Gigabit RJ45 on each end
  • Auto MDI/MDIX and duplex negotiation

Remote surveillance and automation

  • Named uses in the TP-Link datasheet
  • Remote surveillance systems
  • Factory automation equipment

FC311A-2 compared

TP-Link makes this Gigabit WDM Media Converter in four versions: A and B units with reversed wavelengths, each in a 2 km and a 20 km version. A link needs one A unit and one B unit of the same distance, so the FC311A-2 pairs with the FC311B-2.

FeatureFC311A-2FC311B-2FC311A-20FC311B-20
Fibre port1 x Gigabit SC (SC/UPC)1 x Gigabit SC (SC/UPC)1 x Gigabit SC (SC/UPC)1 x Gigabit SC (SC/UPC)
Copper port1 x 10/100/1000 Mbps RJ451 x 10/100/1000 Mbps RJ451 x 10/100/1000 Mbps RJ451 x 10/100/1000 Mbps RJ45
Fibre type9/125 µm single-mode9/125 µm single-mode9/125 µm single-mode9/125 µm single-mode
Transmission distanceUp to 2 kmUp to 2 kmUp to 20 kmUp to 20 km
TX wavelength1550 nm1310 nm1550 nm1310 nm
RX wavelength1310 nm1550 nm1310 nm1550 nm
Power5 V / 0.6 A adapter5 V / 0.6 A adapter5 V / 0.6 A adapter5 V / 0.6 A adapter
Dimensions94.5 x 73 x 27 mm94.5 x 73 x 27 mm94.5 x 73 x 27 mm94.5 x 73 x 27 mm
Operating temperature0 °C to 50 °C0 °C to 50 °C0 °C to 50 °C0 °C to 50 °C

Source: TP-Link Australia product pages for each model.

Buy the FC311A-2 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the FC311A-2 from the ARC IP Networks team.

Last reviewed October 2026.

It converts between electrical and optical signals, linking a 10/100/1000 Mbps RJ45 copper connection to a gigabit SC fibre port.

One. It uses WDM technology to send and receive data on one single-mode fibre, through two channels of different wavelengths.

9/125 µm single-mode fibre, connected to the SC/UPC fibre port.

TP-Link states it extends fibre distance up to 2 km. For a 20 km rating, TP-Link offers the FC311A-20 and FC311B-20.

It transmits at 1550 nm and receives at 1310 nm.

A device that transmits at 1310 nm and receives at 1550 nm. TP-Link names the FC311B-2 as a product that works with the FC311A-2.

No. Two identical units would both transmit at 1550 nm. A WDM link needs complementary wavelengths, so use the FC311B-2 at the other end.

Yes. Both the SC fibre port and the RJ45 port are gigabit; the RJ45 port also auto-negotiates 10 and 100 Mbps.

TP-Link specifies Cat 5e or above (4-pair UTP/STP) for 1000BASE-TX and Cat 5 or above (2-pair) for 100BASE-TX, each up to 100 m.

By an external 5 V / 0.6 A power adapter, which is included in the box.

0 to 50 °C operating and -40 to 70 °C in storage, at non-condensing humidity.

The FC311A-2 media converter, a power adapter and an installation guide.
