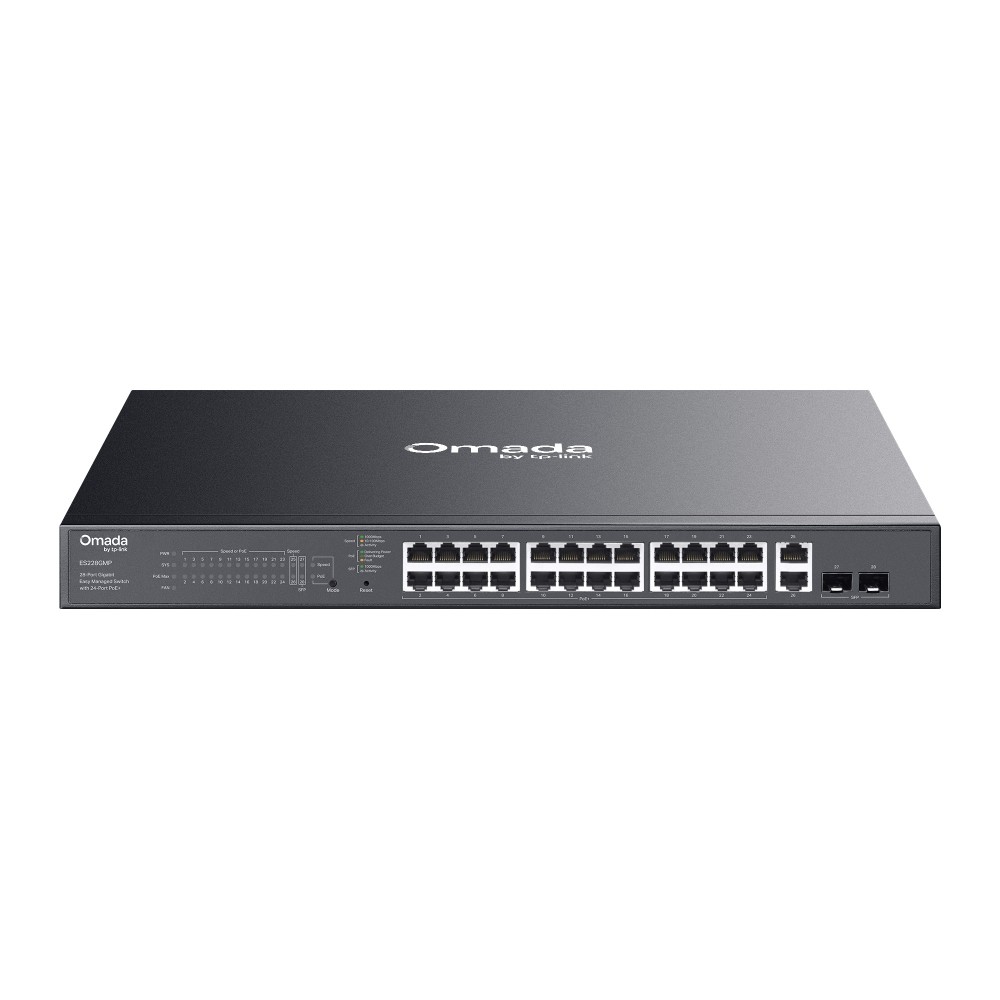

TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ (384W)

https://arcip.com.au/web/image/product.template/8102/image_1920?unique=874d354

The TP-Link ES228GMP is an Omada 28-port Gigabit easy managed switch with twenty-four 802.3af/at PoE+ RJ45 ports, two non-PoE Gigabit RJ45 ports and two Gigabit SFP slots. It has the largest PoE budget in this pair, 384 W against 250 W on the ES228GP, with up to 30 W per port, Fast PoE, Perpetual PoE, PoE Auto Recovery in Standalone Mode, IntelliRecover in Controller Mode and 250 m PoE at 10 Mbps. Switching capacity is 56 Gbps, with 802.1Q VLAN, port isolation, link aggregation, QoS, IGMP snooping, 802.3az EEE and ONVIF in Controller Mode. The 440 x 330 x 44 mm metal case has two fans and weighs 5.0 kg, and Omada controllers with built-in version 6.1.0 or later manage it centrally.

$ 623.40 623.4 AUD $ 623.40 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ES228GMP
Barcode
1210002600989
Tags

The TP-Link ES228GMP is an Omada 28-port Gigabit easy managed switch with 24-port PoE+. Its twenty-four 802.3af/at PoE+ ports share a 384 W budget with up to 30 W per port, plus two Gigabit RJ45 ports and two Gigabit SFP slots. It has 56 Gbps switching, 250 m PoE, PoE Auto Recovery, ONVIF in Controller Mode, VLAN, QoS and IGMP snooping in a rackmount metal case with two fans.

ES228GMP overview

The ES228GMP is TP-Link's Omada 28-port Gigabit easy managed switch with 24-port PoE+, shown on the AU page as hardware version V2. Its twenty-eight ports are twenty-four 10/100/1000 Mbps PoE+ RJ45 ports (802.3af/at compliant), two 10/100/1000 Mbps RJ45 ports without PoE and two Gigabit SFP slots for 1000BASE-X fibre uplinks. PoE transmits both data and power over a single cable to 802.3af PoE or 802.3at PoE+ devices without the hassle and cost of installing power cabling, and the switch automatically detects and supplies the required power.

Power is the reason to choose the 'M' model. The ES228GMP provides a 384 W PoE budget across its twenty-four PoE+ ports, with up to 30 W per port and an Alternative A pinout; the ES228GP has the same port count with 250 W. TP-Link notes that PoE budget calculations are based on laboratory testing and the actual budget is not guaranteed and will vary due to client limitations and environmental factors. The datasheet lists standby power of 14.2 W (220 V/50 Hz), maximum power consumption of 456.4 W (220 V/50 Hz) with 384 W of powered devices connected, maximum heat dissipation of 1551.76 BTU/hr and an MTBF of 224,143 hours at 25 °C. Two fans cool the switch, with noise listed from 13.7 dBA to 45.2 dBA at 1 m.

Fast PoE and Perpetual PoE are supported. PoE Auto Recovery runs in Standalone Mode, and IntelliRecover is supported in Controller Mode, to restore unresponsive cameras or access points. PoE transmission reaches up to 250 m (820 ft); ports using 250 m transmission are downgraded to 10 Mbps, and actual distance depends on cable quality. TP-Link groups 250 m PoE, QoS, PoE Auto Recovery and port isolation as its features for reliable surveillance networking, and ONVIF is supported only in Controller Mode.

Switching capacity is 56 Gbps with a 41.67 Mpps forwarding rate (41.66 Mpps on the product page), an 8K MAC table, 4 Mbit packet buffer, 15 KB jumbo frames and store-and-forward transmission. Port-based, 802.1p and DSCP QoS with 8 priority queues and WRR are supported in Standalone Mode, and QoS rules in Controller Mode, with bandwidth control and storm control. L2 features include 802.1Q tag VLAN (up to 32 groups, 4K VIDs), port isolation, static link aggregation (up to four groups; the product page lists up to six ports per group and the datasheet up to eight), loopback detection, 802.3x flow control, port mirroring, port and traffic statistics, 802.1ab LLDP, IEEE 802.3az EEE and IGMP v1/v2/v3 snooping with fast leave.

The switch has a web-based GUI (HTTPS/HTTP), DHCP client and cable diagnostics. Centralised cloud management via the web or the Omada app uses an Omada cloud-based, hardware or software controller with built-in version 6.1.0 or later, adding automatic device discovery, batch configuration, batch firmware upgrading and unified configuration; zero-touch provisioning requires the Omada Cloud-Based Controller. The rackmountable metal case measures 440 x 330 x 44 mm (17.3 x 13.0 x 1.7 in) and has a net weight of 5.0 kg, with an internal 100-240 V AC, 50/60 Hz supply, a physical security lock slot, ±6 kV surge protection and ESD protection of ±8 kV air and ±4 kV contact. It operates from -5 to 45 °C and is CE and FCC certified. In the box are the ES228GMP, power cord, mounting brackets, mounting feet, screws and installation guide.

Key features

24 PoE+ ports

24 x 10/100/1000 Mbps RJ45 ports, 802.3af/at PoE+ compliant.

384 W PoE budget

Up to 30 W per port; 134 W more than the ES228GP. Based on laboratory testing.

Four uplinks

Two Gigabit RJ45 ports and two Gigabit SFP slots.

56 Gbps switching

41.67 Mpps forwarding, 8K MAC table, 4 Mbit buffer, 15 KB jumbo frames.

250 m PoE

Long camera runs at 10 Mbps; distance depends on cable quality.

Recovery and ONVIF

PoE Auto Recovery in Standalone Mode; IntelliRecover and ONVIF in Controller Mode.

Easy managed L2

802.1Q VLAN, port isolation, link aggregation, QoS, IGMP snooping and 802.3az EEE.

Omada cloud management

Via Omada controllers with built-in version 6.1.0 or later; zero-touch provisioning.

ES228GMP specifications

At a glance

24 x Gigabit PoE+
384 W PoE budget
2 x Gigabit RJ45
2 x Gigabit SFP
56 Gbps switching
250 m PoE (10 Mbps)
Rackmount, 2 fans
Omada SDN
ES228GMP full specifications
Hardware Features
Interface24× 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/at-compliant PoE+); 2× 10/100/1000 Mbps RJ45 Port; 2× Gigabit SFP Slots; Auto-Negotiation/Auto MDI/MDIX
Fan Quantity2
InstallationRackmountable
Physical Security Lock√
Power Supply100–240V AC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant; PoE Ports: 24 ports; PoE Budget: 384W available for all PoE+ ports, 30W max per port; Fast PoE & Perpetual PoE; PoE Auto Recovery; Up to 250m PoE transmission distance
Dimensions ( W x D x H )17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection±6kV
Performance
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
Transmission MethodStore and Forward
Switching Capacity56 Gbps
Packet Forwarding Rate41.66 Mpps
MAC Address Table8K
Software Features
Quality of ServicePort-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode; WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port-Based Rating Limit; Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
L2 FeaturesLink Aggregation; Static Link Aggregation; Up to 4 aggregation groups and up to 6 ports per group; Port Isolation; Loopback Detection; Flow Control; 802.3x Flow Control; Mirroring; Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both; Port Statistics; Port Mirror Status; Traffic Statistics; 802.1ab LLDP; IEEE 802.3az EEE
L2 MulticastIGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave
VLAN802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller (Requires built-in version 6.1.0 or later); Omada Hardware Controller (Requires built-in version 6.1.0 or later); Omada Software Controller (Requires built-in version 6.1.0 or later)
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; ONVIF; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Others
CertificationFCC, CE
EnvironmentOperating Temperature: -5℃~45℃ (23℉~113℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ES228GMP
  • Power Cord
  • Mounting Brackets
  • Mounting Feet
  • Screws
  • Installation Guide

Source: TP-Link's published package contents.

Who the ES228GMP is for

Large CCTV systems

  • 24 PoE+ camera ports
  • 384 W for PTZ and IR cameras
  • ONVIF in Controller Mode

Dense access point rollouts

  • Up to 30 W per port
  • Two SFP fibre uplinks
  • QoS and VLAN

Omada-managed sites

  • Controller built-in version 6.1.0 or later
  • IntelliRecover
  • Batch firmware upgrades

ES228GMP compared

The ES228GMP and ES228GP both have 24 Gigabit PoE+ ports, two Gigabit RJ45 ports, two SFP slots, 56 Gbps switching and two fans. The ES228GMP has a 384 W budget in a deeper 330 mm case and adds ONVIF and IntelliRecover in Controller Mode; the ES228GP has a 250 W budget.

SpecificationES228GMPES228GP
PoE+ ports2424
PoE budget384 W, 30 W per port250 W, 30 W per port
Uplinks2 x Gigabit RJ45, 2 x Gigabit SFP2 x Gigabit RJ45, 2 x Gigabit SFP
Dimensions440 x 330 x 44 mm440 x 180 x 44 mm
ONVIFYes, Controller Mode onlyNot listed
802.3az EEEYesNot listed
Hardware version (AU page)V2V1

Source: TP-Link Australia product pages for each model.

Buy the ES228GMP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ES228GMP from the ARC IP Networks team.

Last reviewed October 2026.

384 W across 24 PoE+ ports, with up to 30 W per port. TP-Link notes this is based on laboratory testing and the actual budget will vary.

Same 24 PoE+ ports and uplinks. The ES228GMP has a 384 W budget, a deeper 330 mm case and lists ONVIF and IntelliRecover in Controller Mode; the ES228GP has a 250 W budget.

Twenty-eight: 24 Gigabit PoE+ RJ45 ports, two Gigabit RJ45 ports without PoE and two Gigabit SFP slots.

Up to 250 m. Those ports are downgraded to 10 Mbps, and actual distance depends on cable quality.

Yes, ONVIF is supported only in Controller Mode.

The datasheet lists a net weight of 5.0 kg, and it measures 440 x 330 x 44 mm.

Omada cloud-based, hardware or software controllers with built-in version 6.1.0 or later. It also runs standalone through a web GUI.

The ES228GMP, a power cord, mounting brackets, mounting feet, screws and an installation guide.

Need more than one ES228GMP for a large CCTV or Wi-Fi project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 56 Gbps
RAM 4 Mbit
