TP-Link ES220GP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (150W)

Price:

$ 362.31


Ruijie 5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports
Ruijie 5-Port Gigabit unmanaged Switch, 5 Gigabit RJ45 Ports
$ 38.23
$ 38.23
Hikvision DS-2CD2387G3 8MP 4mm ColorVu Turret Camera
Hikvision DS-2CD2387G3 8MP 4mm ColorVu Turret Camera
$ 404.48
$ 460.64 (12% OFF)

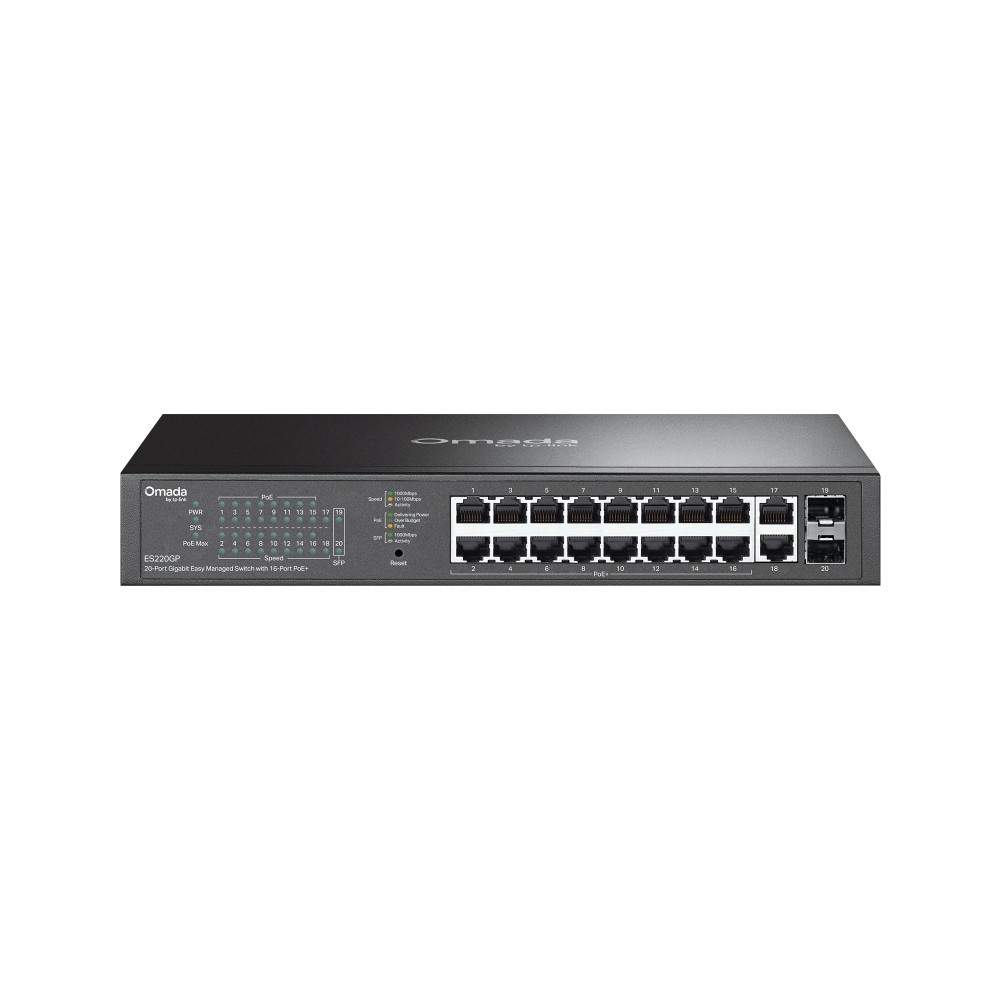

TP-Link ES220GP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (150W)

https://arcip.com.au/web/image/product.template/8100/image_1920?unique=874d354

The TP-Link ES220GP is an Omada 20-port Gigabit easy managed switch with 16-port PoE+: eighteen 10/100/1000 Mbps RJ45 ports, sixteen of them 802.3af/at PoE+, plus two Gigabit SFP slots. The PoE+ ports share a 150 W budget with up to 30 W per port, with Fast PoE, Perpetual PoE, PoE Auto Recovery and up to 250 m PoE when Extend Mode is enabled. It is fanless for silent operation, unlike the 250 W ES220GMP, and installs on a desk or in a rack (294 x 180 x 44 mm). Switching capacity is 40 Gbps, with VLAN, QoS, IGMP snooping, loop prevention, link aggregation, port isolation and remote camera reboot, managed standalone or through Omada cloud-based, hardware or software controllers.

$ 362.31 362.31 AUD $ 362.31 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ES220GP
Barcode
1210002609746
Tags

The TP-Link ES220GP is an Omada 20-port Gigabit easy managed switch with 16-port PoE+. Sixteen 802.3af/at PoE+ ports share a 150 W budget with up to 30 W per port, alongside two Gigabit RJ45 ports and two Gigabit SFP slots. It has 40 Gbps switching, 250 m PoE in Extend Mode, remote camera reboot, VLAN, QoS and IGMP snooping, and a fanless metal case for desktop or rack mounting.

ES220GP overview

The ES220GP is TP-Link's Omada 20-port Gigabit easy managed switch with 16-port PoE+, shown on the AU page as hardware version V1. It has eighteen 10/100/1000 Mbps RJ45 ports, sixteen of which are 802.3af/at-compliant PoE+, and two Gigabit SFP slots for fibre uplinks, all with auto-negotiation and auto MDI/MDIX on the copper ports. TP-Link describes it as easy to use, supporting plug-and-play for instant connectivity and simple configuration for additional features.

The PoE budget is 150 W across the sixteen PoE+ ports, with up to 30 W per port. TP-Link notes that PoE budget calculations are based on laboratory testing, and the actual budget is not guaranteed and will vary due to client limitations and environmental factors. That makes the ES220GP a fit for sixteen fixed cameras or a mix of cameras and access points with moderate draw; if most ports will power higher-draw devices at once, the ES220GMP offers the same ports with a 250 W budget. In return the ES220GP is fanless, so it runs silently, and its 294 x 180 x 44 mm case is narrower than the 440 mm ES220GMP and can sit on a desk or mount in a rack.

Fast PoE and Perpetual PoE are supported, along with PoE Auto Recovery, and TP-Link lists remote camera reboot with an Omada controller for reliable surveillance networking. PoE transmission reaches up to 250 m (820 ft): when Extend Mode is enabled, ports that support 250 m PoE are downgraded to 10 Mbps, and actual distance depends on cable quality. Switching capacity is 40 Gbps with a 29.76 Mpps forwarding rate, an 8K MAC table, a 4 Mbit buffer, 15 KB jumbo frames and store-and-forward transmission.

Software features include port-based, 802.1p and DSCP QoS with 8 priority queues and WRR scheduling, queue weight configuration, bandwidth control with port-based rate limiting, and storm control for broadcast, multicast and unknown-unicast traffic. For layer 2 it has MTU VLAN, port-based VLAN and 802.1Q tag VLAN with up to 32 VLAN groups and 4K VIDs, port isolation, static link aggregation, loop prevention and loopback detection, 802.3x flow control, port mirroring (one-to-one or many-to-one), port and traffic statistics, 802.1ab LLDP and IGMP v1/v2/v3 snooping with fast leave.

Management is through a web-based GUI with DHCP client and cable diagnostics, or centrally via an Omada cloud-based, hardware or software controller for cloud management via the web or the Omada app, automatic device discovery, batch configuration, batch firmware upgrading and unified configuration. Zero-touch provisioning requires Omada Central (Standard or Essentials), and TP-Link describes Omada Central Essentials as a free, easy-to-use version for small businesses and surveillance networks. The switch has an internal 100-240 V AC, 50/60 Hz 2.5 A power supply, a physical security lock slot and ±6 kV surge protection, operates from -5 to 40 °C and is FCC and CE certified. In the box are the ES220GP, power cord, mounting brackets, rubber feet, screws and installation guide.

Key features

Sixteen PoE+ ports

16 of its 18 Gigabit RJ45 ports are 802.3af/at PoE+ compliant.

150 W PoE budget

Up to 30 W per port; based on laboratory testing, actual budget varies.

Fanless

Silent operation with no fans, unlike the 250 W ES220GMP.

SFP uplinks

Two Gigabit SFP slots plus two non-PoE Gigabit RJ45 ports.

250 m Extend Mode

PoE up to 250 m at 10 Mbps when Extend Mode is enabled.

Remote camera reboot

With an Omada controller, plus Fast PoE, Perpetual PoE and PoE Auto Recovery.

40 Gbps switching

29.76 Mpps, 8K MAC table, 4 Mbit buffer and 15 KB jumbo frames.

Desktop or rack

Compact 294 x 180 x 44 mm metal case for desktop or rack installation.

ES220GP specifications

At a glance

16 x Gigabit PoE+
150 W PoE budget
2 x Gigabit RJ45
2 x Gigabit SFP
40 Gbps switching
250 m Extend Mode
Fanless
Omada SDN
ES220GP full specifications
Hardware Features
Interface18× 10/100/1000 Mbps PoE+ RJ45 Ports (16× 802.3af/at-compliant PoE+); 2× Gigabit SFP Slots; Auto-Negotiation/Auto MDI/MDIX
Fan QuantityFanless
InstallationDesktop/Rackmount
Physical Security Lock√
Power Supply100–240V AC, 50/60Hz 2.5A
PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant; PoE Ports: 16 Ports; PoE Budget: 150W available for all PoE+ ports, 30W max per port; Fast PoE & Perpetual PoE; PoE Auto Recovery; Up to 250m PoE transmission distance
Dimensions ( W x D x H )11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Surge Protection±6 kV
Performance
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
Switching Capacity40 Gbps
Packet Forwarding Rate29.76 Mpps
MAC Address Table8K
Software Features
Quality of ServicePort-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode; WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port-Based Rating Limit; Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
L2 FeaturesStatic Link Aggregation; Loop Prevention / Loopback Detection; Flow Control; 802.3x Flow Control; Mirroring; Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both; Port Statistics; Port Mirror Status; Traffic Statistics; 802.1ab LLDP
L2 MulticastIGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave
VLANMTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Others
CertificationFCC, CE
EnvironmentOperating Temperature: -5℃~40℃ (23°F~104°F); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ES220GP
  • Power Cord
  • Mounting Brackets
  • Rubber Feet
  • Screws
  • Installation Guide

Source: TP-Link's published package contents.

Who the ES220GP is for

Quiet CCTV installs

  • Sixteen PoE+ camera ports
  • Fanless operation
  • Remote camera reboot

Offices without a server room

  • Desktop or rack installation
  • Two SFP fibre uplinks
  • VLAN and QoS

Omada-managed sites

  • Omada Central Essentials
  • Batch configuration
  • Zero-touch provisioning

ES220GP compared

The ES220GP and ES220GMP have the same 16 PoE+ ports, two Gigabit RJ45 ports, two SFP slots and 40 Gbps switching. The ES220GP is fanless with a 150 W budget in a 294 mm case; the ES220GMP has 250 W, two fans and a 440 mm rackmount case.

SpecificationES220GPES220GMP
PoE+ ports1616
PoE budget150 W, 30 W per port250 W, 30 W per port
CoolingFanless2 fans
Dimensions294 x 180 x 44 mm440 x 180 x 44 mm
InstallationDesktop / rackmountRackmountable
Operating temperature-5 to 40 °C-5 to 50 °C
Hardware version (AU page)V1V1.20

Source: TP-Link Australia product pages for each model.

Buy the ES220GP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ES220GP from the ARC IP Networks team.

Last reviewed October 2026.

150 W across sixteen PoE+ ports, with up to 30 W per port. TP-Link notes this is based on laboratory testing and the actual budget will vary.

Same ports and switching capacity. The ES220GP has a 150 W budget and is fanless; the ES220GMP has a 250 W budget and two fans.

Yes. TP-Link lists the fan quantity as fanless.

Eighteen Gigabit RJ45 ports, sixteen of them PoE+, plus two Gigabit SFP slots.

Up to 250 m with Extend Mode enabled. Those ports run at 10 Mbps, and actual distance depends on cable quality.

Yes. It is listed for desktop or rackmount installation, with mounting brackets and screws included.

No. It can be managed standalone through a web GUI; cloud management, the Omada app and remote camera reboot use an Omada controller.

The ES220GP, a power cord, mounting brackets, rubber feet, screws and an installation guide.

Need more than one ES220GP for a CCTV or office PoE project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
