TP-Link ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W)

Price:

$ 396.30


TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch
TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch
$ 63.89
$ 63.89
TP-Link ES224G Omada 24-Port Gigabit Easy Managed Switch
TP-Link ES224G Omada 24-Port Gigabit Easy Managed Switch
$ 225.94
$ 225.94

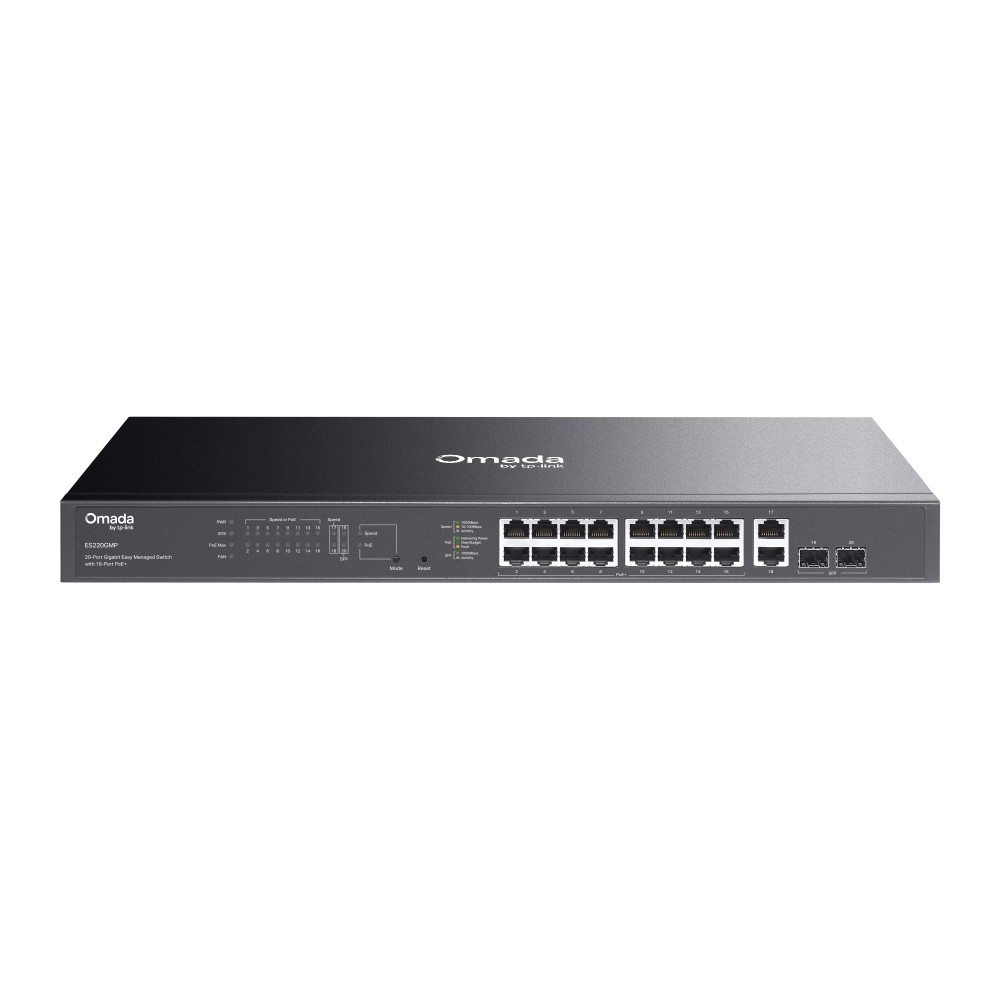

TP-Link ES220GMP Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W)

https://arcip.com.au/web/image/product.template/8099/image_1920?unique=b60018b

The TP-Link ES220GMP is an Omada 20-port Gigabit easy managed switch with sixteen 802.3af/at PoE+ RJ45 ports, two non-PoE Gigabit RJ45 ports and two Gigabit SFP slots for fibre uplinks. The PoE+ ports share a 250 W budget with up to 30 W per port, the higher-power model of the pair alongside the 150 W ES220GP. It supports Fast PoE, Perpetual PoE, PoE Auto Recovery in Standalone Mode and up to 250 m PoE at 10 Mbps. Switching capacity is 40 Gbps, with MTU, port-based and 802.1Q VLAN, QoS, IGMP snooping, loop prevention, link aggregation and port mirroring. The 440 x 180 x 44 mm metal case is rackmountable with two fans, and Omada cloud-based, hardware or software controllers provide centralised management.

$ 396.30 396.3 AUD $ 396.30 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • RAM

This combination does not exist.

In stock online
Switch PoE Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ES220GMP
Barcode
8885020625943
Tags

The TP-Link ES220GMP is an Omada 20-port Gigabit easy managed switch with 16-port PoE+. Its sixteen 802.3af/at PoE+ ports share a 250 W budget with up to 30 W per port, and it adds two Gigabit RJ45 ports and two Gigabit SFP slots, 40 Gbps switching, 250 m PoE, PoE Auto Recovery, VLAN, QoS and IGMP snooping in a 19-inch rackmount metal case with two fans.

ES220GMP overview

The ES220GMP is TP-Link's Omada 20-port Gigabit easy managed switch with 16-port PoE+, shown on the AU page as hardware version V1.20. The twenty ports are sixteen 10/100/1000 Mbps PoE+ RJ45 ports supporting 802.3af PoE and 802.3at PoE+, two 10/100/1000 Mbps RJ45 ports without PoE, and two Gigabit SFP slots for fibre uplinks, with auto-negotiation and auto MDI/MDIX on the copper ports. Power over Ethernet carries data and power on a single cable to 802.3af or 802.3at devices, without the cost of installing power cabling, and the switch automatically detects and supplies the required power.

The 'M' in ES220GMP matters: it has a 250 W PoE budget, against 150 W on the ES220GP, with up to 30 W on any port. That headroom lets more of the sixteen ports run higher-draw devices such as PTZ cameras or Wi-Fi access points at the same time. TP-Link notes that PoE budget calculations are based on laboratory testing, and the actual budget is not guaranteed and will vary due to client limitations and environmental factors. To handle the extra power the ES220GMP has two fans, whereas the ES220GP is fanless. Maximum power consumption is listed at 289.7 W (110 V/60 Hz) with 250 W of powered devices connected, and maximum heat dissipation at 984.88 BTU/hr.

Fast PoE and Perpetual PoE are supported. This switch supports PoE Auto Recovery in Standalone Mode (managed separately without a controller) and manual PoE recovery in Controller Mode (centrally managed with a controller). For distant cameras it supports up to 250 m (820 ft) PoE transmission; ports running at that distance are downgraded to 10 Mbps, and actual distance varies with cable quality. TP-Link groups these with QoS and port isolation as features for reliable surveillance networking.

Switching capacity is 40 Gbps with a 29.76 Mpps forwarding rate, an 8K MAC address table, 4 Mbit packet buffer, 15 KB jumbo frames and store-and-forward transmission. QoS covers port-based, 802.1p and DSCP QoS with 8 priority queues, WRR priority scheduling, queue weight configuration, port-based rate limiting and storm control in kbps or pps; TP-Link notes QoS and priority mode are supported in Standalone Mode. Layer 2 features are MTU VLAN, port-based VLAN and 802.1Q tag VLAN (up to 32 groups, 4K VIDs), static link aggregation, loop prevention and loopback detection, 802.3x flow control, port mirroring, port and traffic statistics, 802.1ab LLDP and IGMP v1/v2/v3 snooping with fast leave.

The switch has a web-based GUI, DHCP client and cable diagnostics, and integrates with an Omada cloud-based, hardware or software controller for centralised cloud management via the web or the Omada app, automatic device discovery, batch configuration, batch firmware upgrading and unified configuration. Zero-touch provisioning requires the Omada Cloud-Based Controller; TP-Link notes that the Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version with advanced features requires a licence. The durable metal case is rackmountable, measuring 440 x 180 x 44 mm (17.3 x 7.1 x 1.7 in), with a physical security lock slot, an internal 100-240 V AC, 50/60 Hz power supply and ±6 kV surge protection. It operates from -5 to 50 °C and is FCC and CE certified. In the box are the ES220GMP, power cord, mounting brackets, rubber feet, screws and installation guide.

Key features

Sixteen PoE+ ports

16 x 10/100/1000 Mbps RJ45 ports supporting 802.3af PoE and 802.3at PoE+.

250 W PoE budget

Up to 30 W per port; 100 W more than the ES220GP. Based on laboratory testing.

Four uplinks

Two Gigabit RJ45 ports plus two Gigabit SFP slots for fibre.

40 Gbps switching

29.76 Mpps forwarding, 8K MAC table, 4 Mbit buffer and 15 KB jumbo frames.

250 m PoE

Long camera runs at 10 Mbps; distance depends on cable quality.

PoE recovery

PoE Auto Recovery in Standalone Mode and manual PoE recovery in Controller Mode.

Easy managed L2

VLAN, QoS, IGMP snooping, link aggregation, loop prevention and port mirroring.

Rackmount metal case

19-inch rackmountable, two fans, internal AC power supply.

ES220GMP specifications

At a glance

16 x Gigabit PoE+
250 W PoE budget
2 x Gigabit RJ45
2 x Gigabit SFP
40 Gbps switching
250 m PoE (10 Mbps)
Rackmount, 2 fans
Omada SDN
ES220GMP full specifications
Hardware Features
Interface16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+); 2× 10/100/1000 Mbps RJ45 Ports; 2× Gigabit SFP Slots; Auto-Negotiation/Auto MDI/MDIX
Fan Quantity2
InstallationRackmountable
Physical Security Lock√
Power Supply100–240V AC, 50/60Hz
PoE Ports (RJ45)Standard: 802.3af PoE and 802.3at PoE+ compliant; PoE Ports: 16 ports; PoE Budget: 250W available for all PoE+ ports, 30W max per port; Fast PoE & Perpetual PoE; PoE Auto Recovery; Up to 250m PoE transmission distance
Dimensions ( W x D x H )17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection±6kV
Max. Power Consumption289.7 W (110V/60Hz) (with 250 W PD connected)
Max. Heat Dissipation984.88 BTU/hr (110 V/60 Hz) (with 250 W PD connected)
Performance
Packet Buffer Memory4 Mbit
Jumbo Frame15 KB
Switching Capacity40 Gbps
Packet Forwarding Rate29.76 Mpps
MAC Address Table8K
Software Features
Quality of ServicePort-based/802.1p/DSCP QoS; 8 Priority Queues; Priority Schedule Mode; WRR (Weighted Round Robin); Queue Weight Config; Bandwidth Control; Port-Based Rating Limit; Storm Control; Multiple Control Modes (kbps/pps); Broadcast/Multicast/Unknown-Unicast Control
L2 FeaturesStatic Link Aggregation; Loop Prevention / Loopback Detection; Flow Control; 802.3x Flow Control; Mirroring; Port Mirroring; One-to-One; Many-to-One; Ingress/Egress/Both; Port Statistics; Port Mirror Status; Traffic Statistics; 802.1ab LLDP
L2 MulticastIGMP Snooping; IGMP v1/v2/v3 Snooping; Fast Leave
VLANMTU VLAN; Port-Based VLAN; 802.1Q Tag VLAN; Max 32 VLAN Groups; 4K VID
Transmission MethodStore-And-Forward
Management Features
Omada AppYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller
Management FeaturesWeb-based GUI; DHCP Client; Cable Diagnostics; Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Unified Configuration
Others
CertificationFCC, CE
EnvironmentOperating Temperature: -5℃~50℃ (23℉~122℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ES220GMP
  • Power Cord
  • Mounting Brackets
  • Rubber Feet
  • Screws
  • Installation Guide

Source: TP-Link's published package contents.

Who the ES220GMP is for

Medium CCTV systems

  • Sixteen PoE+ camera ports
  • 250 W for higher-draw cameras
  • 250 m PoE runs

Access point and phone deployments

  • Up to 30 W per port
  • Fibre uplink via SFP
  • QoS and VLAN

Omada-managed sites

  • Cloud management via Omada controllers
  • Batch firmware upgrades
  • Zero-touch provisioning

ES220GMP compared

The ES220GMP and ES220GP share the same port layout: 16 Gigabit PoE+ ports, two Gigabit RJ45 ports and two Gigabit SFP slots, with 40 Gbps switching. The ES220GMP has a 250 W PoE budget, two fans and a wider rackmount case; the ES220GP has 150 W and is fanless.

SpecificationES220GMPES220GP
PoE+ ports1616
PoE budget250 W, 30 W per port150 W, 30 W per port
Uplinks2 x Gigabit RJ45, 2 x Gigabit SFP2 x Gigabit RJ45, 2 x Gigabit SFP
Cooling2 fansFanless
Dimensions440 x 180 x 44 mm294 x 180 x 44 mm
InstallationRackmountableDesktop / rackmount
Operating temperature-5 to 50 °C-5 to 40 °C

Source: TP-Link Australia product pages for each model.

Buy the ES220GMP from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ES220GMP from the ARC IP Networks team.

Last reviewed October 2026.

250 W across its sixteen PoE+ ports, with up to 30 W per port. TP-Link notes the budget is based on laboratory testing and the actual budget will vary.

Both have 16 PoE+ ports, two Gigabit RJ45 ports and two SFP slots. The ES220GMP has a 250 W PoE budget and two fans; the ES220GP has a 150 W budget and is fanless.

Twenty: sixteen Gigabit PoE+ RJ45 ports, two Gigabit RJ45 ports without PoE and two Gigabit SFP slots.

Up to 250 m (820 ft). Ports running at that distance are downgraded to 10 Mbps, and actual distance depends on cable quality.

Yes. It is a 440 x 180 x 44 mm rackmountable metal switch, and mounting brackets and screws are included.

Yes, two fans.

No, it works standalone through a web GUI. Cloud management, the Omada app and batch configuration need an Omada cloud-based, hardware or software controller.

The ES220GMP, a power cord, mounting brackets, rubber feet, screws and an installation guide.

Need more than one ES220GMP for a CCTV or access point project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Switching Capacity 40 Gbps
RAM 4 Mbit
