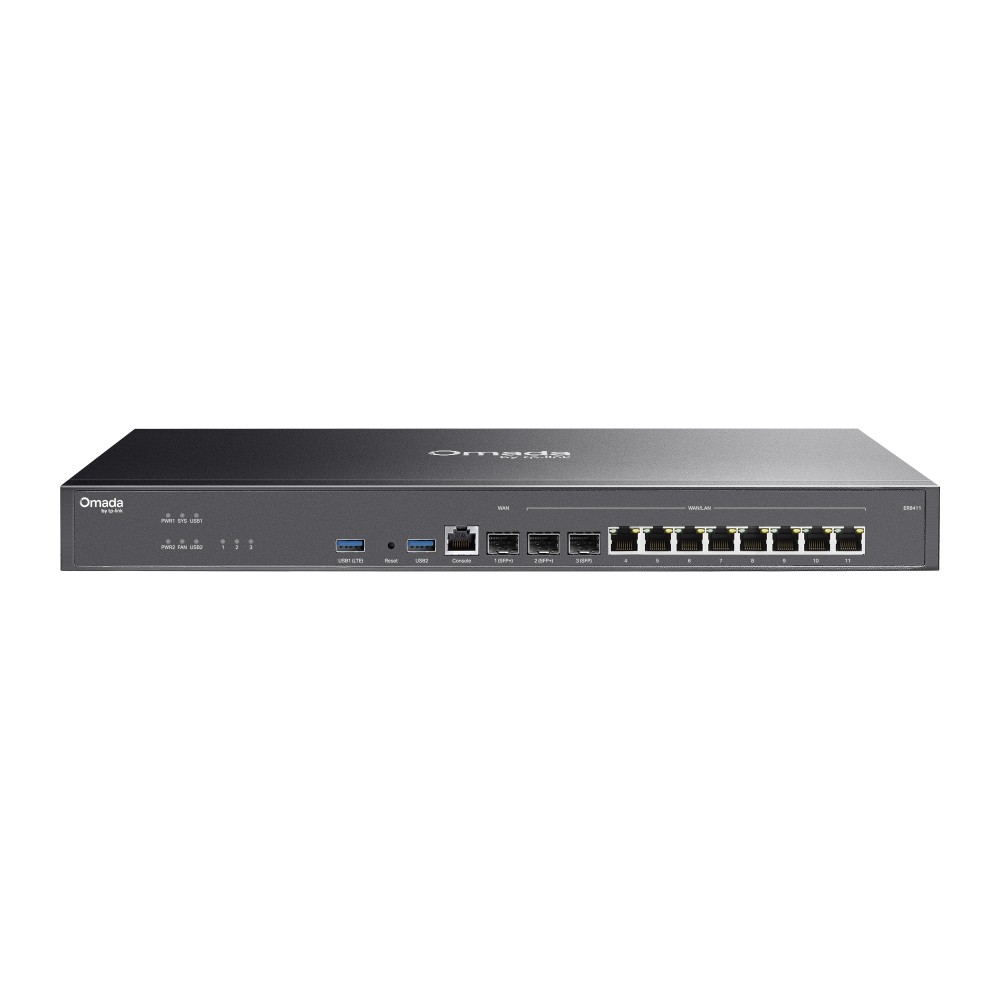

TP-Link ER8411 Omada VPN Gateway with 10G SFP+ Ports

https://arcip.com.au/web/image/product.template/8090/image_1920?unique=874d354

The TP-Link ER8411 is an Omada enterprise VPN gateway built to make full use of 10G broadband in large offices, schools and hotels. It has two 10GE SFP+ ports (one WAN, one WAN/LAN), one Gigabit SFP WAN/LAN port and eight Gigabit RJ45 WAN/LAN ports, for up to 10 WAN ports with load balancing, plus an RJ45 console port and two USB 3.0 ports, one supporting LTE dongle backup. A quad-core 2.2 GHz CPU and 4 GB DDR4 give around 9.4 Gbps NAT, 2,300,000 concurrent sessions, 20,000 new sessions per second, up to 3099 Mbps IPsec and 9388 Mbps TCP IPS throughput. Redundant dual AC power supplies, a steel 1U rack chassis and Omada SDN management complete it.

$ 1,449.56 1449.56 AUD $ 1,449.56 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • PoE Specification

This combination does not exist.

In stock online
VPN Router TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ER8411
Barcode
4897098683309
Tags

The TP-Link ER8411 is an Omada enterprise VPN gateway with 10G ports: two 10GE SFP+ ports (one WAN, one WAN/LAN), one Gigabit SFP WAN/LAN port and eight Gigabit RJ45 WAN/LAN ports, plus a console port and two USB 3.0 ports. A quad-core 2.2 GHz CPU with 4 GB DDR4 delivers around 9.4 Gbps NAT, 2,300,000 concurrent sessions, about 3 Gbps IPsec and 9388 Mbps TCP IPS, with redundant dual power supplies.

ER8411 overview

The ER8411 is TP-Link's Omada VPN gateway with 10G ports, which TP-Link describes as an enterprise VPN gateway for high-speed, reliable and safe networks, ideal for large-scale deployments such as offices, schools and hotels. It is the model to choose when the internet service or the core network runs at 10 Gbps. Two 10GE SFP+ ports provide one dedicated WAN and one WAN/LAN for high-bandwidth aggregation connectivity, joined by one 1GE SFP WAN/LAN port and eight 1GE RJ45 WAN/LAN ports. TP-Link lists up to 10 WAN ports across fibre and RJ45 with load balancing to raise the utilisation of multi-line broadband. An RJ45 console port and two USB 3.0 ports (one supports LTE backup with an LTE dongle) round out the I/O.

Processing comes from a quad-core 2.2 GHz CPU with 4 GB DDR4 and 4 MB SPI NOR plus 256 MB NAND flash. TP-Link lists 2,300,000 concurrent sessions and 20,000 new sessions per second, with NAT throughput of about 9.4 Gbps on static IP and DHCP and 9.1 to 9.4 Gbps on PPPoE. Security inspection stays close to that: IPS throughput is 9388 Mbps TCP and 7538 Mbps UDP, and DPI throughput is 9067 Mbps TCP. Signature-based IPS/IDS, DPI for 2421 application types, URL category filtering, web security, DNSSEC, DoH and DoT, ARP detection, IP-MAC binding and flood defence are all supported.

VPN capacity is enterprise-scale: 300 IPsec tunnels, 300 PPTP/L2TP tunnels (shared), 110 OpenVPN tunnels and 500 SSL VPN tunnels, plus WireGuard, GRE in Standalone Mode and SD-WAN in Controller Mode. IPsec AES256 throughput is listed at 2878 to 3099.4 Mbps depending on the hash, WireGuard at 1411 Mbps, OpenVPN at 1043 Mbps, SSL VPN at 1006 Mbps and GRE at 8437 Mbps unencrypted (2775 Mbps encrypted). TP-Link positions this for secure communication between branches and for remote work or study in distributed environments. Routing features include static and policy routing, RIP, OSPF, application optimised routing, link backup, online detection and IP/port-based bandwidth control with guaranteed and limited bandwidth.

For reliability the ER8411 has redundant dual power supplies (100-240 V AC, 50/60 Hz), which TP-Link says ensure carrier-class reliability for enterprise networking. It is cooled by two fans, housed in a steel enclosure measuring 440 x 220 x 44 mm, and is rack mountable with the rackmount kit, power cord, RJ45 console cord and quick installation guide included. Maximum power consumption is 26.36 W with USB 3.0 in use and 19.12 W without, surge protection is 4 kV, and the operating range is 0 to 40 °C. It is CE and FCC certified.

As part of Omada SDN, the ER8411 integrates with Omada access points and managed switches for centralised cloud management. Cloud access and the Omada app require an Omada controller: an Omada hardware controller, the Omada Software Controller or Omada Central (cloud-based); zero-touch provisioning requires the Cloud-Based Controller. Standalone, it supports a web management interface, remote management, SNMP v1/v2c/v3, port mirroring and syslog. Hotspot authentication supports local users, vouchers, SMS and RADIUS, with external RADIUS and portal servers.

Key features

Two 10G SFP+ ports

One 10GE SFP+ WAN and one 10GE SFP+ WAN/LAN for 10G broadband.

Up to 10 WAN ports

Plus 1 x Gigabit SFP and 8 x Gigabit RJ45 WAN/LAN with load balancing.

Around 9.4 Gbps NAT

Quad-core 2.2 GHz CPU, 4 GB DDR4, 2,300,000 concurrent sessions.

Multi-gigabit VPN

Up to 3099.4 Mbps IPsec and 1411 Mbps WireGuard; 300 IPsec and 500 SSL VPN tunnels.

IPS/IDS at 9388 Mbps

Signature-based threat detection and DPI at 9067 Mbps TCP.

Redundant power

Dual 100-240 V AC power supplies for carrier-class reliability.

Console and dual USB 3.0

RJ45 console port; one USB 3.0 supports LTE dongle backup.

Omada SDN

Hardware, software or cloud-based controllers with zero-touch provisioning and SD-WAN.

ER8411 specifications

At a glance

2 x 10G SFP+
1 x Gigabit SFP
8 x Gigabit RJ45
Up to 10 WANs
~9.4 Gbps NAT
2,300,000 sessions
Dual power supplies
1U rackmount
ER8411 full specifications
Security
IDS/IPSSignature-based IPS/IDS threat detection
Access ControlSource/Destination IP Based ACL; Stateful ACL; IPv4/IPv6 ACL; National Based ACL; FQDN
DPIDeep Packet Inspection; Support 2421 type Applications
DNS ProxyDNSSEC, DoH, DoT, and DNS Override
FilteringWEB Group Filtering; URL Categories and URLs Filtering; Web Security
Attack DefenseTCP/UDP/ICMP Flood Defense; Block TCP Scan (Stealth FIN/Xmas/Null); Block Ping from WAN
ARP InspectionSending GARP Packets; ARP Scanning; IP-MAC Binding; ARP Detection
Vpn
GRE√ (Only in Standalone Mode)
SSL VPNSSL VPN Server; 500 SSL VPN Tunnels
IPsec VPN300 IPSec VPN Tunnels; LAN-to-LAN, Client-to-LAN; Main, Aggressive Negotiation Mode; DES, 3DES, SHA1, SHA256, SHA384, SHA512, AES128, AES192, AES256 Encryption Algorithm; IKE v1/v2; MD5, SHA1 Authentication Algorithm; NAT Traversal (NAT-T); Dead Peer Detection (DPD); Perfect Forward Secrecy (PFS)
PPTP VPNPPTP VPN Server; PPTP VPN Client (32); 300 Tunnels (Shared with L2TP); PPTP with MPPE Encryption
L2TP VPNL2TP VPN Server; L2TP VPN Client (32); 300 Tunnels (Shared with PPTP); L2TP over IPSec
OpenVPNOpenVPN Server; OpenVPN Client (10); 110 OpenVPN Tunnels
WireGuard VPN√
SD-WAN√ (Only in Controller Mode)
Hardware Features
Standards and ProtocolsLLDP
Interface2× 10GE SFP+ Ports (1× WAN, 1× WAN/LAN); 1× 1GE SFP WAN/LAN Ports; 8× 1GE RJ45 WAN/LAN Ports; 1× RJ45 Console Port; 2× USB 3.0 Ports (One supports LTE backup with LTE dongle)
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity2
ButtonReset Button
Power SupplyRedundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash4MB SPI NOR + 256 MB NAND
DRAM4 GB DDR4
LEDPWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection4 kV surge protection
EnclosureSteel
MountingRack Mountable
Max. Power Consumption26.36 W (with USB 3.0 connected); 19.12 W (without USB 3.0 connected)
Performance
Concurrent Session2,300,000
New Sessions /Second20,000
NAT (Static IP)Upload: 9445.82 Mbps; Download: 9449.26 Mbps
NAT(DHCP)Upload: 9426.83 Mbps; Download: 9426.20 Mbps
NAT(PPPoE)Upload: 9413.96 Mbps; Download: 9102.01 Mbps
NAT (L2TP)Upload: 9064.66 Mbps; Download: 8587.57 Mbps
NAT (PPTP)Upload: 8712.11 Mbps; Download: 8505.61 Mbps
1,518 Byte Packet forwarding rateUpload: 820,982 pps; Download: 820,982 pps
IPsec VPN ThroughputESP-SHA1-AES256: 3099.4 Mbps; ESP-SHA256-AES256: 2928.4 Mbps; ESP-SHA384-AES256: 2935.7 Mbps; ESP-SHA512-AES256: 2878 Mbps
GREUnencrypted: 8437 Mbps; Encrypted: 2775 Mbps
WireGuard VPN1411 Mbps
OpenVPN1043 Mbps
L2TP VPN ThroughputUnencrypted: 10497 Mbp; Encrypted: 3178.5 Mbps
SSL VPN Throughput1006 Mbps
DPI ThroughputTCP: 9067 Mbps; UDP: 5873 Mbps
64 Byte Packet Forwarding RateUpload: 2,109,375 pps; Download: 2,011,719 pps
IPS ThroughputTCP: 9388 Mbps;; UDP: 7538 Mbps
Management Features
Omada AppYes. Requiring the use of an Omada Controller.
Centralised ManagementOmada Hardware Controller; Omada Software Controller; Omada Central (Cloud-Based)
Cloud AccessYes. Requiring the use of an Omada Controller.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)
MaintenanceWeb Management Interface; Remote Management; Export & Import Configuration; SNMP v1/v2c/v3; Diagnostics (Ping & Traceroute); NTP Synchronize; Port Mirroring; Syslog Support
Management FeaturesAutomatic Device Discovery; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; Captive Portal Configuration; ZTP (Zero-Touch Provisioning)
Basic Functions
LAN DNS√
WAN Connection TypeStatic/Dynamic IP; PPPoE; PPTP; L2TP; 6to4 Tunnel; Pass-Through; Mobile Broadband: 4G/3G modem for backup via USB port
MAC CloneModify WAN/LAN MAC Address
DHCPDHCP Server/Client; DHCP Address Reservation; Multi-net DHCP; Multi-IP Interfaces; WAN DHCP 60
IPv6WAN Connection
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy
Advanced Features
Advanced RoutingStatic Routing; Policy Routing; RIP; OSPF
Bandwidth ControlIP/Port-based Bandwidth Control; Guarantee & Limited Bandwidth
Load BalanceIntelligent Load Balance; Application Optimised Routing; Link Backup (Timing , Failover); Online Detection
NATOne-to-One NAT; Multi-Net NAT; Port Forwarding; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP; Disable NAT
Session LimitIP-based Session Limit
Authentication
Web AuthenticationNo Authentication; Simple Password; Hotspot(Local User / Voucher / SMS / Radius ); External Radius Server; External Portal Server
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉);; Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Omada VPN Gateway with 10G Ports ER8411
  • Power Cord
  • Rackmount Kit
  • RJ45 Console Cord
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the ER8411 is for

10G internet and cores

  • Two 10GE SFP+ ports
  • About 9.4 Gbps NAT
  • IPS at 9388 Mbps TCP

Large offices, schools and hotels

  • 2,300,000 concurrent sessions
  • Hotspot portals with vouchers, SMS or RADIUS
  • Redundant power supplies

Enterprise VPN hub

  • 300 IPsec and 500 SSL VPN tunnels
  • Around 3 Gbps IPsec
  • SD-WAN in Controller Mode

Buy the ER8411 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ER8411 from the ARC IP Networks team.

Last reviewed October 2026.

Two 10GE SFP+ ports: one WAN and one WAN/LAN. It also has one Gigabit SFP WAN/LAN port and eight Gigabit RJ45 WAN/LAN ports.

TP-Link lists up to 10 WAN ports across fibre and RJ45, with intelligent load balancing and failover.

NAT throughput is about 9.4 Gbps on static IP and DHCP, with 2,300,000 concurrent sessions and 20,000 new sessions per second.

IPsec AES256 is listed at 2878 to 3099.4 Mbps, WireGuard at 1411 Mbps, OpenVPN at 1043 Mbps and SSL VPN at 1006 Mbps.

300 IPsec, 300 PPTP/L2TP (shared), 110 OpenVPN and 500 SSL VPN tunnels, plus WireGuard and GRE in Standalone Mode.

Yes. It has redundant dual power supplies rated 100-240 V AC, 50/60 Hz.

Yes. IPS/IDS throughput is 9388 Mbps TCP and DPI throughput is 9067 Mbps TCP, recognising 2421 application types.

Yes. One of its two USB 3.0 ports supports LTE backup with an LTE dongle.

No. It has two fans and a steel 1U rack-mountable enclosure measuring 440 x 220 x 44 mm.

The ER8411, a power cord, a rackmount kit, an RJ45 console cord and a quick installation guide.

Need more than one ER8411 for an enterprise or campus gateway project?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
