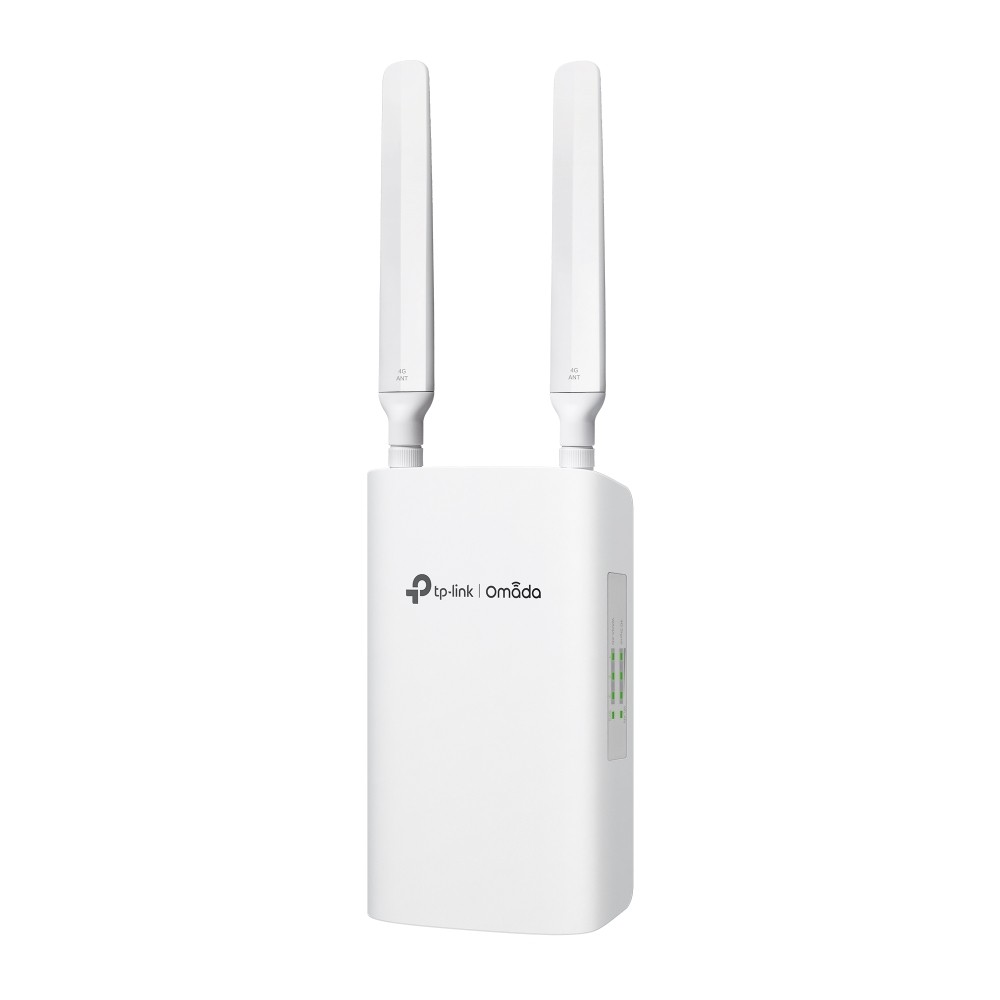

TP-Link ER703WP-4G-Outdoor Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

https://arcip.com.au/web/image/product.template/8084/image_1920?unique=9515e8a

The TP-Link ER703WP-4G-Outdoor is an Omada 4G+ Cat6 AX3000 outdoor/indoor gateway that brings cellular internet, Wi-Fi 6 and PoE to sites without a fixed line. A Nano SIM slot gives 4G+ Cat6 at up to 300 Mbps down and 50 Mbps up on the EU/AU LTE bands, with 4G and Ethernet WAN auto backup and load balancing. Dual-band Wi-Fi 6 delivers 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz (HE160). Three Gigabit WAN/LAN ports include one 802.3at/bt PoE input and two 802.3af/at PoE outputs (PoE out needs 802.3bt input). It runs IPsec, L2TP, PPTP, OpenVPN, GRE, WireGuard and SSL VPN, is IP55 rated for -30 to 60 °C and mounts on a pole or wall.

$ 688.22 688.22 AUD $ 688.22 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

LTE Router TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ER703WP-4G-OUTDOOR
Barcode
8885020626858
Tags

The TP-Link ER703WP-4G-Outdoor is an Omada 4G+ Cat6 AX3000 Wi-Fi 6 outdoor/indoor gateway in an IP55 weatherproof enclosure. It has a Nano SIM slot for up to 300 Mbps down and 50 Mbps up, dual-band Wi-Fi 6 (574 Mbps + 2402 Mbps), three Gigabit WAN/LAN ports with 802.3at/bt PoE in on port 1 and 802.3af/at PoE out on ports 2 and 3, PoE or 12 V DC power, a full VPN suite and Omada SDN management.

ER703WP-4G-Outdoor overview

The ER703WP-4G-Outdoor is TP-Link's Omada 4G+ Cat6 AX3000 outdoor/indoor gateway. It combines a 4G+ cellular router, a dual-band Wi-Fi 6 access point, a small PoE switch and an Omada VPN gateway in one weatherproof unit, designed for locations where mains power and fixed broadband are limited. TP-Link says the enclosure was rated IP55 during ingress protection testing, protecting the gateway against harsh outdoor conditions, and the operating range is -30 to 60 °C with 5 to 95% non-condensing humidity. It mounts on a wall or pole with the included mounting kits, measures 100.4 x 38.7 x 174.8 mm excluding antennas and has a net weight of 0.430 kg including antennas. Surge protection is rated at 4 kV.

Cellular connectivity comes from one Nano SIM slot supporting 4G+ Cat6 with up to 300 Mbps downlink and 50 Mbps uplink. The EU/AU LTE band list covers 4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32 and LTE-TDD B38/B40/B41, with 3G DC-HSDPA/HSPA+ on B1/B3/B5/B8 and a long list of carrier aggregation combinations including B3+B28 and B7+B28. Two 4.0 dBi omnidirectional LTE antennas are detachable. The gateway can also send and receive SMS, and it supports 4G and Ethernet WAN auto backup with intelligent load balancing, application optimised routing, link backup by timing or failover, and online detection.

Wi-Fi is AX3000 Wi-Fi 6, with 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz using 160 MHz (HE160) channels, through built-in 4.0 dBi (5 GHz) and 2.3 dBi (2.4 GHz) antennas. Wireless features include OFDMA, MU-MIMO, beamforming, airtime fairness, seamless roaming, mesh with EAPs that support mesh, SSID and client rate limits, WPA/WPA2/WPA3 Personal and Enterprise encryption, a guest network and up to 16 SSIDs (eight per radio).

Power is unusually flexible. The ER703WP-4G-Outdoor accepts 802.3at/bt PoE or passive PoE on port 1, or a 12 V / 2 A DC supply, which TP-Link says is compatible with solar panels; the DC adapter is not included. Ports 2 and 3 provide 802.3af/at PoE out to power cameras or access points, but the PoE-out feature requires 802.3bt PoE input. The PoE budget is 45 W when the gateway is powered by 802.3bt Type 4 (90 W) and 27 W when powered by 802.3bt Type 3 (60 W). Maximum power consumption is 14.5 W without PoE output and 63 W with PoE.

As an Omada gateway it lists 120,000 concurrent sessions, 3,800 new sessions per second, DPI throughput of 1131 Mbps TCP, around 946 to 950 Mbps static IP NAT and IPsec VPN throughput of about 550 to 568 Mbps depending on the cipher. VPN support covers 100 IPsec tunnels, 50 L2TP, 50 PPTP, 55 OpenVPN, 50 SSL VPN and 20 WireGuard tunnels, plus GRE in Standalone Mode. Security includes DPI application control, web group and URL filtering, IP-based access control, ARP inspection and flood defence, and authentication supports hotspot portals with local user, voucher, SMS or RADIUS. It is managed through Omada Cloud Essentials, the Omada Cloud-Based Controller, OC300 or OC200 hardware controllers, the Omada Software Controller or the Omada app; zero-touch provisioning needs the Cloud-Based Controller.

Key features

4G+ Cat6 up to 300 Mbps

One Nano SIM slot, 50 Mbps uplink, EU/AU LTE bands including B28, and SMS support.

AX3000 Wi-Fi 6

574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz (HE160), up to 16 SSIDs.

IP55 outdoor enclosure

Rated IP55 in testing, -30 to 60 °C operation and 4 kV surge protection.

PoE in and PoE out

802.3at/bt PoE in on port 1; 802.3af/at PoE out on ports 2 and 3 when powered by 802.3bt.

PoE or DC power

PoE, passive PoE or 12 V / 2 A DC, which TP-Link says suits solar panels.

4G and Ethernet failover

WAN auto backup with load balancing and application optimised routing.

Full VPN suite

IPsec, L2TP, PPTP, OpenVPN, GRE, WireGuard and SSL VPN.

Omada SDN management

Cloud, hardware or software controllers and the Omada app; ZTP via the Cloud-Based Controller.

ER703WP-4G-Outdoor specifications

At a glance

4G+ Cat6 300 Mbps
AX3000 Wi-Fi 6
3 x Gigabit ports
1 PoE in / 2 PoE out
Up to 45 W PoE out
IP55, -30 to 60 °C
Pole / wall mount
Omada SDN
ER703WP-4G-Outdoor full specifications
4G
Network TypeLTE Band of EU: 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/9 00/800/700/1450 MHz) 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41
SIM Type1× Nano SIM Card
FrequencyDownlink: 300 Mbps;; Uplink: 50 Mbps
Security
DPIApplication control via DPI / Updated app library
Access ControlSource/Destination IP Based Access Control
FilteringWeb Group Filtering; URL Filtering; Web Security
ARP InspectionSending GARP Packets; ARP Scanning; IP-MAC Binding
Attack DefenseTCP/UDP/ICMP Flood Defense; Block TCP Scan (Stealth FIN/Xmas/Null); Block Ping from WAN
Hardware Features
Interface3 Gigabit WAN/LAN Ports
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m); 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
ButtonReset Button
Power Supply802.3at/bt PoE; 12VDC / 2A Power Adapter
Wi-Fi Frequency & Signal Rate2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps (HE160)
Flash256 MB NAND
DRAM512 MB DDR4
LED4G Signal, WLAN, WAN/LAN, SYS
Dimensions ( W x D x H )4.0 × 1.5 i×6.9 in (100.4 × 38.7 × 174.8 mm) (Antenna dimensions are not included)
AntennaWi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-in antennas; LTE: Two 4.0dBi omnidirectional detachable antennas
MountingPole/Wall-Mounting
Max. Power Consumption14.5W without PoE; 63W with PoE
Performance
DPI ThroughputTCP: 1131 Mbps; UDP: 974 Mbps
GREUnencrypted: 450.3Mbps; Encrypted: 277.6Mbps
WireGuard VPN462.8Mbps
Concurrent Session120,000
New Sessions /Second3,800
NAT (Static IP)945.9Mbps / 950.2Mbps
NAT(DHCP)947.3Mbps / 949.4Mbps
NAT(PPPoE)916.9Mbps / 946.3Mbps
NAT (L2TP)878.9Mbps / 778.9Mbps
NAT (PPTP)852.2Mbps / 775.9Mbps
IPsec VPN ThroughputESP-SHA1-AES256: 568.3Mbps; ESP-SHA256-AES256: 559.8Mbps; ESP-SHA384-AES256: 565.6Mbps; ESP-SHA512-AES256: 550.0 Mbps
OpenVPN85.1Mbps
L2TP VPN ThroughputUnencrypted: 858.7Mbps; Encrypted: 467.0Mbps
PPTP VPN ThroughputUnencrypted: 876.2Mbps; Encrypted: 182.6Mbps
SSL VPN Throughput86.6Mbps
66 Byte Packet Forwarding Rate1,453,489 pps / 1,453,489 pps
1,518 Byte Packet forwarding rate81275 pps / 81275 pps
Wireless Features
Advanced FeaturesSeamless Roaming; Mesh (with EAP that supports Mesh); OFDMA; Beamforming; MU-MIMO; Rate Limit: Based on SSID/Client; Airtime Fairness; Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise; Multiple SSIDs: 16 in total (8 per radio)
Guest NetworkSupport
Basic Functions
WAN Connection TypeStatic IP; Dynamic IP; PPPoE (supports MRU Configuration); PPTP; L2TP
MAC CloneModify WAN Address
DHCPDHCP Server; DHCPv6 PD Server (only in Standalone Mode); DHCP Options Customisation; DHCP Address Reservation; Multi-IP Interfaces; Multi-Net DHCP
SMSReceive / Send SMS
IPv6StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Advanced Features
Access ControlIP/Port/Protocol/Domain Name Filtering
Advanced RoutingStatic Routing; Policy Routing; RIP; OSPF
Bandwidth ControlIP-Based Bandwidth Control
Load BalanceIntelligent Load Balance; Application Optimised Routing; Link Backup(Timing, Failover); Online Detection
NATOne-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP
Session LimitIP-Based Session Limit
Vpn
GREOnly in Standalone Mode
SSL VPN50 Tunnels
IPsec VPN100 IPSec VPN Tunnels; LAN-to-LAN, Client-to-LAN; Main, Aggressive Negotiation Mode; DES, 3DES, AES128, AES192, AES256 Encryption Algorithm; IPsec Failover; IKE v1/v2; MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm; NAT Traversal (NAT-T); Dead Peer Detection (DPD); Perfect Forward Secrecy (PFS)
PPTP VPNPPTP VPN Server; PPTP VPN Client (10); 50 Tunnels; PPTP with MPPE Encryption
L2TP VPNL2TP VPN Server; L2TP VPN Client (10); 50 Tunnels; L2TP over IPSec
OpenVPNOpenVPN Server; OpenVPN Client (5); 55 OpenVPN Tunnels; "Certificate + Account" Mode; Full Mode
WireGuard VPN20 Tunnels
Authentication
Web AuthenticationNo Authentication; Simple Password; Hotspot (Local User / Voucher / SMS / Radius); External Radius Server; External Portal Server; LDAP
Management Features
Omada AppYes.
Centralised ManagementOmada Cloud Essentials; Omada Cloud-Based Controller; Omada Hardware Controller (OC300); Omada Hardware Controller (OC200); Omada Software Controller
Cloud AccessYes.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customisation)
MaintenanceWeb Management Interface; Remote Management; Export & Import Configuration; SNMP v1/v2c/v3; Diagnostics (Ping & Traceroute); NTP Synchronize; Port Mirroring; CLI (only in Standalone Mode); Syslog Support
Management FeaturesAutomatic Device Discovery; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; Captive Portal Configuration
Others
CertificationCE, FCC, RoHS
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10/11; MAC OS, NetWare, UNIX or Linux
EnvironmentOperating Temperature: -30 °C to 60 °C (-22 °F to 140 °F); Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F); Operating Humidity: 5% to 95% non-condensing; Storage Humidity: 5% to 90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • ER703WP-4G-Outdoor
  • Mounting Kits
  • Quick Installation Guide

Source: TP-Link's published package contents.

Who the ER703WP-4G-Outdoor is for

Remote and temporary sites

  • 4G+ internet where there is no fixed line
  • PoE or solar-compatible DC power
  • Pole or wall mounting outdoors

Powering cameras or APs

  • Two 802.3af/at PoE-out ports
  • Up to 45 W budget with 802.3bt Type 4 input
  • One cable in, two powered devices out

Managed multi-site networks

  • Omada Cloud Essentials and controllers
  • Site-to-site VPN including WireGuard
  • 4G and Ethernet WAN backup

Buy the ER703WP-4G-Outdoor from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the ER703WP-4G-Outdoor from the ARC IP Networks team.

Last reviewed October 2026.

It is 4G+ Cat6 with up to 300 Mbps downlink and 50 Mbps uplink through one Nano SIM slot. Actual speed depends on your carrier and signal.

The EU/AU band list is 4G LTE-FDD B1/B3/B5/B7/B8/B20/B28/B32, LTE-TDD B38/B40/B41 and 3G B1/B3/B5/B8, with carrier aggregation.

Yes. TP-Link says the enclosure was rated IP55 in ingress protection testing, and the operating range is -30 to 60 °C.

By 802.3at/bt PoE or passive PoE on port 1, or by a 12 V / 2 A DC supply that TP-Link says is compatible with solar panels. The DC adapter is not included.

Yes. Ports 2 and 3 provide 802.3af/at PoE out, but only when the gateway itself is powered by 802.3bt PoE. The budget is 45 W with 802.3bt Type 4 input and 27 W with Type 3 input.

AX3000 dual-band Wi-Fi 6: 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz with 160 MHz channels, with up to 16 SSIDs.

Yes. Its Gigabit ports are WAN/LAN, and it supports 4G and Ethernet WAN auto backup with load balancing.

IPsec (100 tunnels), L2TP, PPTP, OpenVPN, SSL VPN, WireGuard (20 tunnels) and GRE in Standalone Mode.

Yes. It can be managed by Omada Cloud Essentials, the Omada Cloud-Based Controller, OC300 or OC200 hardware controllers, the Omada Software Controller and the Omada app.

The ER703WP-4G-Outdoor, mounting kits and a quick installation guide.

Need more than one ER703WP-4G-Outdoor for remote sites that need 4G, Wi-Fi and PoE?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
WiFi Standard • 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160)
