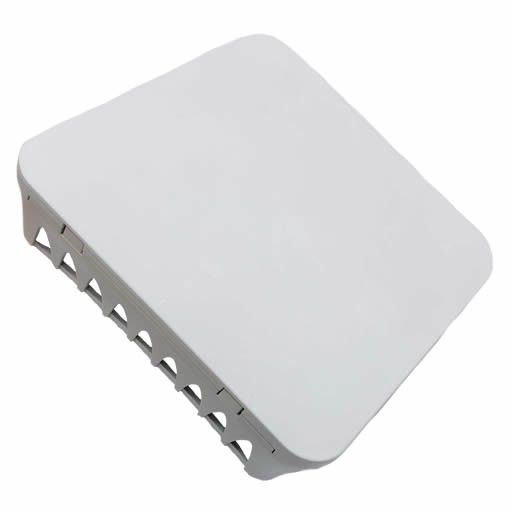

Siklu EH-ANT-0.5ft-SLIM EtherHaul 0.5ft E-band Antenna with Jacket, 38 dBi

https://arcip.com.au/web/image/product.template/3439/image_1920?unique=d42713d

Siklu EH-ANT-0.5ft-SLIM is a 16 cm (0.5 ft) E-band antenna with a jacket for Siklu's large EtherHaul ODUs, including the EH-2500FX. It covers 71–86 GHz with 38 dBi gain and a 2° beam, and is ETSI EN 302 217-4-2 Class 2 compliant.

$ 518.95 518.95 AUD $ 518.95 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Siklu
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EH-ANT-0.5ft-SLIM
Tags

Siklu EH-ANT-0.5ft-SLIM at a glance

The Siklu EH-ANT-0.5ft-SLIM is the smallest EtherHaul E-band antenna: a 16 cm (0.5 ft) dish with a jacket that fits Siklu's large E-band ODUs such as the EH-2500FX. It gives 38 dBi gain with a 2° beam across 71–86 GHz, for short, low-profile links. Siklu certifies it to ETSI Class 2; it is not FCC approved.

ARC IP Networks is an authorised Siklu reseller in Australia. We supply the genuine Siklu EtherHaul 0.5 ft SLIM E-band antenna at competitive prices, from Australian stock, with the full manufacturer's warranty and a GST tax invoice.

Size0.5 ft (16 cm)
Gain38 dBi ±2
Beamwidth2°
Band71–86 GHz
RegulatoryETSI Class 2
Wind survival220 km/h
Temperature−55 to +71 °C
MountAX-MK-1ft-B

Best for

  • Short E-band links between nearby buildings
  • Discreet installs where a larger dish is not acceptable
  • Large EtherHaul ODUs such as the 2500FX

Consider instead

Key features

16 cm antenna with jacket for large EtherHaul ODUs

38 dBi gain, 2° beamwidth

Covers 71–86 GHz

Vertical or horizontal polarisation

ETSI EN 302 217-4-2 Class 2

Rated to 220 km/h survival wind

What's in the box

  • EH-ANT-0.5ft-SLIM antenna with jacket

Siklu lists AX-MK-1ft-B or EH-MK-SP as the mount for this antenna on large ODUs. The jacket is not used with the EH-8010FX.

Siklu EH-ANT-0.5ft-SLIM specifications

RF

Frequency range71–86 GHz
Gain38 dBi ±2 dB
3 dB beamwidth2°
PolarisationLinear vertical / horizontal
Max input power10 W
InterfaceCircular waveguide, E-band

Regulatory

ETSIEN 302 217-4-2 V1.5.1 Class 2
FCCNot permitted

Mechanical

Diameter16 cm (0.5 ft)
RadomePlastic
Wind load (front, 220 km/h)136.6 N

Environmental

Operating temperature−55 °C to +71 °C (IEC 68-2)
Water tightnessIP67 when correctly mounted on the radio per the Siklu installation guide
Ice and snow25 mm radial
Wind speed160 km/h operational, 220 km/h survival

Specifications from Siklu by Ceragon's official product documentation for the EH-ANT-0.5ft-SLIM, checked October 2026.

The Siklu EtherHaul 0.5 ft SLIM E-band antenna in depth

Where it fits

The SLIM version of Siklu's 0.5 ft antenna has a jacket so it can be fitted to the large E-band ODUs: the EH-2500F/FX together with the EH-1200, EH-2200 and EH-5500FD families. It is for short links where the 38 dBi gain is enough and a smaller, lighter dish is preferred.

Regulatory

Siklu certifies the antenna to ETSI EN 302 217-4-2 Class 2 and marks it as not permitted under FCC rules. Confirm that it suits the licence conditions for your link before ordering.

Mounting

Siklu lists the AX-MK-1ft-B or EH-MK-SP mounting kit for this antenna on large ODUs. The jacket is not used with the EH-8010FX.

Frequently asked questions

Straight answers about the Siklu EtherHaul 0.5 ft SLIM E-band antenna from the ARC IP Networks team. Last reviewed October 2026.

It is a 16 cm (0.5 ft) E-band antenna with a jacket for Siklu's large EtherHaul ODUs, giving 38 dBi gain and a 2° beam across 71–86 GHz.

Yes. Siklu lists it for the EH-2500F/FX, EH-1200, EH-2200 and EH-5500FD ODUs. The jacket is not used with the EH-8010FX.

Siklu lists the AX-MK-1ft-B or EH-MK-SP for large ODUs. The EH-MK-SM is for the small EH-500/600/7x0 radios, not the SLIM antenna.

No. Siklu certifies it to ETSI EN 302 217-4-2 Class 2 and lists it as not permitted under FCC rules.

ARC IP Networks is an authorised Siklu reseller and supplies the genuine Siklu EH-ANT-0.5ft-SLIM at competitive prices from Australian stock, with the full manufacturer's warranty and a GST tax invoice. Trade and project pricing is available.

Buy the Siklu EH-ANT-0.5ft-SLIM in Australia

ARC IP Networks is an authorised Siklu reseller, supplying genuine Siklu by Ceragon mmWave and E-band radios, antennas and accessories at competitive prices to ISPs, integrators and businesses across Australia.

  • Genuine Siklu by Ceragon products, never grey import.
  • Australian stock with Australia-wide delivery.
  • Full manufacturer's warranty and local pre-sales help with link planning.
  • GST tax invoice on every order, with trade and project pricing available.

Need a compact E-band link?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Siklu model for your link.
