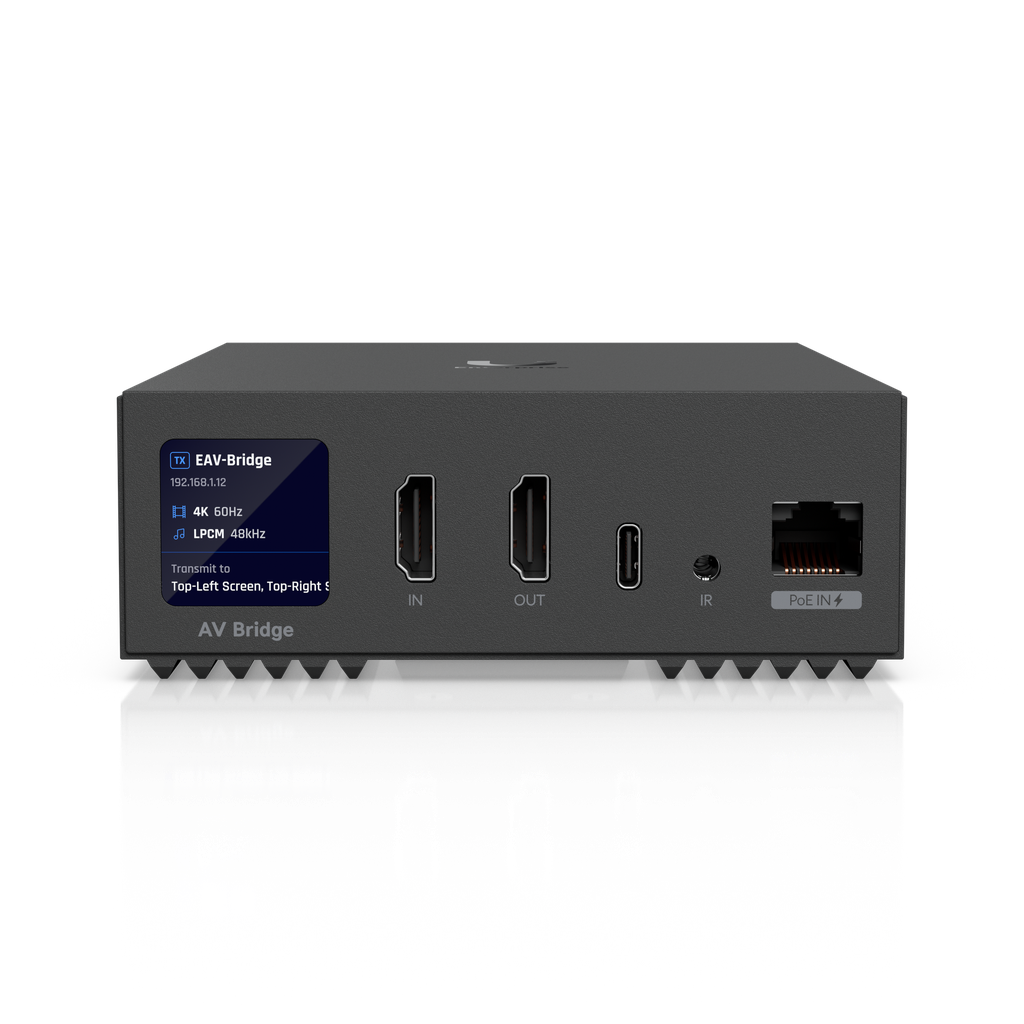

Ubiquiti UniFi Enterprise Audio/Video Bridge (EAV-Bridge) — PoE+ AV-over-IP Transceiver with HDMI 2.0 4K60, XLR Professional Audio I/O, 48V Phantom Power and 1.3" Touchscreen

https://arcip.com.au/web/image/product.template/9723/image_1920?unique=cdb3afc

The Ubiquiti EAV-Bridge (Enterprise Audio/Video Bridge) is a PoE+ powered AV-over-IP transceiver that bridges 4K60 HDMI and professional XLR audio as either a source or destination. It has HDMI 2.0 input and output at 4K 60 Hz, two female XLR analogue inputs with 6.35 mm combo input and 48V phantom power, and two male XLR analogue outputs. Signal distribution covers 1-to-1 and 1-to-N streaming and TV walls up to 8x8. It connects through one GbE RJ45 PoE+ Etherlighting port, draws 14W max, has a 1.3" touchscreen and mounts on DIN rail, wall or pole. Supplied by ARC IP Networks with project pricing via Ubiquiti deal registration.

This product is supplied under the Ubiquiti Enterprise Program.


  • Brand
  • Form Factor
  • Network Connectivity
  • PoE Requirement
  • Video Input
  • Video Output
  • Audio Input
  • Audio Output
  • Power Consumption
  • Display
  • Signal Distribution

This combination does not exist.

Indoor UniFi Ubiquiti PoE+ DIN Rail EAV Enterprise Audio Video AV over IP HDMI 2.0 4K60 XLR Phantom Power Premium IoT Touchscreen
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAV-Bridge
Barcode
5715328289819
Tags

Ubiquiti EAV-Bridge at a glance

The Ubiquiti EAV-Bridge (Enterprise Audio/Video Bridge) is a PoE+ powered AV-over-IP transceiver that bridges 4K60 HDMI and professional XLR audio as either a source or destination. It has one GbE RJ45 PoE+ In Etherlighting™ port, HDMI 2.0 input and output at 4K 60 Hz, and a 14W maximum power consumption.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine Enterprise Audio/Video Bridge under the Ubiquiti Enterprise programme with the full manufacturer's warranty. Contact us before ordering for project pricing and lead time.

VideoHDMI 2.0, 4K at 60 Hz in and out
AudioXLR analog in/out, HDMI audio
PowerPoE+, 14W max.
Network(1) GbE RJ45 PoE+ In
Distribution1-to-1, 1-to-N, up to 8x8 TV wall
MountingDIN rail, wall, pole (included)
Display1.3" touchscreen
EnclosureAluminium, 560 g

Best for

  • AV-over-IP distribution of HDMI and XLR audio
  • 1-to-N streaming and TV wall configurations
  • Professional audio and video bridging over a network

Consider instead

  • Ubiquiti UC-Cast-Pro: a managed digital signage player for HDMI displays with media playback up to 4K, rather than an AV-over-IP bridge
  • Ubiquiti UC-Display: a 21.5" Full HD PoE++ touchscreen for interactive digital signage
💼

Ubiquiti Enterprise Program

The Ubiquiti Enterprise Audio/Video Bridge (EAV-Bridge) is supplied under the Ubiquiti Enterprise Program. Please contact ARC IP Networks before ordering for project pricing and lead time.

Key features

See the Enterprise Audio/Video Bridge




Introducing: UniFi Enterprise Audio/Video Switching with Precision Hardware Timing (Video: Ubiquiti)




Meet UniFi: EAV Bridge (Video: Ubiquiti)

EAV-Bridge AV Bridge Deployment
EAV-Bridge HDMI / XLR ports
EAV-Bridge Touchscreen LCM
EAV-Bridge Mount Options
EAV-Bridge TV Wall Configuration

Ubiquiti EAV-Bridge specifications

Mechanical

Dimensions109 x 134.4 x 40.4 mm / (4.3 x 5.3 x 1.6")
Weight560 g (1.2 lb)
Enclosure MaterialAluminium
MountingDIN rail, Wall, Pole (Included)
Pole Mount Diameter1.5–2" (38–50 mm)

Audio

OutputMono / Stereo sound
Surround FormatPCM
Audio Input(1) HDMI in / (2) XLR female analog with 6.35 mm analog combo input, phantom power: 48V DC supported
Audio Output(1) HDMI out / (2) XLR male analog output
Frequency20 Hz – 20k Hz ±0.5dB

Video

Video Input(1) HDMI 2.0, 4K at 60 Hz (60 FPS)
Video Output(1) HDMI 2.0, 4K at 60 Hz (60 FPS)
Video Content Support480p / 720p / 1080p / 4K
Signal Distribution1-to-1, 1-to-N streaming / 1 to 8x8 TV wall configuration

Hardware

Networking Interface(1) GbE RJ45 PoE+ In Etherlighting™ port
Versatile Port(1) USB Type-C 5V, 1A
IR Connection(1) 3.5 mm Input or Output
Power MethodPoE+
Max. Power Consumption14W
LCM Display(1) 1.3” touchscreen
Button(1) Factory reset
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsFCC, IC, CE

Specifications from Ubiquiti's official product data for the EAV-Bridge, checked October 2026.

The Enterprise Audio/Video Bridge in depth

AV-over-IP bridge for HDMI and XLR

The EAV-Bridge is a PoE+ powered AV-over-IP transceiver that works as either a source or a destination. It carries 4K60 HDMI and professional XLR audio over the network, using HDMI 2.0 input and output at 4K at 60 Hz (60 FPS). Supported video content includes 480p, 720p, 1080p and 4K.

Audio and signal distribution

Audio connections include one HDMI in and out, plus two XLR female analog inputs with a 6.35 mm analog combo input and 48V DC phantom power supported, and two XLR male analog outputs. Frequency response is 20 Hz – 20k Hz ±0.5dB with mono or stereo output and PCM surround format. Signal distribution supports 1-to-1 and 1-to-N streaming, as well as 1 to 8x8 TV wall configurations.

Hardware and mounting

The bridge has a single GbE RJ45 PoE+ In Etherlighting™ port, a USB Type-C 5V, 1A versatile port, a 3.5 mm IR input or output and a 1.3" touchscreen. The aluminium enclosure measures 109 x 134.4 x 40.4 mm and weighs 560 g. It mounts on a DIN rail, wall or pole, with pole mount included for 1.5–2" (38–50 mm) diameters. USB and IR port configuration is coming in a future update.

Frequently asked questions

Straight answers about the Enterprise Audio/Video Bridge from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti EAV-Bridge is the Enterprise Audio/Video Bridge, a PoE+ powered AV-over-IP transceiver. It bridges 4K60 HDMI and professional XLR audio as either a source or destination.

It is powered by PoE+ through its GbE RJ45 PoE+ In Etherlighting™ port. Maximum power consumption is 14W.

Video is one HDMI 2.0 input and one HDMI 2.0 output at 4K 60 Hz. Audio includes HDMI in and out, XLR female analog inputs with 6.35 mm combo input and 48V DC phantom power supported, and XLR male analog outputs.

The EAV-Bridge supports 1-to-1 and 1-to-N streaming, as well as 1 to 8x8 TV wall configurations.

It can be mounted on a DIN rail, wall or pole. Pole mounting is included and suits 1.5–2" (38–50 mm) diameters.

The record notes that USB and IR port configuration is coming in a future update.

ARC IP Networks is an authorised Ubiquiti reseller. The EAV-Bridge is part of the Ubiquiti Enterprise programme, so contact us for project pricing via Ubiquiti deal registration.

Related Ubiquiti products

Ubiquiti UC-Cast-Pro

Unifi Display Cast Pro

Ubiquiti UC-Cast-Lite

Unifi Display Cast Lite

Ubiquiti UPL-Port-W

PoE Audio Port

Ubiquiti UPL-Amp-W-AU

Unifi PowerAmp White

Browse the full range: Ubiquiti Enterprise · Why buy Ubiquiti from ARC IP Networks

Buy the Ubiquiti EAV-Bridge in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Ubiquiti Enterprise programme: project pricing via Ubiquiti deal registration.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

Planning an AV-over-IP deployment with the EAV-Bridge?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.

Brand UBIQUITI
Form Factor DIN Rail / Wall / Pole Mount
Network Connectivity (1) GbE RJ45 PoE+ Etherlighting
PoE Requirement PoE+ (802.3at)
Video Input (1) HDMI 2.0 4K60
Video Output (1) HDMI 2.0 4K60
Audio Input (1) HDMI + (2) XLR Female with 6.35 mm combo, 48V phantom
Audio Output (1) HDMI + (2) XLR Male analog
Power Consumption 14W
Display 1.3" Touchscreen LCM
Signal Distribution 1-to-1 / 1-to-N / 1×8×8 TV Wall
