TP-Link EAP653 UR Omada AX3000 Wi-Fi 6 Ultra-Range Dual-Band Ceiling Access Point

Price:

$ 237.46


TP-Link M7005 4G LTE Mobile Wi-Fi
TP-Link M7005 4G LTE Mobile Wi-Fi
$ 163.36
$ 163.36
Ubiquiti Wave-AP UISP Wave Access Point 60GHz and 5GHz AP PtMP Access Point Powered by Wave Technology
Ubiquiti Wave-AP UISP Wave Access Point 60GHz and 5GHz AP PtMP Access Point Powered by Wave Technology
$ 913.77
$ 983.40 (7% OFF)

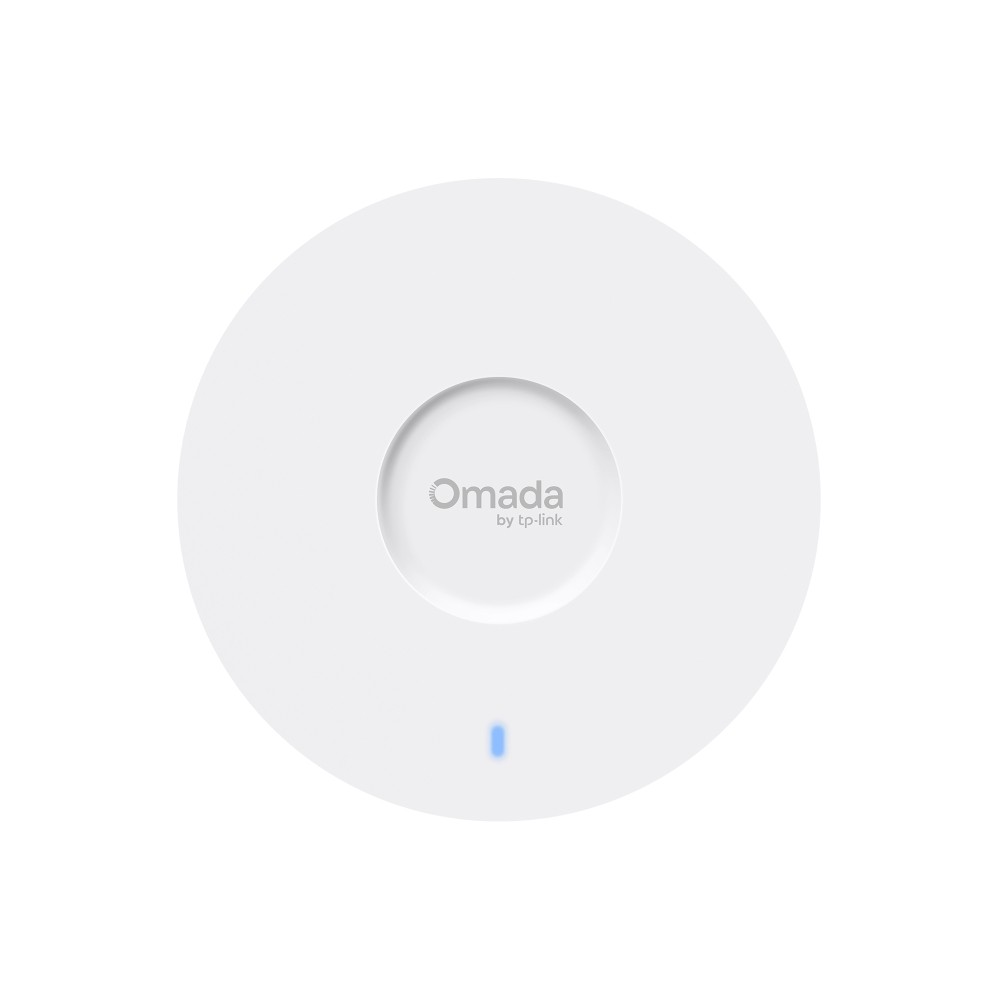

TP-Link EAP653 UR Omada AX3000 Wi-Fi 6 Ultra-Range Dual-Band Ceiling Access Point

https://arcip.com.au/web/image/product.template/8073/image_1920?unique=35f48f4

The TP-Link EAP653 UR is an Omada AX3000 dual-band ceiling mount Wi-Fi 6 access point built for wide coverage in large business spaces. Its high-power internal omnidirectional antennas (2 x 5 dBi on 2.4 GHz, 3 x 5 dBi on 5 GHz) deliver up to 185 square metres of coverage and 250+ concurrent connections, and the 2x2 radios reach 2402 Mbps on 5 GHz with 160 MHz channels and 574 Mbps on 2.4 GHz, using 1024-QAM, OFDMA and MU-MIMO. One Gigabit Ethernet port accepts 802.3at PoE or 48 V passive PoE, with a 12 V DC input as an alternative (adapter not included). Up to 16 SSIDs, captive portal, mesh and 802.11k/v/r roaming are supported, with centralised management through Omada Central, hardware or software controllers.

$ 237.46 237.46 AUD $ 237.46 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP653 UR
Barcode
8885020620566
Tags

The TP-Link EAP653 UR is the ultra-range version of the Omada AX3000 Wi-Fi 6 ceiling mount access point. High-power internal antennas give TP-Link-rated coverage of up to 185 square metres (2,000 sq ft) and 250+ concurrent clients, with up to 2402 Mbps on 5 GHz using 160 MHz channels and 574 Mbps on 2.4 GHz. It has one Gigabit PoE+ port (802.3at or 48 V passive PoE) plus a 12 V DC input, Bluetooth 5.2 and Omada SDN management.

EAP653 UR overview

The EAP653 UR is TP-Link's Omada AX3000 dual-band ceiling mount access point in its UR (ultra-range) form. TP-Link says it delivers blazing-fast speeds and extended coverage, using Wi-Fi 6 efficiencies to support more devices over larger areas with stable performance. Its datasheet headline is four-stream dual-band Wi-Fi 6: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, with 2x2 MU-MIMO in both directions on each band. TP-Link notes that maximum signal rates are physical rates from the IEEE 802.11 specifications and that actual throughput, coverage and connected devices are not guaranteed.

What makes the UR version different is its antenna system. TP-Link equips the EAP653 UR with high-power dual-band internal omnidirectional antennas, rated at 2 x 5 dBi on 2.4 GHz and 3 x 5 dBi on 5 GHz, and describes the result as exceptional signal strength and extended coverage that penetrates walls and minimises dead zones in expansive business environments. Coverage is listed as up to 185 square metres (2,000 sq ft), calculated from laboratory testing, and the access point supports 250+ concurrent clients. FCC transmit power reaches 4 to 26 dBm on 2.4 GHz and 4 to 27 dBm on 5 GHz; CE EIRP is 7 to 20 dBm on 2.4 GHz and up to 29 dBm in U-NII-2C, depending on local regulations.

Wi-Fi 6 features include HE160 160 MHz channels, OFDMA, MU-MIMO, 1024-QAM, the 4x longer OFDM symbol and beamforming. TP-Link explains that 160 MHz bandwidth delivers faster speeds and lower latency for smoother streaming and multitasking, OFDMA lets multiple devices share channels efficiently in dense environments, and 1024-QAM raises data rates by 25% compared with Wi-Fi 5. Up to 16 SSIDs (eight per band), band steering, load balance, airtime fairness, rate limits, lock to AP, URL filtering, WMM QoS and wireless schedules are listed. Security covers captive portal authentication, access control, MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection and WPA, WPA2 and WPA3 Personal/Enterprise.

The single 10/100/1000 Mbps RJ45 port is a Gigabit PoE+ port that accepts 802.3at PoE or 48 V passive PoE, and a separate 12 V DC / 1.5 A input is available; the DC adapter is not included. The AU product page lists maximum power consumption of 14.2 W (EU) or 15.5 W (US); the datasheet lists 14.8 W (EU) or 16.4 W (US), so allow for the higher figure when planning a PoE budget. The housing measures 160 x 160 x 33.6 mm and the main unit weighs 0.41 kg, with kits included for ceiling, wall, junction box and T-bar mounting. A Bluetooth 5.2 (BLE) radio is built in. It operates from 0 to 40 °C and is certified to CE, FCC and ISED.

Management options include HTTP/HTTPS web management, the Omada app, SSH, SNMP v1/v2c/v3, syslog, L3 and multi-site management, a management VLAN, management MAC access control and LED on/off control. Centralised control is through Omada Central (cloud-based), Omada hardware controllers or the Omada software controller; cloud access and zero-touch provisioning require an Omada controller, as do captive portal, Omada mesh and 802.11k/v/r seamless roaming. In the box are the EAP653 UR, a mounting kit and an installation guide.

Key features

Ultra-range coverage

High-power internal antennas for up to 185 square metres (2,000 sq ft), based on laboratory testing.

AX3000 Wi-Fi 6

2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with 2x2 UL/DL MU-MIMO on each band.

160 MHz channels

HE160, OFDMA and 1024-QAM for lower latency and higher throughput.

250+ concurrent clients

Supports more simultaneous connections for busy spaces.

Gigabit PoE+ port

802.3at PoE or 48 V passive PoE, with a 12 V DC input as an alternative.

Bluetooth 5.2

Built-in BLE 5.2 radio.

Mesh and 802.11k/v/r roaming

Omada mesh and seamless roaming with an Omada controller.

Omada SDN

Omada Central, hardware or software controller management and the Omada app.

EAP653 UR specifications

At a glance

AX3000 Wi-Fi 6
Up to 185 m² coverage
250+ clients
160 MHz (HE160)
1 x Gigabit PoE+ port
12 V DC option
Bluetooth 5.2
Omada SDN
EAP653 UR full specifications
Hardware Features
Interface1× Gigabit PoE+ Port
ButtonReset
Power Supply802.3at PoE; 12V DC / 1.5 A; 48V Passive PoE Note: DC Power adapter is not included.
Max. Power ConsumptionEU: 14.2 W; US: 15.5 W
Dimensions ( W x D x H )6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna2.4 GHz: 2× 5 dBi; 5 GHz: 3× 5 dBi
BluetoothV5.2
MountingCeiling/Wall/Junction Box/T-Bar Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogYes
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Require the use of an Omada controller.
Wireless Features
Coverage2000 ft² (185 ㎡)
Concurrent Clients250+
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 574 Mbps
Wireless Functions1024-QAM; 4× Longer OFDM Symbol; OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); MU-MIMO(2G: 2 2 MU-MIMO DL/UL; 5G:2 2 MU-MIMO DL/UL); HE160 (160 MHz Bandwidth); Seamless Roaming(802.11k/v/r); Omada Mesh; Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE: 7-20 dBm(2.4 GHz, EIRP) 6-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) 6-29 dBm(5 GHz, U-NII-2C, EIRP); FCC: 4-26 dBm (2.4 GHz) 4-27 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
Others
CertificationCE, FCC, ISED
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP653 UR
  • Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP653 UR is for

Large open business spaces

  • Up to 185 m² per AP (lab tested)
  • High-power internal antennas
  • Fewer APs for the same floor area

Busy venues

  • 250+ concurrent clients
  • OFDMA and MU-MIMO
  • Up to 16 SSIDs with captive portal

Omada-managed networks

  • Omada Central, hardware or software controller
  • Mesh and seamless roaming
  • Zero-touch provisioning

EAP653 UR compared

The EAP653 UR and the standard EAP653 share the AX3000 dual-band Wi-Fi 6 platform, 160 MHz support, one Gigabit port and the same 160 x 160 x 33.6 mm housing. The UR version adds higher-gain antennas and published coverage and client figures.

SpecificationEAP653 UREAP653
Wi-FiAX3000, 2402 + 574 MbpsAX3000, 2402 + 574 Mbps
2.4 GHz antennas2 x 5 dBi2 x 4 dBi
5 GHz antennas3 x 5 dBi2 x 5 dBi
Listed coverage185 m² (2,000 sq ft)Not listed
Concurrent clients250+Not listed
Power802.3at PoE, 48 V passive PoE, 12 V DC802.3at PoE, 48 V passive PoE, 12 V DC
Max power (AU page)EU 14.2 W / US 15.5 WEU 13.5 W / US 14.7 W
CertificationCE, FCC, ISEDCE, FCC

Source: TP-Link Australia product pages for each model.

Buy the EAP653 UR from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP653 UR from the ARC IP Networks team.

Last reviewed October 2026.

UR stands for ultra-range. The EAP653 UR uses high-power internal antennas for extended coverage, which TP-Link lists as up to 185 square metres (2,000 sq ft).

Both are AX3000 Wi-Fi 6 ceiling APs with one Gigabit port. The UR has higher-gain antennas (2 x 5 dBi on 2.4 GHz and 3 x 5 dBi on 5 GHz, versus 2 x 4 dBi and 2 x 5 dBi), slightly higher power draw, and published coverage of 185 m² and 250+ clients.

Up to 2402 Mbps on 5 GHz using 160 MHz channels and up to 574 Mbps on 2.4 GHz. These are maximum physical rates; actual throughput varies.

By 802.3at PoE or 48 V passive PoE on its Gigabit port, or by a 12 V / 1.5 A DC adapter, which is not included.

The AU product page lists 14.2 W (EU) or 15.5 W (US) maximum; the datasheet lists 14.8 W (EU) or 16.4 W (US). An 802.3at PoE+ port covers either figure.

TP-Link lists 250+ concurrent clients. Actual capacity depends on the wireless environment and client traffic.

Yes. Omada mesh and 802.11k/v/r seamless roaming are supported with an Omada controller.

Yes, a Bluetooth 5.2 (BLE) radio is built in.

On a ceiling, wall, junction box or T-bar; the mounting kit is included. The unit is 160 x 160 x 33.6 mm and weighs 0.41 kg.

The EAP653 UR, a mounting kit and an installation guide.

Need more than one EAP653 UR for a large-floor Wi-Fi 6 deployment?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.
