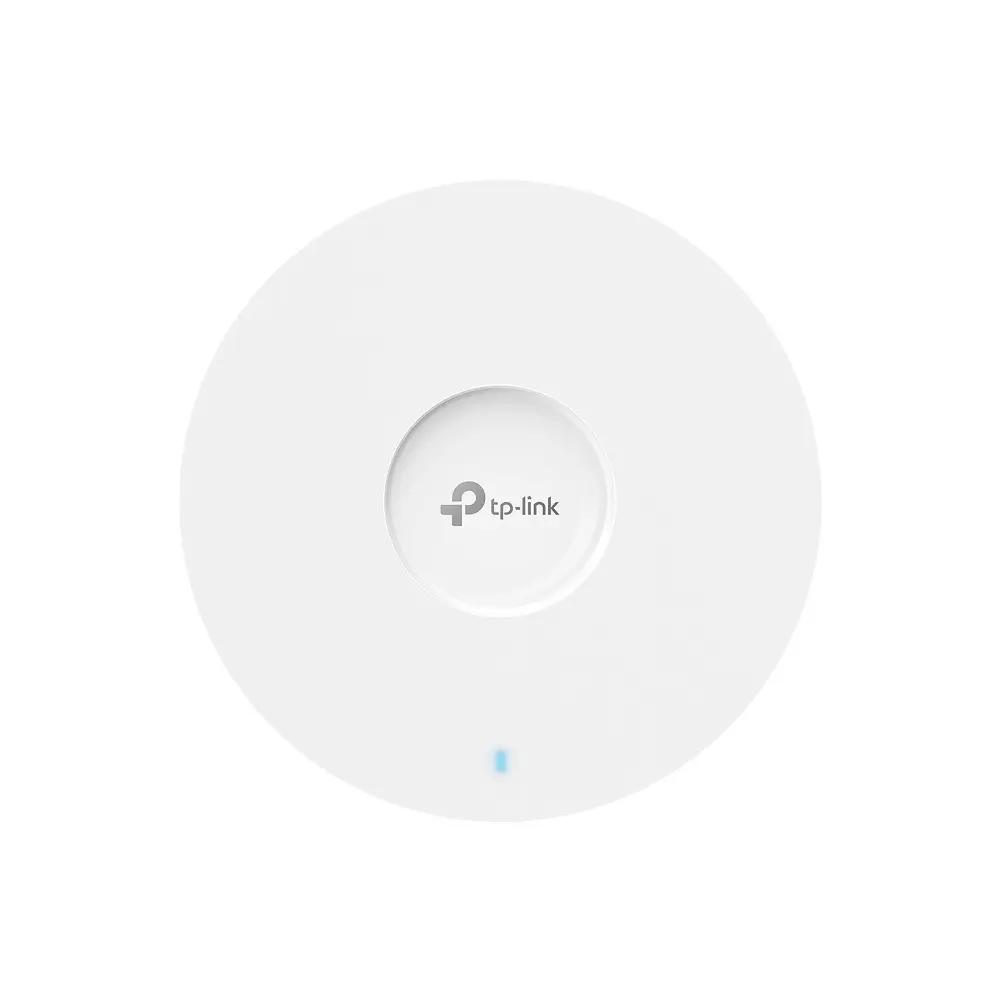

TP-Link EAP653 Omada AX3000 Wi-Fi 6 Dual-Band Ceiling Mount Access Point

https://arcip.com.au/web/image/product.template/8072/image_1920?unique=21775a1

The TP-Link EAP653 is an Omada AX3000 ceiling mount Wi-Fi 6 access point for offices, shops and hospitality sites. Its dual-band 2x2 radios deliver up to 2402 Mbps on 5 GHz with HE160 (160 MHz) channels and up to 574 Mbps on 2.4 GHz, with 1024-QAM, OFDMA, MU-MIMO and beamforming. One Gigabit Ethernet port carries data and accepts 802.3at PoE or 48 V passive PoE, and a 12 V DC input is also available (power adapter not included). Up to 16 SSIDs, band steering, airtime fairness and captive portal support suit guest networks, and Omada SDN adds centralised cloud management, mesh and seamless roaming with an Omada controller.

$ 225.94 225.94 AUD $ 225.94 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP653
Barcode
4897098685235
Tags

The TP-Link EAP653 is an Omada AX3000 dual-band Wi-Fi 6 ceiling mount access point with up to 2402 Mbps on 5 GHz using 160 MHz channels and 574 Mbps on 2.4 GHz. It has one Gigabit Ethernet port, takes 802.3at PoE, 48 V passive PoE or 12 V DC (adapter not included), includes Bluetooth 5.2, supports up to 16 SSIDs, and is managed through Omada SDN with mesh and seamless roaming.

EAP653 overview

The EAP653 is TP-Link's Omada AX3000 ceiling mount Wi-Fi 6 access point. TP-Link presents it as a way to power up a business with new-era Wi-Fi 6, with lightning-fast AX3000 speeds, a secure guest network with up to 16 SSIDs and reliable Omada SDN management. It supports IEEE 802.11ax/ac/n/g/b/a on 2.4 GHz and 5 GHz, with signal rates of up to 2402 Mbps on 5 GHz and up to 574 Mbps on 2.4 GHz. TP-Link notes that maximum wireless signal rates are physical rates from the IEEE 802.11 specifications, and that actual throughput, coverage and number of connected devices will vary.

The 5 GHz radio supports HE160, so a 160 MHz channel is available where the local regulations and the environment allow it, which is how the EAP653 reaches its 2402 Mbps rate. Wi-Fi 6 features listed on the AU page include 1024-QAM, the 4x longer OFDM symbol, OFDMA, MU-MIMO and beamforming. Internal dual-band antennas are rated at 2 x 4 dBi on 2.4 GHz and 2 x 5 dBi on 5 GHz. Transmit power is adjustable in dBm, with CE EIRP limits of 7 to 20 dBm on 2.4 GHz and 7 to 23 dBm (U-NII-1/2A) or 7 to 30 dBm (U-NII-2C) on 5 GHz. A Bluetooth 5.2 radio is also built in.

Installation is flexible. The EAP653 has a single Gigabit Ethernet port and three power options: 802.3at PoE from a PoE+ switch or injector, 48 V passive PoE, or a 12 V DC adapter (12 V / 1.0 A for the EU version, 12 V / 1.5 A for the US version). The DC power adapter is not included in the box, so most installs will power it from a PoE+ switch. Maximum power consumption is 13.5 W (EU) or 14.7 W (US). The unit measures 160 x 160 x 33.6 mm, and mounting kits for ceiling, wall, junction box and T-bar installation are included. It is rated for 0 to 40 °C operation and carries CE and FCC certification.

Wireless functions include up to 16 SSIDs (eight per band), band steering, load balance, airtime fairness, rate limits, WMM QoS, automatic channel assignment, reboot and wireless schedules, and statistics by SSID, AP or client. Security covers captive portal authentication, access control, wireless MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection and WPA, WPA2 and WPA3 Personal/Enterprise. Captive portal, Omada mesh and seamless roaming are features that work with an Omada controller.

For management, the EAP653 offers HTTP/HTTPS web management, SSH, SNMP v1/v2c/v3, local and remote syslog, L3 management, multi-site management, a management VLAN, management MAC access control and LED on/off control. Centralised management is through Omada cloud-based, hardware or software controllers and the Omada app; cloud access and zero-touch provisioning require an Omada controller. Compared with the EAP653 UR, the standard EAP653 uses lower-gain 4 dBi 2.4 GHz antennas and slightly lower power draw, while the UR (ultra-range) version is tuned for wider coverage. In the box are the EAP653, mounting kits and an installation guide.

Key features

AX3000 Wi-Fi 6

Up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

160 MHz channels

HE160 support on 5 GHz for higher speed and lower latency where permitted.

Three power options

802.3at PoE, 48 V passive PoE or 12 V DC (DC adapter not included).

Gigabit Ethernet port

One Gigabit port for the wired uplink.

Up to 16 SSIDs

Eight per band, with SSID-to-VLAN mapping and captive portal for guests.

Bluetooth 5.2

Built-in Bluetooth 5.2 radio.

Mesh and seamless roaming

Omada mesh and seamless roaming with an Omada controller.

Omada SDN

Cloud, hardware or software controller management, plus the Omada app.

EAP653 specifications

At a glance

AX3000 Wi-Fi 6
2402 + 574 Mbps
160 MHz (HE160)
1 x Gigabit port
802.3at PoE / 12 V DC
Bluetooth 5.2
Up to 16 SSIDs
Omada SDN
EAP653 full specifications
Hardware Features
Interface1× Gigabit Ethernet Port
ButtonReset
Power Supply802.3at PoE; 12V DC (Power Adapter Not Included) (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC); 48V Passive PoE
Max. Power ConsumptionEU: 13.5 W; US: 14.7 W
Dimensions ( W x D x H )6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
AntennaInternal Dual-Band Antennas; 2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi
BluetoothV5.2
MountingCeiling / Wall / Junction Box / T-Bar Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Require the use of an Omada controller.
Wireless Features
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: Up to 2402 Mbps; 2.4 GHz: Up to 574 Mbps
Wireless Functions1024-QAM; 4× Longer OFDM Symbol; OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); MU-MIMO; HE160 (160 MHz Bandwidth); Seamless Roaming; Omada Mesh; Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE: 7-20 dBm(2.4 GHz, EIRP) 7-23 dBm5 GHz, U-NII-1, U-NII-2A, EIRP) 7-30 dBm(5 GHz, U-NII-2C, EIRP); FCC: 4-25 dBm (2.4 GHz) 4-25 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP653
  • Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP653 is for

Offices and retail

  • AX3000 dual-band Wi-Fi 6
  • 160 MHz on 5 GHz
  • Ceiling, wall, junction box or T-bar mount

Guest Wi-Fi

  • Up to 16 SSIDs
  • Captive portal authentication
  • Client isolation and VLANs

Omada-managed networks

  • Cloud, hardware or software controller
  • Mesh and seamless roaming
  • Zero-touch provisioning

Buy the EAP653 from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP653 from the ARC IP Networks team.

Last reviewed October 2026.

It is an AX3000 Wi-Fi 6 access point with up to 2402 Mbps on 5 GHz and up to 574 Mbps on 2.4 GHz. These are maximum physical rates; actual throughput varies.

Yes. HE160 (160 MHz bandwidth) is supported on 5 GHz, subject to local regulations and channel availability.

By 802.3at PoE, 48 V passive PoE or a 12 V DC adapter. The DC power adapter is not included. Maximum consumption is 13.5 W (EU) or 14.7 W (US).

TP-Link lists 802.3at PoE, 48 V passive PoE and 12 V DC as the power options; 802.3af is not listed, so use a PoE+ (802.3at) port.

Both are AX3000 ceiling APs with one Gigabit port and the same 160 x 160 x 33.6 mm size. The EAP653 UR is the ultra-range version with higher-gain antennas (5 dBi on 2.4 GHz) and TP-Link lists 185 square metres of coverage for it; the standard EAP653 uses 4 dBi antennas on 2.4 GHz.

Up to 16, with eight on each band.

It can be managed on its own through HTTP/HTTPS web management. Centralised and cloud management, captive portal, mesh, seamless roaming and zero-touch provisioning use an Omada controller.

Ceiling, wall, junction box or T-bar mounting; the kits are included.

The EAP653, mounting kits and an installation guide.
