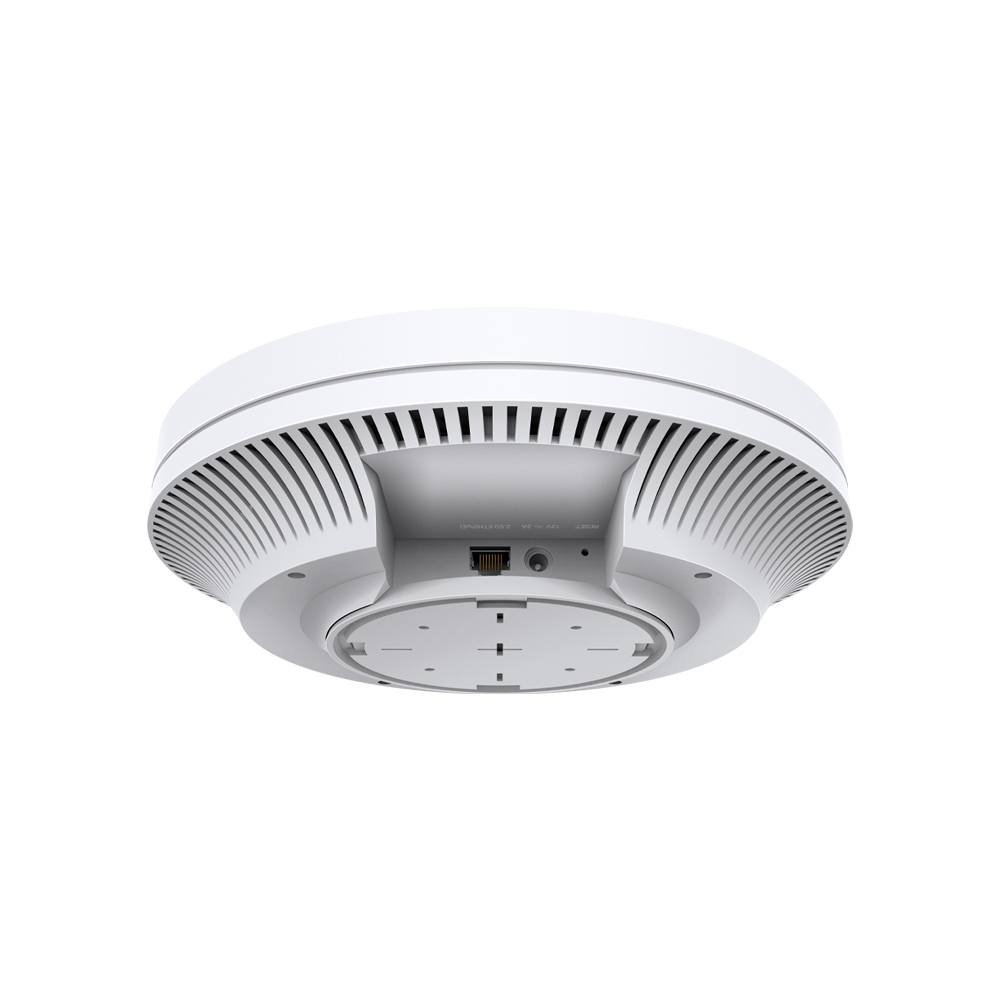

TP-Link EAP620 HD Omada AX1800 Wi-Fi 6 Dual-Band High-Density Ceiling Mount Access Point

https://arcip.com.au/web/image/product.template/8068/image_1920?unique=64ae754

The TP-Link EAP620 HD (V3.30 in Australia) is an Omada AX1800 dual-band ceiling mount Wi-Fi 6 access point that delivers reliable connectivity and enhanced capacity for busy environments. It provides 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz through 5 dBi and 4 dBi antennas, with OFDMA, MU-MIMO, 1024-QAM, band steering, airtime fairness and beamforming. TP-Link lists up to 1,000+ concurrent connections (1,020+ on the AU page) and coverage of up to 140 m² (1,500 ft²). One Gigabit PoE+ port takes 802.3at PoE or 48 V passive PoE, and a 12 V / 1.5 A power adapter is included. Up to 16 SSIDs, WPA3, captive portal, Omada mesh and 802.11k/v/r roaming are supported.

$ 282.68 282.68 AUD $ 282.68 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP620 HD
Barcode
4897098687765
Tags

The TP-Link EAP620 HD is an Omada AX1800 dual-band Wi-Fi 6 ceiling mount access point built for busy, high-density environments. It delivers 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with MU-MIMO, OFDMA and 1024-QAM, and TP-Link lists 1,000+ concurrent connections and up to 140 m² coverage. It has one Gigabit port powered by 802.3at PoE+, 48 V passive PoE or 12 V / 1.5 A DC (adapter included), and supports Omada mesh, seamless roaming and Omada Central cloud management.

EAP620 HD overview

The EAP620 HD is TP-Link's Omada AX1800 dual-band ceiling mount Wi-Fi 6 access point, shown as V3.30 on the Australian page. HD stands for its high-density focus: TP-Link says it delivers reliable connectivity and enhanced capacity for busy environments, using core Wi-Fi 6 technologies to efficiently manage more simultaneous connections. It is 4-stream dual-band Wi-Fi 6 (IEEE 802.11ax/ac/n/g/b/a) with up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. OFDMA lets multiple devices share channels efficiently to reduce latency in dense environments, MU-MIMO supports more simultaneous device connections, 1024-QAM lifts data rates, and 4x longer OFDM symbols are listed.

Capacity is the headline. The datasheet lists up to 1,000+ concurrent connections in crowded network environments, and the AU product page states 1,020+ concurrent clients; TP-Link notes that actual capacity depends on the wireless environment and client traffic. Coverage is listed at up to 140 m² (1,500 ft²), calculated from laboratory testing. That is a step up from TP-Link's entry-level EAP613, which shares the AX1800 rating and 160 x 160 mm housing but is listed at 250+ clients and 115 m², and which runs on 802.3af. The EAP620 HD antennas are two 4 dBi on 2.4 GHz and two 5 dBi on 5 GHz.

Wired connectivity is one Gigabit PoE+ port, which TP-Link describes as delivering high-performance wired throughput, with 802.3at PoE compatibility for flexible deployment. The listed power options are 802.3at PoE, 48 V passive PoE and 12 V / 1.5 A DC, and a power adapter is included in the box. Maximum consumption is 14.4 W on PoE and 13.1 W on DC for the EU version (14.9 W and 13.4 W for the US version), so plan for an 802.3at PoE+ switch port rather than 802.3af. The housing measures 160 x 160 x 33.6 mm and the main unit weighs 0.38 kg. Ceiling, wall and junction box mounting kits are included (the datasheet also lists T-bar mounting), and operating temperature is 0 to 40 °C.

For networks, the EAP620 HD supports up to 16 SSIDs (eight per band) for a secure guest network, plus automatic channel assignment, transmit power control, WMM QoS, band steering, load balance, airtime fairness, beamforming, rate limits, schedules and wireless statistics. Security includes captive portal authentication, access control, MAC filtering, client isolation, SSID-to-VLAN mapping, rogue AP detection, 802.1X and WEP, WPA, WPA2 and WPA3 Personal and Enterprise. Centralised management is through Omada Central (cloud-based), an Omada hardware controller or an Omada software controller, with the Omada app; cloud access requires a controller, zero-touch provisioning requires a controller and is supported on EAP620 HD v2.0 and above, and Omada mesh, 802.11k/v/r roaming and captive portal also need a controller. The datasheet lists Omada Controller and Omada CBC V5.15 and above and Omada App V4.24 and above. It is CE and FCC certified.

Key features

AX1800 Wi-Fi 6

1201 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz, 4 streams.

High-density capacity

Up to 1,000+ concurrent connections (1,020+ on the AU page).

Up to 140 m² coverage

1,500 ft² per AP, based on laboratory testing.

Gigabit PoE+ port

802.3at PoE or 48 V passive PoE; 14.4 W maximum (EU).

Power adapter included

12 V / 1.5 A DC adapter in the box for sites without PoE+.

OFDMA, MU-MIMO, 1024-QAM

Lower latency and more simultaneous clients in busy spaces.

Mesh and seamless roaming

Omada mesh and 802.11k/v/r with an Omada controller.

Omada Central management

Cloud, hardware or software controller and zero-touch provisioning.

EAP620 HD specifications

At a glance

AX1800 Wi-Fi 6
1201 + 574 Mbps
1,000+ clients
Up to 140 m²
1 x Gigabit PoE+ port
802.3at / 48 V passive / DC
DC adapter included
Omada mesh
EAP620 HD full specifications
Hardware Features
Interface1× Gigabit Ethernet Port
ButtonReset
Power Supply802.3at PoE; 48 V Passive PoE; 12 V/1.5 A DC
Max. Power ConsumptionEU: 14.4 W (For PoE); 13.1 W (For DC); US: 14.9 W (For PoE); 13.4 W (For DC)
Dimensions ( W x D x H )6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna2.4 GHz: 2× 4 dBi; 5 GHz: 2× 5 dBi
MountingCeiling /Wall Mounting/Junction Box Mounting (Kits included)
Management Features
Omada AppYes
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of Omada Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Require the use of Omada Controller. (Supported by EAP620 HD v2.0 and above)
Wireless Features
Coverage1500 ft²(140㎡)
Concurrent Clients1,020+
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz)
Wireless Functions1024-QAM; 4× Longer OFDM Symbol; OFDMA; Multiple SSIDs (Up to 16 SSIDs, 8 for each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); MU-MIMO; Seamless Roaming(802.11k/v/r); Omada Mesh; Band Steering; Load Balance; Airtime Fairness; Beamforming; Rate Limit; Reboot Schedule; Wireless Schedule; Wireless Statistics based on SSID/AP/Client
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; SSID to VLAN Mapping; Rogue AP Detection; 802.1X Support; WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE: 7-20 dBm(2.4 GHz, EIRP) 7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP) 7-30 dBm (5 GHz, U-NII-2C, EIRP); FCC: 4-25 dBm (2.4 GHz) 4-25 dBm (5 GHz, U-NII-1, U-NII-3)
Others
CertificationCE, FCC
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP620 HD
  • Power Adapter
  • Ceiling/Wall/Junction Box Mounting Kits
  • Installation Guide

Source: TP-Link's published package contents.

Who the EAP620 HD is for

Busy, crowded spaces

  • 1,000+ concurrent connections
  • OFDMA and MU-MIMO
  • Airtime fairness and load balance

Offices, venues and retail

  • Up to 140 m² per AP
  • Up to 16 SSIDs with guest network
  • Ceiling, wall or junction box mount

Omada-managed estates

  • Omada Central cloud management
  • Mesh and 802.11k/v/r roaming
  • Zero-touch provisioning

EAP620 HD compared

The EAP620 HD and EAP613 are both Omada AX1800 Wi-Fi 6 ceiling APs in the same 160 x 160 mm housing. The EAP620 HD is the high-density model, with far more listed clients and larger coverage, needs 802.3at PoE+ and includes a DC adapter; the EAP613 is the entry-level model on 802.3af.

SpecificationEAP620 HDEAP613
Wi-FiAX1800, 1201 + 574 MbpsAX1800, 1201 + 574 Mbps
Concurrent clients1,000+ (1,020+ AU page)250+
CoverageUp to 140 m²Up to 115 m²
PoE802.3at PoE+ or 48 V passive802.3af or 48 V passive
DC power12 V / 1.5 A, adapter included12 V / 1 A, adapter not included
Max power (PoE)14.4 W (EU)10.9 W
Weight0.38 kg0.385 kg

Source: TP-Link Australia product pages for each model.

Buy the EAP620 HD from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP620 HD from the ARC IP Networks team.

Last reviewed October 2026.

It is TP-Link's high-density model: an AX1800 Wi-Fi 6 ceiling AP designed for enhanced capacity in busy environments, with 1,000+ concurrent connections listed.

The datasheet lists up to 1,000+ concurrent connections and the AU page lists 1,020+. Actual capacity depends on the wireless environment and client traffic.

802.3at PoE+ or 48 V passive PoE. It can also run on 12 V / 1.5 A DC, and the power adapter is included. Maximum consumption is 14.4 W on PoE (EU version).

802.3af is not listed for the EAP620 HD; the listed PoE input is 802.3at PoE+.

Up to 140 m² (1,500 ft²), based on laboratory testing.

Both are AX1800 ceiling APs. The EAP620 HD supports 1,000+ clients and 140 m² on 802.3at PoE+ with a DC adapter included; the EAP613 supports 250+ clients and 115 m² on 802.3af, with no adapter.

Yes. Omada mesh and 802.11k/v/r roaming are supported and require an Omada controller.

TP-Link's Australian page shows the EAP620 HD V3.30.
