TP-Link EAP215-Bridge KIT Omada AC867 5GHz Long-Range Indoor/Outdoor Wireless Bridge Kit

https://arcip.com.au/web/image/product.template/8061/image_1920?unique=32ce86a

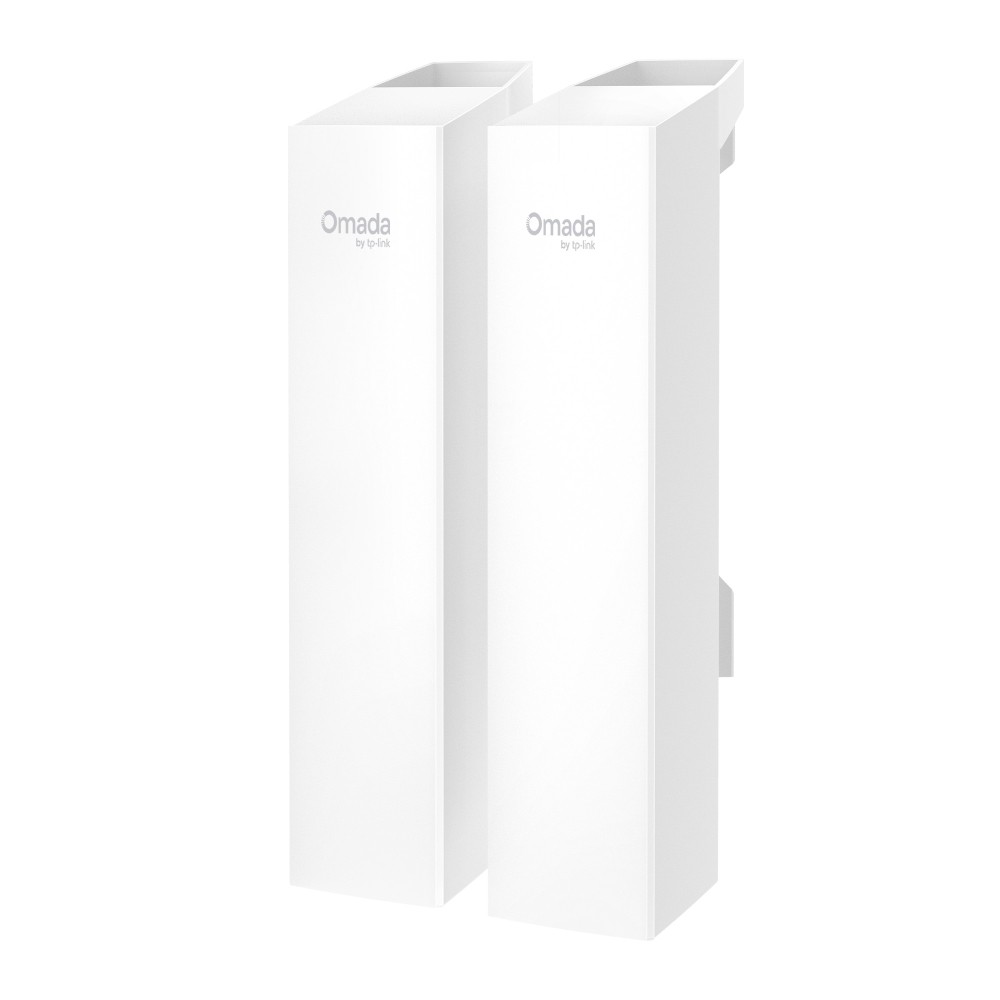

The TP-Link EAP215-Bridge KIT is the long-range model in TP-Link's Omada 5 GHz bridge kits, with two preconfigured bridges for point-to-point links of up to 5 km. Each 276 x 79 x 60 mm unit uses 802.11a/n/ac with 2x2 MIMO and internal dual-polarised directional antennas rated at 14 dBi, with a 43° horizontal and 18° vertical beamwidth, for up to 867 Mbps. It has three Gigabit Ethernet ports, takes 12 V DC, 802.3af PoE or 24 V passive PoE, supports PtMP auto-pairing for up to four bridges, and is housed in an IP65 enclosure rated from -40 to 70 °C, with Omada app alignment and Omada SDN management.

$ 339.42 339.42 AUD $ 339.42 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard

This combination does not exist.

In stock online
Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP215-BRIDGE KIT
Barcode
1210002603744
Tags

The TP-Link EAP215-Bridge KIT is a preconfigured pair of Omada 5 GHz AC867 long-range indoor/outdoor wireless bridges for links of up to 5 km. Each bridge has internal 2x2 14 dBi directional antennas with a focused 43° x 18° beam, three Gigabit Ethernet ports, 12 V DC, 802.3af PoE or 24 V passive PoE power, an IP65 enclosure and 6 kV lightning protection, with SmartBridging auto-pairing for PtP or up to 1-to-4 PtMP.

EAP215-Bridge KIT overview

The EAP215-Bridge KIT is TP-Link's Omada 5 GHz 867 Mbps long-range indoor/outdoor wireless bridge kit. TP-Link lists a transmission distance of up to 5,000 m (3.1 mi), making it the longest-reaching of its compact EAP bridge kits, for PtP or PtMP connectivity between buildings, remote offices, farms and other sites where running cable is impractical. The kit contains two EAP215-Bridge units, two passive PoE adapters, two power cords, two mounting kits and an installation guide. TP-Link notes that the advertised distance is calculated from laboratory testing, and actual coverage is not guaranteed and will vary with antenna performance, client limitations and environmental factors.

The extra reach comes from the antennas. Each bridge has internal 2x2 dual-polarised directional MIMO antennas rated at 14 dBi, with a 43° horizontal and 18° vertical beamwidth. Compared with the EAP211-Bridge KIT, which has 10 dBi antennas, a 60° x 30° beam and a 1 km rating, the EAP215 concentrates its signal into a narrower beam and its body is longer at 276 mm against 224 mm. The radio is the same 5 GHz IEEE 802.11a/n/ac design with 2x2 MIMO, two spatial streams, downlink MU-MIMO and 20/40/80 MHz channels, for an 802.11ac data rate of 8.6 to 866 Mbps (MCS0 to MCS9). Because the beam is narrower, accurate aiming matters more on long spans.

That is where the setup tools help. Omada SmartBridging preconfigures the pair for instant PtP auto-pairing out of the box, and PtMP auto-pairing lets you add bridges for up to 1-to-4 multi-bridge connections by dialling the role switch and pressing the Pair/Reset button, with no portal login needed. The Omada app gives app-guided alignment with real-time signal strength visualisation, which TP-Link says is perfect for installations where bridges are far apart, and lets you verify the installation, test transmission speeds and troubleshoot. Wireless functions also include up to eight SSIDs, wireless schedules, rate limits, a guest network, VLANs and rogue AP detection.

Each bridge has three Gigabit Ethernet ports. Power can be 12 V DC (12 V / 1 A), 802.3af PoE or 24 V passive PoE, with a passive PoE adapter included for each unit; maximum power consumption is 11.5 W on PoE and 9.9 W on DC, with standby at 4.9 W on PoE. The enclosure is IP65 for pole mounting with windproof class 16, ±6 kV common mode lightning protection and a -40 to 70 °C operating range with 10 to 90% non-condensing humidity. Pole and wall mounting are supported with pole accessories included, and each main unit weighs 0.86 kg according to the datasheet.

Management runs standalone through the Omada app or local web UI, or under Omada SDN through Omada Central (cloud-based), an Omada hardware controller or an Omada software controller; cloud access requires an Omada controller and zero-touch provisioning is supported. The datasheet lists Omada Controller and Omada Essential V5.15.24 and above and Omada App V4.25 and above. SSH, SNMP, NTP, email alerts, LED on/off control, web firmware updates and backup and restore are all listed, and the kit is CE and FCC certified.

Key features

Up to 5 km links

Long-range PtP of up to 5,000 m, based on TP-Link laboratory testing.

14 dBi directional antennas

Internal 2x2 dual-polarised MIMO antennas with a focused 43° x 18° beam.

Omada SmartBridging

Preconfigured PtP auto-pairing, plus PtMP auto-pairing for up to 1-to-4 bridges.

AC867 on 5 GHz

IEEE 802.11a/n/ac with 2x2 MIMO, MU-MIMO and 80 MHz channels.

Three Gigabit ports

Three Gigabit Ethernet ports on each bridge.

DC or PoE power

12 V DC, 802.3af PoE or 24 V passive PoE, adapter included; 11.5 W maximum.

Outdoor durability

IP65, windproof class 16, 6 kV lightning protection and -40 to 70 °C operation.

App-guided alignment

Real-time signal strength, speed testing and Omada SDN management.

EAP215-Bridge KIT specifications

At a glance

2 bridges in the kit
Up to 5 km PtP
PtMP up to 1:4
5 GHz AC867
14 dBi, 43° x 18° beam
3 x Gigabit ports
IP65, -40 to 70 °C
Omada SDN
EAP215-Bridge KIT full specifications
Hardware Features
Interface3x Gigabit Ethernet Ports
ButtonReset
DIP SwitchRole Switch
Power Supply12V DC 802.3af PoE (1,2pins; 3,6pins) 24V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption11.5W
Dimensions ( W x D x H )3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm)
AntennaInternal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 14.0 dBi Horizontal:43°, Vertical: 18°
Weatherproof EnclosureIP65
MountingPole and wall mounting ( Pole accessories included)
Management Features
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada Controller.
Email AlertsYes
LED ON/OFF ControlYes
SNMPYes
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes
Wireless Features
PtPYes
PtMPSupports up to 1:4 multi-bridge connections.
Transmission Distance5,000 m (3.1 mi)
Wireless StandardsIEEE 802.11 a/n/ac
Frequency5 GHz
Signal Rate5 GHz: Up to 867 Mbps
Wireless FunctionsMU-MIMO: 5G 2x2 MU-MIMO DL; Multiple SSIDs:8; Wireless Statistics; Wireless Schedule; Reboot Schedule; RADIUS Accounting; Static IP/Dynamic IP; Rate Limit; Guest Network; Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast
Wireless SecurityVLAN; Rogue AP Detection; Maximum number of MAC Filter: 4,000; Wireless Encryption
Transmission PowerCE:; FCC: <25dBm (5 GHz band4)
Others
CertificationCE, FCC
Lightning ProtectionAir discharge: ±8kV; Contact discharge: ±4kV; Common mode 10/700: ±6kV
EnvironmentOperating Temperature: -40 °C–70 °C (-40 °F–158 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP215-Bridge KIT
  • Installation Guide
  • Mounting Kit
  • Passive PoE Adapter

Source: TP-Link's published package contents.

Who the EAP215-Bridge KIT is for

Long building-to-building links

  • Up to 5 km between sites
  • Focused 14 dBi beam
  • Farms, remote offices and rural sites

Multi-site backhaul

  • PtMP auto-pairing up to 1-to-4
  • Three Gigabit ports per bridge
  • VLAN support

Fast, verified installs

  • Preconfigured pair
  • App-guided alignment
  • Built-in speed testing

EAP215-Bridge KIT compared

The EAP215-Bridge KIT and EAP211-Bridge KIT use the same 5 GHz AC867 radio, three Gigabit ports and power options. The EAP215 has higher-gain antennas and a narrower beam for links of up to 5 km; the EAP211 has a wider beam for shorter links of up to 1 km.

SpecificationEAP215-Bridge KITEAP211-Bridge KIT
Max transmission distance5 km1 km
Antenna gain14 dBi10 dBi
Beamwidth (H x V)43° x 18°60° x 30°
Wi-Fi5 GHz AC8675 GHz AC867
Ethernet ports3 x Gigabit3 x Gigabit
PtMPUp to 1:4Up to 1:4
Dimensions79 x 60 x 276 mm79 x 60 x 224 mm
Main unit weight0.86 kg0.72 kg

Source: TP-Link Australia product pages for each model.

Buy the EAP215-Bridge KIT from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP215-Bridge KIT from the ARC IP Networks team.

Last reviewed October 2026.

Up to 5,000 m (3.1 mi), according to TP-Link's laboratory testing. Actual range depends on clear line of sight, alignment and the environment.

The EAP215 has 14 dBi antennas with a narrower 43° x 18° beam for up to 5 km. The EAP211 has 10 dBi antennas with a 60° x 30° beam for up to 1 km. Both are 5 GHz AC867 with three Gigabit ports.

Two EAP215-Bridge units, two passive PoE adapters, two power cords, two mounting kits and one installation guide.

Yes. PtMP auto-pairing supports up to 1-to-4 multi-bridge connections using the role switch and Pair/Reset button.

By 12 V DC, 802.3af PoE or 24 V passive PoE. A passive PoE adapter is included for each bridge. Maximum consumption is 11.5 W on PoE.

Use the Omada app's app-guided alignment, which shows real-time signal strength, then run the built-in speed test to verify the link.

Yes. It has an IP65 enclosure, windproof class 16, 6 kV lightning protection and a -40 to 70 °C operating range, with pole mounting accessories included.

Yes. Under Omada SDN it is managed by Omada Central, an Omada hardware controller or an Omada software controller, with zero-touch provisioning; it can also run standalone.

Need more than one EAP215-Bridge KIT for a long-range site-to-site link?
