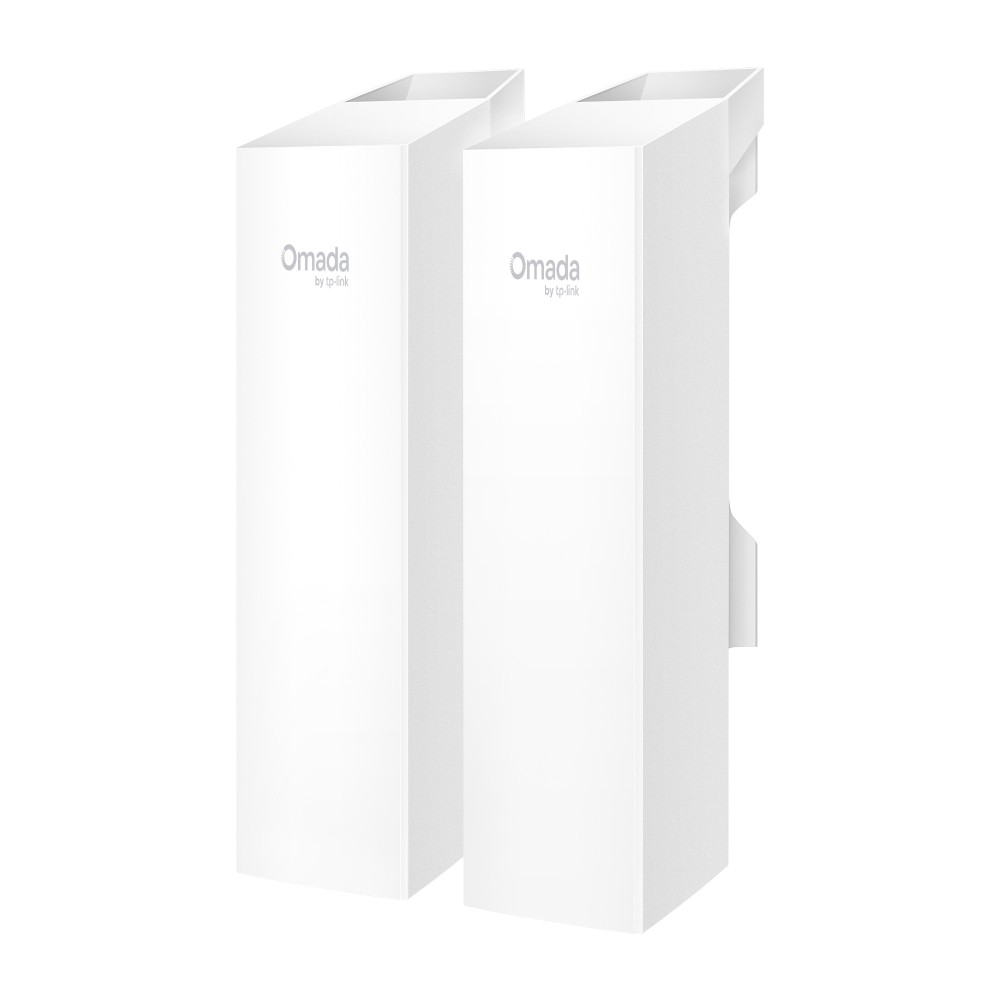

TP-Link EAP211-Bridge KIT Omada AC867 5GHz Indoor/Outdoor Wireless Bridge Kit

Price:

$ 282.68


Ubiquiti UACC-DBL-GB-Plate-W Doorbell Lite Gang Box Mounting Plate White
Ubiquiti UACC-DBL-GB-Plate-W Doorbell Lite Gang Box Mounting Plate White
$ 45.87
$ 49.50 (7% OFF)
TP-Link Archer A6 AC1200 Wireless MU-MIMO Gigabit Router
TP-Link Archer A6 AC1200 Wireless MU-MIMO Gigabit Router
$ 90.15
$ 90.15

TP-Link EAP211-Bridge KIT Omada AC867 5GHz Indoor/Outdoor Wireless Bridge Kit

https://arcip.com.au/web/image/product.template/8060/image_1920?unique=464c236

The TP-Link EAP211-Bridge KIT is an Omada 5 GHz 867 Mbps indoor/outdoor wireless bridge kit containing two preconfigured bridges for point-to-point links of up to 1 km. Each compact 224 x 79 x 60 mm unit has internal 2x2 dual-polarised directional antennas rated at 10 dBi, with a 60° horizontal and 30° vertical beamwidth that is forgiving to aim, plus three Gigabit Ethernet ports. Omada SmartBridging adds multi-bridge auto-pairing for up to 1-to-4 PtMP links using the role switch and Pair/Reset button. Power is 12 V DC, 802.3af PoE or 24 V passive PoE (adapter included), and the IP65 enclosure is rated from -40 to 70 °C.

$ 282.68 282.68 AUD $ 282.68 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard

This combination does not exist.

In stock online
Outdoor Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP211-BRIDGE KIT
Barcode
8885020627053
Tags

The TP-Link EAP211-Bridge KIT is a preconfigured pair of Omada 5 GHz AC867 indoor/outdoor wireless bridges for links of up to 1 km. Each bridge has internal 2x2 10 dBi directional antennas with a wide 60° x 30° beam, three Gigabit Ethernet ports, 12 V DC, 802.3af PoE or 24 V passive PoE power, an IP65 enclosure and 6 kV lightning protection, and supports Omada SmartBridging auto-pairing for PtP or up to 1-to-4 PtMP links.

EAP211-Bridge KIT overview

The EAP211-Bridge KIT is TP-Link's Omada 5 GHz 867 Mbps indoor/outdoor wireless bridge kit. TP-Link describes it as an enterprise-grade Wi-Fi bridge kit engineered for transmission of up to 1 km (0.62 mi), delivering reliable PtP or PtMP connectivity in outdoor environments such as farms, additional offices, parking lots and other locations where extending network access and monitoring is critical. The kit holds two EAP211-Bridge units, two passive PoE adapters, two power cords, two mounting kits and an installation guide. TP-Link notes the advertised distance comes from laboratory testing, and actual coverage is not guaranteed and varies with antenna performance, client limitations and environmental factors.

Each bridge runs on 5 GHz to IEEE 802.11a/n/ac with 2x2 MIMO, two spatial streams, downlink MU-MIMO and 20/40/80 MHz channels, giving an 802.11ac data rate of 8.6 to 866 Mbps (MCS0 to MCS9). The internal 2x2 dual-polarised directional MIMO antennas are rated at 10 dBi, with a 60° horizontal and 30° vertical beamwidth. That wider beam is the main difference from the EAP215-Bridge KIT, which uses 14 dBi antennas with a narrower 43° x 18° beam to reach up to 5 km; the EAP211 trades distance for easier aiming and a shorter 224 mm body. The datasheet lists frequency bands from U-NII-1 to U-NII-3 with DFS channels, subject to country-specific restrictions.

Setup uses Omada SmartBridging, which TP-Link calls its most effortless bridge setup. The two bridges in the kit are preconfigured for instant PtP auto-pairing, so you simply power on and go. To add more bridges, PtMP auto-pairing lets you dial the role switch and press the Pair/Reset button with no portal login needed, supporting up to 1-to-4 multi-bridge connections. For aiming, the Omada app shows real-time signal strength for app-guided alignment, and can verify the installation, test transmission speeds and troubleshoot connections. Other wireless functions include up to eight SSIDs, wireless schedules, rate limits, a guest network, rogue AP detection and up to 4,000 MAC filter entries.

Every bridge has three Gigabit Ethernet ports, so devices at the remote end can plug straight in. Power can be 12 V DC (12 V / 1 A), 802.3af PoE or 24 V passive PoE, with a passive PoE adapter included; the AU page notes the adapter is for dry indoor use only. Maximum consumption is 11.5 W on PoE and 9.9 W on DC. The enclosure is IP65 for pole mounting with windproof class 16, ±6 kV common mode lightning protection, ±8 kV air and ±4 kV contact ESD protection, and a -40 to 70 °C operating range. Pole and wall mounting are supported with pole accessories included, and each main unit weighs 0.72 kg according to the datasheet.

Management is standalone through the Omada app or local web UI, or centralised under Omada SDN with the Omada cloud-based controller, an Omada hardware controller or an Omada software controller; cloud access requires an Omada controller and zero-touch provisioning is supported. The datasheet lists Omada Controller and Omada Essential V5.15.24 and above and Omada App V4.25 and above, along with SSH, SNMP, NTP, email alerts, LED on/off control, firmware upgrade and backup and restore. The AU page lists CE and FCC certification.

Key features

Up to 1 km links

PtP connectivity of up to 1 km, based on TP-Link laboratory testing.

Omada SmartBridging

Preconfigured PtP auto-pairing, plus PtMP auto-pairing for up to 1-to-4 bridges.

Wide 60° x 30° beam

Internal 2x2 dual-polarised 10 dBi directional antennas that are forgiving to aim.

AC867 on 5 GHz

IEEE 802.11a/n/ac with 2x2 MIMO, MU-MIMO and 80 MHz channels.

Three Gigabit ports

Three Gigabit Ethernet ports on each bridge.

DC or PoE power

12 V DC, 802.3af PoE or 24 V passive PoE; passive PoE adapter included.

Outdoor durability

IP65, windproof class 16, 6 kV lightning protection and -40 to 70 °C operation.

App-guided alignment

Real-time signal strength and speed testing in the Omada app; Omada SDN management.

EAP211-Bridge KIT specifications

At a glance

2 bridges in the kit
Up to 1 km PtP
PtMP up to 1:4
5 GHz AC867
10 dBi, 60° x 30° beam
3 x Gigabit ports
IP65, -40 to 70 °C
Omada SDN
EAP211-Bridge KIT full specifications
Hardware Features
Interface3x Gigabit Ethernet Ports
ButtonReset
DIP SwitchRole Switch
Power Supply12V DC 802.3af PoE (1,2pins; 3,6pins) 24V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included; For Dry Indoor Use Only)
Max. Power Consumption11.5W
Dimensions ( W x D x H )3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm)
AntennaInternal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 10.0 dBi Horizontal:60°, Vertical: 30°
Weatherproof EnclosureIP65
MountingPole and wall mounting ( Pole accessories included)
Management Features
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralised ManagementOmada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of Omada Controllers.
Email AlertsYes
LED ON/OFF ControlYes
SNMPYes
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes
Wireless Features
PtPYes
PtMPSupports up to 1:4 multi-bridge connections.
Transmission Distance1,000 m (0.62 mi)
Wireless StandardsIEEE 802.11 a/n/ac
Frequency5 GHz
Signal Rate5 GHz: Up to 867 Mbps
Wireless FunctionsMU-MIMO: 5G 2x2 MU-MIMO DL; Multiple SSIDs:8; Wireless Statistics; Wireless Schedule; Reboot Schedule; RADIUS Accounting; Static IP/Dynamic IP; Rate Limit; Guest Network; Enable/Disable Wireless Radio; Enable/Disable SSID Broadcast
Wireless SecurityVLAN; Rogue AP Detection; Maximum number of MAC Filter: 4,000; Wireless Encryption
Transmission PowerCE:; FCC: <25dBm (5 GHz, band4)
Others
CertificationCE, FCC
Lightning ProtectionAir discharge: ±8kV; Contact discharge: ±4kV; Common mode 10/700: ±6kV
EnvironmentOperating Temperature: -40 °C–70 °C (-40 °F–158 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP211-Bridge KIT
  • Installation Guide
  • Mounting Kit
  • Passive PoE Adapter

Source: TP-Link's published package contents.

Who the EAP211-Bridge KIT is for

Campus and farm links

  • Up to 1 km between buildings
  • Additional offices and parking lots
  • Wide beam for easier aiming

One-to-many sites

  • PtMP auto-pairing up to 1-to-4
  • Three Gigabit ports per bridge
  • Role switch and Pair button

Managed Omada networks

  • Omada app or local web UI
  • Cloud-based, hardware or software controller
  • Zero-touch provisioning

EAP211-Bridge KIT compared

The EAP211-Bridge KIT and EAP215-Bridge KIT share the same 5 GHz AC867 platform, three Gigabit ports and power options. The EAP211 uses 10 dBi antennas with a wider beam for links of up to 1 km; the EAP215 uses 14 dBi antennas with a narrower beam for up to 5 km.

SpecificationEAP211-Bridge KITEAP215-Bridge KIT
Max transmission distance1 km5 km
Antenna gain10 dBi14 dBi
Beamwidth (H x V)60° x 30°43° x 18°
Wi-Fi5 GHz AC8675 GHz AC867
Ethernet ports3 x Gigabit3 x Gigabit
PtMPUp to 1:4Up to 1:4
Dimensions79 x 60 x 224 mm79 x 60 x 276 mm
Main unit weight0.72 kg0.86 kg

Source: TP-Link Australia product pages for each model.

Buy the EAP211-Bridge KIT from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP211-Bridge KIT from the ARC IP Networks team.

Last reviewed October 2026.

Up to 1 km (0.62 mi) according to TP-Link, based on laboratory testing. Actual distance depends on line of sight and the environment.

Both are 5 GHz AC867 kits with three Gigabit ports. The EAP211 has 10 dBi antennas with a 60° x 30° beam for up to 1 km; the EAP215 has 14 dBi antennas with a 43° x 18° beam for up to 5 km.

Two EAP211-Bridge units, preconfigured to auto-pair, with two passive PoE adapters, two power cords and two mounting kits.

Yes. PtMP auto-pairing supports up to 1-to-4 multi-bridge connections: dial the role switch and press the Pair/Reset button, with no portal login needed.

By 12 V DC, 802.3af PoE or 24 V passive PoE. A passive PoE adapter is included, which TP-Link notes is for dry indoor use only.

Three Gigabit Ethernet ports.

Yes. The enclosure is IP65 for pole mounting, with windproof class 16, 6 kV lightning protection and a -40 to 70 °C operating range.

Yes. It can be managed standalone via the Omada app or web UI, or under Omada SDN with a cloud-based, hardware or software controller (V5.15.24 and above).

Need more than one EAP211-Bridge KIT for a campus, farm or multi-building link?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Form Factor IP65
WiFi Standard IEEE 802.11 a/n/ac
