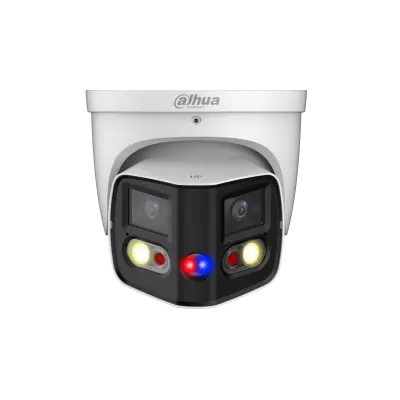

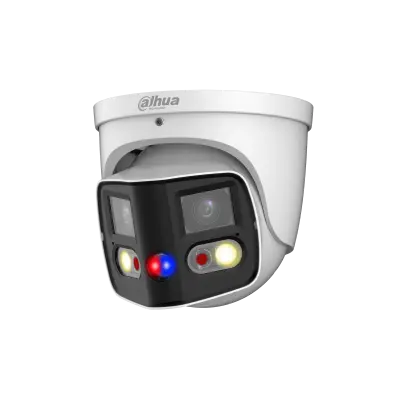

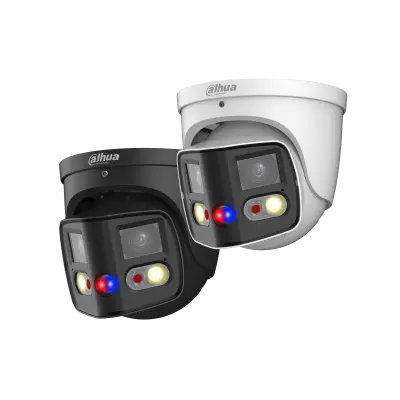

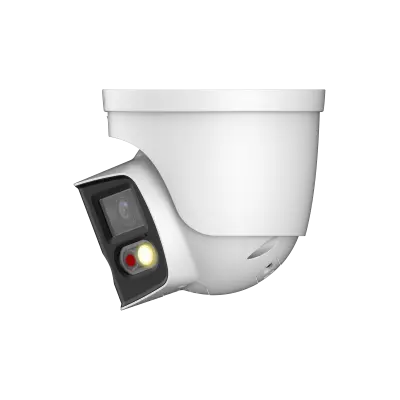

Dahua 8MP 180° Panoramic IP Camera IR/WL PoE IP67 SMD 4.0

Price:

392.70


Hikvision DS-2CD2E43G2-U(4mm) 4MP AcuSense In-Ceiling Fixed Mini Dome Network Camera w/ Mic
Hikvision DS-2CD2E43G2-U(4mm) 4MP AcuSense In-Ceiling Fixed Mini Dome Network Camera w/ Mic
234.55
234.55
HiLook by Hikvision 8-Channel 6MP PoE NVR Security System with 6 x 6MP Turret Cameras & 4TB HDD
HiLook by Hikvision 8-Channel 6MP PoE NVR Security System with 6 x 6MP Turret Cameras & 4TB HDD
975.70
975.70

Dahua 8MP 180° Panoramic IP Camera IR/WL PoE IP67 SMD 4.0

https://arcip.com.au/web/image/product.template/6923/image_1920?unique=642639a

392.70 392.7 AUD 392.70 incl. GST

Not Available For Sale


  • Brand
  • Resolution

This combination does not exist.

PoE Dahua WizSense SMD 4.0 Panoramic IP Surveillance
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DH-IPC-PDW3849-A180-AS-PV-ANZ
Barcode
6923172571793
Tags
DH-IPC-PDW3849-A180-AS-PV-ANZ
Dahua 8MP 180° Panoramic Full-Color & IR PoE IP Camera

Features

  • Outputs 180° wide angle splicing image
  • Outputs max. 8 MP (4096 × 1860)@20 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED (25 m) and warm light (20 m) for versatile night vision
  • ROI, SMART H.264+/H.265+, AI H.264/H.265 flexible coding
  • WDR, 3D NR, HLC, BLC, digital watermarking for superior image quality
  • Alarm: 1 in, 1 out; Audio: 1 in, 1 out; built-in dual Mic and speaker for two-way talk
  • Supports max. 256 G Micro SD card
  • 12 VDC/PoE power supply for easy installation
  • IP67 protection
  • Sound and light alarm (red and blue lights)
  • EPTZ: Enlarge and track the targets of intelligent alarms
  • SMD 4.0 for intelligent motion detection
  • One-tap arming/disarming through alarm input

Specifications

Video
Image SensorMulti-sensor CMOS
Max. Resolution8 MP (4096 × 1860)@20 fps
View Angle180° Wide Angle Splicing Image
IR Distance25 m
Warm Light Distance20 m
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG; AI H.265; AI H.264
Image EnhancementWDR, 3D NR, HLC, BLC, Digital Watermarking
AI Features
Smart Motion DetectionSMD 4.0
Smart FeaturesEPTZ (Enlarge & Track Intelligent Alarms)
Alarm ResponseSound and light alarm (red and blue lights), One-tap arming/disarming
Audio & Alarm
Audio Input/Output1/1
Built-in Mic/SpeakerDual Mic, Speaker
Two-way TalkYes
Alarm Input/Output1/1
Network & Storage
StorageMax. 256 G Micro SD Card
Flexible CodingROI, SMART H.264+/H.265+, AI H.264/H.265
General
Power Supply12 VDC/PoE (802.3af)
ProtectionIP67
Operating Temperature-30°C to +60°C (-22°F to +140°F)

Professional Overview

The Dahua DH-IPC-PDW3849-A180-AS-PV-ANZ is a state-of-the-art panoramic IP camera, engineered to provide comprehensive wide-angle surveillance with exceptional clarity and intelligent security features. Capable of outputting an impressive 8 MP (4096 × 1860) splicing image at 20 fps, it delivers a seamless 180° field of view, significantly reducing the number of cameras needed to cover large areas. This makes it an ideal solution for monitoring expansive environments such as retail spaces, parking lots, building facades, and public squares, where maximum situational awareness is critical.

Equipped with advanced H.265 and AI H.264/H.265 flexible coding technologies, this camera ensures high compression rates and ultra-low bit rates, optimizing network bandwidth and storage usage without compromising video quality. Its robust imaging capabilities are enhanced by WDR, 3D NR, HLC, and BLC, ensuring clear and balanced video performance in diverse and challenging lighting conditions. Unique to this model is its dual illumination system, featuring both a built-in IR LED with a 25m range and a warm light with a 20m range, providing adaptable night vision for both discrete monitoring and full-color deterrence.

Intelligent security is at the forefront of the DH-IPC-PDW3849-A180-AS-PV-ANZ. It integrates Dahua's cutting-edge SMD 4.0 (Smart Motion Detection) for precise target classification, minimizing false alarms from environmental factors. The EPTZ (Enlarge and Track) function dynamically magnifies and follows intelligent alarm targets, providing crucial detail within the panoramic view. Further enhancing its protective capabilities, the camera includes a powerful sound and light alarm system with striking red and blue flashing lights, effectively deterring intruders. One-tap arming/disarming via alarm input adds to operational convenience.

Designed for professional-grade reliability and ease of integration, the camera offers flexible power options via 12 VDC or Power over Ethernet (PoE), streamlining installation. It features robust IP67 protection against dust and water, ensuring dependable performance in harsh outdoor environments. With integrated audio (1 in, 1 out), dual microphones, and a built-in speaker supporting two-way talk, along with a max. 256 GB Micro SD card slot for edge storage, this camera is a versatile, intelligent, and highly dependable choice for demanding security applications requiring expansive coverage, smart detection, and active deterrence.

Brand Dahua
Resolution 8MP
DH-IPC-PDW3849-A180-AS-PV_datasheet_20251112.pdf
Download
