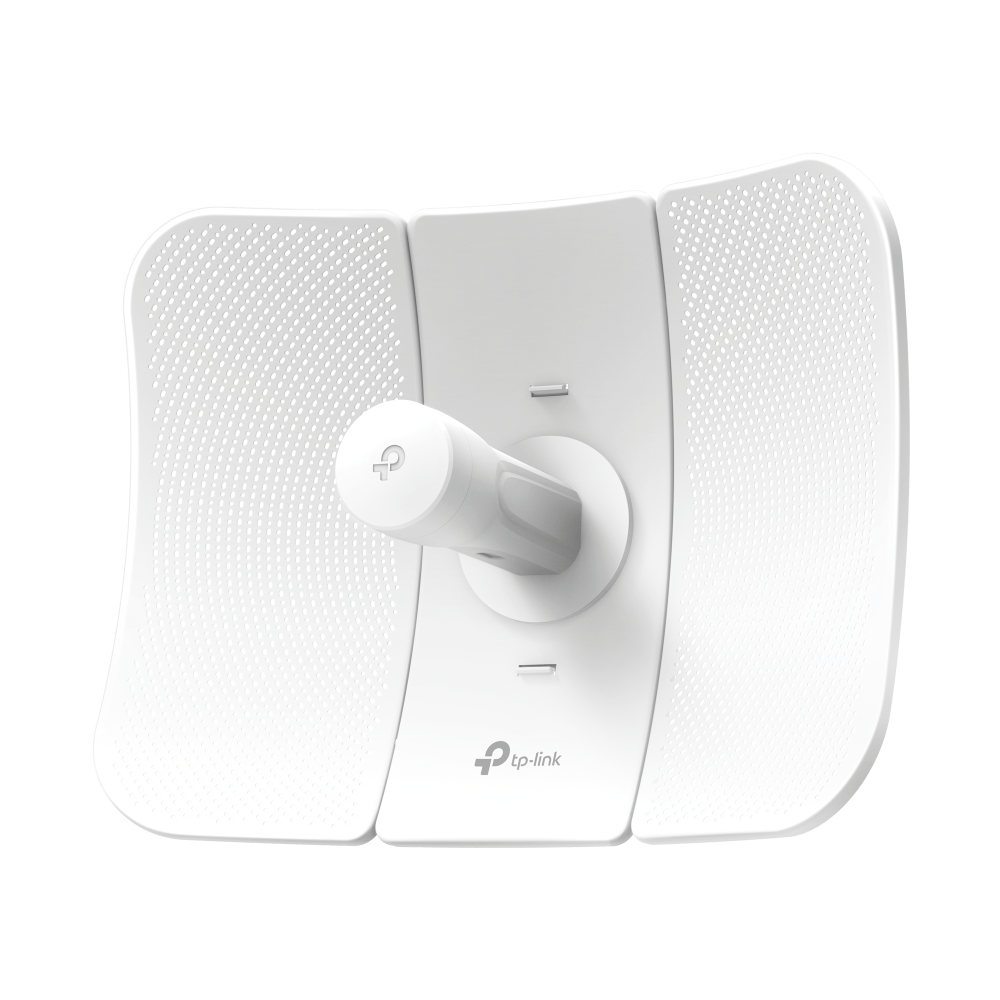

TP-Link CPE610 Outdoor 5GHz 300Mbps Wireless CPE

https://arcip.com.au/web/image/product.template/11367/image_1920?unique=874d354

The TP-Link CPE610 is a 5GHz 300Mbps 23dBi Outdoor CPE built for long-distance outdoor wireless links. It pairs a 23dBi high-gain directional 2x2 MIMO antenna with a dedicated metal reflector, and delivers wireless data rates of up to 300Mbps on 5GHz (maximum physical rate; actual throughput varies with conditions). Pharos MAXtream TDMA technology improves throughput, capacity and latency. The IP65 weatherproof enclosure adds 15kV ESD and 6kV lightning protection, it is powered by passive PoE with a passive PoE adapter included, and devices can be managed centrally with Pharos Control. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 176.06 176.06 AUD $ 176.06 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
CPE610
Barcode
6935364081027

The TP-Link CPE610 is a 5 GHz 300 Mbps outdoor CPE with a 23 dBi 2x2 MIMO directional Cassegrain antenna and a dedicated metal reflector for long-distance outdoor Wi-Fi transmission. It adds Pharos MAXtream TDMA, an IP65 water- and dust-proof enclosure, 15 kV ESD and 6 kV lightning protection, passive PoE power, and Pharos Control centralised management for outdoor wireless networking applications.

CPE610 overview

The CPE610 is TP-Link's 5 GHz 300 Mbps 23 dBi outdoor CPE from the Pharos range. TP-Link describes it as having a 23 dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission. The antenna is a high-gain directional 2x2 MIMO Cassegrain design with a dedicated metal reflector, which TP-Link says provides excellent beam directivity, improved latency and noise immunity. The beamwidth is narrow, at 9 degrees azimuth and 7 degrees elevation. TP-Link calls the CPE610 an ideal choice and cost-effective solution for outdoor wireless networking applications.

The radio is IEEE 802.11a/n, operating from 5.15 to 5.85 GHz, with a maximum transmit power of 25 dBm that is adjustable in 1 dBm steps. Wireless speeds are up to 300 Mbps at 40 MHz channel width, 144.4 Mbps at 20 MHz, 72.2 Mbps at 10 MHz and 36.1 Mbps at 5 MHz. Pharos MAXtream TDMA technology provides a proprietary TDMA mode when MAXtream is enabled. Wireless configuration includes selectable 5/10/20/40 MHz channel width, auto channel selection, transmit power control, Dynamic Frequency Selection (DFS), WDS, distance/ACK timeout setting, multi-SSID with VLAN tagging (AP mode only), WPA/WPA2 and WPA-PSK/WPA2-PSK encryption, and a wireless MAC address filter.

For management, the CPE610 comes with Pharos Control centralised management software, which helps users manage all devices in their network from a single PC, with device discovery, status monitoring, firmware upgrading and network maintenance. The web-based PharOS interface provides an alternative method and gives professionals access to more detailed configuration. Other management features are HTTP/HTTPS web management, a system log, SNMP agent (v2c), Ping Watch Dog, dynamic DDNS and an SSH server. System tools include signal strength, noise, transmit CCQ, CPU and memory indicators, throughput and station monitors, a spectrum analyser, speed test, ping and traceroute. Network features include static, dynamic, PPPoE, L2TP and PPTP WAN, DHCP, an SPI firewall, DoS protection, access control, static routing, bandwidth control and IP and MAC binding.

Inside is a Qualcomm 560 MHz MIPS 74Kc CPU with 64 MB DDR2 RAM and 8 MB flash. The CPE610 has one 10/100 Mbps shielded Ethernet port (LAN/PoE) and a reset button, and it is powered by passive PoE via LAN at 16-27 VDC; maximum power consumption is 7.41 W, and TP-Link notes that with passive PoE the power drawn from the source will be higher depending on cable length. The included 24 V passive PoE adapter supports Power over Ethernet up to 60 m and has a remote reset button. The outdoor PC stabilised plastic enclosure has an IP65 water- and dust-proof design, with 15 kV ESD and 6 kV lightning protection, and is rated for -40 to 70 °C operation. It measures 366 x 280 x 207 mm, and pole mounting straps are included. ARC IP Networks supplies the CPE610 from Australian stock with the full manufacturer's warranty.

Key features

23 dBi directional antenna

A high-gain 2x2 MIMO Cassegrain antenna with a dedicated metal reflector for excellent beam directivity.

5 GHz up to 300 Mbps

IEEE 802.11a/n at 5.15-5.85 GHz, up to 300 Mbps on a 40 MHz channel.

Pharos MAXtream TDMA

Proprietary TDMA mode when Pharos MAXtream is enabled.

Narrow 9° x 7° beam

Beamwidth of 9 degrees azimuth and 7 degrees elevation, with up to 25 dBm transmit power.

Pharos Control management

Centralised management of all devices from a single PC: discovery, monitoring, firmware upgrades and maintenance.

PharOS web interface

Detailed configuration, spectrum analyser, speed test, SNMP v2c and SSH server.

IP65 outdoor enclosure

Outdoor PC stabilised plastic with an IP65 water- and dust-proof design, rated -40 to 70 °C.

ESD and lightning protection

15 kV ESD protection and 6 kV lightning protection.

Passive PoE powered

Passive PoE via LAN at 16-27 VDC, with a 24 V passive PoE adapter included.

CPE610 specifications

At a glance

5 GHz, 300 Mbps
23 dBi directional antenna
2x2 MIMO
Pharos MAXtream TDMA
IP65
6 kV lightning protection
Passive PoE
-40 to 70 °C
CPE610 full specifications
Hardware Features
ProcessorQualcomm 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM,8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN/POE) 1 Reset Button
Power SupplyPassive Power over Ethernet via LAN (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Max. Power Consumption7.41 W Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Antenna Gain23dBi
Antenna Beamwidth9°(Azimuth), 7°(Elevation)
Protection15KV ESD Protection 6KV Lightning Protection
EnclosureMaterial: Outdoor PC stabilized plastic Weatherproof: IP65 water and dust proof design
Software Features
Network ConfigurationWAN: Static/Dynamic/PPPoE/L2TP/PPTP LAN: Static/Dynamic/DHCP Forwarding: ALG/UPnP/Virtual Server/Port Trigger Security: SPI Firewall/ Ping Forbidden/DoS Protection Access Control Static Routing Bandwidth Control IP & MAC Binding
Wireless ConfigurationsPharos MAXtream TDMA Technology Selectable Channel Width: 5/10/20/40MHz Auto Channel Selection Transmit Power Control Dynamic Frequency Selection(DFS) WDS Enable/Disable Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging(AP Mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management FeaturesDiscovery and Remote Management via Pharos Control application HTTP/HTTPS Web-based management System log SNMP Agent(v2c) Ping Watch Dog Dynamic DDNS SSH Server
System ToolsIndicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP Spectrum Analyzer Speed Test Ping Traceroute
System-level OptimisationsOptimised IGMP Snooping/Proxy for multicast applications Hardware watch dog
Wireless Features
Wireless StandardsIEEE 802.11a/n
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency5.15~5.85GHz
Transmission PowerMax. 25dBm (Adjustable power by 1dBm)
Poe Adapter Features
Dimensions(W x D x H)85.8×43.9×29.7 mm
Interfaces1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
ButtonRemote Reset Button
Power Status LEDsGreen
Input100-240VAC, 50/60Hz
Output24VDC, 0.6A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency>84.29%
CertificationsCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
CertificationCE, FCC, IC, IP65
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
EnvironmentOperating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide

Source: TP-Link's published package contents.

Who the CPE610 is for

Outdoor wireless networking applications

  • Long-distance outdoor Wi-Fi transmission
  • 23 dBi directional 2x2 MIMO antenna
  • Pharos MAXtream TDMA

Networks managed from one PC

  • Pharos Control centralised management
  • PharOS web interface for detailed settings
  • SNMP v2c and SSH server

Buy the CPE610 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the CPE610 from the ARC IP Networks team.

Last reviewed October 2026.

Up to 300 Mbps with a 40 MHz channel, 144.4 Mbps at 20 MHz, 72.2 Mbps at 10 MHz and 36.1 Mbps at 5 MHz.

5 GHz, from 5.15 to 5.85 GHz, using IEEE 802.11a/n.

A 23 dBi high-gain directional 2x2 MIMO Cassegrain antenna with a dedicated metal reflector. Beamwidth is 9 degrees azimuth and 7 degrees elevation.

TP-Link's TDMA technology. The CPE610 runs in a proprietary TDMA mode when Pharos MAXtream is enabled.

With the Pharos Control centralised management software from a single PC, or through the web-based PharOS interface. SNMP v2c and an SSH server are also listed.

By passive PoE via its LAN port, at 16-27 VDC. A 24 V passive PoE adapter is included, and it supports Power over Ethernet up to 60 m.

Yes. The enclosure has an IP65 water- and dust-proof design, and the CPE610 is rated for -40 to 70 °C operation.

Yes. TP-Link lists 6 kV lightning protection and 15 kV ESD protection.

One 10/100 Mbps shielded Ethernet port (LAN/PoE), plus a reset button.

The outdoor wireless CPE, a 24 V passive PoE adapter, pole mounting straps, an AC power cord and an installation guide.

Need more than one CPE610 for an outdoor wireless link project?

Ask ARC IP Networks for volume and project pricing on TP-Link products.
