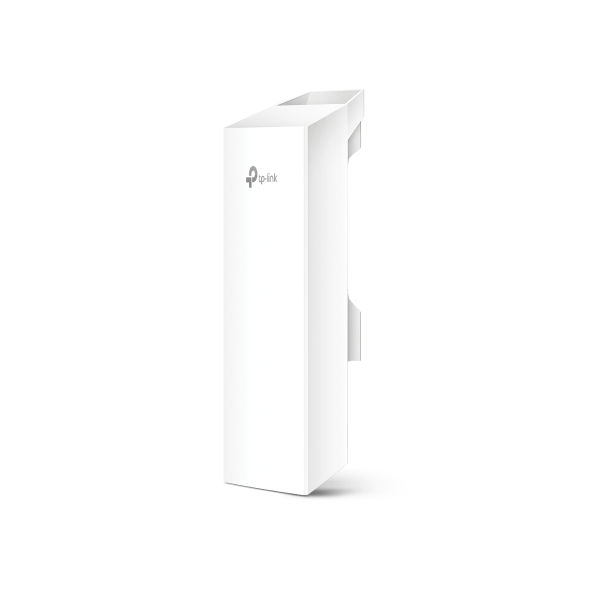

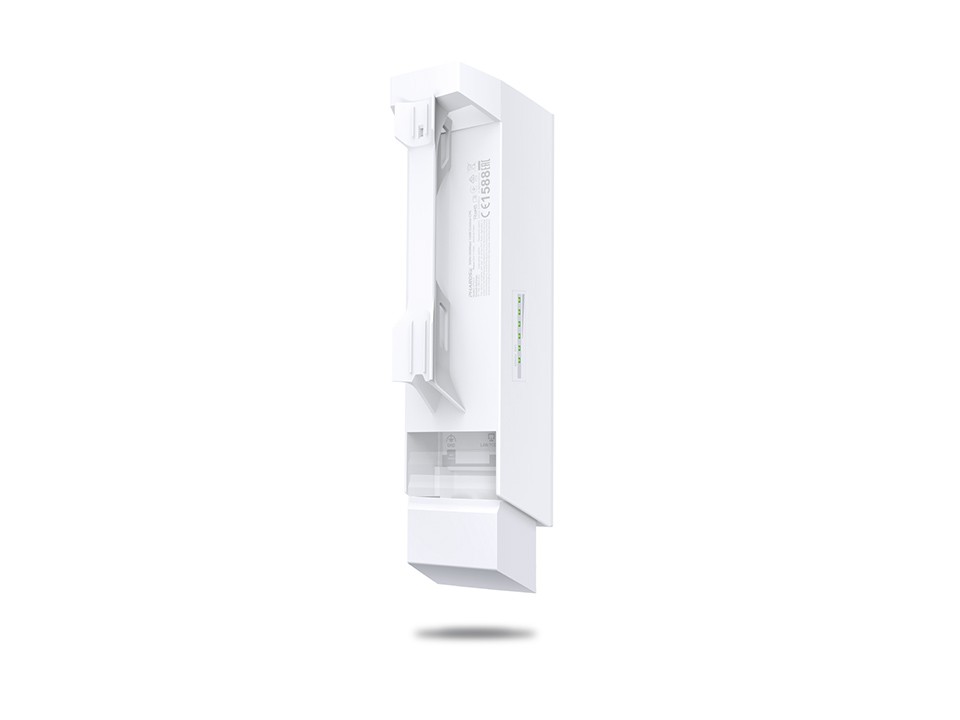

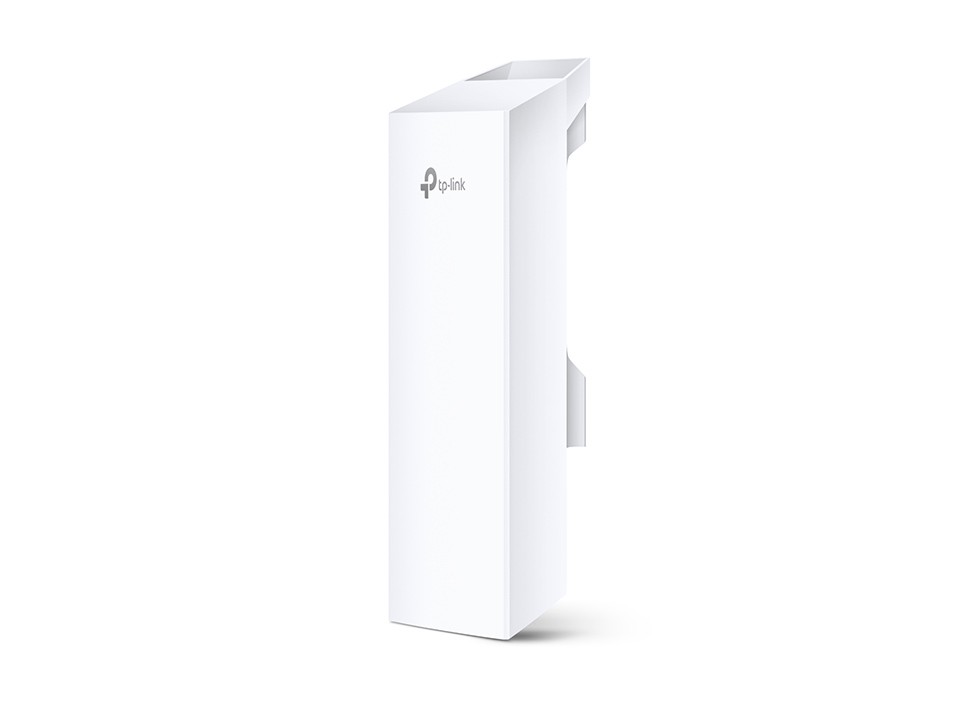

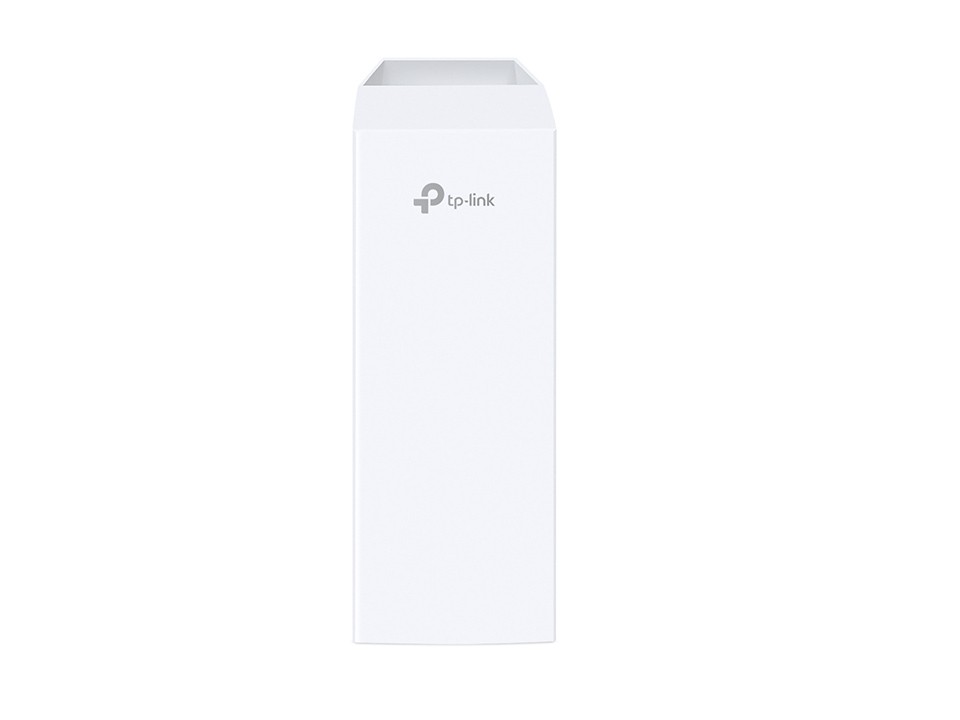

TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE

https://arcip.com.au/web/image/product.template/8053/image_1920?unique=c2286e5

The TP-Link CPE510 moves the Pharos slim-housing CPE to the 5 GHz band (5.15-5.85 GHz). A 13 dBi 2x2 dual-polarised directional antenna with a 45° x 45° beam and up to 26 dBm output give links of more than 15 km, which TP-Link says was tested in the field. It supports AP, Client, AP Router and WISP modes, MAXtream TDMA and Pharos Control, with an IPX5 ASA enclosure, 6 kV lightning protection and a 24 V 0.5 A passive PoE adapter.

$ 106.61 106.61 AUD $ 137.10 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • CPU
  • RAM

This combination does not exist.

Outdoor TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
CPE510
Barcode
1210002611466
Tags

The TP-Link CPE510 is a Pharos 5 GHz 300 Mbps outdoor CPE with a 13 dBi 2x2 dual-polarised directional antenna and a symmetrical 45° x 45° beam. TP-Link quotes field-tested links of more than 15 km. It runs IEEE 802.11a/n or MAXtream TDMA, is managed with Pharos Control, sits in an IPX5 housing and is powered by a 24 V passive PoE adapter.

CPE510 overview

The CPE510 is TP-Link's 5 GHz 300 Mbps 13 dBi outdoor CPE, part of the Pharos range. TP-Link describes it as a cost-effective option for outdoor wireless networking that adapts to point-to-point, point-to-multipoint and outdoor Wi-Fi coverage, and as an ideal choice for both business and home users. The Australian product page covers hardware versions V3.20 and V3.40. It works at 5.15 to 5.85 GHz, where the CPE210 and CPE220 in the same housing are 2.4 GHz models.

A built-in 13 dBi 2x2 dual-polarised directional MIMO antenna does the work here, with a dedicated metal reflector that TP-Link credits with higher gain and lower noise interference. The beam is symmetrical, 45 degrees on both the H-plane and E-plane. Maximum transmission power is 26 dBm, adjustable in 1 dBm steps; TP-Link cautions that the maximum can change from channel to channel under local regulations, and that the operating frequencies available also depend on where the CPE is installed.

For distance, TP-Link credits system-level optimisations with long-range transmission beyond 15 km and says the 15 km+ figure was tested in the field; achieved range will depend on the path, interference and the equipment at the other end. Wireless operation is IEEE 802.11a/n while Pharos MAXtream is disabled, or a proprietary TDMA protocol when it is enabled. TP-Link explains that TDMA counters the throughput loss caused by contention between CPEs and base stations as networks scale, improving throughput, capacity and latency, though real throughput still depends on the application environment.

Signal rates are up to 300 Mbps with a 40 MHz channel, 144.4 Mbps at 20 MHz, 72.2 Mbps at 10 MHz and 36.1 Mbps at 5 MHz. Configuration covers selectable 5/10/20/40 MHz width, automatic channel selection, transmit power control, Dynamic Frequency Selection, WDS, SSID broadcast control, multi-SSID with VLAN tagging (AP mode only), distance and ACK timeout tuning, a wireless MAC filter, WPA/WPA2 and WPA-PSK/WPA2-PSK with AES or TKIP, and 64/128/152-bit WEP. The CPE510 runs in AP, Client, AP Router or AP Client Router (WISP) mode.

Management is through Pharos Control, which brings device discovery, status monitoring, firmware upgrading and network maintenance for the whole network onto one PC, or through the PharOS web interface for more specific settings. Management features include HTTP/HTTPS access, a system log, an SNMP v2c agent, Ping Watch Dog, dynamic DDNS and an SSH server; system tools add signal, noise, CCQ, CPU and memory indicators, traffic and station monitors, a spectrum analyser, speed test, ping and traceroute.

Hardware is a Qualcomm Atheros Enterprise 560 MHz MIPS 74Kc CPU, 64 MB DDR2 RAM and 8 MB flash. There is one 10/100 Mbps shielded Ethernet port (LAN0, passive PoE in), a grounding terminal and a reset button. The CPE510 takes 16-27 VDC passive PoE on LAN0 and draws up to 9.8 W, with TP-Link noting the source supplies more as cable length increases. Its 224 x 79 x 60 mm housing is outdoor ASA stabilised plastic with IPX5 waterproof certification, 15 kV ESD and 6 kV lightning protection, rated for -40 to 70 °C. The included 24 VDC, 0.5 A passive PoE adapter supports Power over Ethernet up to 60 m and lets you reset the CPE remotely; the box also holds pole mounting straps, an AC power cord and an installation guide.

Key features

5 GHz, up to 300 Mbps

IEEE 802.11a/n at 5.15-5.85 GHz, 300 Mbps on a 40 MHz channel.

13 dBi dual-polarised antenna

2x2 directional MIMO antenna with a metal reflector and a 45° x 45° beam.

15 km+ field-tested

TP-Link quotes long-range transmission beyond 15 km, tested in the field.

Up to 26 dBm

Transmit power adjustable in 1 dBm steps, subject to channel and local limits.

MAXtream TDMA

Proprietary TDMA mode to keep throughput, capacity and latency up as networks grow.

DFS and 5-40 MHz channels

Dynamic Frequency Selection with selectable 5/10/20/40 MHz width.

Pharos Control

Discover, monitor, upgrade and maintain devices from one PC.

IPX5 ASA housing

15 kV ESD and 6 kV lightning protection, rated -40 to 70 °C.

24 V passive PoE

Included 0.5 A adapter supports 60 m PoE runs and remote reset.

CPE510 specifications

At a glance

5 GHz, 300 Mbps
13 dBi 2x2 antenna
45° x 45° beam
Up to 26 dBm
15 km+ (field tested)
MAXtream TDMA
IPX5
24 V passive PoE
CPE510 full specifications
Hardware Features
ProcessorQualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 Grounding Terminal 1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins); Voltage range: 16-27VDC
Max. Power Consumption9.8 Watts Max Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )224 x 79 x 60 mm
AntennaBuilt-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 45° (E-Plane) Note: For more details, please refer to datasheet
Protection15KV ESD Protection; 6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material; IPX5 waterproof Certification
Software Features
Wireless ConfigurationsPharos MAXtream TDMA Technology; 802.11a/n Modes; Selectable Channel Width: 5/10/20/40MHz; Automatic Channel Selection; Transmission Power Control; Dynamic Frequency Selection (DFS); WDS Enable/Disable; Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption; SSID Broadcast Enable/Disable; Multi-SSID with VLAN Tagging (AP mode only); Distance/ACK Timeout Setting; Wireless MAC Address Filter; Wireless Advanced:; > Beacon Interval/RTS Threshold/Fragmentation; >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management FeaturesDiscovery and Remote Management via Pharos Control application; HTTP/HTTPS Web-based management; System Log; SNMP Agent(v2c); Ping Watch Dog; Dynamic DDNS; SSH Server
System ToolsWireless Signal Quality Indicators:; Signal Strength/Noise/Transmit CCQ/CPU/Memory; Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP; Spectrum Analyzer; Speed Test; Ping; Traceroute
System-level OptimisationsOptimised IGMP Snooping/Proxy for multicast applications; Hardware watch dog
Wireless Features
Wireless StandardsIEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic); Up to 144.4Mbps (20MHz,Dynamic); Up to 72.2Mbps (10MHz,Dynamic); Up to 36.1Mbps (5MHz,Dynamic)
Frequency5.15~5.85GHz; Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power26dBm/398mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Poe Adapter Features
Dimensions(W x D x H)85.8×43.9×29.7 mm
Interfaces1 AC Jack with Earth Ground 1 10/100Mbps Shielded Ethernet Port (Power + Data) 1 10/100Mbps Shielded Ethernet Port (Data)
ButtonRemote Reset Button
Power Status LEDsGreen
Input100-240VAC, 50/60Hz
Output24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency>80%
CertificationsCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
CertificationCE, FCC, IPX5
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.; Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
EnvironmentOperating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide

Source: TP-Link's published package contents.

Who the CPE510 is for

5 GHz point-to-point links

  • 15 km+ field-tested range
  • 13 dBi directional antenna
  • Distance/ACK timeout setting

Point-to-multipoint client sites

  • MAXtream TDMA mode
  • AP Client Router (WISP) mode
  • Multi-SSID with VLAN tagging (AP mode)

Centrally managed Pharos links

  • Pharos Control on one PC
  • Spectrum analyser and speed test
  • SNMP v2c and SSH server

CPE510 compared

How the CPE510 relates to the 2.4 GHz CPEs in the same slim housing. It trades the wider 2.4 GHz beams for a symmetrical 45° pattern on 5 GHz and the longest field-tested range of the three.

SpecificationCPE510CPE210CPE220
Frequency5.15-5.85 GHz2.4-2.483 GHz2.4-2.483 GHz
Wireless standard802.11a/n802.11b/g/n802.11b/g/n
Antenna gain13 dBi9 dBi12 dBi
Beam width (H / E)45° / 45°65° / 35°60° / 30°
Quoted range (field tested)15 km+5 km+13 km+
Max. power consumption9.8 W10.5 W10.8 W

Source: TP-Link Australia product pages for each model.

Buy the CPE510 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the CPE510 from the ARC IP Networks team.

Last reviewed October 2026.

More than 15 km, which TP-Link says was tested in the field. Real distance depends on line of sight, interference and the radio at the far end.

5 GHz, from 5.15 to 5.85 GHz. TP-Link notes that available frequencies vary with the rules of the country or region of use.

13 dBi from a built-in 2x2 dual-polarised directional antenna, with a 45° beam on both the H-plane and E-plane.

26 dBm, adjustable in 1 dBm steps. The maximum may differ by channel depending on local regulations.

Passive PoE through LAN0 at 16-27 VDC. The supplied 24 V 0.5 A passive PoE adapter supports Power over Ethernet up to 60 m.

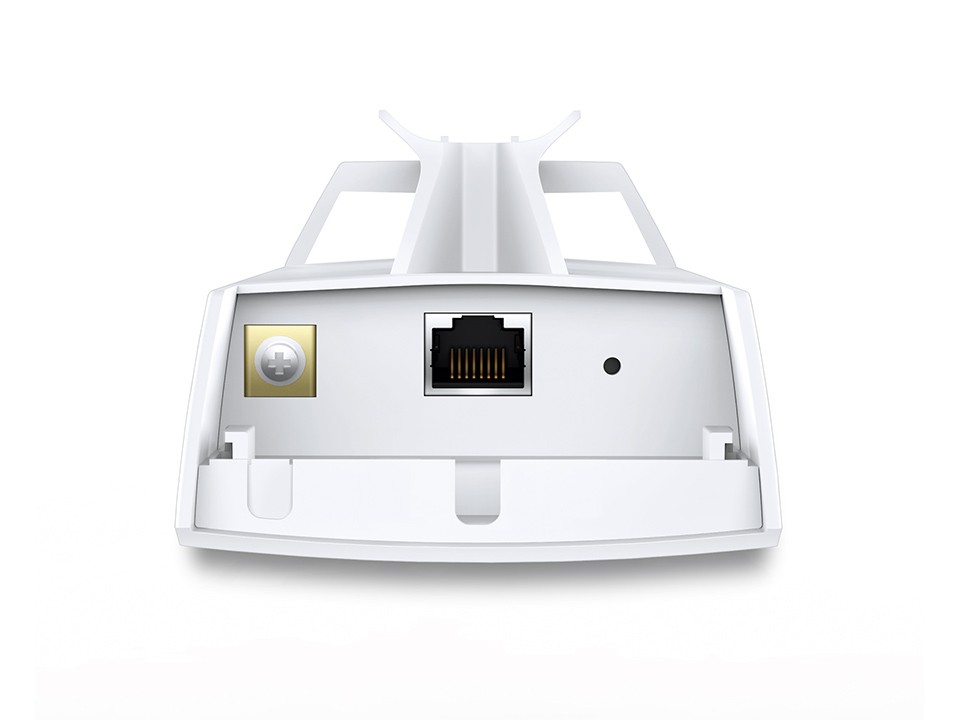

One 10/100 Mbps shielded Ethernet port (LAN0, passive PoE in), plus a grounding terminal.

Yes. With Pharos MAXtream enabled it runs a proprietary TDMA protocol; with it disabled it uses IEEE 802.11a/n.

Yes. The ASA stabilised plastic enclosure has IPX5 waterproof certification, 15 kV ESD and 6 kV lightning protection, and an operating range of -40 to 70 °C.

AP, Client, AP Router and AP Client Router (WISP).

Besides the CPE510 you get a 24 V 0.5 A passive PoE adapter, pole mounting straps, an AC power cord and an installation guide.
