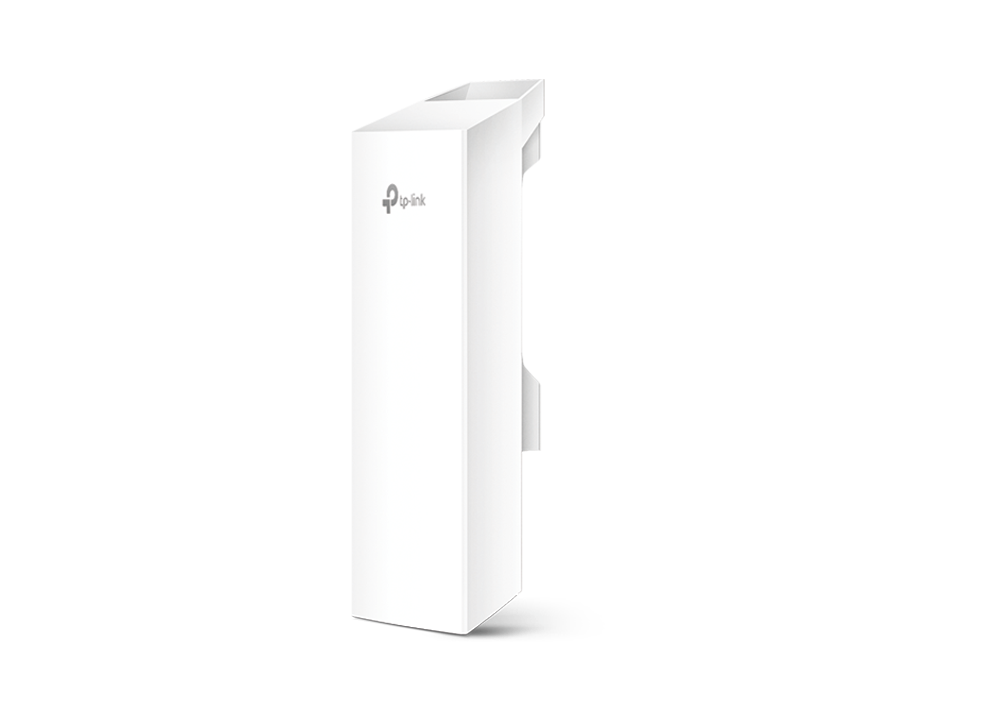

TP-Link CPE220 2.4GHz 300Mbps 12dBi Outdoor CPE

https://arcip.com.au/web/image/product.template/8052/image_1920?unique=656a73f

The TP-Link CPE220 is the higher-gain 2.4 GHz model in the Pharos CPE range. Its 12 dBi 2x2 dual-polarised directional antenna (60° x 30° beam) and transmit power adjustable up to 30 dBm (1000 mW) support links of over 13 km, a figure TP-Link describes as tested in the field. Two 10/100 Mbps Ethernet ports, MAXtream TDMA, Pharos Control, IPX5 weatherproofing and a 24 V 0.5 A passive PoE adapter with remote reset are included.

$ 94.00 94.0 AUD $ 112.17 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • CPU
  • RAM

This combination does not exist.

In stock online
Outdoor TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
CPE220
Barcode
6935364091583
Tags

The TP-Link CPE220 is a Pharos 2.4 GHz 300 Mbps outdoor CPE with a 12 dBi 2x2 dual-polarised directional antenna (60° H-plane, 30° E-plane) and up to 30 dBm transmit power. TP-Link quotes field-tested links of more than 13 km. It has two 10/100 Mbps Ethernet ports, MAXtream TDMA, Pharos Control support, an IPX5 enclosure and a 24 V passive PoE adapter.

CPE220 overview

The CPE220 is TP-Link's 2.4 GHz 300 Mbps 12 dBi outdoor CPE. TP-Link pitches it as a cost-effective building block for outdoor wireless networking, flexible enough for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage, and suitable for business and home users alike. The Australian product page lists hardware versions V1, V3 and V3.40. Its 30 dBm maximum output is higher than the CPE210 (27 dBm) and CPE510 (26 dBm) in the same slim housing.

Its built-in 2x2 dual-polarised directional MIMO antenna delivers 12 dBi of gain, and a dedicated metal reflector is there to raise gain and cut noise interference. Beam width is 60 degrees on the H-plane and 30 degrees on the E-plane. Output power can be set anywhere from 0 to 30 dBm (1000 mW) in 1 dBm increments; TP-Link points out that the top figure may differ between channels and is subject to the regulations of the country or region of use, as is the available operating frequency of 2.4 to 2.483 GHz.

TP-Link states that system-level optimisations allow long-range transmission of more than 13 km and that the 13 km+ figure was tested in the field. Achieved distance will depend on line of sight and the radio at the far end. With Pharos MAXtream switched on the radio runs a proprietary TDMA protocol designed to reduce the collisions that build up as CPE and base-station counts grow; TP-Link says this lifts throughput, capacity and latency for point-to-multipoint use. With MAXtream off it behaves as an IEEE 802.11b/g/n device, at up to 300 Mbps on 40 MHz, 144.4 Mbps on 20 MHz, 72.2 Mbps on 10 MHz or 36.1 Mbps on 5 MHz.

The CPE220 supports AP, Client, AP Router and AP Client Router (WISP) operation modes. Pharos Control, TP-Link's centralised management application, discovers devices and handles status monitoring, firmware upgrades and network maintenance from one computer, while the PharOS web interface gives access to the finer settings. Tools listed include signal strength, noise and transmit CCQ indicators, throughput, station, interface, ARP, route, WAN and DHCP monitors, a spectrum analyser, a speed test, ping and traceroute, plus optimised IGMP snooping/proxy and a hardware watchdog.

Unlike the single-port CPE210 and CPE510, the CPE220 has two 10/100 Mbps shielded Ethernet ports: LAN0 takes passive PoE in, and LAN1 is a second data port. A grounding terminal and reset button complete the interfaces. The hardware is a Qualcomm Atheros 560 MHz MIPS 24Kc CPU with 64 MB DDR2 RAM and 8 MB flash. Power arrives as passive PoE on LAN0 (+4,5 pins; -7,8 pins) at 16-27 VDC, with a maximum draw of 10.8 W, and TP-Link warns the source will supply somewhat more depending on cable length. The housing is outdoor ASA stabilised plastic with IPX5 waterproof certification, 15 kV ESD and 6 kV lightning protection, measuring 276 x 79 x 60 mm, and it is rated for -40 to 70 °C operation.

The bundled 24 VDC, 0.5 A passive PoE adapter measures 85.8 x 43.9 x 31.9 mm, has Gigabit-rated shielded power+data and data ports, a green power LED and a remote reset button, and supports Power over Ethernet deployment of up to 60 m. The package contains the outdoor wireless CPE, that adapter, pole mounting straps, an AC power cord and an installation guide.

Key features

12 dBi directional MIMO

2x2 dual-polarised antenna with a metal reflector; 60° H-plane and 30° E-plane beam.

Up to 30 dBm output

Adjustable 0-30 dBm (1000 mW) in 1 dBm steps, within local regulatory limits.

13 km+ field-tested range

TP-Link quotes long-range links beyond 13 km, tested in the field.

Two Ethernet ports

LAN0 with passive PoE in and a second 10/100 Mbps LAN1 port.

2.4 GHz, 300 Mbps

IEEE 802.11b/g/n at 2.4-2.483 GHz, 300 Mbps on 40 MHz.

MAXtream TDMA

Proprietary TDMA protocol for point-to-multipoint throughput, capacity and latency.

Pharos Control

Centralised management from one PC, plus the PharOS web interface.

IPX5, -40 to 70 °C

ASA stabilised plastic housing, 15 kV ESD and 6 kV lightning protection.

24 V 0.5 A passive PoE

Adapter with remote reset supports up to 60 m PoE runs.

CPE220 specifications

At a glance

2.4 GHz, 300 Mbps
12 dBi 2x2 antenna
60° x 30° beam
Up to 30 dBm
13 km+ (field tested)
2 x 10/100 Ethernet
IPX5
24 V passive PoE
CPE220 full specifications
Specifications
Operation ModesAP / Client / AP Client Router (WISP Client) / AP Router Mode
Hardware Features
ProcessorQualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1) 1 Grounding Terminal 1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins); Voltage range: 16-27VDC
Max. Power Consumption10.8 Watts Max; Note: When deployed using Passive PoE, the power drawn from the power source will; be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )11×3.1×2.1 inch (276×79×60 mm)
AntennaBuilt-in 12dBi 2x2 Dual-polarized Directional Antenna; Beam Width: 60° (H-Plane) / 30° (E-Plane); Note: For more details, please refer to datasheet
Protection15KV ESD Protection; 6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material; IPX5 waterproof Certification
Software Features
Wireless ConfigurationsPharos MAXtream TDMA Technology; 802.11b/g/n Modes; Selectable Channel Width: 5/10/20/40MHz; Automatic Channel Selection; Transmission Power Control; Dynamic Frequency Selection (DFS); WDS Enable/Disable; Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption; SSID Broadcast Enable/Disable; Multi-SSID with VLAN Tagging (AP mode only); Distance/ACK Timeout Setting; Wireless MAC Address Filter; Wireless Advanced:; > Beacon Interval/RTS Threshold/Fragmentation; >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management FeaturesDiscovery and Remote Management via Pharos Control application; HTTP/HTTPS Web-based management; System Log; SNMP Agent(v2c); Ping Watch Dog; Dynamic DDNS; SSH Server
System ToolsWireless Signal Quality Indicators:; Signal Strength/Noise/Transmit CCQ/CPU/Memory; Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP; Spectrum Analyzer; Speed Test; Ping; Traceroute
System-level OptimisationsOptimised IGMP Snooping/Proxy for multicast applications; Hardware watch dog
Wireless Features
Wireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic); Up to 144.4Mbps (20MHz,Dynamic); Up to 72.2Mbps (10MHz,Dynamic); Up to 36.1Mbps (5MHz,Dynamic)
Frequency2.4~2.483GHz; Note: Available operating frequency may vary depending on the limitations; of the countries or regions in which the device is used.
Transmission Power30dBm/1000mw (Adjustable power by 1dBm) Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Poe Adapter Features
Dimensions(W x D x H)85.8×43.9×31.9 mm
Interfaces1 AC Jack with Earth Ground 1 10/100/1000Mbps Shielded Ethernet Port (Power + Data) 1 10/100/1000Mbps Shielded Ethernet Port (Data)
ButtonRemote Reset Button
Power Status LEDsGreen
Input100-240VAC, 50/60Hz
Output24VDC, 0.5A Max +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency>80%
CertificationsCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
CertificationCE, FCC, IPX5
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7,; MAC OS, NetWare, UNIX or Linux.; Note: We recommend you to use one of following Web browsers for an improved user; experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
EnvironmentOperating Temperature: -40℃~70℃ (-40℉~158℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Outdoor Wireless CPE 24V 0.5A Passive PoE Adapter Pole Mounting Straps AC Power Cord Installation Guide

Source: TP-Link's published package contents.

Who the CPE220 is for

Longer 2.4 GHz links

  • 13 km+ field-tested range
  • 12 dBi gain, 30 dBm output
  • Narrower 60° x 30° beam

Sites needing a second port

  • LAN0 PoE in plus LAN1
  • AP Router and WISP client modes
  • Grounding terminal

Pharos-managed networks

  • Pharos Control discovery and upgrades
  • Spectrum analyser and speed test
  • SNMP v2c and SSH server

CPE220 compared

The CPE220 alongside the other slim-housing Pharos CPEs. It has the most transmit power and the only second Ethernet port of the three; the CPE510 moves to 5 GHz for the longest quoted range.

SpecificationCPE220CPE210CPE510
Band2.4 GHz2.4 GHz5 GHz
Antenna gain12 dBi9 dBi13 dBi
Beam width (H / E)60° / 30°65° / 35°45° / 45°
Max. transmit power30 dBm (1000 mW)27 dBm (500 mW)26 dBm (398 mW)
Quoted range (field tested)13 km+5 km+15 km+
Ethernet ports211
Operation modesAP / Client / AP Router / WISPAP / Client / Bridge / Repeater / AP Router / WISPAP / Client / AP Router / WISP

Source: TP-Link Australia product pages for each model.

Buy the CPE220 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the CPE220 from the ARC IP Networks team.

Last reviewed October 2026.

TP-Link quotes long-range transmission of more than 13 km, tested in the field. Distances depend on line of sight, interference and the remote radio.

12 dBi from a 2x2 dual-polarised directional antenna, with a 60° (H-plane) by 30° (E-plane) beam.

30 dBm (1000 mW), adjustable in 1 dBm steps. TP-Link notes the maximum may vary by channel and by country or region.

Yes. LAN0 accepts passive PoE and data, and LAN1 is a second 10/100 Mbps shielded port.

Passive PoE via LAN0 at 16-27 VDC. A 24 V 0.5 A passive PoE adapter is supplied and supports runs of up to 60 m.

2.4 GHz only, from 2.4 to 2.483 GHz, running IEEE 802.11b/g/n or MAXtream TDMA.

AP, Client, AP Router and AP Client Router (WISP).

IPX5 waterproof certification on an outdoor ASA stabilised plastic housing, with an operating range of -40 to 70 °C.

Yes, with Pharos Control from a single PC. The PharOS web interface is also available for detailed settings.

The outdoor wireless CPE, a 24 V 0.5 A passive PoE adapter, pole mounting straps, an AC power cord and an installation guide.

Need more than one CPE220 for a long-range 2.4 GHz link?

Ask ARC IP Networks for volume and project pricing on TP-Link products.

Brand TP-Link
Form Factor Outdoor ASA stabilized plastic materialIPX5 waterproof Certification
WiFi Standard IEEE 802.11b/g/n (with Pharos MAXtream disabled)
CPU Qualcomm Atheros 560MHz CPU, MIPS 24Kc
RAM 64MB DDR2 RAM, 8MB Flash
