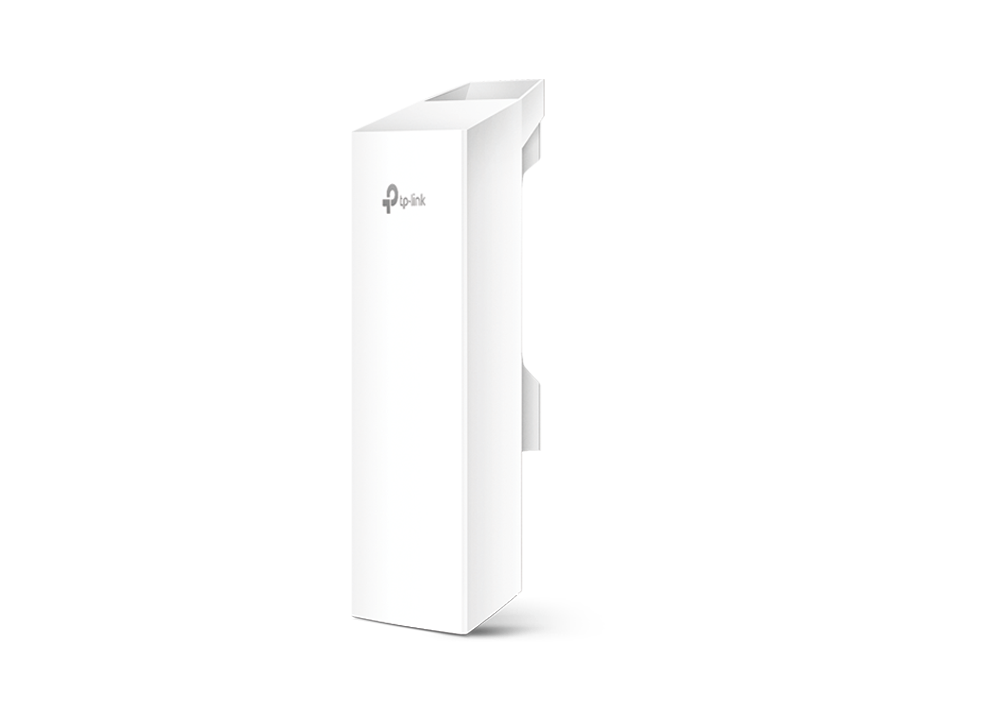

TP-Link CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE

https://arcip.com.au/web/image/product.template/8051/image_1920?unique=45a5c1d

The TP-Link CPE210 is a 2.4 GHz 300 Mbps outdoor CPE for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage links. A 9 dBi 2x2 dual-polarised directional antenna (65° x 35° beam) and up to 27 dBm transmit power give 5 km+ links, tested in the field by TP-Link. MAXtream TDMA, Pharos Control, an IPX5 ASA enclosure, 15 kV ESD and 6 kV lightning protection are included, powered by the supplied 24 V passive PoE adapter.

$ 64.00 64.0 AUD $ 77.75 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard
  • CPU
  • RAM

This combination does not exist.

In stock online
Outdoor TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
CPE210
Barcode
1210002611428
Tags

The TP-Link CPE210 is a Pharos 2.4 GHz 300 Mbps outdoor CPE with a built-in 9 dBi 2x2 dual-polarised directional antenna (65° H-plane, 35° E-plane). TP-Link rates it for wireless links of 5 km+, tested in the field. It adds MAXtream TDMA, Pharos Control management, an IPX5 enclosure, 6 kV lightning protection and a 24 V passive PoE adapter.

CPE210 overview

TP-Link positions the CPE210 as a cost-effective way to build outdoor wireless links on the 2.4 GHz band. It belongs to the Pharos family and suits point-to-point, point-to-multipoint and outdoor Wi-Fi coverage jobs, and TP-Link calls it an ideal choice for both business and home users. The radio is IEEE 802.11b/g/n when Pharos MAXtream is off, and switches to a proprietary TDMA mode when MAXtream is on. Signal rates reach 300 Mbps on a 40 MHz channel, 144.4 Mbps at 20 MHz, 72.2 Mbps at 10 MHz and 36.1 Mbps at 5 MHz, across 2.4 to 2.483 GHz.

The antenna is a built-in 9 dBi 2x2 dual-polarised directional design, backed by a dedicated metal reflector that TP-Link says ensures higher gain and lower noise interference. Its beam width is 65 degrees in the H-plane and 35 degrees in the E-plane, which is a relatively wide pattern for a CPE. Transmit power is adjustable from 0 to 27 dBm (500 mW) in 1 dBm steps. TP-Link notes that the maximum transmission power and the usable frequencies may vary by channel and by the rules of the country or region where the CPE is used.

On range, TP-Link says the CPE210 has system-level optimisations for long-range transmission beyond 5 km, a figure it describes as tested in the field. Real links depend on line of sight, interference and the radio at the other end. Pharos MAXtream TDMA is aimed at larger point-to-multipoint networks, where TP-Link explains that competition and collisions among CPEs and base stations would otherwise drag real throughput down; it says TDMA improves throughput, capacity and latency, while noting that real throughput depends on the actual application environment.

Operation modes are AP, Client, Bridge, Repeater, AP Router and AP Client Router (WISP). Wireless settings include 5/10/20/40 MHz channel width, automatic channel selection, transmit power control, DFS, WDS, multi-SSID with VLAN tagging in AP mode, distance/ACK timeout, a MAC address filter, WPA/WPA2 and WPA-PSK/WPA2-PSK (AES/TKIP) and 64/128/152-bit WEP. Pharos Control lets one PC discover, monitor, upgrade and maintain every Pharos device on the network, and the PharOS web interface handles detailed configuration over HTTP or HTTPS, with SNMP v2c, an SSH server, Ping Watch Dog, DDNS and a system log.

Inside is a Qualcomm Atheros 560 MHz MIPS 74Kc processor with 64 MB DDR2 RAM and 8 MB flash. The CPE210 has one 10/100 Mbps shielded Ethernet port (LAN0, passive PoE in), a grounding terminal and a reset button, and it accepts 16-27 VDC passive PoE on pins 4/5 (+) and 7/8 (-). Maximum consumption is 10.5 W; TP-Link adds that with passive PoE the draw at the power source rises with cable length. The enclosure is outdoor ASA stabilised plastic with IPX5 waterproof certification, 15 kV ESD and 6 kV lightning protection, and the unit measures 224 x 79 x 60 mm.

The supplied passive PoE adapter outputs 24 VDC and supports Power over Ethernet runs of up to 60 m, with a remote reset button so the CPE can be reset from indoors. The specification table rates operation at -30 to 70 °C with storage at -40 to 70 °C, while the overview text quotes -40 to 70 °C operation, so plan cold-climate sites around the lower figure. In the box are the outdoor CPE, a 24 V passive PoE adapter, pole mounting straps, an AC power cord and an installation guide.

Key features

9 dBi dual-polarised antenna

Built-in 2x2 directional MIMO antenna with a metal reflector; 65° H-plane, 35° E-plane beam.

2.4 GHz, up to 300 Mbps

802.11b/g/n at 2.4-2.483 GHz, 300 Mbps on a 40 MHz channel.

5 km+ links

TP-Link quotes long-range transmission over 5 km, tested in the field.

Up to 27 dBm

Transmit power adjustable from 0 to 27 dBm (500 mW) in 1 dBm steps, subject to local limits.

Pharos MAXtream TDMA

Proprietary TDMA mode for better throughput, capacity and latency in point-to-multipoint networks.

Six operation modes

AP, Client, Bridge, Repeater, AP Router and AP Client Router (WISP).

Pharos Control

Discovery, status monitoring, firmware upgrades and maintenance from a single PC.

IPX5 ASA enclosure

Outdoor ASA stabilised plastic with 15 kV ESD and 6 kV lightning protection.

24 V passive PoE

Adapter supports PoE runs up to 60 m and a remote reset button.

CPE210 specifications

At a glance

2.4 GHz, 300 Mbps
9 dBi 2x2 antenna
65° x 35° beam
5 km+ (field tested)
MAXtream TDMA
IPX5
6 kV lightning protection
24 V passive PoE
CPE210 full specifications
Hardware Features
ProcessorQualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in); 1 Grounding Terminal; 1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins); Voltage range: 16-27VDC
Max. Power Consumption10.5 Watts Max; Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H )224 x 79 x 60 mm
AntennaBuilt-in 9dBi 2x2 Dual-polarized Directional Antenna; Beam Width: 65° (H-Plane) / 35° (E-Plane); Note: For more details, please refer to datasheet
Protection15KV ESD Protection; 6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material; IPX5 waterproof Certification
Software Features
Wireless ConfigurationsPharos MAXtream TDMA Technology; 802.11b/g/n Modes; Selectable Channel Width: 5/10/20/40MHz; Automatic Channel Selection; Transmission Power Control; Dynamic Frequency Selection (DFS); WDS Enable/Disable; Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption; SSID Broadcast Enable/Disable; Multi-SSID with VLAN Tagging (AP mode only); Distance/ACK Timeout Setting; Wireless MAC Address Filter; Wireless Advanced:; > Beacon Interval/RTS Threshold/Fragmentation; >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management FeaturesDiscovery and Remote Management via Pharos Control application; HTTP/HTTPS Web-based management; System Log; SNMP Agent(v2c); Ping Watch Dog; Dynamic DDNS; SSH Server
System ToolsWireless Signal Quality Indicators:; Signal Strength/Noise/Transmit CCQ/CPU/Memory; Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP; Spectrum Analyzer; Speed Test; Ping; Traceroute
System-level OptimisationsOptimised IGMP Snooping/Proxy for multicast applications; Hardware watch dog
Wireless Features
Wireless StandardsIEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic); Up to 144.4Mbps (20MHz,Dynamic); Up to 72.2Mbps (10MHz,Dynamic); Up to 36.1Mbps (5MHz,Dynamic)
Frequency2.4~2.483GHz; Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.
Transmission Power27dBm/500mw (Adjustable power by 1dBm); Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.
Poe Adapter Features
Dimensions(W x D x H)110 57 33.5mm
Interfaces1 AC Jack with Earth Ground; 1 10/100Mbps Shielded Ethernet Port (Power + Data); 1 10/100Mbps Shielded Ethernet Port (Data)
ButtonRemote Reset Button
Power Status LEDsGreen
Input100-240VAC, 50/60Hz
Input Voltage100VA~240VAC @ 50Hz~60Hz
Input Current0.4A Max @ 100VAC
Output24VDC, 0.6A Max; +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Output Voltage24VDC, 0.6A Max
Efficiency>80%
CertificationsCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Others
CertificationCE, FCC, RoHS, IPX5
System RequirementsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.; Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
EnvironmentOperating Temperature: -30°C~70°C (-22℉~158℉); Storage Temperature: -40℃~70℃ (-40℉~158℉); Operating Humidity: 10%~90% non-condensing; Storage Humidity: 5%~95% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Outdoor Wireless CPE
  • 24V 1A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide

Source: TP-Link's published package contents.

Who the CPE210 is for

Point-to-multipoint on 2.4 GHz

  • Wide 65° x 35° beam
  • MAXtream TDMA mode
  • Multi-SSID with VLAN tagging (AP mode)

Short outdoor links

  • 5 km+ field-tested range
  • AP, Client, Bridge and Repeater modes
  • WISP client router mode

Managed Pharos networks

  • Pharos Control from one PC
  • PharOS web interface
  • SNMP v2c and SSH

CPE210 compared

The CPE210 next to its two siblings in the same slim housing. All three use a 2x2 dual-polarised directional antenna and 24 V passive PoE; they differ in band, gain, beam width and the range TP-Link quotes from field testing.

SpecificationCPE210CPE220CPE510
Band2.4-2.483 GHz2.4-2.483 GHz5.15-5.85 GHz
Antenna gain9 dBi12 dBi13 dBi
Beam width (H / E)65° / 35°60° / 30°45° / 45°
Max. transmit power27 dBm30 dBm26 dBm
Quoted range (field tested)5 km+13 km+15 km+
Ethernet1 x 10/100 (PoE in)2 x 10/100 (LAN0 PoE in, LAN1)1 x 10/100 (PoE in)
Max. power consumption10.5 W10.8 W9.8 W
Dimensions224 x 79 x 60 mm276 x 79 x 60 mm224 x 79 x 60 mm

Source: TP-Link Australia product pages for each model.

Buy the CPE210 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the CPE210 from the ARC IP Networks team.

Last reviewed October 2026.

TP-Link quotes wireless transmission over 5 km, tested in the field. Actual distance depends on line of sight, interference and the radio at the other end.

2.4 GHz, from 2.4 to 2.483 GHz, with IEEE 802.11b/g/n when MAXtream is disabled. Available frequencies may vary by country or region.

A built-in 9 dBi 2x2 dual-polarised directional antenna with a beam width of 65° (H-plane) and 35° (E-plane).

By 24 V passive PoE through its LAN0 port, which accepts 16-27 VDC. The included passive PoE adapter supports Power over Ethernet runs of up to 60 m.

Up to 300 Mbps on a 40 MHz channel, 144.4 Mbps at 20 MHz, 72.2 Mbps at 10 MHz and 36.1 Mbps at 5 MHz. These are signal rates; real throughput depends on the environment.

AP, Client, Bridge, Repeater, AP Router and AP Client Router (WISP).

It uses an outdoor ASA stabilised plastic enclosure with IPX5 waterproof certification, plus 15 kV ESD and 6 kV lightning protection.

The specification table says -30 to 70 °C, while TP-Link's overview text says -40 to 70 °C. Storage is rated at -40 to 70 °C.

With Pharos Control, TP-Link's centralised software for discovery, monitoring, firmware upgrades and maintenance from one PC, or individually through the PharOS web interface.

TP-Link packs the CPE210 with a 24 V passive PoE adapter, pole mounting straps, an AC power cord and an installation guide.

Need more than one CPE210 for a 2.4 GHz outdoor wireless project?

Ask ARC IP Networks for volume and project pricing on TP-Link products.

Brand TP-Link
Form Factor Outdoor ASA stabilized plastic materialIPX5 waterproof Certification
WiFi Standard IEEE 802.11b/g/n (with Pharos MAXtream disabled)
CPU Qualcomm Atheros 560MHz CPU, MIPS 74Kc
RAM 64MB DDR2 RAM, 8MB Flash
