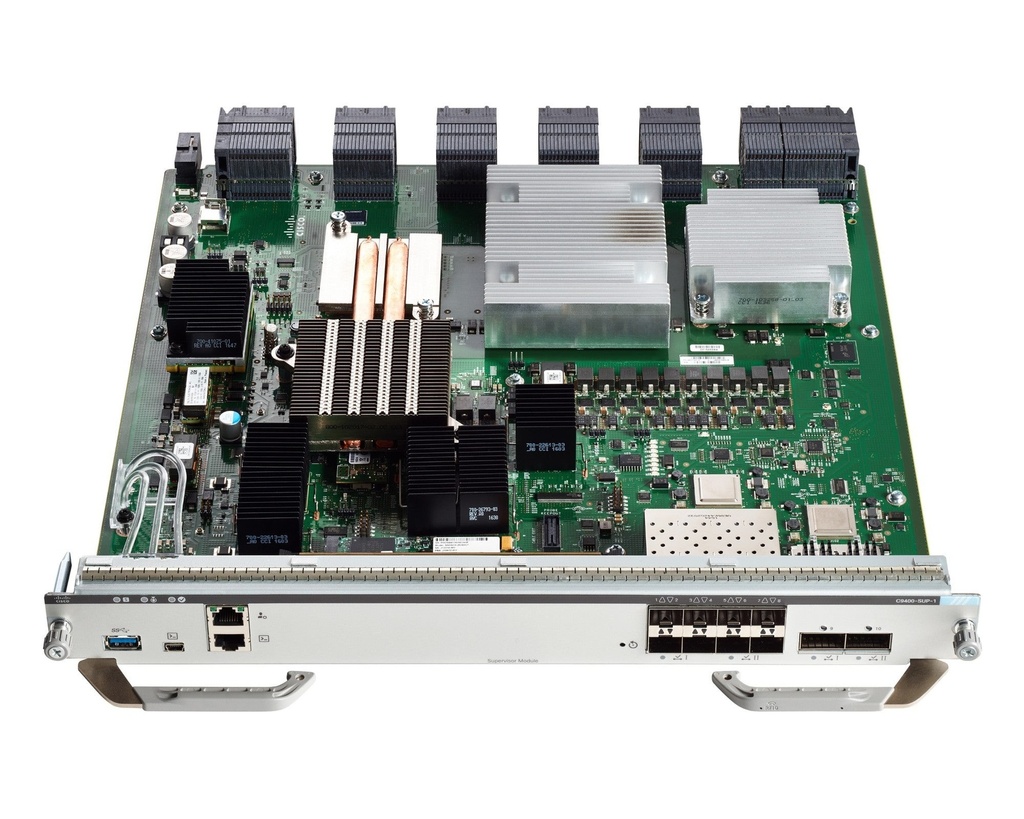

Cisco C9400-SUP-1 Catalyst 9400 Series Supervisor 1 Module, 1.44 Tbps, Up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks

Price:

$ 22,628.89


Cisco C9400-SSD-960GB Catalyst 9400 Series 960 GB M.2 SATA SSD for Supervisor
Cisco C9400-SSD-960GB Catalyst 9400 Series 960 GB M.2 SATA SSD for Supervisor
$ 12,316.33
$ 12,316.33
Cisco C9400-SUP-1XL Catalyst 9400 Series Supervisor 1XL Module, 1.44 Tbps, Up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks
Cisco C9400-SUP-1XL Catalyst 9400 Series Supervisor 1XL Module, 1.44 Tbps, Up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks
$ 30,710.65
$ 30,710.65

Cisco C9400-SUP-1 Catalyst 9400 Series Supervisor 1 Module, 1.44 Tbps, Up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks

https://arcip.com.au/web/image/product.template/12176/image_1920?unique=bfc1faf

Cisco C9400-SUP-1 Catalyst 9400 Series Supervisor 1 engine for the C9404R, C9407R and C9410R chassis, designed for access. Up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks; 80 Gbps per slot in the C9404R, C9407R and C9410R; up to 1.44 Tbps centralised capacity and 900 Mpps IPv4 forwarding. Intel x86 CPU, 16 GB DRAM, 10 GB flash, optional M.2 SATA SSD up to 960 GB. 1+1 redundancy with NSF/SSO. Cisco end-of-sale 30 April 2025; replacement C9400X-SUP-2. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 22,628.89 22628.89 AUD $ 22,628.89 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
C9400-SUP-1

Cisco C9400-SUP-1 at a glance

The Cisco C9400-SUP-1 is the Catalyst 9400 Series Supervisor 1 engine, designed for access. It provides up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks, 80 Gbps per slot in the C9404R, C9407R and C9410R, up to 1.44 Tbps centralised capacity and 16 GB DRAM. Cisco ended sale on 30 April 2025 and names the C9400X-SUP-2 as the replacement.

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco C9400-SUP-1 through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

Uplinks8 x 10G SFP+ or 2 x 40G QSFP uplinks
Per-slot bandwidth80 Gbps
Memory16 GB DRAM
ChassisC9404R / C9407R / C9410R

Best for

  • Catalyst 9400 chassis deployed at the access layer
  • Replacing or adding a supervisor in an existing Catalyst 9400 chassis
  • Dual-supervisor chassis using NSF/SSO for subsecond switchover

Key features

Uplinks: up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks.

Per-slot bandwidth: 80 Gbps per slot in the C9404R, C9407R and C9410R.

Up to 1.44 Tbps centralised wired capacity; 900 Mpps IPv4 forwarding.

Intel 2.4-GHz x86 CPU, 16 GB DRAM and 10 GB flash.

Optional M.2 SATA SSD (C9400-SSD-240GB, 480GB or 960GB) for container-based application hosting.

1+1 supervisor redundancy with NSF/SSO and ISSU (under 200 ms disruption with dual supervisors).

Maximum power draw 400 W per supervisor.

Cisco C9400-SUP-1 specifications

Cisco C9400-SUP-1 technical specifications
SpecificationValue
Uplinks
Uplink portsUp to 8 x 10G SFP+ or 2 x 40G QSFP uplinks
10G typeSFP+
40G typeQSFP
Performance
Per-slot bandwidth80 Gbps per slot in the C9404R, C9407R and C9410R
Centralised capacityUp to 1.44 Tbps
Forwarding rate900 Mpps IPv4, 782.6 Mpps IPv6
Hardware
CPUIntel 2.4-GHz x86
DRAM16 GB
Flash10 GB
Optional SSDUp to 960 GB M.2 SATA
Maximum power400 W
MTBF253,010 hours
Compatibility
ChassisC9404R (slot 2 or 3), C9407R (slot 3 or 4), C9410R (slot 5 or 6)
Minimum softwareCisco IOS XE 16.6.1 (C9407R/C9410R) or 16.9.1 (C9404R)
Redundancy1+1, NSF/SSO, ISSU
Lifecycle
End-of-sale date30 April 2025
Last ship date30 July 2025
Last date of support30 April 2030
Cisco replacementC9400X-SUP-2

Figures from Cisco's official data sheet.

The Cisco C9400-SUP-1 in depth

Catalyst 9400 Supervisor 1

The C9400-SUP-1 is a Catalyst 9400 supervisor engine designed for access. It sets 80 Gbps per slot in the C9404R, C9407R and C9410R and provides up to 8 x 10G SFP+ or 2 x 40G QSFP uplinks.

Redundancy and storage

Two supervisors can run 1+1 with NSF/SSO for subsecond switchover and ISSU upgrades. Each supervisor takes optional M.2 SATA storage of up to 960 GB for container-based application hosting.

End of sale

Cisco announced end-of-sale of the Supervisor 1 family on 30 April 2024. The last day to order was 30 April 2025 and support continues to 30 April 2030; Cisco names the C9400X-SUP-2 as the replacement.

Frequently asked questions

Straight answers about the Cisco C9400-SUP-1 from the ARC IP Networks team. Last reviewed October 2026.

Cisco announced end-of-sale on 30 April 2024. The last day to order was 30 April 2025, the last ship date 30 July 2025, and the last date of support is 30 April 2030. Cisco names the C9400X-SUP-2 as the replacement.

Catalyst 9400 C9404R (slots 2 or 3), C9407R (slots 3 or 4) and C9410R (slots 5 or 6), including redundant setups.

80 Gbps per slot in the C9404R, C9407R and C9410R.

Yes. Cisco lists C9400-SSD-240GB, C9400-SSD-480GB and C9400-SSD-960GB M.2 SATA memory for the supervisor, for container-based application hosting.

Yes. The chassis supports 1+1 supervisor redundancy with NSF/SSO and ISSU.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco C9400-SUP-1 through Cisco's authorised Australian distribution, with a GST tax invoice.
