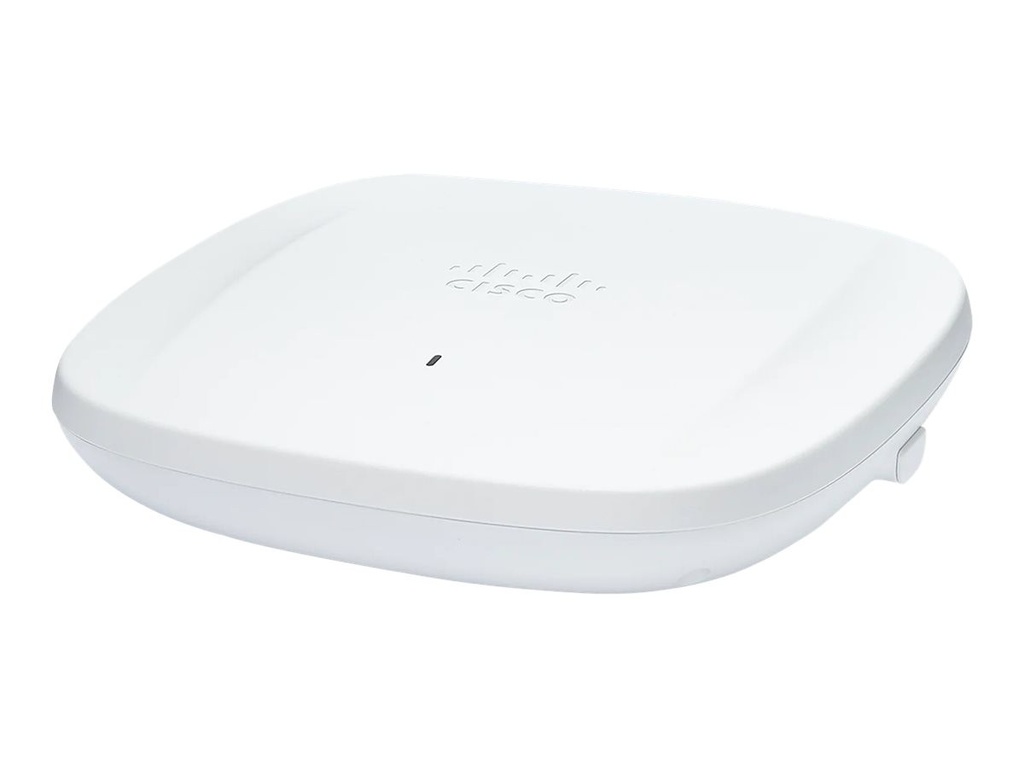

Cisco C9136I-Z Catalyst 9136I Wi-Fi 6E Tri-Band Access Point, 10.2 Gbps, 2x 5G mGig, Environmental Sensors (AU/NZ)

Price:

$ 3,930.63


Cisco C9130AXI-Z Catalyst 9130AX Wi-Fi 6 Indoor Access Point, 8x8:8, 5.38 Gbps, 5G mGig, Internal Antennas (AU/NZ)
Cisco C9130AXI-Z Catalyst 9130AX Wi-Fi 6 Indoor Access Point, 8x8:8, 5.38 Gbps, 5G mGig, Internal Antennas (AU/NZ)
$ 3,674.75
$ 3,674.75
Cisco C9200-24P-A Catalyst 9200 24-Port PoE+ Switch, Modular Uplinks, Network Advantage
Cisco C9200-24P-A Catalyst 9200 24-Port PoE+ Switch, Modular Uplinks, Network Advantage
$ 4,582.82
$ 4,582.82

Cisco C9136I-Z Catalyst 9136I Wi-Fi 6E Tri-Band Access Point, 10.2 Gbps, 2x 5G mGig, Environmental Sensors (AU/NZ)

https://arcip.com.au/web/image/product.template/11942/image_1920?unique=37e3ad1

Cisco Catalyst 9136I-Z tri-band Wi-Fi 6E (802.11ax) indoor access point with internal antennas, Australia/New Zealand regulatory domain. 4x4 6 GHz, 8x8 5 GHz and 4x4 2.4 GHz radios, PHY rates up to 10.2 Gbps, OFDMA, MU-MIMO, BSS colouring, band steering, WPA3. Dual 5G Multigigabit power-redundant uplinks, USB 2.0 (9W), built-in TVOC air quality, temperature and humidity sensors. 802.3bt UPOE 47.3W max. 2048 MB DRAM. Managed by Cisco Catalyst 9800 controllers. Limited lifetime hardware warranty. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 3,930.63 3930.63 AUD $ 3,930.63 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
C9136I-Z

Cisco C9136I-Z at a glance

The Cisco Catalyst 9136I-Z is a tri-band Wi-Fi 6E (802.11ax) indoor access point with internal antennas for the Australia/New Zealand (-Z) regulatory domain. Its 4x4 6 GHz, 8x8 5 GHz and 4x4 2.4 GHz radios deliver PHY rates up to 10.2 Gbps over two power-redundant 5G Multigigabit uplinks, with built-in air quality, temperature and humidity sensors; full operation needs 802.3bt UPOE (47.3W).

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco C9136I-Z through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

Wi-FiWi-Fi 6E tri-band, 10.2 Gbps
Uplinks2x 5G Multigigabit
Power802.3bt UPOE, 47.3W max
WarrantyLimited lifetime

Best for

  • Very high-density venues adding 6 GHz capacity for Wi-Fi 6E clients
  • Sites wanting uplink and power redundancy at the access point
  • Smart buildings using built-in air quality, temperature and humidity sensing

Key features

Tri-band Wi-Fi 6E: 4x4 6 GHz, 8x8 5 GHz and 4x4 2.4 GHz radios, up to 16 spatial streams.

PHY data rates up to 10.2 Gbps (4x4 160 MHz on 6 GHz, 8x8 80 MHz on 5 GHz, 4x4 20 MHz on 2.4 GHz).

Two 100M/1G/2.5G/5G Multigigabit ports for power-redundant uplinks with hitless failover.

Built-in environmental sensors for TVOC air quality, temperature and humidity.

Band steering moves 6-GHz-capable clients to the 6 GHz radio.

USB 2.0 at 9W for IoT and application hosting.

Internal omnidirectional antennas: 4 dBi 2.4 GHz, 5 dBi 5 GHz, 6 dBi 6 GHz.

2048 MB DRAM, 1024 MB flash; WPA3 support.

Cisco C9136I-Z specifications

Cisco C9136I-Z technical specifications
SpecificationValue
Wireless
Standard802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Radios4x4 6 GHz, 8x8 5 GHz, 4x4 2.4 GHz
Max PHY rateUp to 10.2 Gbps
Channel widths20/40/80/160 MHz (6 GHz); 20/40/80/80+80 MHz (5 GHz); 20 MHz (2.4 GHz)
Max transmit power23 dBm 2.4 GHz; 26 dBm 5 GHz; 23 dBm 6 GHz
Antennas
TypeInternal, omnidirectional in azimuth
2.4 GHz peak gain4 dBi
5 GHz peak gain5 dBi
6 GHz peak gain6 dBi
Interfaces
Uplinks2x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)
ConsoleRJ-45
USBUSB 2.0 at 9W
Power
802.3bt (UPOE)4x4 / 8x8 / 4x4, 2x 5G, USB on, 47.3W
802.3at (PoE+)2x2 / 4x4 / 2x2, 1x 2.5G, no USB, 24.4W
802.3afStaging only, radios off, 13.95W
InjectorAIR-PWRINJ7=
Hardware and software
Memory2048 MB DRAM, 1024 MB flash
ControllersCisco Catalyst 9800 Series (physical or virtual); Catalyst 9k switches with Embedded Wireless Controller in SDA mode
SoftwareCisco IOS XE 17.7.1 or later
Regulatory domain-Z (Australia / New Zealand)
Physical and environment
Dimensions (W x L x H)25.1 x 25.1 x 5.6 cm
Operating temperature0 to 50°C (5 GHz drops to 4x4 and single 1G above 40°C)
Storage temperature-30 to 70°C
Humidity10% to 90% noncondensing
Warranty
Hardware warrantyLimited lifetime hardware warranty
Replacement10-day advance hardware replacement

Figures from Cisco's official data sheet.

The Cisco C9136I-Z in depth

Tri-band Wi-Fi 6E flagship

The Catalyst 9136I extends Wi-Fi 6 into the 6-GHz band with three radios: 4x4 at 6 GHz, 8x8 at 5 GHz and 4x4 at 2.4 GHz, for PHY rates up to 10.2 Gbps. Band steering moves Wi-Fi 6E clients to 6 GHz and frees the other bands for older devices. The -Z part number is the Australia/New Zealand regulatory domain version; Cisco notes the 6 GHz radio is disabled where that band is not allowed or supported.

Redundant uplinks and power

Two 5G Multigigabit ports provide power-redundant uplinks with hitless failover. Full tri-band operation with both 5G links and USB needs 802.3bt UPOE (47.3W); on 802.3at PoE+ the AP runs reduced radios on a single 2.5G link.

Sensors built in

Integrated sensors measure TVOC air quality, temperature and humidity, avoiding a separate sensor overlay. The AP is managed by Cisco Catalyst 9800 controllers (IOS XE 17.7.1 or later) and carries a limited lifetime hardware warranty.

Frequently asked questions

Straight answers about the Cisco C9136I-Z from the ARC IP Networks team. Last reviewed October 2026.

Full operation (4x4 6 GHz, 8x8 5 GHz, 4x4 2.4 GHz, two 5G links and USB) needs 802.3bt UPOE at 47.3W max. 802.3at PoE+ gives reduced radios on one 2.5G link (24.4W); 802.3af is for configuration staging only with radios off.

The C9136I has a 6 GHz radio; Cisco notes that in countries where 6 GHz use is not allowed or not yet supported in software the 6 GHz radio is disabled. Customers are responsible for verifying approval for their country.

Both are 5G Multigigabit ports that provide power-redundant uplinks, with hitless performance during failover.

Cisco Catalyst 9800 Series controllers (physical or virtual) with IOS XE 17.7.1 or later, or Catalyst 9k switches with Embedded Wireless Controller in SDA mode.

A Cisco limited lifetime hardware warranty with 10-day advance hardware replacement and 90 days of software media cover.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco C9136I-Z through Cisco's authorised Australian distribution, with a GST tax invoice.

Explore the full Cisco range: Cisco Australia hub · Shop all Cisco

Buy the Cisco C9136I-Z in Australia

ARC IP Networks is a Cisco Registered Partner, supplying Cisco switching, wireless, collaboration and security products to businesses, schools and integrators across Australia.

  • Genuine Cisco: sourced through Cisco's authorised Australian distribution, never grey import.
  • Australia-wide delivery, with Australian power where a power supply is included.
  • Manufacturer's warranty and local pre-sales help choosing the right model and licence.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a Cisco network?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right Cisco model and licence for your site.
