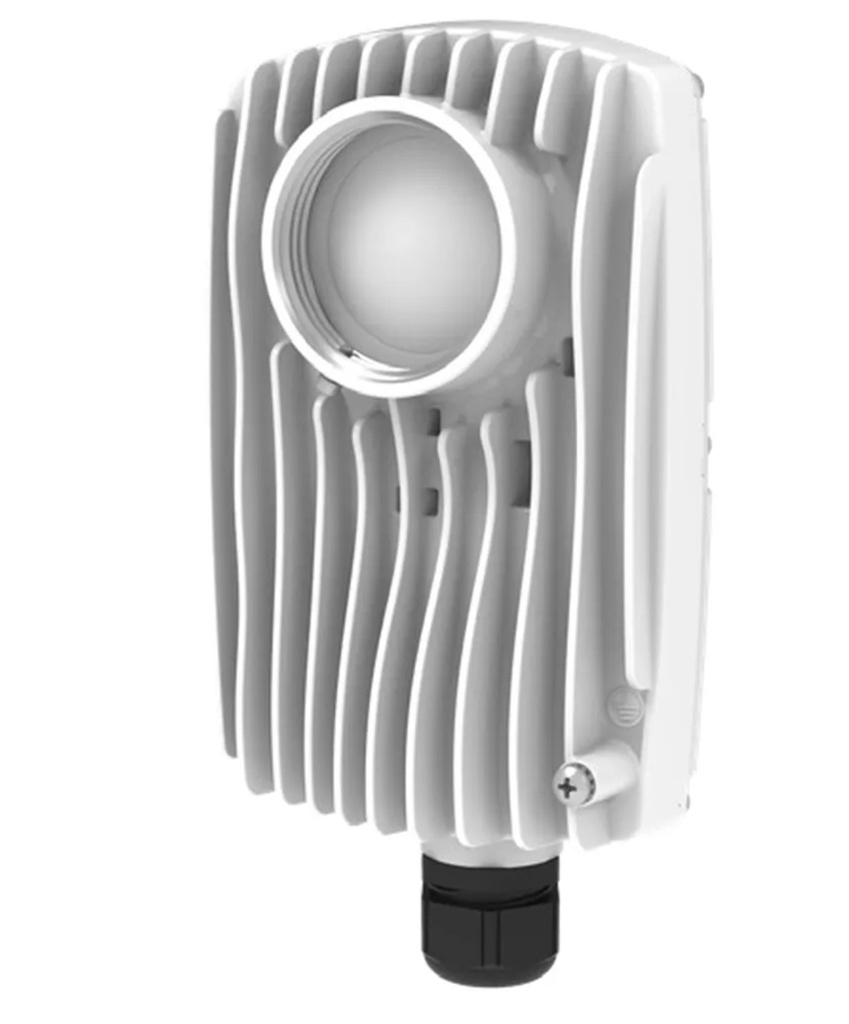

Mimosa C6x 5.1-6.4GHz 8dBi 1.75 Gbps Radio

https://arcip.com.au/web/image/product.template/3414/image_1920?unique=ed1b1a2
Future-proof your network with the Mimosa C6x, the industry's fastest modular radio. Leveraging Wi-Fi 6E and the 6 GHz spectrum, it delivers an incredible 1.75 Gbps for both PTP backhaul and PTMP client applications.

427.90 427.9 AUD 427.90 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Mimosa
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
C6x
Tags
C6x
Mimosa C6x 5.1-6.4GHz 8dBi 1.75 Gbps Radio

Features

  • Wi-Fi 6E technology for massive capacity and low latency
  • Operates in the low-noise 6 GHz band (5.150–6.425 GHz)
  • Up to 1.75 Gbps throughput in PTP mode, 1 Gbps in PTMP mode
  • Rugged IP67 rating for extreme outdoor environments
  • Modular twist-on antenna design (compatible with N5-X antennas)
  • Integrated 8 dBi antenna (gain can be increased to 25 dBi)
  • Dual-mode operation: PTP Backhaul or PTMP Client for Mimosa A6

Specifications

Performance
Max ThroughputPTP: 1.75 Gbps IP aggregate; PTMP: 1 Gbps IP
Wireless ProtocolsWi-Fi 6E, OFDMA, TDMA
MIMO & Modulation2x2:2 MIMO, up to 1024-QAM
Radio
Frequency Range5.150 – 6.425 GHz (restricted by country of operation)
Integrated Antenna Gain8 dBi
Power
Power MethodPassive PoE (48-56VDC)
Max Power Consumption20 W
Physical
Networking Interface(1) 10/100/1000 BASE-T Ethernet Port
Weather ResistanceIP67
Wind Survivability200 km/h (125 mph)

Professional Overview

The Mimosa C6x is a next-generation modular radio engineered to deliver unprecedented performance by leveraging the latest Wi-Fi 6E technology and the vast, clean spectrum of the 6 GHz band. It represents a significant leap forward for service providers, offering a powerful escape from the noise and interference of the 5 GHz band. The C6x is the ultimate tool for WISPs looking to deliver fiber-fast, multi-gigabit speeds for both Point-to-Point (PTP) backhaul and Point-to-Multipoint (PTMP) subscriber links.

At the heart of the C6x is its exceptional technical performance. In a PTP configuration, two C6x radios can achieve a staggering 1.75 Gbps of aggregate throughput, creating a robust and cost-effective backhaul solution. As a PTMP client paired with the Mimosa A6 access point, it utilizes OFDMA and other Wi-Fi 6E advancements to deliver up to 1 Gbps of throughput. This dramatic increase in speed and efficiency allows service providers to offer competitive, high-tier service plans and support a greater density of subscribers with reliable, low-latency connectivity.

Designed for ultimate versatility and reliability, the C6x features a rugged IP67-rated enclosure, ensuring it can withstand the most severe outdoor conditions. Its innovative modular design, compatible with the N5-X series of twist-on antennas, allows a single radio to be adapted for various link distances by changing antenna gain from 8 dBi up to 25 dBi. This flexibility simplifies inventory and deployment planning, making the C6x a highly scalable and future-proof investment for any modern wireless network.
