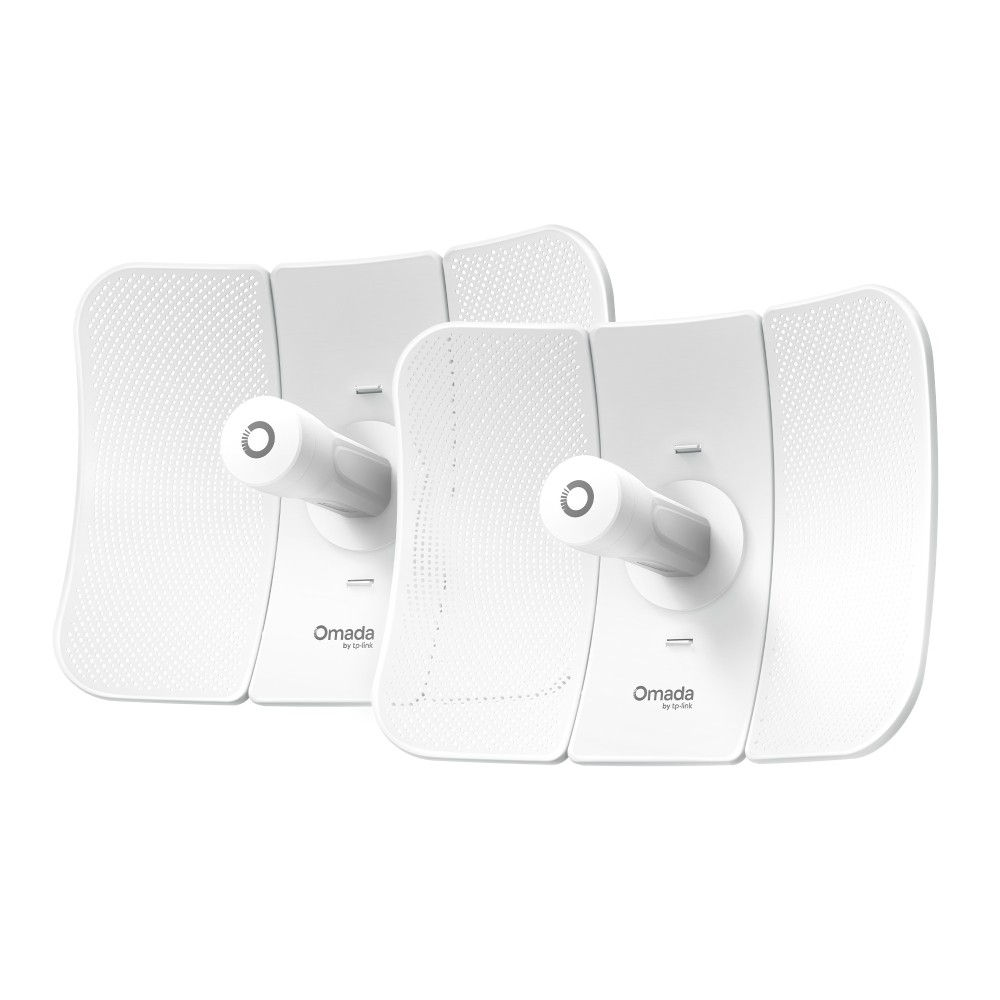

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Outdoor Wireless Bridge Kit

https://arcip.com.au/web/image/product.template/8050/image_1920?unique=d0a528a

The TP-Link Beam Bridge 5 UR KIT is an Omada ultra-range wireless bridge kit containing two preconfigured 5 GHz bridges that auto-pair out of the box for point-to-point links of up to 15 km. Each unit uses 802.11a/n/ac with 2x2 MIMO and two 23 dBi directional antennas (9° horizontal, 7° vertical beamwidth) for up to 867 Mbps, and has one Gigabit Ethernet port powered by 802.3af PoE or 24 V/48 V passive PoE, with a passive PoE adapter, power cord and pole mounting kit supplied for each bridge. The IP65 enclosure, ±6 kV lightning protection and -40 to 70 °C rating suit remote sites, and the Omada app provides alignment, speed testing and management in Standalone or Omada SDN mode.

$ 437.54 437.54 AUD $ 437.54 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • WiFi Standard

This combination does not exist.

In stock online
TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
BEAM BRIDGE 5 UR KIT
Barcode
1210002603782
Tags

The TP-Link Beam Bridge 5 UR KIT is a preconfigured pair of Omada 5 GHz 867 Mbps ultra-range wireless bridges for point-to-point links of up to 15 km. Each bridge has 2x2 23 dBi dual-polarised directional antennas, one Gigabit PoE-in port that accepts 802.3af or 24/48 V passive PoE (adapters included), an IP65 enclosure, 6 kV lightning protection and a -40 to 70 °C operating range, with app-guided alignment and Omada SDN management.

Beam Bridge 5 UR KIT overview

The Beam Bridge 5 UR KIT is TP-Link's Omada 5 GHz 867 Mbps ultra-range indoor/outdoor wireless bridge kit. TP-Link describes it as an enterprise-grade Wi-Fi bridge kit engineered for transmission of up to 15 km (9.3 mi), delivering point-to-point connectivity in remote outdoor environments such as forests, mining sites, islands and other hard-to-reach locations where extending network access is critical. The kit contains two Beam Bridge 5 UR units, two passive PoE adapters, two power cords, two mounting kits and one installation guide, so both ends of the link are covered in one box. TP-Link notes that the advertised range is calculated from laboratory testing, and actual coverage is not guaranteed and will vary with the equipped antennas, client limitations and environmental factors.

Each bridge works on 5 GHz only to IEEE 802.11a/n/ac, with 2x2 MIMO and two spatial streams, 20/40/80 MHz channel widths and 256-QAM modulation. The 802.11ac data rate runs from 8.6 Mbps to 866 Mbps (MCS0 to MCS9), and 802.11n from 8.6 Mbps to 300 Mbps. The antennas are external 2x2 dual-polarised directional MIMO antennas rated at 23 dBi peak gain, with a narrow 9° horizontal and 7° vertical beamwidth that concentrates the signal on the far end of the link. The datasheet lists frequency bands from U-NII-1 to U-NII-3 with DFS channels, subject to country-specific restrictions, and transmit power that is adjustable in 1 dBm steps and depends on local regulations. Point-to-point is the headline mode, and the datasheet also lists point-to-multipoint for up to four, with a maximum of eight associated stations.

Setup is designed to be quick. The two bridges are preconfigured for instant PtP auto-pairing, so TP-Link says you can simply power on and go. A role DIP switch sets each unit as the Main AP or Client AP, a system mode selection button switches between Standalone and Omada SDN mode, and four RSSI LEDs show signal strength while you aim. For longer links the Omada app shows real-time signal strength for app-guided alignment, and can verify the installation, run speed tests and help troubleshoot the connection. Other listed tools include channel optimisation, automatic channel selection, SSID and client rate limits, a guest network, rogue AP detection, SSID and management VLANs, and ping, traceroute, packet capture and terminal tools.

Power and data run over one cable. Each bridge has a single 10/100/1000 Mbps Gigabit Ethernet port with PoE in that accepts 802.3af PoE (pins 1,2 and 3,6) or 24 V or 48 V passive PoE (+4,5 and -7,8), and a passive PoE adapter is included for each unit. Maximum power consumption is 15.8 W on 802.3af PoE, and idle consumption is listed at 2.87 W. For outdoor durability the enclosure is IP65 for pole mounting, the Ethernet port has ±6 kV lightning protection, the windproof class is 16 and the operating range is -40 to 70 °C with 10 to 90% non-condensing humidity. TP-Link notes that lightning and ESD protection depend on proper setup, grounding and cable shielding.

For management, the bridges can run standalone with web-based management, SSH, SNMP v1/v2c/v3, NTP, email alerts, LED on/off control, reboot and WLAN schedules, firmware upgrade and backup and restore. In Omada SDN mode they are managed centrally through Omada Central (cloud-based), an Omada hardware controller or an Omada software controller; cloud access requires an Omada controller and zero-touch provisioning is supported. The datasheet lists Omada Controller and Omada Essential V5.15.24 and above, and Omada App V4.25 and above. Each main unit measures 366 x 280 x 207 mm and weighs 1.1 kg, and the kit carries CE and FCC certification.

Key features

Up to 15 km point-to-point

Ultra-range PtP links of up to 15 km (9.3 mi), based on TP-Link laboratory testing.

Preconfigured pair

Two bridges that auto-pair out of the box; power on and go.

23 dBi directional antennas

External 2x2 dual-polarised directional MIMO antennas with 9° horizontal and 7° vertical beamwidth.

867 Mbps on 5 GHz

IEEE 802.11a/n/ac, 2x2 MIMO, 20/40/80 MHz channels and 256-QAM.

App-guided alignment

Real-time signal strength, speed testing and troubleshooting in the Omada app, plus four RSSI LEDs.

Flexible PoE

One Gigabit port accepts 802.3af PoE or 24 V/48 V passive PoE; passive adapters included.

Built for harsh sites

IP65 enclosure, ±6 kV lightning protection, windproof class 16 and -40 to 70 °C operation.

Standalone or Omada SDN

Local management via web UI or app, or central management with Omada Central, hardware or software controllers.

Beam Bridge 5 UR KIT specifications

At a glance

2 bridges in the kit
Up to 15 km PtP
5 GHz up to 867 Mbps
2 x 23 dBi directional
1 x Gigabit PoE-in
802.3af / passive PoE
IP65, -40 to 70 °C
Omada SDN
Beam Bridge 5 UR KIT full specifications
Hardware Features
Interface1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Button1 × Reset Button 1 × System Mode Selection Button
DIP SwitchRole Switch
Power Supply802.3af PoE (1,2pins; 3,6pins) 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
Max. Power Consumption15.8W
Dimensions ( W x D x H )14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
AntennaExternal 2×2 Dual-Polarized Directional MIMO Antennas 5 GHz: 23 dBi
Antenna BeamwidthHorizontal: 9°, Vertical: 7°
Weatherproof EnclosureIP65
Bandwidth5 GHz: 20 MHz/40 MHz/80 MHz
MountingPole Mounting (Kits Included)
Management Features
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralised ManagementOmada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud AccessYes. Require the use of an Omada Controller.
Email AlertsYes
LED ON/OFF ControlYes
SNMPYes
SSHYes
Web-based ManagementYes
Zero-Touch ProvisioningYes
Wireless Features
PtPYes
Transmission Distance15 km (9.3 mi)
Wireless StandardsIEEE 802.11 a/n/ac
Frequency5 GHz
Signal Rate5 GHz: Up to 867 Mbps
Wireless FunctionsMU-MIMO: 5G 2x2 MU-MIMO DL; Maximum number of associated STAs: 8; Speed Test; Channel Optimisation; Antenna Alignment; ACS (Automatic Channel Selection); Rate Limit; Guest Network
Wireless SecurityVLAN; Rogue AP Detection; Maximum number of MAC Filter: 4,000; Wireless Encryption
Transmission PowerCE:; FCC: <27 dBm (5 GHz, U-NII-3)
Others
CertificationCE, FCC
Lightning ProtectionEthernet Ports: ±6 kV
EnvironmentOperating Temperature: -40 °C–70 °C (-40 °F–158 °F);; Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);; Operating Humidity: 10%–90% non-condensing;; Storage Humidity: 5%–90% non-condensing
Weight1.1 kg (2.43 lb)

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Beam Bridge 5 UR KIT
  • Installation Guide
  • Mounting Kit
  • Passive PoE Adapter
  • Power Cord

Source: TP-Link's published package contents.

Who the Beam Bridge 5 UR KIT is for

Remote and hard-to-wire sites

  • Forests, mining sites and islands
  • Links of up to 15 km
  • No cabling between buildings

Fast deployments

  • Preconfigured PtP auto-pairing
  • App-guided alignment
  • Built-in speed test for verification

Managed Omada networks

  • Omada Central, hardware or software controller
  • Zero-touch provisioning
  • Email alerts and remote monitoring

Buy the Beam Bridge 5 UR KIT from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Beam Bridge 5 UR KIT from the ARC IP Networks team.

Last reviewed October 2026.

TP-Link rates it for point-to-point links of up to 15 km (9.3 mi). This is calculated from laboratory testing; actual range is not guaranteed and varies with antenna alignment, line of sight and environmental factors.

Two. The package contains two Beam Bridge 5 UR units, two passive PoE adapters, two power cords, two mounting kits and one installation guide.

No manual pairing is needed. The two units are preconfigured for instant PtP auto-pairing, and a role DIP switch sets each one as the Main AP or Client AP.

Each bridge is 5 GHz 802.11ac with 2x2 MIMO, with a signal rate of up to 867 Mbps. These are physical rates; real throughput depends on distance and conditions.

Each has one Gigabit Ethernet port with PoE in that accepts 802.3af PoE or 24 V or 48 V passive PoE. A passive PoE adapter is included for each bridge. Maximum consumption is 15.8 W.

Yes. The enclosure is IP65 for pole mounting, with ±6 kV lightning protection on the Ethernet port, windproof class 16 and an operating range of -40 to 70 °C. Pole mounting kits are included.

The Omada app shows real-time signal strength for app-guided alignment and can run speed tests, and four RSSI LEDs on each unit also indicate signal level.

Yes. It can run standalone or in Omada SDN mode, managed by Omada Central, an Omada hardware controller or an Omada software controller. TP-Link lists Omada Controller V5.15.24 and above and Omada App V4.25 and above.

The datasheet lists PtMP for up to four, with a maximum of eight associated stations, although the kit itself is designed and preconfigured as a point-to-point pair.

Need more than one Beam Bridge 5 UR KIT for a long-distance or multi-site wireless link?

Ask ARC IP Networks for volume and project pricing on TP-Link Omada products.

Brand TP-Link
Form Factor IP65
WiFi Standard IEEE 802.11 a/n/ac
