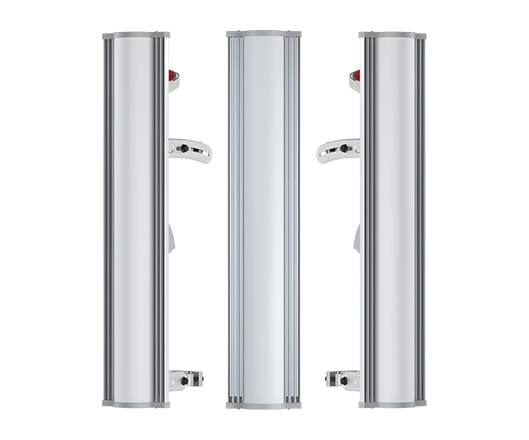

RF Elements AS-5-20 Array Sector 5 GHz 20 dBi Dual-Pol Sector Antenna, BackShield

https://arcip.com.au/web/image/product.template/3406/image_1920?unique=4ed9f8e

RF Elements Array Sector 5-20 (AS-5-20) is a 5 GHz (5150–5850 MHz) dual-polarised 20 dBi sector antenna with about 80° azimuth coverage. RF Elements' BackShield surface reduces side lobes and back radiation, giving a 30 dB front-to-back ratio for co-located sector clusters.

$ 350.53 350.53 AUD $ 350.53 incl. GST

Not Available For Sale


  • Brand
  • Frequency Band
  • Antenna Gain
  • Beam Width
  • Antenna Type
  • Connector
  • Polarization

This combination does not exist.

5 GHz RF Elements WISP Antenna Sector Antenna Point-to-Multipoint Array Sector N-type Connector
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal

RF Elements AS-5-20 at a glance

The RF Elements AS-5-20 is the Array Sector 5-20: a 5 GHz (5150–5850 MHz) dual-polarised patch array sector antenna with 20 dBi gain and about 80° of azimuth coverage. RF Elements' patented BackShield surface cuts side lobes and back radiation (30 dB front-to-back), so several sectors can share a tower with less self-interference. It connects by two RP-SMA pigtails.

ARC IP Networks is an authorised RF Elements reseller in Australia. We supply the genuine RF Elements Array Sector 5-20 at competitive prices, from Australian stock, with the full manufacturer's warranty and a GST tax invoice.

Gain20 dBi
Frequency5150–5850 MHz
Azimuth −3 dBH 80° / V 71°
Elevation −3 dB3.5°
Front-to-back30 dB
Connector2x RP-SMA pigtails
Weight3.5 kg
RatingIP55

Best for

  • Traditional 5 GHz sector access points with high gain
  • Sector clusters where back radiation must be controlled
  • Ubiquiti Rocket, Cambium ePMP and MikroTik base radios

Consider instead

Key features

20 dBi dual-linear (H+V) patch array

5150–5850 MHz, U-NII-1 to U-NII-3

BackShield frequency-selective surface for side-lobe control

30 dB front-to-back, 27 dB cross-pol isolation

2 x RP-SMA on semi-flex pigtails

Mounts radios directly with EasyBracket and covers

What's in the box

  • Array Sector antenna
  • Top and bottom brackets
  • 2 x pole mount brackets
  • Radio cover
  • 4 x M8 x 80 mm and 4 x M8 x 16 mm screws

RF Elements AS-5-20 specifications

Physical

Antenna Connection2x RP-SMA on integrated semi-flex pigtails
Antenna TypePatch Array Sector
MaterialsUV Resistant ABS Plastic, Aluminium Alloy, Stainless Steel
EnvironmentalIP55
Temperature-35°C to +60°C (-31°F to +140°F); website technical-data tab states -35°C to +55°C (-31°F to +131°F)
Wind Survival160 km/h (100 mi/h)
Wind Load217/65 N - Front/Side at 160 km/h (100 mi/h)
Effective Projected Area1782/533 cm2 - Front/Side (276.2/82.6 inch2)
Electrical Downtilt0°
Pole Mounting Diameter40-80 mm (1.5-3.1 inch); recommend as close to 80 mm (3.1 inch) as possible
Weight3.5 kg (7.7 lbs) - single unit; 3.8 kg (8.3 lbs) - single unit incl. package
Retail Box (single unit)834 x 167 x 130 mm (32.8 x 6.5 x 5.1 inch)
Product Dimensions804 mm (31.7 inch) height x 160 mm (6.3 inch) width; 257 mm (10.1 inch) depth incl. bracket (63 mm / 2.5 inch bracket offset)

Performance

Frequency Range5150 - 5850 MHz
Gain20 dBi
PolarizationDual Linear H + V
Azimuth Beam Width -3 dBH 80° / V 71°
Elevation Beam Width -3 dBH 3.5° / V 3.5°
Azimuth Beam Width -6 dBH 100° / V 100°
Elevation Beam Width -6 dBH 4.5° / V 4.5°
Front-to-Back Ratio (Min)30 dB
Beam Efficiency (main beam to first null)69 %
Cross Pol IsolationH 27 dB / V 27 dB
Impedance50 Ohm
VSWR Max1.7
VSWR Typical1.4
Isolation Between Ports30 dB

Specifications from RF Elements' official product documentation for the AS-5-20, checked October 2026.

The RF Elements Array Sector 5-20 in depth

What it is

The Array Sector 5-20 is RF Elements' conventional high-gain 5 GHz sector. It gives 20 dBi with about 80° (H) of azimuth coverage at −3 dB and a narrow 3.5° elevation beam, for long-range point-to-multipoint coverage.

BackShield

RF Elements built in its patented BackShield frequency-selective surface to attenuate azimuth side lobes and back radiation. The result is a 30 dB minimum front-to-back ratio, which matters when several sectors are clustered on one pole.

Radio mounting

The radio connects through two RP-SMA pigtails and mounts on the antenna. RF Elements lists fits for Ubiquiti Rocket and airFiber 5X radios, Cambium ePMP (with EasyBracket), MikroTik BaseBox/NetMetal, Mimosa A5x and RF Elements StationBox S.

Mounting and environment

It mounts on 40–80 mm poles (close to 80 mm recommended), is rated IP55 and 160 km/h wind survival, and weighs 3.5 kg.

Frequently asked questions

Straight answers about the RF Elements Array Sector 5-20 from the ARC IP Networks team. Last reviewed October 2026.

The RF Elements Array Sector 5-20, a 5 GHz dual-polarised 20 dBi sector antenna with BackShield side-lobe control, 30 dB front-to-back and two RP-SMA pigtails.

About 80° (H) and 71° (V) azimuth at −3 dB, or 100° at −6 dB, with a 3.5° elevation beam at −3 dB.

RF Elements lists Ubiquiti Rocket M5/5AC/Prism, airFiber 5X/5X-HD and LTU Rocket; Cambium ePMP 1000/2000/3000L with EasyBracket; MikroTik BaseBox/NetBox/NetMetal; Mimosa A5x; TP-Link WBS510; and RF Elements StationBox S.

The Array Sector gives more gain for range. RF Elements horns have far lower side lobes and wider elevation, so they suit dense, short-range sectors and co-location better.

ARC IP Networks is an authorised RF Elements reseller and supplies the genuine RF Elements AS-5-20 at competitive prices from Australian stock, with the full manufacturer's warranty and a GST tax invoice. Trade and project pricing is available.

Buy the RF Elements AS-5-20 in Australia

ARC IP Networks is an authorised RF Elements reseller, supplying genuine RF Elements horn, dish and sector antennas and TwistPort adaptors at competitive prices to ISPs, integrators and businesses across Australia.

  • Genuine RF Elements products, never grey import.
  • Australian stock with Australia-wide delivery.
  • Full manufacturer's warranty and local pre-sales help with antenna selection.
  • GST tax invoice on every order, with trade and project pricing available.

Planning a 5 GHz sector?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right RF Elements antenna for your network.

Brand RF Elements
Frequency Band 5.18-5.9 GHz
Antenna Gain 20 dBi
Beam Width 20°
Antenna Type Array Sector
Connector 2 x N-Female
Polarization Dual-Slant ±45°
