TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router

Price:

$ 79.34


Yealink W59R DECT cordless handset
Yealink W59R DECT cordless handset
$ 241.90
$ 241.90
Grandstream GWN7700P Network Switch 5xGigE POE Unmanaged
Grandstream GWN7700P Network Switch 5xGigE POE Unmanaged
$ 50.47
$ 50.47

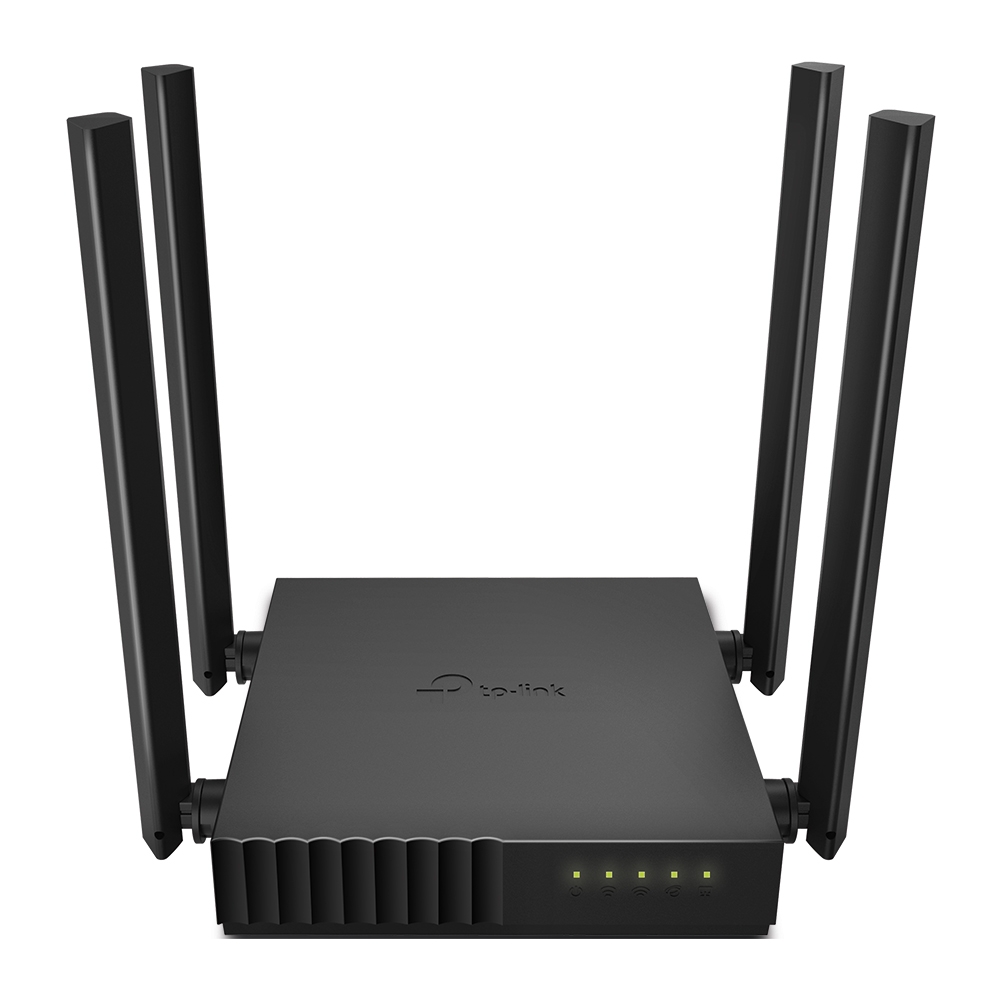

TP-Link Archer C54 AC1200 Dual-Band Wi-Fi Router

https://arcip.com.au/web/image/product.template/8040/image_1920?unique=cdb3afc

TP-Link Archer C54 AC1200 dual-band Wi-Fi 5 router: 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), MU-MIMO, beamforming, four external antennas, WPA3, 1 x 10/100 WAN + 4 x 10/100 LAN, Router / Access Point / Range Extender modes, Tether app.

$ 79.34 79.34 AUD $ 79.34 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard
  • CPU

This combination does not exist.

Router TP-Link
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
ARCHER C54
Barcode
1210002615907
Tags

The TP-Link Archer C54 is an AC1200 dual-band Wi-Fi 5 router rated at 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. Four external antennas with beamforming and MU-MIMO serve busy homes, WPA3 protects the network, and it runs in Router, Access Point or Range Extender mode with one 10/100 Mbps WAN and four 10/100 Mbps LAN ports and Tether app management.

Archer C54 overview

The Archer C54 is TP-Link's AC1200 dual-band Wi-Fi router. It is a Wi-Fi 5 model using IEEE 802.11ac/n/a on 5 GHz, rated at up to 867 Mbps (802.11ac), and IEEE 802.11n/b/g on 2.4 GHz, rated at up to 300 Mbps (802.11n). TP-Link's framing is simple: connect demanding devices to the faster, clearer 5 GHz band and let the 2.4 GHz band provide a far-reaching, stable link to the rest. Compared with the AC750 class, the 5 GHz band here roughly doubles the listed rate, which matters for streaming and large downloads on newer devices.

Four external high-performance antennas send Wi-Fi to every corner of the home, and beamforming detects devices and concentrates wireless signal towards them, even when they are far away or low powered. The main specification table lists the Wi-Fi range as three-bedroom houses. MU-MIMO lets the router talk to multiple MU-MIMO clients simultaneously; TP-Link says concurrent streams on two MU-MIMO devices run as smoothly as one, as long as your internet plan provides enough bandwidth. Wi-Fi capacity is rated as medium, with dual-band operation distributing devices across the two bands.

The Archer C54 is a three-in-one device. Router Mode, the default, creates a private wireless network from an Ethernet internet connection. Access Point Mode turns an existing wired network into a wireless one, and Range Extender Mode boosts existing wireless coverage. For wired devices it has one 10/100 Mbps WAN port and four 10/100 Mbps LAN ports. Supported WAN types are Dynamic IP, Static IP, PPPoE, PPTP and L2TP, and you will need a cable or DSL modem if your connection requires one.

Security includes WPA3, which TP-Link says brings more secure encryption for Wi-Fi passwords and enhanced protection against brute-force attacks, along with WPA, WPA2 and WPA/WPA2-Enterprise (802.1x). The router adds an SPI firewall, access control, IP and MAC binding and an application layer gateway. Management tools include parental controls with URL filtering and time controls, one guest network per band and QoS by device. IPTV support covers IGMP proxy, IGMP snooping, bridge and tag VLAN, both IPv4 and IPv6 are supported, NAT forwarding offers port forwarding, port triggering, DMZ and UPnP, and NO-IP and DynDNS are available for dynamic DNS.

TP-Link states that eight randomly selected Archer C54 routers were collectively tested for 1,936 hours to check reliability. Setup takes minutes through the web interface or the Tether app on Android and iOS. The router has a WPS/Reset button, runs from a 9 V 0.85 A supply, measures 115 x 106.7 x 24.3 mm and operates from 0 to 40 degrees C at 10 to 90% non-condensing humidity, with FCC and CE certification. Included are the Archer C54 router, a power adapter, an RJ45 Ethernet cable and a quick installation guide.

Key features

AC1200 dual-band Wi-Fi 5

867 Mbps on 5 GHz (802.11ac) and 300 Mbps on 2.4 GHz (802.11n).

MU-MIMO

Communicates with multiple MU-MIMO clients at the same time to keep latency low.

Four antennas with beamforming

External antennas plus beamforming to reach far-away and low-powered devices.

WPA3 security

WPA3 alongside WPA, WPA2 and WPA/WPA2-Enterprise, with an SPI firewall.

Three working modes

Router Mode, Access Point Mode and Range Extender Mode.

Five Fast Ethernet ports

One 10/100 Mbps WAN port and four 10/100 Mbps LAN ports.

Guest networks

One guest network on each band.

Parental controls and QoS

URL filtering, time controls and QoS by device.

Tether app

Set up and manage from Android or iOS, or through the web interface.

Archer C54 specifications

At a glance

AC1200 Wi-Fi 5
867 Mbps (5 GHz)
300 Mbps (2.4 GHz)
MU-MIMO
4 external antennas
1 x 10/100 WAN
4 x 10/100 LAN
WPA3
Archer C54 full specifications
Wireless
Standards and ProtocolsWi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range3 Bedroom Houses 4× Fixed Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi CapacityMedium Dual-Band Allocate devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
Working ModesRouter Mode Access Point Mode Range Extender Mode
Security
Network SecuritySPI Firewall Access Control IP & MAC Binding Application Layer Gateway
Guest Network1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi EncryptionWPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x)
Hardware
ProcessorSingle-Core CPU
Ethernet Ports1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports
Power9 V ⎓ 0.85 A
ButtonsWPS/Reset Button
Software
ProtocolsIPv4 IPv6
Parental ControlsURL Filtering Time Controls
WAN TypesDynamic IP Static IP PPPoE PPTP L2TP
Quality of ServiceQoS by Device
NAT ForwardingPort Forwarding Port Triggering DMZ UPnP
IPTVIGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCPAddress Reservation DHCP Client List Server
DDNSNO-IP DynDNS
Management FeaturesTether App Webpage Check Web Emulator>
Other
Network Services Enabled by DefaultWeb Server; Manage and configure device through web (HTTP/HTTPS); Port: 80/443 Protocol: TCP; DHCP Server; IP address assignment (DHCP); Port: 67 Protocol: UDP; App management; Manage and configure device through app; Port: 20002 Protocol: UDP
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access)
CertificationsFCC, CE
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Test Data
WiFi Transmission PowerCE EIRP: FCC: <30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity5GHz: 11a 6Mbps:-93dBm; 11a 54Mbps:-78dBm; 11ac HT20 mcs8:69dBm; 11ac HT40 mcs9:-66dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm;
Physical
Dimensions (W×D×H)4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)

Source: TP-Link's published specifications for this model (TP-Link Australia product page). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • Wi-Fi Router Archer C54 Power Adapter RJ45 Ethernet Cable Quick Installation Guide

Source: TP-Link's published package contents.

Who the Archer C54 is for

Everyday home Wi-Fi

  • AC1200 dual-band speeds
  • MU-MIMO for several devices
  • Parental controls and guest networks

Flexible placement

  • Range Extender Mode
  • Access Point Mode
  • Compact 115 x 106.7 mm footprint

Archer C54 compared

The Archer C54 and Archer C24 share the same compact body and Fast Ethernet ports. The C54 steps up to AC1200 with MU-MIMO, beamforming and WPA3; the C24 is the AC750 model.

SpecificationArcher C54Archer C24
Wi-Fi classAC1200 Wi-Fi 5AC750 Wi-Fi 5
5 GHz rate867 Mbps433 Mbps
2.4 GHz rate300 Mbps300 Mbps
MU-MIMOYesNot listed
BeamformingYesNot listed
WPA3 (spec table)YesNot listed
Ethernet1 x 10/100 WAN, 4 x 10/100 LAN1 x 10/100 WAN, 4 x 10/100 LAN
Listed range3-bedroom houses2-bedroom houses

Source: TP-Link Australia product pages for each model.

Buy the Archer C54 from ARC IP Networks

ARC IP Networks supplies TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the Archer C54 from the ARC IP Networks team.

Last reviewed October 2026.

It is an AC1200 router: up to 867 Mbps on 5 GHz (802.11ac) and 300 Mbps on 2.4 GHz (802.11n).

No. It has one 10/100 Mbps WAN port and four 10/100 Mbps LAN ports.

Yes. TP-Link lists MU-MIMO for communicating with multiple MU-MIMO clients simultaneously.

Yes. Encryption covers WPA, WPA2, WPA3 and WPA/WPA2-Enterprise (802.1x).

Yes. It supports Router Mode, Access Point Mode and Range Extender Mode.

The main specification table lists three-bedroom houses, with four external antennas and beamforming.

Yes. IGMP proxy, IGMP snooping, bridge and tag VLAN are listed.

The Archer C54 router, a power adapter, an RJ45 Ethernet cable and a quick installation guide.

Need more than one Archer C54 for an everyday home network?

Ask ARC IP Networks for volume and project pricing on TP-Link products.

Brand TP-Link
WiFi Standard AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n)
CPU Single-Core CPU
