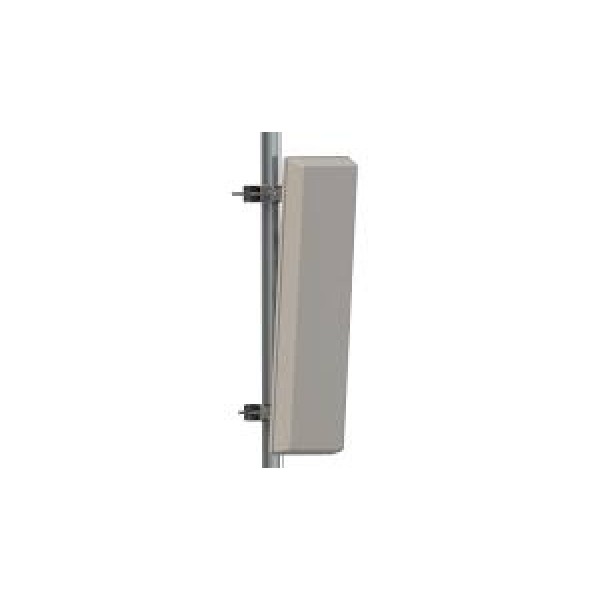

ARC Wireless ARC-VS2418SD1 2.4GHz Variable Gain Variable Beam DP

https://arcip.com.au/web/image/product.template/3403/image_1920?unique=ed1b1a2
Optimize your 2.4GHz Point-to-Multipoint network coverage with the ARC Wireless ARC-VS2418SD1. This innovative dual-polarity sector antenna features adjustable beamwidth and gain, allowing you to precisely tailor RF patterns to your specific deployment needs.

280.10 280.1 AUD 280.10 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
ARC-VS2418SD1
ARC-VS2418SD1
ARC Wireless ARC-VS2418SD1 2.4GHz Variable Gain Variable Beam DP

Features

  • Variable horizontal beamwidth, adjustable from 60° to 120°
  • Variable gain, adjustable from 15 to 18 dBi
  • Dual Polarity (V/H) for 2x2 MIMO to maximize throughput
  • Operates in the 2.4 GHz ISM band
  • Reduces inventory by replacing multiple fixed-beam antennas
  • Compatible with ARC IES enclosures for integrated radio mounting
  • Equipped with two N-Type Female connectors

Specifications

Antenna Properties
Frequency Range2.4 - 2.5 GHz
Gain15 dBi @ 120° to 18 dBi @ 60° (Adjustable)
PolarizationDual Linear (Vertical & Horizontal)
Horizontal Beamwidth (-6dB)60° to 120° (Adjustable)
Elevation Beamwidth (-6dB)
VSWR< 1.7:1
Cross-Polarization Isolation> 25 dB
RF Connectors(2) N-Type Female
Physical
Dimensions28 x 7 x 3.25 in (711 x 178 x 83 mm)
MaterialsUV resistant radome
Wind Survivability125 mph (201 km/h)
Pole Mount Diameter1 in (25.4 mm) to 3.5 in (88.9 mm)

Professional Overview

The ARC Wireless ARC-VS2418SD1 is a revolutionary sector antenna that brings unprecedented flexibility to 2.4 GHz Point-to-Multipoint (PtMP) network design. This antenna is engineered to adapt to your network's changing needs, featuring a unique, field-adjustable horizontal beamwidth and gain. It empowers network operators to precisely control their RF coverage, optimizing performance while minimizing inventory and deployment complexity. It's the ultimate all-in-one solution for WISPs and enterprises operating in the dynamic 2.4 GHz band.

The core of the ARC-VS2418SD1's technical advantage is its patented variable beam technology. Installers can easily adjust the horizontal beamwidth from a wide 120° for broad, close-range coverage, down to a focused 60° for targeting distant clients. As the beamwidth narrows, the antenna gain correspondingly increases from 15 dBi to a powerful 18 dBi, providing the extra reach needed for long-distance shots. This adaptability, combined with its dual-polarity design for 2x2 MIMO, ensures maximum data throughput and link reliability, even in the crowded 2.4 GHz spectrum.

Built for carrier-class reliability, the ARC-VS2418SD1 is constructed from durable, weatherproof materials to ensure long-term performance in harsh outdoor environments. Its design is also compatible with ARC's IES enclosures, allowing for the seamless integration of a radio to create a clean, professional, all-in-one unit. For network deployments where subscriber density changes or precise sector shaping is required, the ARC-VS2418SD1 provides an intelligent, cost-effective solution that allows for on-the-fly optimization without the need for costly antenna replacements.

Brand ARC Wireless
