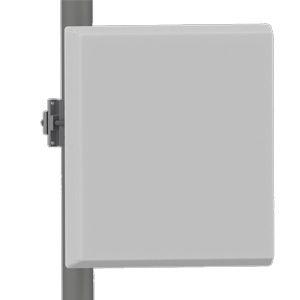

Arc Wireless ARC-PD0913C01ARC Dual Pol Panel Ant 900MHz 13dBi NF

Price:

152.90


Cambium Networks WB3176A 100m Reel Outdoor Copper Clad CAT5E (Recommended for PTP)
Cambium Networks WB3176A 100m Reel Outdoor Copper Clad CAT5E (Recommended for PTP)
1,326.78
1,326.78
Siklu AX-IN-10G-60W-AC-PoE-AU PoE Injector 60W, E.L. VI, 10Gbps (100-240 AC source, AU AC cable)
Siklu AX-IN-10G-60W-AC-PoE-AU PoE Injector 60W, E.L. VI, 10Gbps (100-240 AC source, AU AC cable)
174.90
174.90

Arc Wireless ARC-PD0913C01ARC Dual Pol Panel Ant 900MHz 13dBi NF

https://arcip.com.au/web/image/product.template/3399/image_1920?unique=ed1b1a2
Achieve reliable Non-Line-of-Sight (NLOS) connectivity with the ARC Wireless ARC-PD0913C01. This rugged 13dBi dual-polarity panel antenna is engineered for superior performance in the 900MHz band for SCADA, PtP, and PtMP networks.

152.90 152.9 AUD 152.90 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
ARC-PD0913C01
ARC-PD0913C01
Arc Wireless ARC-PD0913C01ARC Dual Pol Panel Ant 900MHz 13dBi NF

Features

  • High gain of 13 dBi for reliable NLOS links
  • Dual Polarity (V/H) supports 2x2 MIMO for increased throughput
  • Operates in the 902-928 MHz ISM license-free band
  • Excellent performance in Non-Line-of-Sight (NLOS) environments
  • Rugged and weatherproof for harsh outdoor conditions
  • Ideal for SCADA, Point-to-Point, and Point-to-Multipoint applications
  • Equipped with two N-Type Female connectors

Specifications

Antenna Properties
Frequency Range902 - 928 MHz
Gain13 dBi
PolarizationDual Linear (Vertical & Horizontal)
HPBW Azimuth38°
HPBW Elevation18°
VSWR< 1.5:1 Typ, < 2.0:1 Max
Cross-Polarization Isolation> 20 dB
RF Connectors(2) N-Type Female
Physical
Dimensions15.5 x 15.5 x 2.2 in (394 x 394 x 56 mm)
MaterialsUV resistant radome, aluminum backplate
Wind Survivability125 mph (201 km/h)
Pole Mount Diameter1 in (25.4 mm) to 3 in (76.2 mm)

Professional Overview

The ARC Wireless ARC-PD0913C01 is a high-performance dual-polarity panel antenna specifically engineered to excel in the challenging 900 MHz frequency band. It is the ideal solution for building robust Point-to-Point (PtP) and Point-to-Multipoint (PtMP) networks in environments where clear line-of-sight is obstructed. This makes it a premier choice for mission-critical applications such as SCADA systems, industrial automation, utilities, and rural broadband deployments that rely on superior Non-Line-of-Sight (NLOS) penetration.

Delivering exceptional technical performance, the ARC-PD0913C01 features 13 dBi of gain, providing the power needed to establish and maintain stable links over long distances through foliage and other obstructions. The antenna's dual-polarity (Vertical and Horizontal) design enables 2x2 MIMO radio operation, which significantly increases data throughput and link reliability. Its well-defined radiation pattern, with a 38° azimuth and 18° elevation beamwidth, provides targeted coverage while minimizing interference, ensuring efficient use of the spectrum.

Constructed for long-term reliability in demanding industrial and outdoor settings, the antenna features a rugged, weatherproof radome and a durable aluminum backplate. The dual N-Type Female connectors provide secure, low-loss connections to radio equipment. Paired with its robust mounting hardware, the ARC-PD0913C01 ensures a stable installation that can withstand harsh weather conditions, making it a dependable foundation for any critical 900MHz wireless infrastructure.

Brand ARC Wireless
