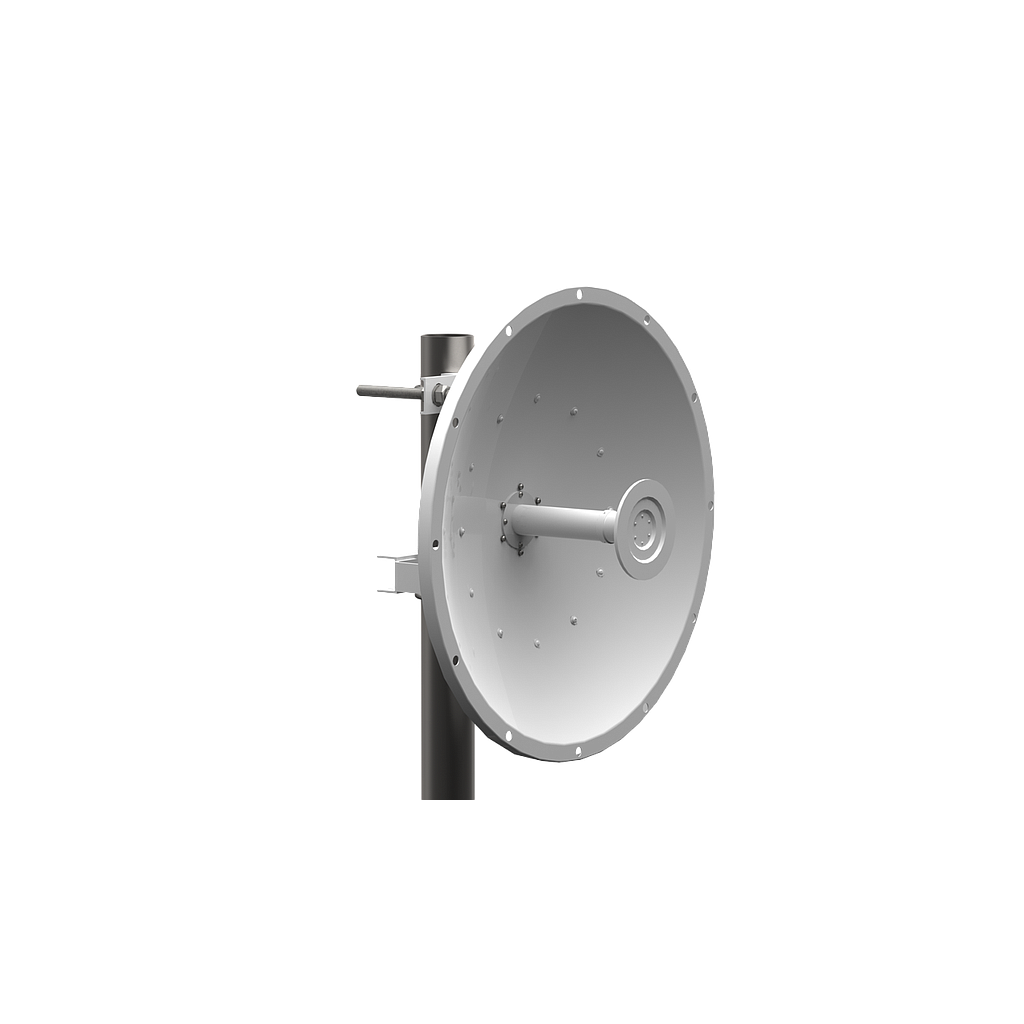

ARC Wireless ARC-DA5830SD1 Parabolic Dual-Pol Dish Antenna 4.94-5.875 GHz 30dBi

https://arcip.com.au/web/image/product.template/3391/image_1920?unique=ed1b1a2
Achieve maximum distance and throughput for your Point-to-Point links with the ARC Wireless ARC-DA5830SD1. This high-gain 30dBi parabolic dish antenna delivers exceptional performance and reliability in the 5 GHz spectrum.

237.53 237.53 AUD 237.53 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
ARC-DA5830SD1
ARC-DA5830SD1
ARC Wireless ARC-DA5830SD1 Parabolic Dual-Pol Dish Antenna 4.94-5.875 GHz 30dBi

Features

  • High gain of 30 dBi for long-distance Point-to-Point links
  • Dual Polarization (V/H) supports 2x2 MIMO for increased throughput
  • Operates across a wide 4.94 - 5.875 GHz frequency range
  • High front-to-back ratio for excellent noise immunity
  • Rugged die-cast aluminum construction for durability
  • Robust mounting hardware for precise alignment and stability
  • Equipped with two Type N Female connectors

Specifications

Antenna Properties
Frequency Range4.94 - 5.875 GHz
Gain30 dBi
PolarizationDual Linear (Vertical & Horizontal)
HPBW5.8°
VSWR< 1.5:1 Typ, < 1.7:1 Max
Front-to-Back Ratio> 35 dB
Cross-Polarization Isolation> 28 dB
RF Connectors(2) Type N Female
Physical
Diameter25.5 in (648 mm)
MaterialsDie-cast aluminum reflector
Wind Survivability125 mph (201 km/h)
Pole Mount Diameter1.5 in (38.1 mm) to 4.5 in (114.3 mm)

Professional Overview

The ARC Wireless ARC-DA5830SD1 is a carrier-class parabolic dish antenna engineered for high-performance Point-to-Point (PtP) backhaul and bridging applications. Designed to operate in the 4.9 to 5.8 GHz frequency spectrum, this antenna provides a powerful solution for Wireless Internet Service Providers (WISPs), enterprises, and public safety networks requiring high-capacity, long-distance wireless links.

Delivering exceptional technical performance, the ARC-DA5830SD1 features a high gain of 30 dBi, enabling stable and reliable connections over extended distances. Its dual-polarization (Vertical and Horizontal) design fully supports 2x2 MIMO radio technology, effectively doubling the potential data throughput of the wireless link. The antenna's narrow 5.8° beamwidth, combined with an excellent front-to-back ratio and high cross-polarization isolation, ensures superior interference rejection. This allows for precise signal targeting and dependable operation even in congested RF environments.

Built for long-term reliability, the antenna is constructed from rugged die-cast aluminum to withstand harsh outdoor conditions. The robust mounting system is designed for secure attachment to a wide range of pole diameters and facilitates precise alignment, which is critical for optimizing the performance of high-gain antennas. For any application demanding maximum range, throughput, and link stability, the ARC-DA5830SD1 is a premier choice that provides a dependable and cost-effective alternative to fiber connections.
