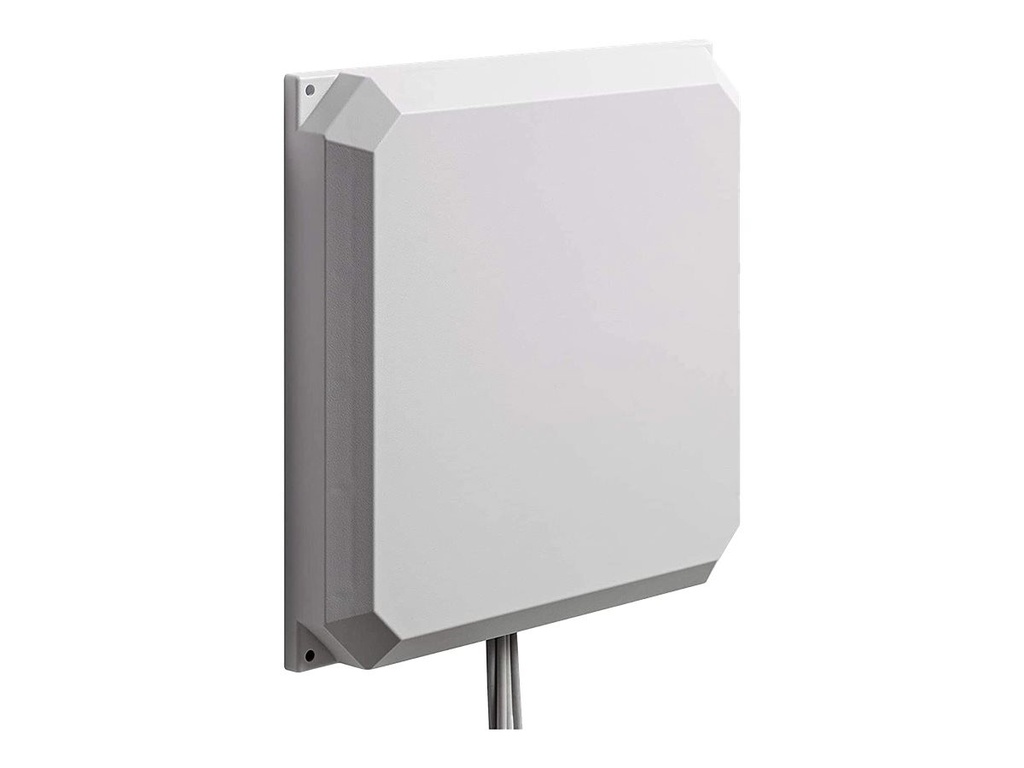

Cisco AIR-ANT2566P4W-RS= Aironet 6 dBi Dual-Band 4-Port MIMO Patch Antenna RP-TNC Self-Identifying

https://arcip.com.au/web/image/product.template/11668/image_1920?unique=3c3b158

Cisco AIR-ANT2566P4W-RS= Aironet 2.4/5 GHz 4-element MIMO patch antenna with self-identifying circuitry. 6 dBi in both bands, 2400 to 2484 MHz and 5150–5850 MHz, linear vertical polarisation, azimuth beamwidth 105° (2.4 GHz) and 110° (5 GHz). Four 91.4 cm plenum-rated cables with RP-TNC connectors. Indoor/outdoor, IP54, -40 to 70°C, wall mounting kit included. For Aironet 1830, 1850, 2800, 3800 and Catalyst 9115AX, 9120AX, 9130AX access points; requires Catalyst 9800 controllers on IOS-XE 17.4.1 or later. Genuine Cisco from ARC IP Networks, a Cisco Registered Partner.

$ 1,042.78 1042.78 AUD $ 1,042.78 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
AIR-ANT2566P4W-RS=

Cisco AIR-ANT2566P4W-RS= at a glance

The Cisco AIR-ANT2566P4W-RS= is a 4-element dual-band MIMO patch antenna with 6 dBi gain in both the 2.4 GHz and 5 GHz bands, four plenum-rated RP-TNC cables and an IP54 rating for indoor or outdoor wall mounting. It includes self-identifying circuitry that Cisco Catalyst 91xx access points read to set the antenna type and gain automatically, supported on Catalyst 9800 controllers from IOS-XE 17.4.1.

ARC IP Networks is a Cisco Registered Partner in Australia. We supply the genuine Cisco AIR-ANT2566P4W-RS= through Cisco's authorised Australian distribution, with a GST tax invoice on every order.

Bands2.4 / 5 GHz
Gain6 dBi
Ports4 x RP-TNC
RatingIP54

Best for

  • Directional Wi-Fi coverage of halls, warehouses and corridors from a wall
  • Catalyst 9115AX, 9120AX and 9130AX external-antenna access points
  • Covered outdoor areas where an IP54 patch antenna suits

Key features

4-element dual-band MIMO patch, all four ports dual band.

6 dBi gain in both the 2.4 GHz and 5 GHz bands.

Azimuth 3 dB beamwidth of 105° at 2.4 GHz and 110° at 5 GHz.

Four 91.4 cm plenum-rated cables with RP-TNC connectors.

IP54 rated for indoor and outdoor installation, -40 to 70°C.

Self-identifying: built-in EEPROM read by Catalyst 91xx access points; the purple-labelled cable connects to Port A.

Wall mounting kit of four screws, four plastic anchors and four end caps included.

Supported on Catalyst 9800 wireless controllers running IOS-XE 17.4.1 or later; not supported on AireOS controllers.

Cisco AIR-ANT2566P4W-RS= specifications

Cisco AIR-ANT2566P4W-RS= technical specifications
SpecificationValue
RF
Antenna type4-element dual-band MIMO patch
Frequency range2400 to 2484 MHz; 5150–5850 MHz
Gain6 dBi in both bands
PolarisationLinear, vertical
Azimuth 3 dB beamwidth105° (2.4 GHz); 110° (5 GHz)
Elevation 3 dB beamwidth65° (2.4 GHz); 55° (5 GHz)
VSWR2:1 or less
Physical
Connectors4 x RP-TNC
Cables91.4 cm, plenum rated
Dimensions16 x 27.9 x 3.05 cm
MountingWall (kit included); outdoor hardware supplied by installer
Environment
UseIndoor/outdoor
Ingress protectionIP54
Operating temperature-40 to 70°C
Compatibility
Access pointsAironet 1830, 1850, 2800, 3800; Catalyst 9115AX, 9120AX, 9130AX
Self-IDCatalyst 9800 WLC, IOS-XE 17.4.1 and later
Catalyst 9130AXEVia AIR-CAB002-D8-R= breakout cable

Figures from Cisco's official data sheet.

The Cisco AIR-ANT2566P4W-RS= in depth

Directional MIMO coverage

Four dual-band patch elements under one radome give 6 dBi in both bands with a 105° to 110° horizontal beam, so one wall-mounted antenna covers a room or corridor from the side. Each of the four cables connects to one access point port.

Self-identifying

The -RS model has an EEPROM that Catalyst 91xx access points read to configure antenna type and gain in the controller. The purple-labelled cable must go to Port A. Cisco supports it only on Catalyst 9800 controllers running IOS-XE 17.4.1 or later.

Indoor or outdoor

The antenna is rated IP54 and -40 to 70°C. For outdoor installs Cisco requires the orientation arrow on the back to point up, and you supply the mounting hardware.

Frequently asked questions

Straight answers about the Cisco AIR-ANT2566P4W-RS= from the ARC IP Networks team. Last reviewed October 2026.

Cisco lists it for access points with dual-band ports such as the Aironet 1830, 1850, 2800 and 3800 Series and Catalyst 9115AX, 9120AX and 9130AX Series. The Catalyst 9130AXE connects through the AIR-CAB002-D8-R= cable.

No. Cisco supports the self-identifying AIR-ANT2566P4W-RS= only on Catalyst 9800 controllers running IOS-XE 17.4.1 or later.

6 dBi in both bands, with an azimuth 3 dB beamwidth of 105° at 2.4 GHz and 110° at 5 GHz.

Yes. It is rated IP54 for indoor and outdoor use; outdoors you supply the hardware and mount it with the arrow pointing up.

There are four cables. The purple-labelled self-identifying cable goes to Port A on the access point; the three orange-labelled cables go to the other ports.

ARC IP Networks is a Cisco Registered Partner and supplies the genuine Cisco AIR-ANT2566P4W-RS= through Cisco's authorised Australian distribution, with a GST tax invoice.
