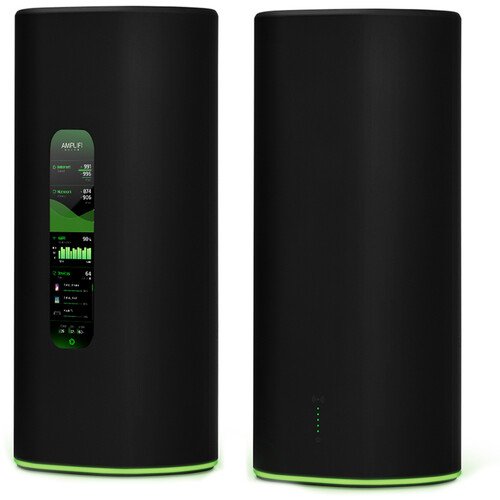

Ubiquiti AFi-ALN Amplifi Alien Mesh System, Wi-Fi 6, Includes 1x Alien Mesh Point, 4x Gigabit Ethernet Ports on Router, Touch S

Price:

$ 599.34


Ubiquiti UA-Button UniFi Access Button Black and White Covers Included
Ubiquiti UA-Button UniFi Access Button Black and White Covers Included
$ 78.21
$ 87.45 (11% OFF)
TP-Link SM321A 1000Base-BX WDM Bi-Directional SFP Module
TP-Link SM321A 1000Base-BX WDM Bi-Directional SFP Module
$ 28.35
$ 36.47 (22% OFF)

Ubiquiti AFi-ALN Amplifi Alien Mesh System, Wi-Fi 6, Includes 1x Alien Mesh Point, 4x Gigabit Ethernet Ports on Router, Touch S

https://arcip.com.au/web/image/product.template/10578/image_1920?unique=da2984a
Ubiquiti Amplifi Alien Mesh System, Wi-Fi 6, Includes 1x Alien Mesh Point, 4x Gigabit Ethernet Ports on Router, Touch Screen Display Genuine Ubiquiti with manufacturer's warranty.

$ 599.34 599.34 AUD $ 671.00 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
AFi-ALN
Barcode
810010072542

Ubiquiti AFi-ALN at a glance

The Ubiquiti AFi-ALN (AmpliFi Alien Router and MeshPoint) is a 16-stream WiFi router that includes a MeshPoint for expanding WiFi coverage. It supports up to WiFi 6 and is powered by a quad-core ARM Cortex A53 processor at 2.2 GHz. The router has a 4.7" touch display, 1 GbE WAN and 4 GbE LAN ports.

ARC IP Networks is an authorised Ubiquiti reseller in Australia. We supply the genuine AmpliFi Alien Router and MeshPoint from Australian stock with the full manufacturer's warranty.

Streams16-stream WiFi router
WiFi standardUp to WiFi 6
ProcessorQuad-core ARM Cortex A53, 2.2 GHz
Router ports1 GbE WAN, 4 GbE LAN
Router display4.7" touch, full colour
MeshPointIncluded, 1 GbE LAN
Max. powerRouter 35W / MeshPoint 34W
NDAA compliantYes

Best for

  • Expanding WiFi coverage with an included MeshPoint
  • Networks that need VLAN, advanced QoS and guest traffic isolation
  • Setups that want a touch display on the router

Consider instead

Key features

See the AmpliFi Alien Router and MeshPoint




AmpliFi Alien WiFi 6 Mesh System (Video: Ubiquiti)

Ubiquiti AFi-ALN specifications

Mechanical

DimensionsRouter: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8") MeshPoint: 110 x 110 x 250 mm (4.3 x 4.3 x 9.8")
WeightRouter: 1.2 kg (2.7 lb) MeshPoint: 1.1 kg (2.4 lb)
Enclosure materialPolycarbonate

Hardware

ProcessorQuad-Core ARM® Cortex® A53s at 2.2 GHz
MemoryRouter/MeshPoint: 1GB DDR3L
Management interfaceWiFi Ethernet
Networking interfaceRouter: (1) GbE RJ45 WAN (4) GbE RJ45 LAN MeshPoint: (1) GbE RJ45 LAN
Power methodRouter/MeshPoint: Universal AC input, 100–240V AC, 1A Max., 50/60 Hz
Max. power consumptionRouter: 35W MeshPoint: 34W
ESD/EMP protectionAir/contact: ± 24kV
Max. TX power US: 2.4 GHz 5 GHz International: 2.4 GHz 5 GHz23 dBm 19 dBm (low band)/ 20 dBm (high band) 23 dBm* 20 dBm** *Depends from the country selected, up to 30 dBm per chain. **Depends from the country selected, up to 24 dBm per chain.
MIMO US: 2.4 GHz 5 GHz International: 2.4 GHz 5 GHz4 x 4 4 x 4 (low band) / 8 x 8 (high band) 4 x 4 8 x 8
Speeds US: 2.4 GHz 5 GHz International: 2.4 GHz 5 GHz1150 Mbps 1700 Mbps(low band) / 4800 Mbps (high band) 1148 Mbps 4800 Mbps
Antenna gain 2.4 GHz 5 GHz3 dBi 6 dBi
AntennaRouter/MeshPoint: Internal dual-band metal stamp with 12 polarity
DisplayRouter: 4.7" diagonal, 274 x 1268, 279 ppi, G+F touch, full color MeshPoint: No display
LEDsRouter/MeshPoint: Green ring MeshPoint: Green status indicator Flashing: initial conguration Lights up in sequence bottom to top: Bootup in progress Lights up in sequence from the middle outwards: WiFi not ready or connected Steady: Device is adopted (lit based on the signal strength receiving from the router) Flash quickly: Locate Lights up one by one: Firmware upgrading
ButtonRouter/MeshPoint: Factory reset
Ambient operating temperature-10 to 45° C (14 to 113° F)
Ambient operating humidity5 to 95% honcondensing
CertificationsCE, FCC, IC
NDAA CompliantYes

Software

WiFi standardsUp to WiFi 6
WiFi functionsMU-MIMO, OFDMA, TX-beamforming
Wireless securityWPA2
VLANYes
Advanced QoSYes
Guest traffic isolationYes
Power saveYes
Supported data rates802.11a: 54 Mbps 802.11b: 11 Mbps 802.11g: 54 Mbps 802.11n: 600 Mbps + 600 Mbps 802.11ac: 1733 Mbps + 800 Mbps 802.11ax: 4800 Mpbs Router-Mesh connection (Backbone) 802.11ax: 4800 Mbps + 1148 Mbps (Available to clients)
Operating frequency* 2.4 GHz 5 GHz2412 - 2472 MHz 5150 - 5875 MHz * Depends on regulatory region.

Specifications from Ubiquiti's official product data for the AFi-ALN, checked October 2026.

The AmpliFi Alien Router and MeshPoint in depth

Router and MeshPoint in one kit

The AmpliFi Alien is described as the world's only 16-stream WiFi router, and this kit includes a MeshPoint for seamless WiFi coverage expansion. Both units share the same 110 x 110 x 250 mm dimensions and a polycarbonate enclosure. The router weighs 1.2 kg and the MeshPoint 1.1 kg. Each unit has 1GB DDR3L memory and an internal dual-band antenna with 3 dBi gain at 2.4 GHz and 6 dBi at 5 GHz.

WiFi 6 performance and features

The Alien supports up to WiFi 6, with MU-MIMO, OFDMA and TX-beamforming. The 5 GHz band uses 4 x 4 MIMO on the low band and 8 x 8 on the high band, with speeds of up to 4800 Mbps on the high band. The router-to-MeshPoint backbone is listed at 4800 Mbps, with 1148 Mbps available to clients. Wireless security is WPA2. VLAN, advanced QoS, guest traffic isolation and power save are all supported.

Ports, display and operation

The router has one GbE RJ45 WAN port and four GbE RJ45 LAN ports. The MeshPoint has one GbE RJ45 LAN port. The router has a 4.7" full-colour touch display, and the MeshPoint has a green status indicator that shows boot, adoption, locate and firmware upgrade states. Both units take a universal 100–240V AC input and operate in ambient temperatures of -10 to 45° C.

Frequently asked questions

Straight answers about the AmpliFi Alien Router and MeshPoint from the ARC IP Networks team. Last reviewed October 2026.

The Ubiquiti AFi-ALN is the AmpliFi Alien Router and MeshPoint. It is a 16-stream WiFi router with an included MeshPoint for expanding WiFi coverage.

It supports up to WiFi 6, with MU-MIMO, OFDMA and TX-beamforming. WPA2 wireless security, VLAN, advanced QoS and guest traffic isolation are also listed.

The router has one GbE RJ45 WAN port and four GbE RJ45 LAN ports. The MeshPoint has one GbE RJ45 LAN port.

Yes. The router has a 4.7" diagonal full-colour touch display (274 x 1268, 279 ppi). The MeshPoint has no display and uses a green status indicator.

The router is rated at 35W maximum and the MeshPoint at 34W. Both use a universal AC input of 100–240V AC, 50/60 Hz.

The ambient operating temperature is -10 to 45° C and the humidity range is 5 to 95% non-condensing. Certifications listed are CE, FCC and IC, and the product is NDAA compliant.

ARC IP Networks is an authorised Ubiquiti reseller and supplies the AFi-ALN from Australian stock with the full manufacturer's warranty.

Buy the Ubiquiti AFi-ALN in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying UniFi networking, WiFi, camera and access products to businesses, schools, MSPs and installers across Australia.

  • Genuine Ubiquiti: sourced through Ubiquiti's authorised Australian distribution.
  • Australian stock with the correct AU power supply where one is included.
  • Full manufacturer's warranty and local pre-sales and after-sales support.
  • Trade and project pricing available.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.

Planning to extend WiFi coverage with the AmpliFi Alien?

Ask ARC IP Networks for project pricing or a configured quote, or call us to check the right model for your site.
