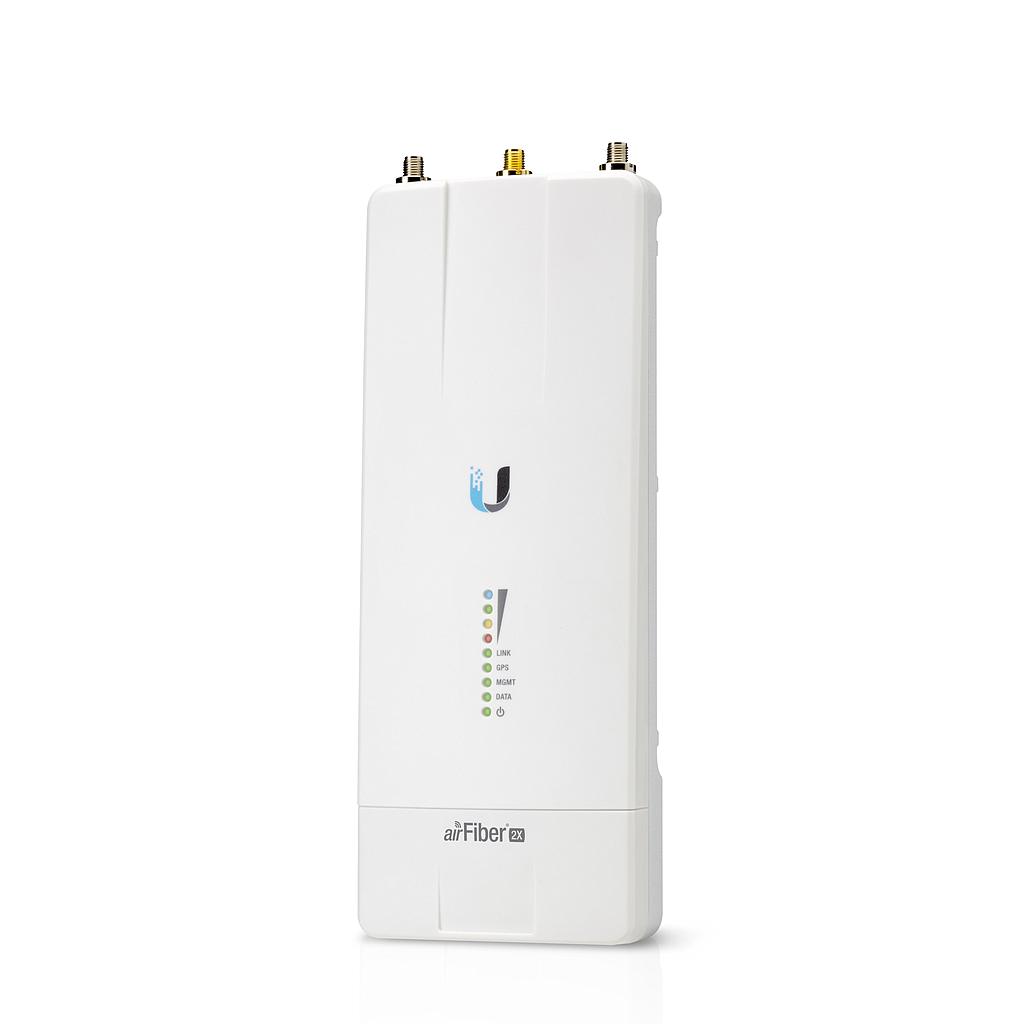

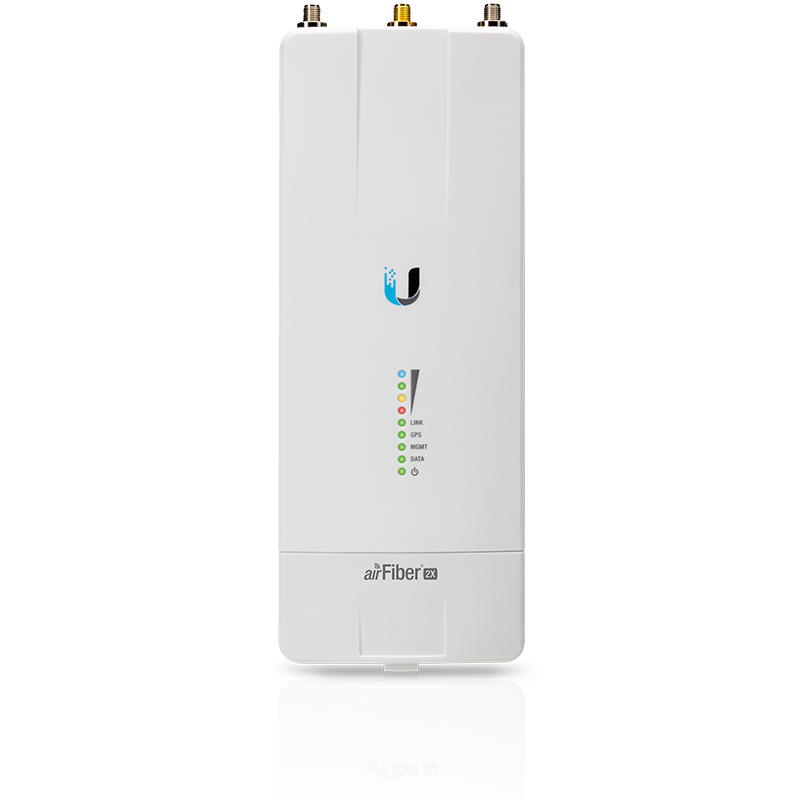

Ubiquiti AF-2X AirFiber 500Mbps+ Backhaul 2.2-2.8GHz AU

https://arcip.com.au/web/image/product.template/3772/image_1920?unique=8867584
The Ubiquiti airFiber AF-2X is a carrier-class backhaul radio engineered for high-performance, long-range Point-to-Point links in the 2.4 GHz licensed band. It delivers over 500 Mbps of real data throughput with exceptional link reliability.

831.60 831.6 AUD 831.60 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airFiber
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
AF-2X
Tags
AF-2X
Ubiquiti AF-2X AirFiber 500Mbps+ Backhaul 2.2-2.8GHz AU

Features

  • Purpose-built for the 2.4 GHz licensed band carrier backhaul
  • Delivers over 500 Mbps of real data throughput
  • Features Ubiquiti's xtreme Range Technology (xRT™) for long-range links
  • Powered by custom INVICTUS™ silicon for superior performance and low latency
  • Plug and Play integration with Ubiquiti airFiber X antennas
  • GPS Synchronization for clean co-location and tower deployment
  • Rugged, die-cast aluminum construction with weather-resistant powder coating

Specifications

Radio
Frequency Range2400 - 2500 MHz (AU Model: 2.2-2.8 GHz)
Max. TX Power29 dBm (Dependent on Regulatory Region)
GPSGPS Clock Synchronization
Performance
Max. Throughput500+ Mbps
Max. Range200+ km (Dependent on antenna and environmental conditions)
Packets per Second1+ Million
General
ProcessorINVICTUS™ IC
Networking Interface(1) 10/100/1000 Mbps Data Port
(1) 10/100 Mbps Management Port
Power Method24V, 1A PoE Gigabit Adapter (Included)
Max. Power Consumption< 17W
Dimensions224 x 82 x 48 mm
Weight0.35 kg

Professional Overview

The Ubiquiti airFiber AF-2X is a revolutionary backhaul radio specifically engineered to provide carrier-class performance in the 2.4 GHz licensed band. Designed for Wireless Internet Service Providers (WISPs) and network operators, the AF-2X provides a robust, high-throughput solution for building mission-critical Point-to-Point (PtP) links, avoiding the noise and interference common in the unlicensed 2.4 GHz spectrum.

At the heart of the AF-2X is Ubiquiti's proprietary INVICTUS™ custom silicon. This advanced IC is designed for long-distance, outdoor wireless applications, providing superior spectral efficiency, low latency, and exceptional performance that enables real data throughput of over 500 Mbps. Combined with Ubiquiti's xtreme Range Technology (xRT™), the AF-2X is capable of establishing stable, high-performance links over distances exceeding 200 km, making it a powerful tool for connecting remote locations.

The AF-2X is a highly versatile connectorized radio module. It is designed for seamless Plug and Play integration with a variety of Ubiquiti antennas, including airFiber X and RocketDish models. This allows network architects to create a custom-tailored PtP solution by selecting the optimal antenna for the specific distance and performance requirements of each link. For dense tower deployments, the integrated GPS synchronization technology allows for clean co-location of multiple radios, maximizing spectral usage without self-interference.

Built to withstand harsh outdoor environments, the AF-2X features a rugged die-cast aluminum housing. With its combination of groundbreaking performance, deployment flexibility, and cost-effective price point, the Ubiquiti airFiber AF-2X provides an unmatched value proposition for operators looking to build out a reliable and scalable network backbone in the 2.4 GHz licensed band.
