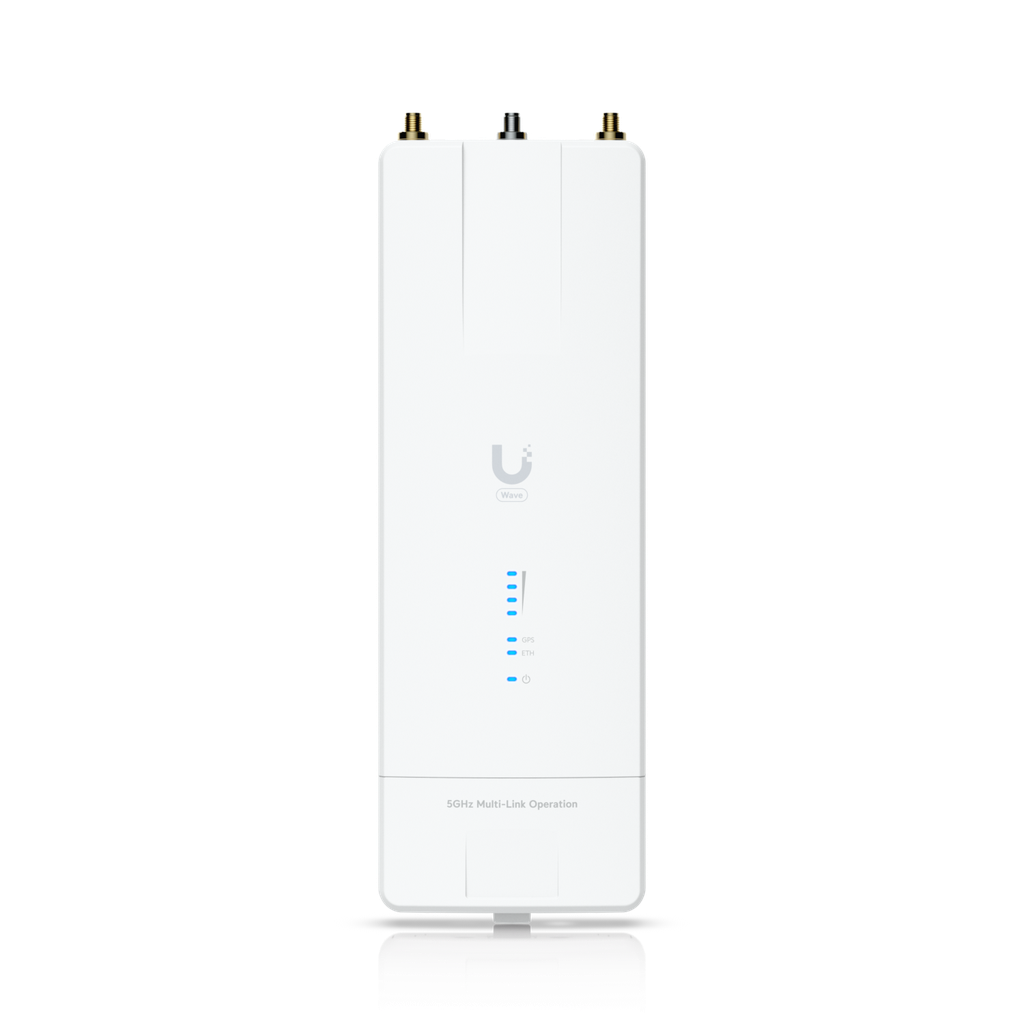

Ubiquiti Wave-MLO5 Wave MLO5

https://arcip.com.au/web/image/product.template/7893/image_1920?unique=99dfe83
(0 review)
Wave MLO5. 5 GHz, 100+ km link range. 5+ Gbps throughput. Dedicated spectral analysis radio. Australian stock from ARC IP Networks.

$ 664.43 664.43 AUD $ 691.90 incl. GST

Not Available For Sale

  • Brand
  • Max Throughput
  • Coverage Area

This combination does not exist.

In stock online
UISP Ubiquiti
Contact Us
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
    Details
  • [Warranty Information] Warranty
    Manufacturer Warranty
    Details
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
 Wave-MLO5
Barcode
 810084699256
Tags
Wave-MLO5
Wave MLO5

Wave-MLO5

Wave-MLO5

Wave-MLO5

Wave-MLO5

Wave-MLO5

Features

  • 5 GHz, 100+ km link range
  • 5+ Gbps throughput
  • Dedicated spectral analysis radio
  • Channel puncturing
  • (1) 10 GbE and (1) SFP+ port
  • Integrated Bluetooth
  • Compatible with airMAX antenna, airFiber X antenna, UISP Dish and UISP Horn
  • Note. MLO operation is limited to 20 km, with longer ranges coming soon via future firmware updates.

Specifications

Mechanical
Dimensions249.3 x 82 x 47.6 mm / (9.8 x 3.2 x 1.9")
Weight575 g (1.3 lb)
Enclosure MaterialAluminum alloy, UV-resistant polycarbonate
Mount MaterialStrap: stainless steel / Universal bracket: UV-resistant polycarbonate
MountingPole Mount
Pole Mount Diameter1—2" (25.4—50.8 mm)
WeatherproofingIPX6
Hardware
ProcessorQuad-core IPQ5322 at 1.5 GHz
MemoryDDR4 1 GB
Networking Interface(1) 10 GbE RJ45 port / (1) 10G SFP+ port
Max. Power Consumption20W
Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range44–54V DC / 22–27V DC
Power Supply54V DC, 0.56A, 10 GbE PoE adapter (Included)
5 GHz(2) 2 x 2
5 GHz24 dBm
RF Connections(2) RP-SMA (Waterproof) / (1) GPS (Waterproof)
Buttons(1) Factory reset
Power(1) Blue
Ethernet(1) Blue
GPS(1) Blue
Signal Strength(4) Blue
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
Software
Operating ModesPtP
NetworkBridge Mode
System
Total Throughput5+ Gbps
Max. Range100 km (62.1 mi)
EncryptionWPA3-PSK (AES)
Radio Frequency
Worldwide5180 – 5320 MHz / 5500 – 5700 MHz / 5745 – 5825 MHz
Channel BandwidthRadio 1: 20, 40, 80, 160 MHz / Radio 2: 20, 40, 80, 160, 240 MHz
ModulationBPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)

Professional Overview

The Ubiquiti Wave-MLO5 is High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.. Key capabilities include 5 ghz, 100+ km link range and 5+ gbps throughput.

Performance specifications include total throughput of 5+ Gbps.

The Wave-MLO5 integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application. Notable features include dedicated spectral analysis radio, channel puncturing, (1) 10 gbe and (1) sfp+ port.

Built to Ubiquiti's commercial-grade standards with a weight of 575 g (1.3 lb), featuring operating temperature range of -40 to 60° C (-40 to 140° F), FCC, IC, CE. Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Ubiquiti Wave-MLO5: 60 GHz point-to-point wireless bridge

The Wave MLO5 is a 60 GHz point-to-point wireless bridge with 5+ Gbps of throughput and a maximum range of 100 km (62.1 mi).

High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

Link performance

SpecificationValue
Operating modesPtP
Total throughput5+ Gbps
Max. range100 km (62.1 mi)
Channel bandwidthRadio 1: 20, 40, 80, 160 MHz Radio 2: 20, 40, 80, 160, 240 MHz
ModulationBPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)
Network modeBridge Mode
EncryptionWPA3-PSK (AES)

Quoted range assumes clear line of sight. Trees, buildings and terrain in the Fresnel zone will cut it well short, so survey the path before committing to a distance.

Antenna

SpecificationValue
RF connectors(2) RP-SMA (Waterproof) (1) GPS (Waterproof)

The Wave-MLO5 has no integrated dish — it takes an external antenna, which is ordered separately and determines the gain and beamwidth of the finished link.

Frequency and regulatory

SpecificationValue
Supported frequency range5180 – 5320 MHz 5500 – 5700 MHz 5745 – 5825 MHz

The figures above are the radio's full capability. In Australia the unit must be set to the local regulatory domain and operated within the ACMA class licence for the band — the available channels and power limits here are narrower than the radio's worldwide range.

Power and network

SpecificationValue
Network interface(1) 10 GbE RJ45 port (1) 10G SFP+ port
Power methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply54V DC, 0.56A, 10 GbE PoE adapter (Included)
Supported voltage range44–54V DC 22–27V DC
Max. power consumption20W
ProcessorQuad-core IPQ5322 at 1.5 GHz
MemoryDDR4 1 GB
Buttons(1) Factory reset

The PoE injector is supplied in the box, so the unit only needs an outlet and a cable run.

Power is passive PoE, not 802.3af/at. A standard PoE switch port will not power it correctly — use the matching injector or a passive-PoE capable port at the right voltage.

Build, mounting and environment

SpecificationValue
MountingPole Mount
Pole mount diameter1—2" (25.4—50.8 mm)
WeatherproofingIPX6
EnclosureAluminum alloy, UV-resistant polycarbonate
Mount materialStrap: stainless steel Universal bracket: UV-resistant polycarbonate
Dimensions249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")
Weight575 g (1.3 lb)
Operating temperature-40 to 60° C (-40 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsFCC, IC, CE

Rated for -40 to 60° C (-40 to 140° F), which covers rooftop and tower mounting anywhere in Australia.

Who the Wave-MLO5 suits

  • Point-to-point hops between two buildings where trenching fibre is not an option
  • Sites with clear line of sight and a solid mount at both ends
  • Installers and WISPs who need a link up in a day, not a quarter

Planning a link with the Wave-MLO5

A point-to-point hop needs a Wave-MLO5 at each end. Both sites need clear line of sight, mains power at the mount point, and a cable run back to the switch.

Whatever the topology, budget for the mount, earthing and surge protection as part of the job — an outdoor radio on an un-earthed mast is the single most common cause of a failed link after a storm.

Browse PoE switches and cloud gateways for the wired side, or read the Australian Ubiquiti buying guide.

Frequently Asked Questions

What is the Ubiquiti Wave-MLO5?

The Wave MLO5 is a 60 GHz point-to-point wireless bridge.

Do I need two Wave-MLO5 units for a link?

Yes. A point-to-point link needs a radio at each end — one unit on its own cannot form a link.

What throughput does the Wave-MLO5 deliver?

5+ Gbps. Real-world results depend on path length, line of sight, interference and the channel width you can legally use.

How far will the Wave-MLO5 reach?

100 km (62.1 mi) with clear line of sight. Obstructions in the Fresnel zone reduce that significantly.

What frequencies does the Wave-MLO5 use?

5180 – 5320 MHz 5500 – 5700 MHz 5745 – 5825 MHz. In Australia it must be set to the local regulatory domain and operated within the ACMA class licence for the band.

Does the Wave-MLO5 include a PoE injector?

54V DC, 0.56A, 10 GbE PoE adapter (Included).

How is the Wave-MLO5 powered?

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only. This is passive PoE, not 802.3af/at, so a standard PoE switch port will not power it correctly.

How is the Wave-MLO5 mounted?

Pole Mount.

Is the Ubiquiti Wave-MLO5 available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
