Ubiquiti USW-Ultra-60W UniFi Switch

Price:

246.49


Ubiquiti USW-Ultra UniFi Switch
Ubiquiti USW-Ultra UniFi Switch
189.75
189.75
Ubiquiti USW-WAN UniFi 10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP
Ubiquiti USW-WAN UniFi 10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP
465.85
465.85

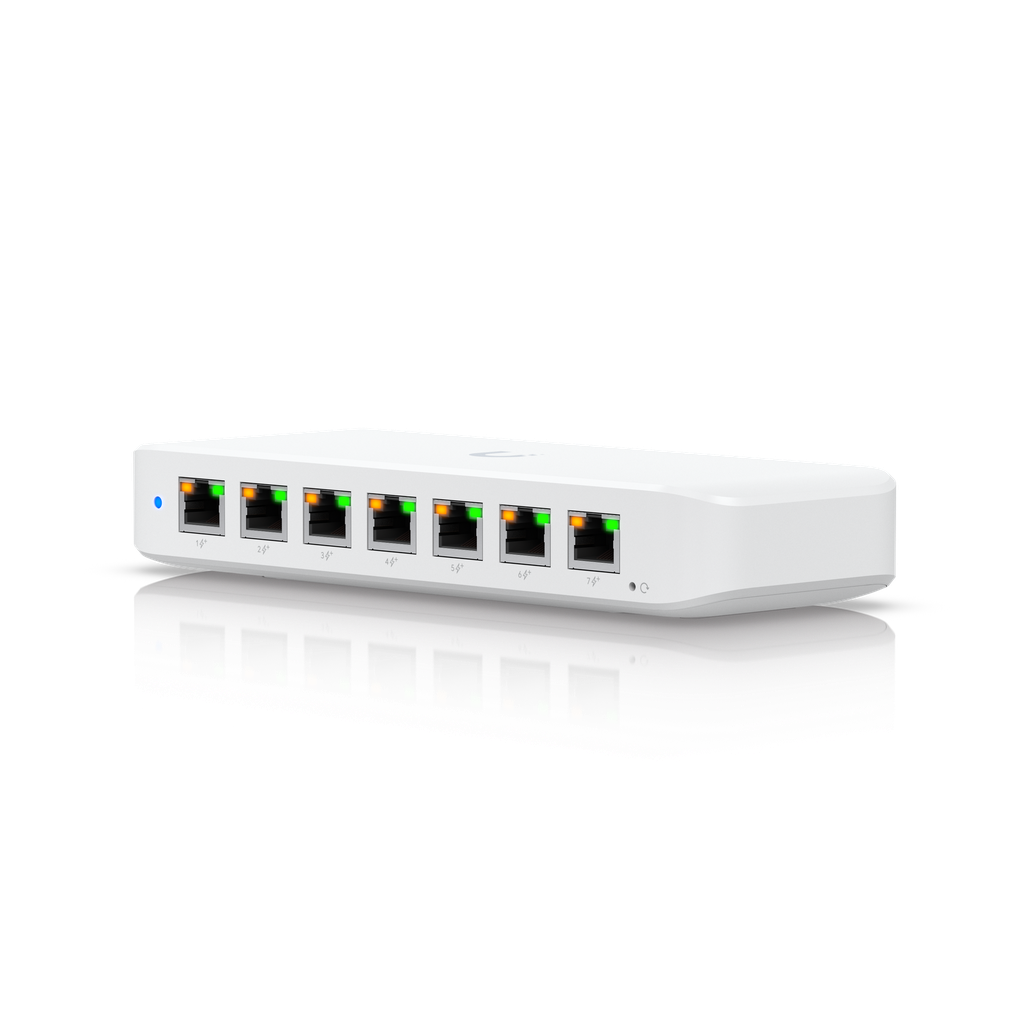

Ubiquiti USW-Ultra-60W UniFi Switch

https://arcip.com.au/web/image/product.template/4060/image_1920?unique=ada19b2
The Ubiquiti USW-Ultra-60W is a Layer 2 managed switch with (8) GbE. A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

246.49 246.49 AUD 260.15 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • PoE Specification

This combination does not exist.

In stock online
UniFi Switch PoE Managed Switch Ubiquiti 8-Port 16 Gbps PoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W PoE
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
USW-Ultra-60W
Ubiquiti UniFi Switch Ultra 60W — 16 Gbps Switching, PoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W PoE
USW-Ultra-60W
USW-Ultra-60W
USW-Ultra-60W
USW-Ultra-60W

Features

  • (7) GbE PoE+ output ports
  • (1) GbE port with optional PoE++ input*
  • 52W PoE availability with the included AC power adapter
  • *PoE input is supported for switch operation, with PoE+/PoE++ input or AC power required for PoE output.

Specifications

Overview
Dimensions203 x 76 x 33 mm
1 GbE RJ458 (7 PoE+; 1 PoE++ input) / (1G/100M/10M)
Max. PoE OutputUp to PoE+
Total PoE AvailabilityPoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W
Form FactorCompact desktop, wall, magnetic
Performance
Switching Capacity16 Gbps
Total Non-Blocking Throughput8 Gbps
Forwarding Rate12 Mpps
Supported VLANs256
MAC Address Table Size4,000
Hardware
PoE+7
PoE++1
PoE+30W
Max. Power Consumption9W (Excluding PoE Output) with PoE input / 8W (Excluding PoE Output) with adapter input / 210W (Including PoE Output) with 210W AC adapter input
Power Method(1) AC/DC adapter (Included) / (1) PoE++
Power Input MethodDC Input / PoE
Power SupplyAC/DC, external, 60W
Supported Voltage Range50–57V DC/PoE
ManagementEthernet
Heat Dissipation15 BTU/hr (Excluding PoE Output)
WeightDevice: 320 g (11.3 oz) / Wall mount: 45 g (1.6 oz) / Adapter: 330 g (11.6 oz)
Enclosure MaterialPolycarbonate
Ambient Operating TemperaturePoE++ input: -30 to 60° C (-22 to 140° F) / 60W AC adapter input: -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 06367-24-08356
Software
UniFi NetworkVersion 8.0.7 and later

Professional Overview

The Ubiquiti USW-Ultra-60W is a Layer 2 managed switch with (8) GbE. A compact, Layer 2, 8-port GbE PoE switch with versatile mounting options.

With 16 Gbps switching capacity and 8 Gbps non-blocking throughput at 12 Mpps forwarding rate, the switch delivers wire-speed performance for demanding network environments. The PoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W PoE budget powers access points, cameras, and VoIP phones over Ethernet.

The USW-Ultra-60W features a Compact desktop, wall, magnetic form factor measuring 203 x 76 x 33 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Device: 320 g (11.3 oz) / Wall mount: 45 g (1.6 oz) / Adapter: 330 g (11.6 oz), the USW-Ultra-60W is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

Ubiquiti USW-Ultra-60W: Layer 2 switch

The Switch Ultra 60W is a Layer 2 UniFi switch offering PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W of PoE, 8 Gbps of non-blocking throughput, 16 Gbps switching capacity.

Port layout is 8 × Gigabit RJ45.

Ports and PoE

InterfaceCount & speeds
Gigabit RJ458 (7 PoE+; 1 PoE++ input) (1G/100M/10M)
Total PoE availabilityPoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W
Max. PoE outputUp to PoE+

Per-port PoE classes: 7 ports at PoE+ (802.3at) up to 30W; PoE++ (802.3bt) up to 1.

Total PoE availability is PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W, which is the budget shared across all powered ports — not a per-port figure. Add up the draw of everything you intend to power before committing; our access point comparison lists the consumption of each UniFi AP.

Switching performance

Non-blocking throughput8 Gbps
Switching capacity16 Gbps
Forwarding rate12 Mpps
Supported VLANs256
MAC address table4,000

Who the USW-Ultra-60W suits

  • Compact PoE deployments where a full rack switch is unnecessary.
  • Desk and shelf installs — small, quiet and unobtrusive.
  • Powering a couple of access points or cameras at a branch or home office.
  • UniFi-managed edge adopted into the same console as the rest of the estate.

Physical, power and mounting

Form factorCompact desktop, wall, magnetic
Dimensions203 x 76 x 33 mm (8 x 3 x 1.3")
WeightDevice: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 330 g (11.6 oz)
Power supplyAC/DC, external, 60W
Power method(1) AC/DC adapter (Included) (1) PoE++
Max. power consumption9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input
Heat dissipation31 BTU/hr (Excluding PoE Output)
Operating temperaturePoE++ input: -30 to 60° C (-22 to 140° F) 60W AC adapter input: -20 to 45° C (-4 to 113° F)
EnclosurePolycarbonate
RequiresVersion 8.0.7 and later

It can be used on a desk, wall-mounted, or racked. Note that rack mounting requires the add-on rack-mount accessory — it is not supplied in the box, so order it alongside if the switch is going into a cabinet.

Two power figures are quoted: the switch itself, and the total including PoE output. Size the circuit and any UPS on the higher figure.

Frequently Asked Questions

What is the USW-Ultra-60W?

The Switch Ultra 60W is a UniFi managed switch with PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W of total PoE availability, 8 Gbps of non-blocking throughput.

What ports does the USW-Ultra-60W have?

Gigabit RJ45: 8 (7 PoE+; 1 PoE++ input) (1G/100M/10M).

How much PoE can the USW-Ultra-60W deliver?

PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W in total across all powered ports. That is a shared budget, not a per-port figure, so total up the draw of everything you plan to power.

What PoE classes does it support?

7 ports at up to 30W; up to 1.

How is the USW-Ultra-60W mounted?

Compact desktop, wall, magnetic. Rack mounting requires the add-on rack-mount accessory, which is not included.

How much power does the USW-Ultra-60W use?

9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input.

What UniFi version does it require?

UniFi Network 8.0.7 and later.

Does it need a separate UniFi controller?

UniFi switches are adopted and managed by a UniFi controller — a Cloud Gateway, Dream Machine, CloudKey or UniFi hosting. The switch itself does not host the controller.

Is the USW-Ultra-60W available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti USW-Ultra-60W in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the USW-Ultra-60W from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi switch range, plus cloud gateways, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Switching Capacity 16 Gbps
Network Layer Layer 2
Form Factor Compact desktop, wall, magnetic
Port Speed (8) GbE
Ports 8 Ports
Network Connectivity Wired
PoE Specification Up to PoE+ / PoE++ input: 42W / PoE+ input: 16W / 60W PoE adapter input: 42W / 60W AC adapter input: 52W / 210W AC adapter input: 202W Budget
