Ubiquiti USW-Mission-Critical Ubiquiti UniFi Network Mission Critical

https://arcip.com.au/web/image/product.template/4036/image_1920?unique=0f6a26e
The Ubiquiti USW-Mission-Critical is a Layer 2 managed switch with (9) GbE. A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.

1,886.57 1886.57 AUD 1,921.15 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • PoE Specification
  • Switch Features

This combination does not exist.

UniFi Switch Rackmount PoE Managed Switch Ubiquiti 120W PoE 9-Port 18 Gbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
USW-Mission-Critical
Tags
USW-Mission-Critical
Ubiquiti UniFi UPS PoE Switch Mission Critical — 18 Gbps Switching, 120W PoE

Features

  • (4) GbE PoE+, (4) GbE PoE++ ports
  • (1) GbE port

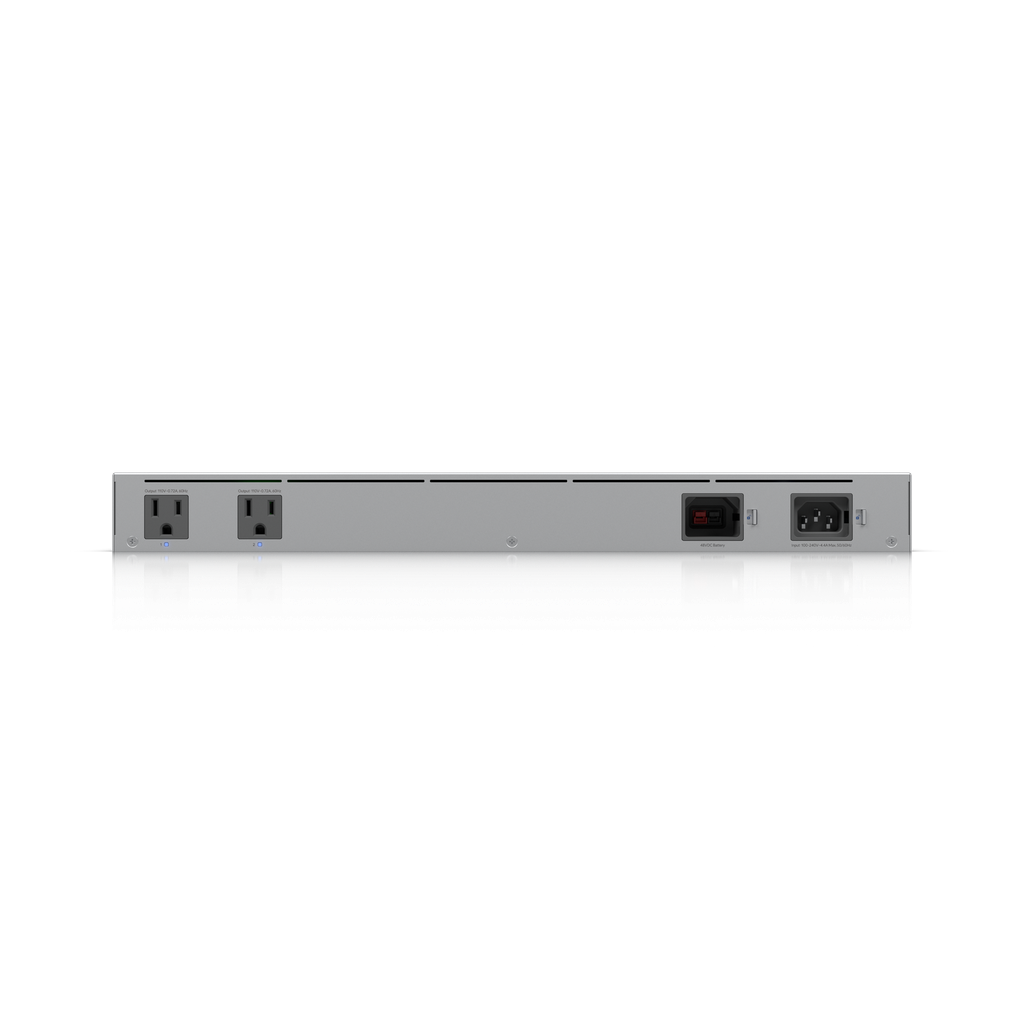

  • (2) 110V AC outputs; 120W total PoE available
  • Battery backup power system
  • Internal battery 368Wh

Specifications

Overview
Dimensions442 x 480 x 44 mm
1 GbE RJ459 (4 PoE+; 4 PoE++) / (1G/100M/10M)
Max. PoE OutputUp to PoE++
Total PoE Availability120W
RedundancyBattery Power Backup
Form FactorRack mount (1U)
Performance
Switching Capacity18 Gbps
Total Non-Blocking Throughput9 Gbps
Forwarding Rate13 Mpps
Supported VLANs1,000
MAC Address Table Size8,000
Packet Buffer Size0.5 MB
IPv4128
MAC128
Hardware
PoE+4
PoE++4
PoE+32W
PoE++64W
Max. Power Consumption50W (Excluding PoE Output) / 240W (Including PoE Output and AC Output)
Power MethodUniversal input, 100–240V AC, 50/60 Hz / External battery input, 48V DC
Power Input MethodAC input / DC input (Backup)
Power SupplyAC/DC, internal, 240W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
Heat Dissipation170.6 BTU/hr (Excluding PoE Output)
WeightWithout mount: 9 kg / With mount: 9.2 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 700 to 1,000 mm (27.6–39.4”)
LCM Display1.3" touchscreen
ESD ProtectionAir/contact: ± 24kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 06679-25-08356
Software
UniFi NetworkVersion 6.2.26 and later

Professional Overview

The Ubiquiti USW-Mission-Critical is a Layer 2 managed switch with (9) GbE. A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.

With 18 Gbps switching capacity and 9 Gbps non-blocking throughput at 13 Mpps forwarding rate, the switch delivers wire-speed performance for demanding network environments. The 120W PoE budget powers access points, cameras, and VoIP phones over Ethernet.

The USW-Mission-Critical features Battery Power Backup redundancy, a Rack mount (1U) form factor measuring 442 x 480 x 44 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mount: 9 kg / With mount: 9.2 kg, the USW-Mission-Critical is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Switching Capacity 18 Gbps
Network Layer Layer 2
Form Factor Rack mount (1U)
Port Speed (9) GbE
Ports 9 Ports
Network Connectivity Wired
PoE Specification Up to PoE++ / 120W Budget
Switch Features Battery Power Backup
