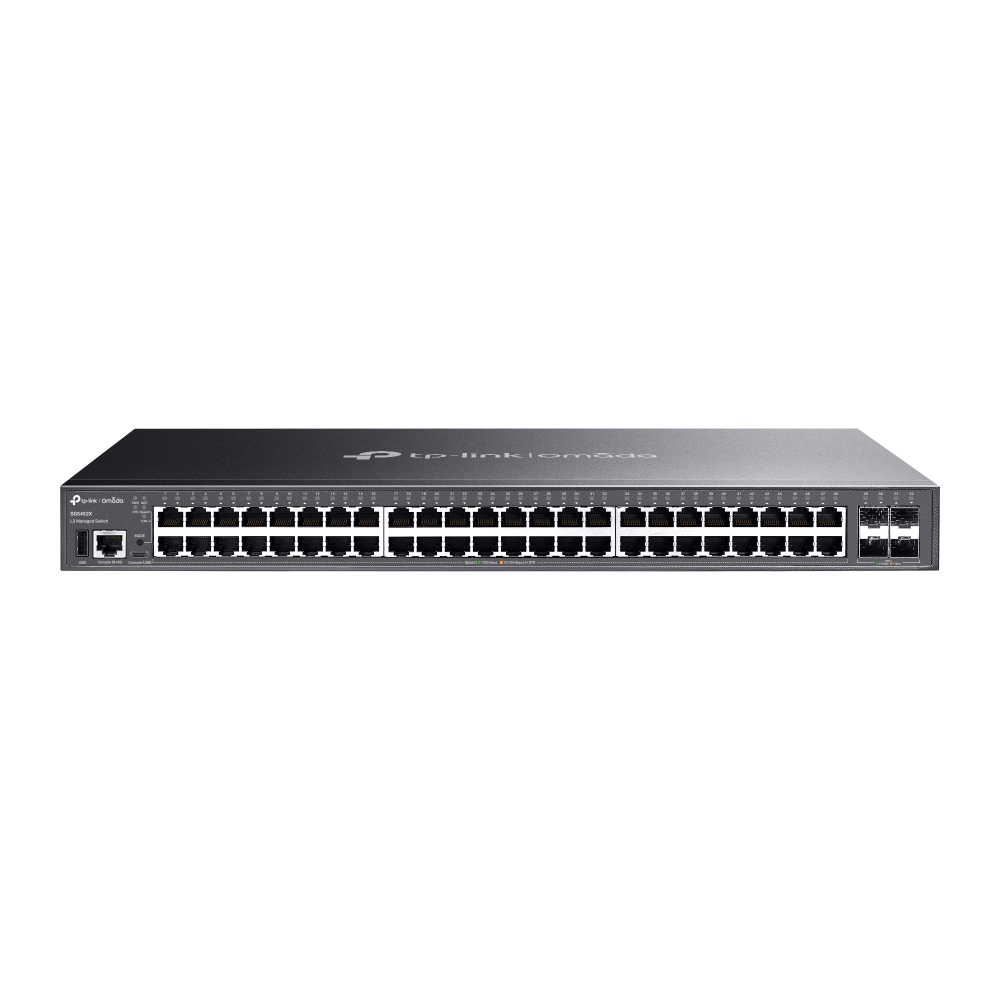

TP-Link SG5452X OMADA 48-PORT MANAGED GIGABIT L3 STACKLITE SWITCH

Price:

0.00


TP-Link SG3452XMPP OMADA 48-PORT MANAGED GIGABIT L2+ RACK SWITCH
TP-Link SG3452XMPP OMADA 48-PORT MANAGED GIGABIT L2+ RACK SWITCH
Not Available For Sale
TP-Link SM311LM OMADA 1000-BASE-SX MMF MINI GBIC SFP MODULE
TP-Link SM311LM OMADA 1000-BASE-SX MMF MINI GBIC SFP MODULE
Not Available For Sale

TP-Link SG5452X OMADA 48-PORT MANAGED GIGABIT L3 STACKLITE SWITCH

https://arcip.com.au/web/image/product.template/8176/image_1920?unique=fa59611
TP-Link SG5452X TP-Link SG5452X OMADA 48-PORT MANAGED GIGABIT L3 STACKLITE SWITCH.. Professional networking from TP-Link's Omada SDN platform. Australian stock from ARC IP Networks.

0.00 0.0 AUD 0.00 incl. GST

Not Available For Sale


  • Switching Capacity
  • RAM
  • Brand

This combination does not exist.

Switch Managed Switch TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
SG5452X
Tags
SG5452X
TP-Link SG5452X OMADA 48-PORT MANAGED GIGABIT L3 STACKLITE SWITCH.

SG5452X

SG5452X

Features

  • TP-Link SG5452X TP-LINK OMADA 48-PORT MANAGED GIGABIT L3 STACKLITE SWITCH.

Specifications

HARDWARE FEATURES
Interface• 48× 10/100/1000 Mbps RJ45 Ports• 4× 1/10 Gbps SFP+ Slots*• 1× USB 2.0 Port• 1× RJ45 Console Port• 1× USB Type-C Console Port
Fan QuantityFanless
Power Supply100-240 V~ 50/60 Hz
Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
MountingRackmountable
Max. Power Consumption• 34.1 W (220V/50Hz @ 25 °C)• 34.3 W (110V/60Hz @ 25 °C)
Max. Heat Dissipation• 116.42 BTU/hr (220V/50Hz @ 25 °C)• 117.10 BTU/hr (110V/60Hz @ 25 °C)
PERFORMANCE
Switching Capacity176 Gbps per Unit
Stacking• Stacking Number: 4• Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports)• Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports)
Packet Forwarding Rate130.94 Mpps
MAC Address Table16 K
Packet Buffer Memory12 Mbit
Jumbo Frame9 KB
SOFTWARE FEATURES
Quality of Service• Class of Service- 8 Queues of Priority- Port Priority- IEEE 802.1p Priority- DSCP Priority- Queue Min-Bandwidth- Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control- Rate Limit- Storm Control• Voice VLAN• User-Defined OUI• Smoother Performance• Action for Flows- QoS remark (802.1P Remark, DSCP Remark)
L3 Features• IP Interfaces:- IPv4: Max 128, IPv6: Max 128• Static Routing- IPv4 Max 512, IPv6: Max 128• Host Route Table: Max 1,024 entries• RIP: Version v1/v2, Max 1,796• OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450• Static ARP: 512 static entries• Dynamic ARP: 2,000 dynamic entries• Proxy ARP• DHCP Server:- Max 64 IP Pools- Max 1,000 Manual Binding Entries• DHCP Relay:- Relayed Interface- Relayed VLAN
L2 and L2+ Features• Link Aggregation• Spanning Tree Protocol• Port-based and VLAN-based Loopback Detection• 802.3x Flow Control• ERPS• Mirroring• RSPAN• MAC Address Table• Multicast- IGMP Snooping- MLD Snooping- L2 Multicast Table: Max 2,000- Fast Leave- Multicast VLAN Registration (MVR)- Static Multicast Groups- Multicast Filtering
Advanced Features• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• DDM• sFlow
VLAN• Max 4K VLAN Group (802.1q VLAN)• 802.1Q Tagged VLAN• MAC VLAN Entries: 60• Multicast VLAN• Management VLAN• VLAN VPN (QinQ): Max 256 entries• GVRP• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries• Voice VLAN• Private VLAN
Security• Port Isolation• CPU-Defend• ARP Inspection (Dynamic ARP Inspection)• DoS Defend• IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard• DHCP Filter• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support• AAA (including TACACS+)• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv2• IP/Port/MAC-based access control
OTHERS
Package Content• SG5452X Switch• Power Cord• Console Cable• Rackmount Kits• Rubber Feet• Quick Installation Guide
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment• Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)• Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Professional Overview

The TP-Link SG5452X (TP-Link SG5452X OMADA 48-PORT MANAGED GIGABIT L3 STACKLITE SWITCH.) is a professional networking solution designed for business environments. TP-Link's Omada SDN platform provides centralized cloud management, zero-touch provisioning, and comprehensive network monitoring across all sites.

Performance specifications include 176 Gbps per Unit switching capacity.

Managed through the Omada SDN Controller, the SG5452X supports VLAN management, ACLs, QoS, bandwidth control, and captive portal authentication. The unified platform enables consistent policies across access points, switches, and routers.

Built to TP-Link's commercial-grade standards. Australian stock from ARC IP Networks with fast nationwide shipping and local technical support.

Switching Capacity 176 Gbps per Unit
RAM 12 Mbit
Brand TP-Link
