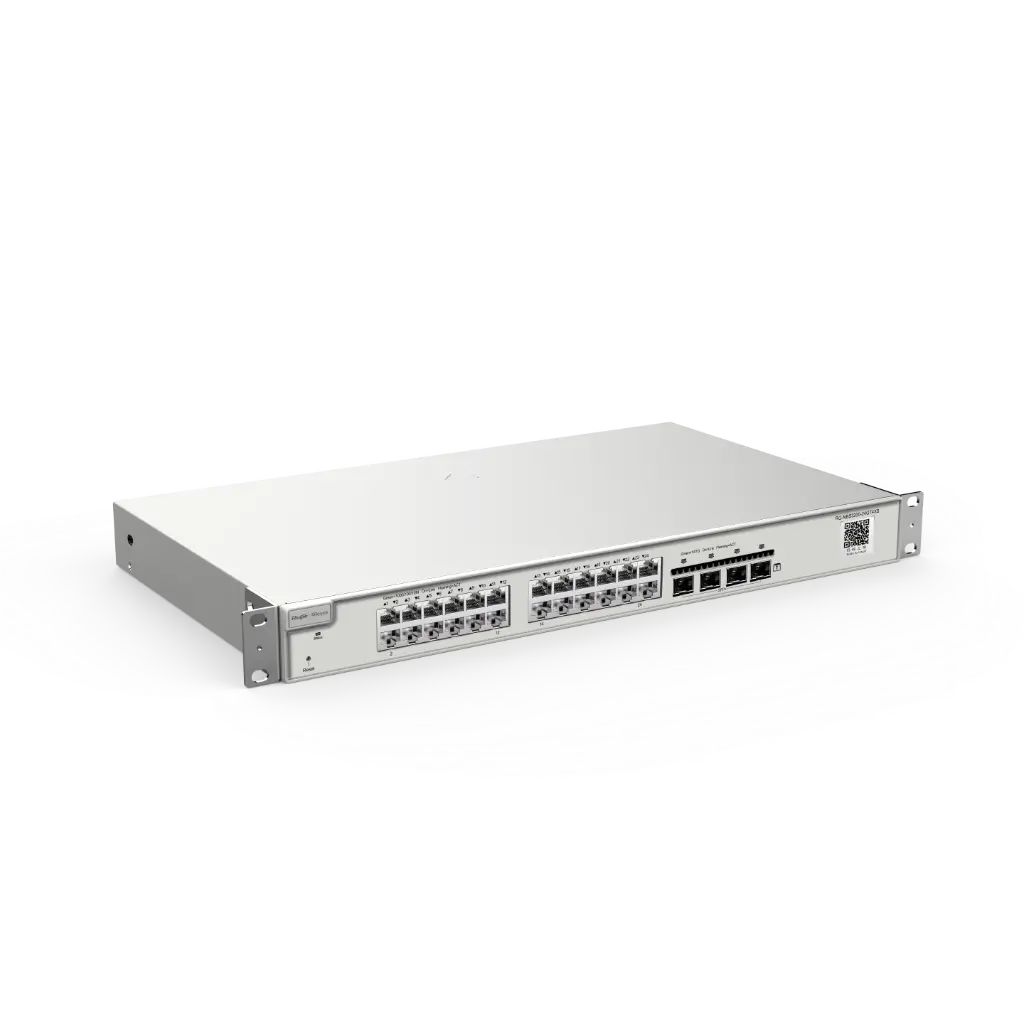

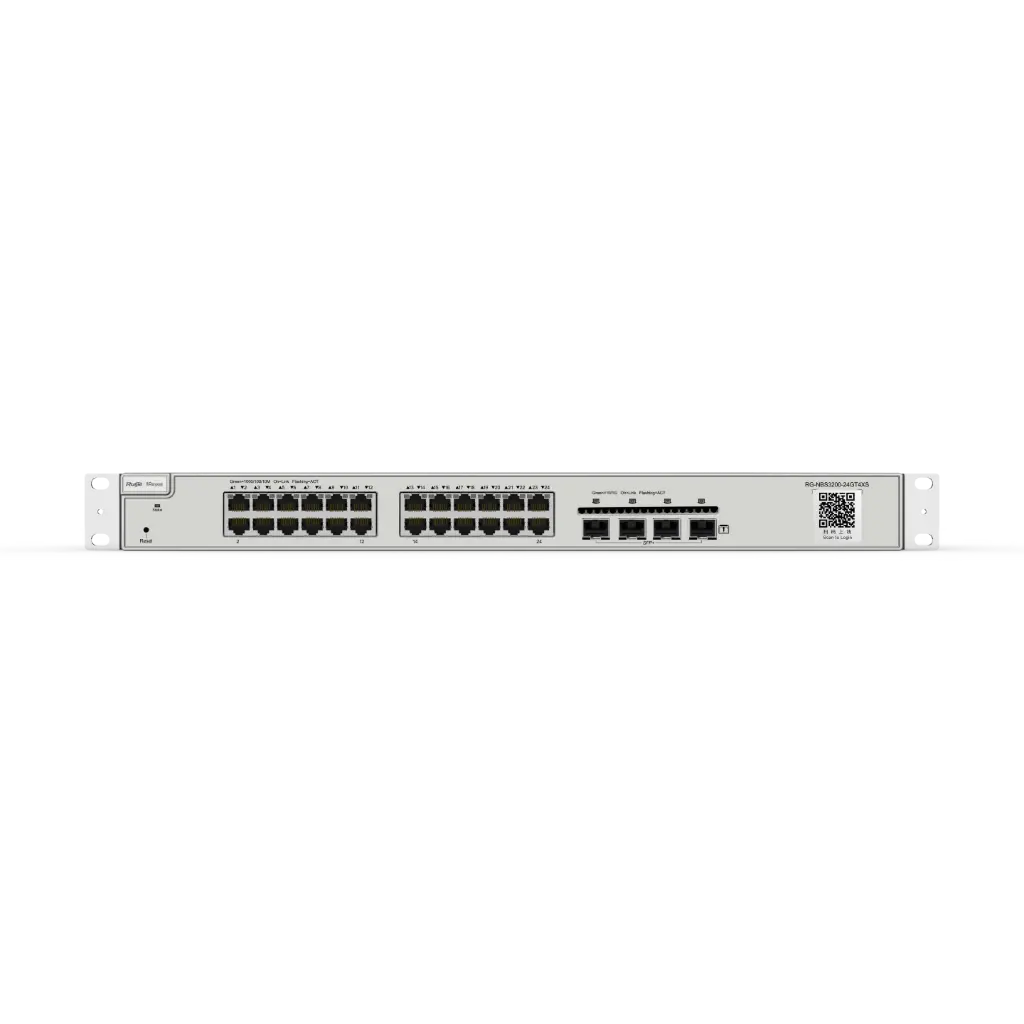

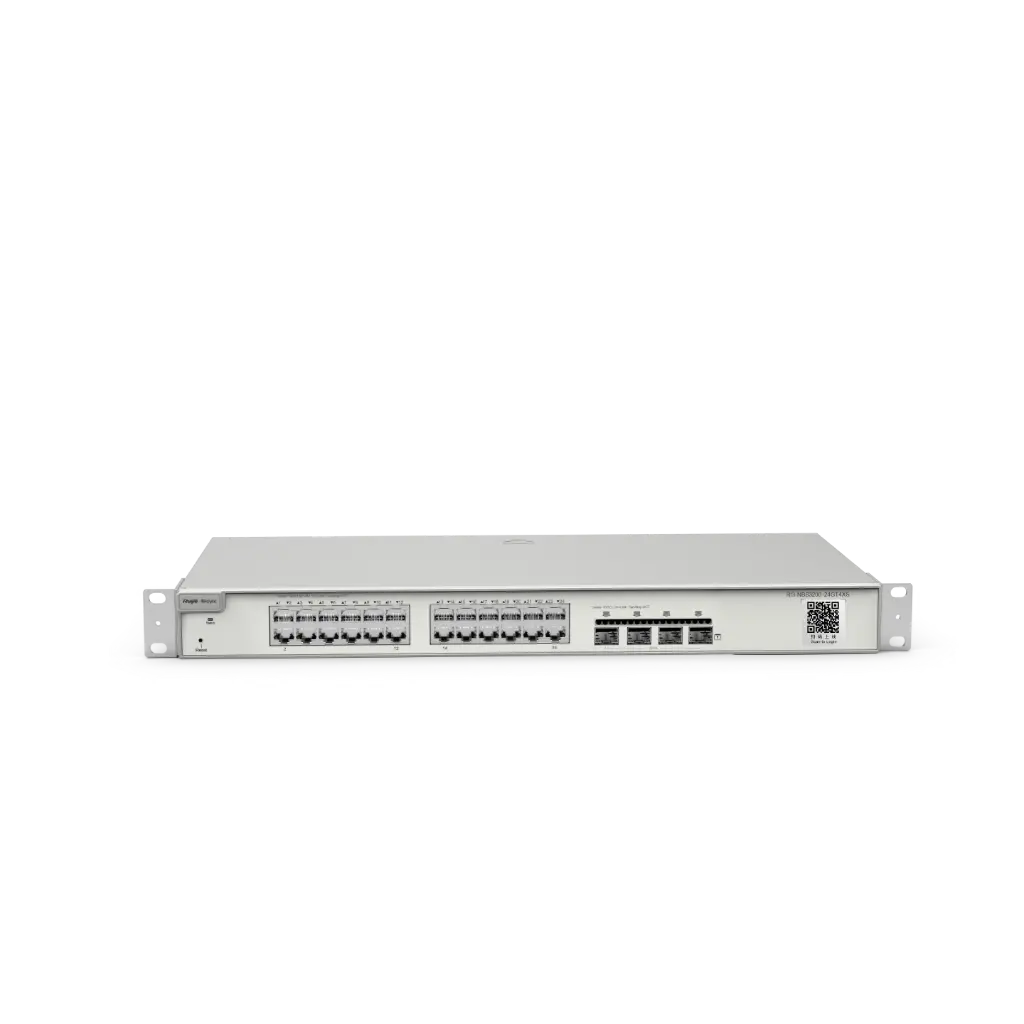

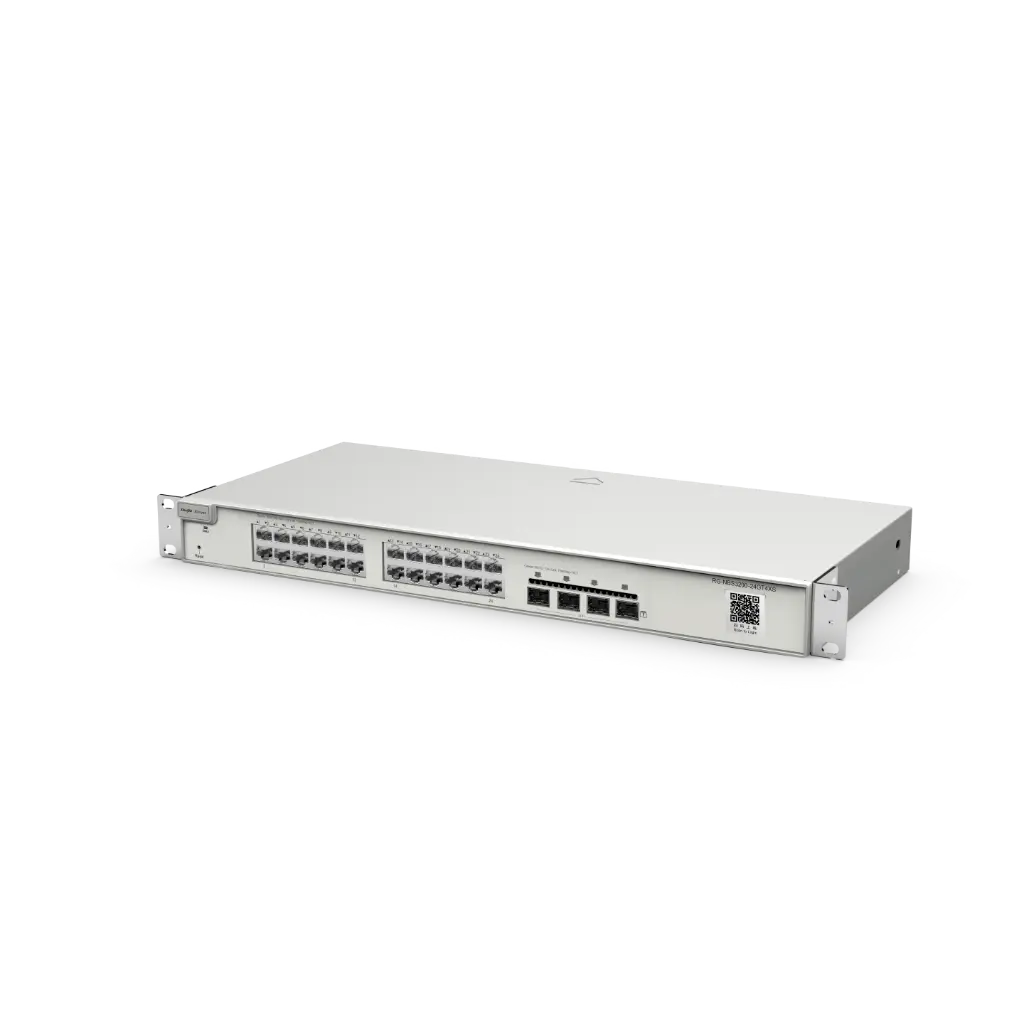

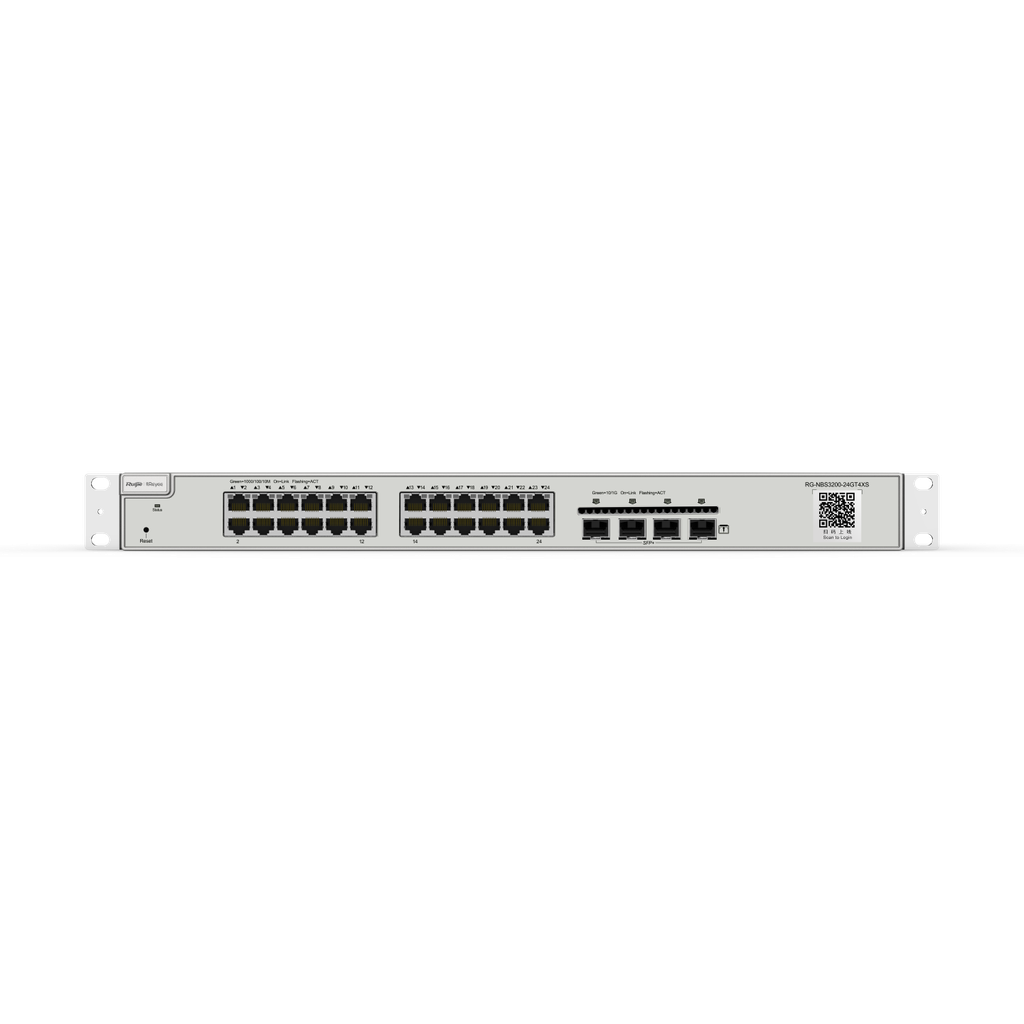

Ruijie RG-NBS3200-24GT4XS, 24-port Gigabit Layer 2+ Managed Switch, 4 * 10G Uplinks

https://arcip.com.au/web/image/product.template/5607/image_1920?unique=8867584
The Ruijie RG-NBS3200-24GT4XS is a high-performance 24-Port Gigabit Layer 2+ Managed Switch, equipped with 4x 10 Gigabit SFP+ uplinks for robust and scalable network aggregation.

411.40 411.4 AUD 411.40 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ruijie
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-NBS3200-24GT4XS
Barcode
6971693270855
Tags
Ruijie RG-NBS3200-24GT4XS 24-Port Gigabit Layer 2+ Managed Switch
High-Density Enterprise Switch with 10 Gigabit SFP+ Uplinks

Features

  • 24 x 10/100/1000Base-T Gigabit Ethernet Ports
  • 4 x 10 Gigabit SFP+ Uplink Ports for high-bandwidth connectivity
  • Advanced Layer 2+ Management (VLAN, QoS, STP/RSTP/MSTP, LACP)
  • Supports Static Routing (Layer 3 Lite) for enhanced network segmentation
  • Ruijie Cloud App and Web-based management for easy configuration and monitoring
  • Non-blocking switching architecture for wire-speed performance
  • Robust security features including ACLs, Port Security, and DHCP Snooping
  • Ideal for enterprise aggregation, data centers, and campus networks

Specifications

Network
Ports24 x 10/100/1000Base-T, 4 x 10G SFP+
Switching Capacity128 Gbps
Forwarding Rate96 Mpps
MAC Address Table16K
VLAN4K IEEE 802.1Q VLANs
QoSYes (8 priority queues)
Layer 2 FeaturesSTP/RSTP/MSTP, LACP, Port Mirroring, IGMP Snooping, Storm Control
Layer 3 FeaturesStatic Routing
ManagementWeb-based GUI, CLI, SNMP, Ruijie Cloud App
General
Power Supply100-240V AC, 50/60Hz (Internal)
Operating Temperature0°C to 50°C (32°F to 122°F)
Dimensions (W x D x H)440 x 260 x 43.6 mm (Standard 1U Rackmount)
FanSmart Fan for optimal cooling
MountingRackmount

Professional Overview

The Ruijie RG-NBS3200-24GT4XS is a robust 24-Port Gigabit Layer 2+ Managed Switch, meticulously engineered to provide a high-performance and scalable foundation for demanding enterprise, campus, and large SMB network infrastructures. Featuring 24 full Gigabit Ethernet ports and four dedicated 10 Gigabit SFP+ uplink ports, this switch is designed for high-density server connectivity, inter-switch links, or aggregation to a network core where bandwidth is paramount.

With a formidable switching capacity of 128 Gbps and a forwarding rate of 96 Mpps, the RG-NBS3200-24GT4XS ensures wire-speed performance across all ports, minimizing latency and maximizing throughput for critical applications and large data transfers. Its advanced Layer 2+ feature set, including comprehensive VLAN support for network segmentation, Quality of Service (QoS) for traffic prioritization, Link Aggregation (LACP), and Static Routing, enables network administrators to design resilient, segmented, and highly optimized network topologies without the complexities of full Layer 3 devices.

Management of the RG-NBS3200-24GT4XS is streamlined through an intuitive web-based GUI, a command-line interface (CLI), SNMP, and seamless integration with Ruijie Cloud. This allows for flexible remote monitoring, configuration, and troubleshooting from any location, significantly simplifying operational tasks and reducing management overhead. Built with robust hardware, the switch also incorporates essential security features such as Access Control Lists (ACLs), port security, and DHCP snooping to safeguard network integrity and protect against unauthorized access.

This high-performance switch is an ideal choice for a variety of critical network roles, including serving as an aggregation layer switch, a core switch for smaller networks, or a top-of-rack (ToR) switch in data centers. The 10 Gigabit SFP+ uplinks provide ample bandwidth for connecting high-speed servers, storage solutions, or cascading multiple switches without creating bottlenecks. The Ruijie RG-NBS3200-24GT4XS delivers an exceptional blend of performance, advanced features, and simplified management, making it a reliable and future-proof investment for evolving network demands.
