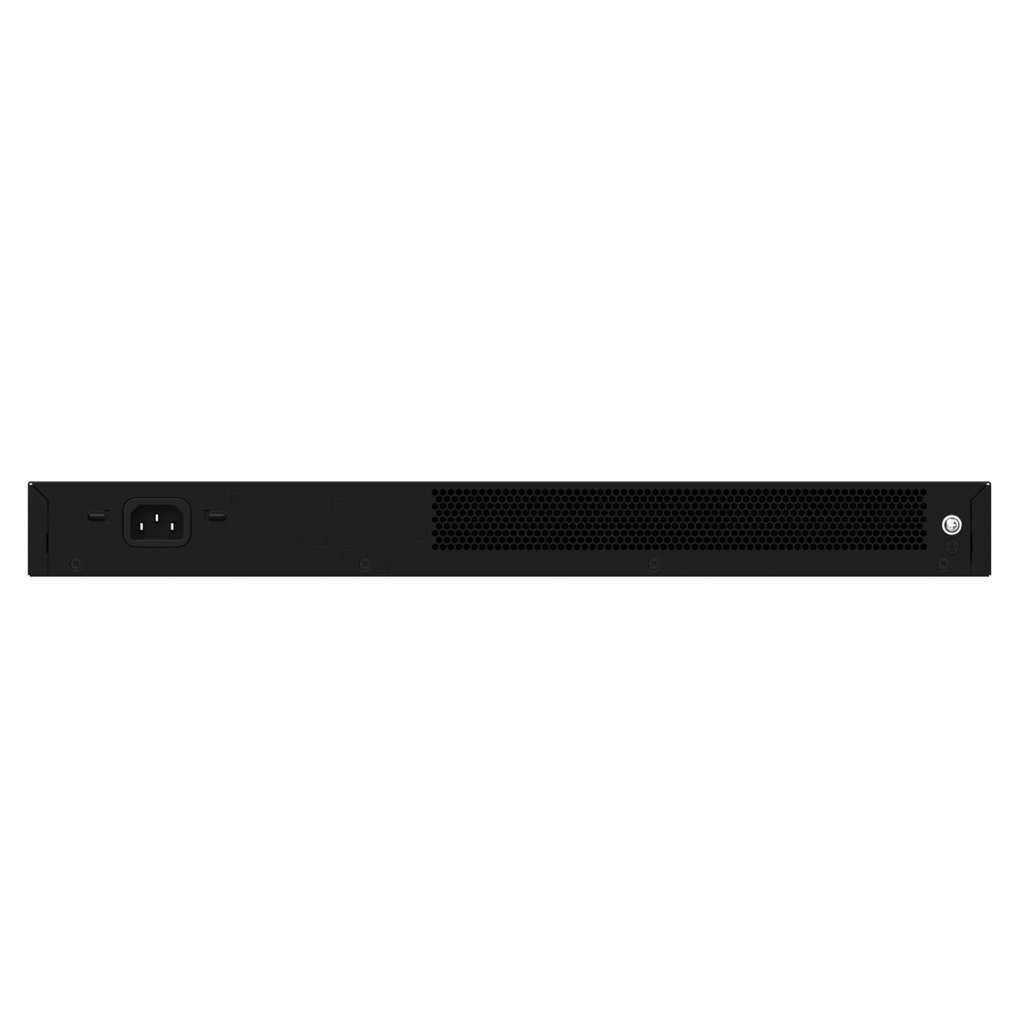

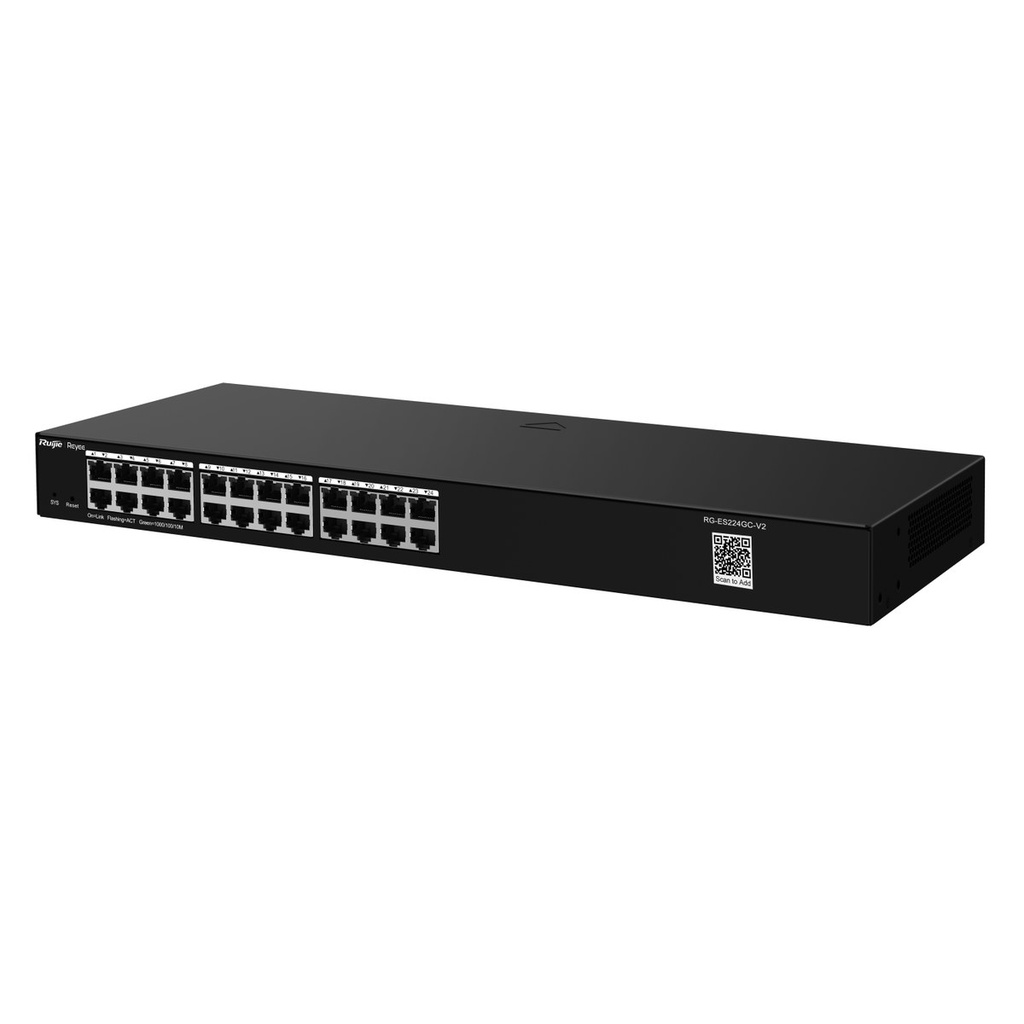

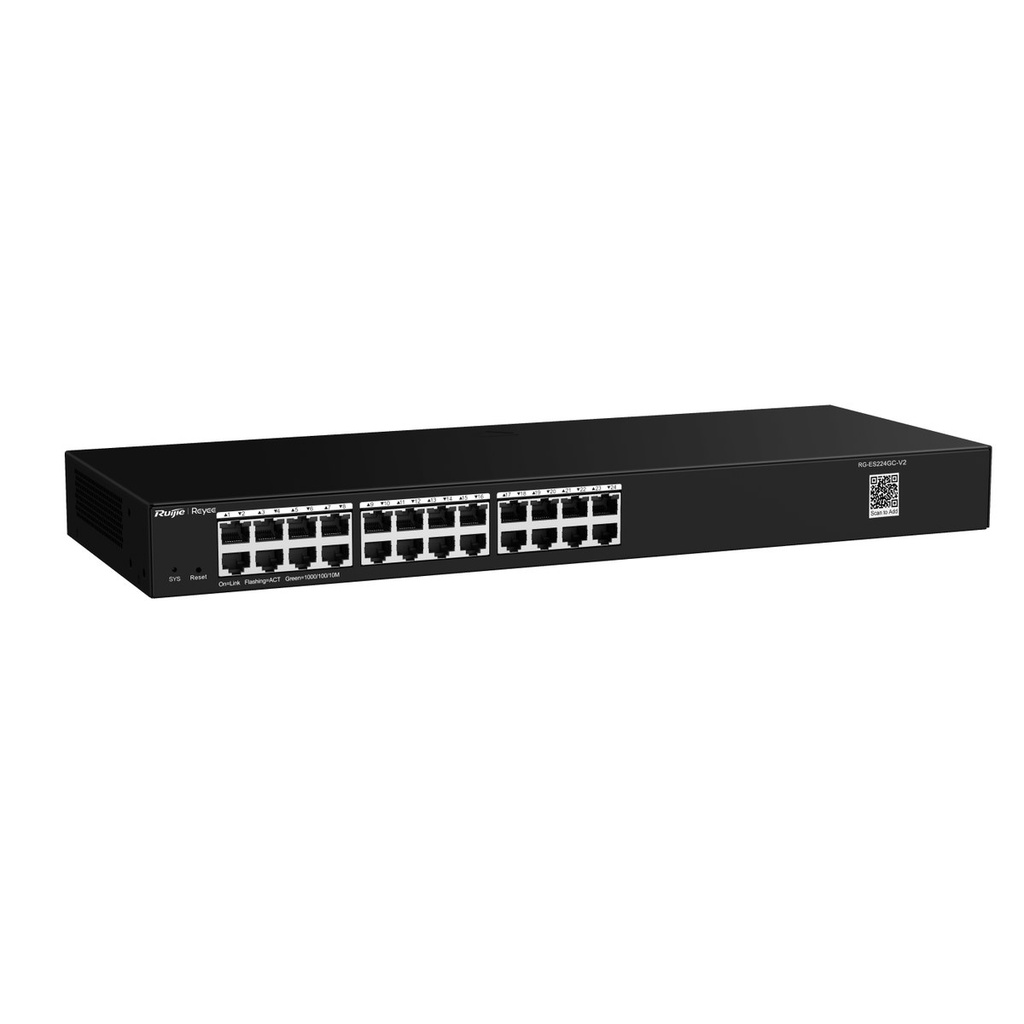

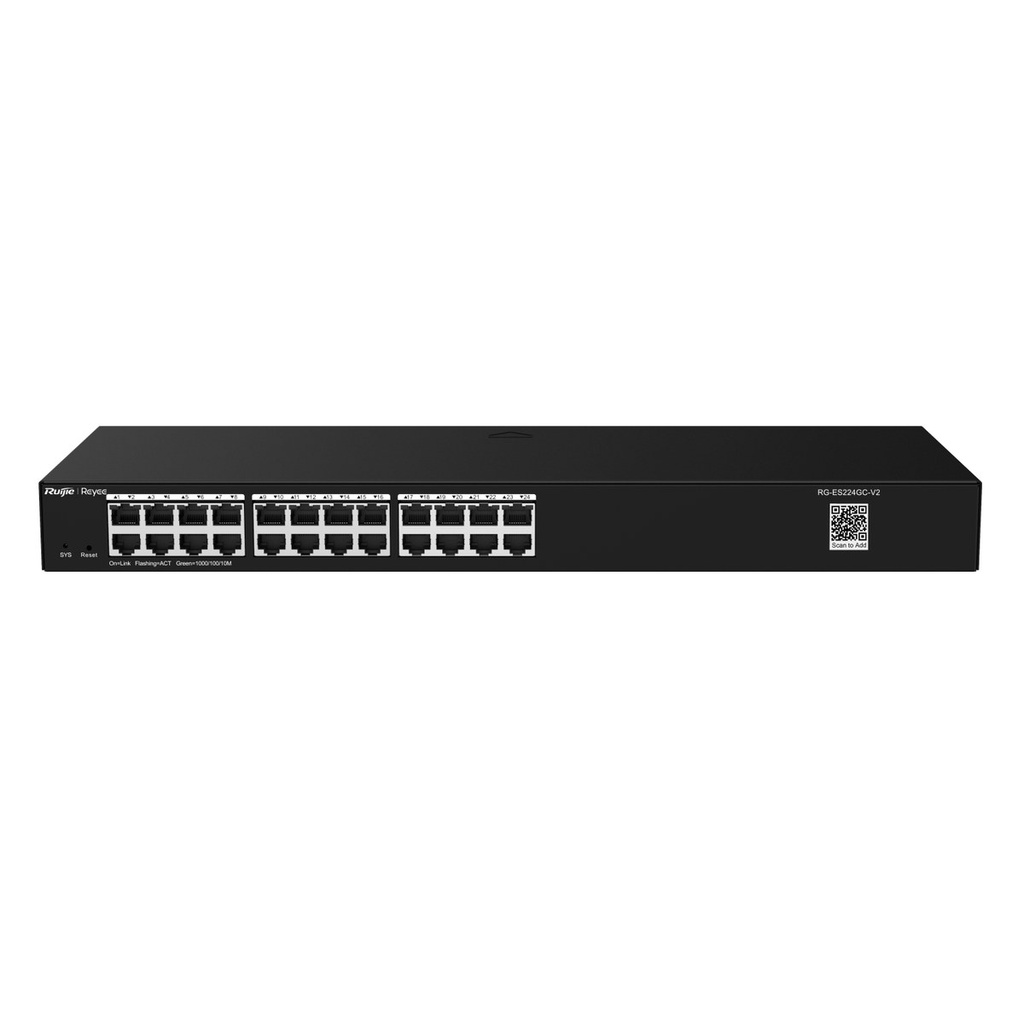

Ruijie 24-Port Gigabit Smart Switch,Cloud managed switch

https://arcip.com.au/web/image/product.template/5600/image_1920?unique=8867584
The Ruijie RG-ES224GC-V2 is a 24-port Gigabit cloud managed smart switch, delivering high-speed performance and flexible remote control for growing business networks.

209.04 209.04 AUD 209.04 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ruijie Cloud Managed
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-ES224GC-V2
Barcode
6971693278776
Tags
RG-ES224GC-V2 24-Port Gigabit Cloud Managed Smart Switch
Ruijie

Features

  • 24 x 10/100/1000BASE-T Gigabit Ethernet Ports
  • Cloud managed via Ruijie Cloud app or web platform for remote control
  • Smart Layer 2 features including VLAN, QoS, and Link Aggregation
  • Zero-touch provisioning for simplified setup and deployment
  • Remote monitoring, troubleshooting, and configuration capabilities
  • Fanless design ensures silent operation
  • Durable metal casing for enhanced heat dissipation and longevity
  • Supports loop protection and cable detection

Specifications

Network
Ports24 x 10/100/1000BASE-T RJ45
ManagementCloud Managed (Ruijie Cloud), Web GUI
Network StandardsIEEE 802.3, 802.3u, 802.3ab, 802.3x
Forwarding ModeStore-and-forward
Performance
Switching Capacity48 Gbps
Packet Forwarding Rate35.71 Mpps
MAC Address Table8K
Jumbo FrameUp to 9KB
VLANSupports 802.1Q VLAN
QoSSupports port-based, 802.1p CoS, and DSCP QoS
General
Power SupplyInternal Power Supply (AC 100-240V, 50/60Hz)
Casing MaterialMetal
InstallationDesktop/Rack-mount (1U)
Operating Temperature0°C to 45°C
Power Consumption<18W (typical)

Professional Overview

The Ruijie RG-ES224GC-V2 is a sophisticated 24-port Gigabit cloud managed smart switch, expertly engineered to provide robust, high-speed network connectivity with advanced management capabilities for growing small to medium-sized business (SMB) and enterprise branch environments. With twenty-four 10/100/1000 Mbps RJ45 ports, this switch delivers substantial bandwidth, effortlessly handling bandwidth-intensive applications such as high-definition video conferencing, large file transfers, data backups, and connecting numerous Gigabit-enabled devices without performance bottlenecks.

A primary strength of the RG-ES224GC-V2 lies in its seamless cloud management via the intuitive Ruijie Cloud platform. This feature enables zero-touch provisioning and comprehensive remote management, allowing network administrators to monitor device status, configure advanced Layer 2 features, manage network topology, and troubleshoot issues from anywhere, at any time, using a mobile app or web browser. This drastically simplifies network deployment and ongoing maintenance, reducing the need for on-site IT personnel and making sophisticated network control accessible even for users without extensive technical expertise.

Beyond its robust physical connectivity and cloud capabilities, this smart switch integrates essential Layer 2 features. Support for 802.1Q VLANs allows for efficient network segmentation, enhancing security and reducing broadcast domains. Advanced QoS (Quality of Service) features prioritize critical traffic like VoIP and video, ensuring smooth performance even during peak network usage. Link Aggregation (LAG) can combine multiple ports for increased bandwidth and redundancy to uplinks or servers, providing enhanced reliability and performance for your network backbone.

Designed for optimal performance in diverse environments, the RG-ES224GC-V2 boasts a fanless design, ensuring completely silent operation, which is critical for noise-sensitive areas such as offices, conference rooms, or client-facing spaces. Its durable metal casing not only provides robust physical protection but also aids in efficient heat dissipation, ensuring stable and reliable performance over extended periods. With a high switching capacity of 48 Gbps and a packet forwarding rate of 35.71 Mpps, this Ruijie switch efficiently handles high-volume network traffic, minimizing latency and packet loss. The RG-ES224GC-V2 offers a powerful combination of high-speed Gigabit performance, intelligent cloud management, essential Layer 2 features, silent operation, and robust construction, providing a future-proof, easy-to-deploy, and highly reliable networking solution for modern businesses seeking smart control and exceptional value.
