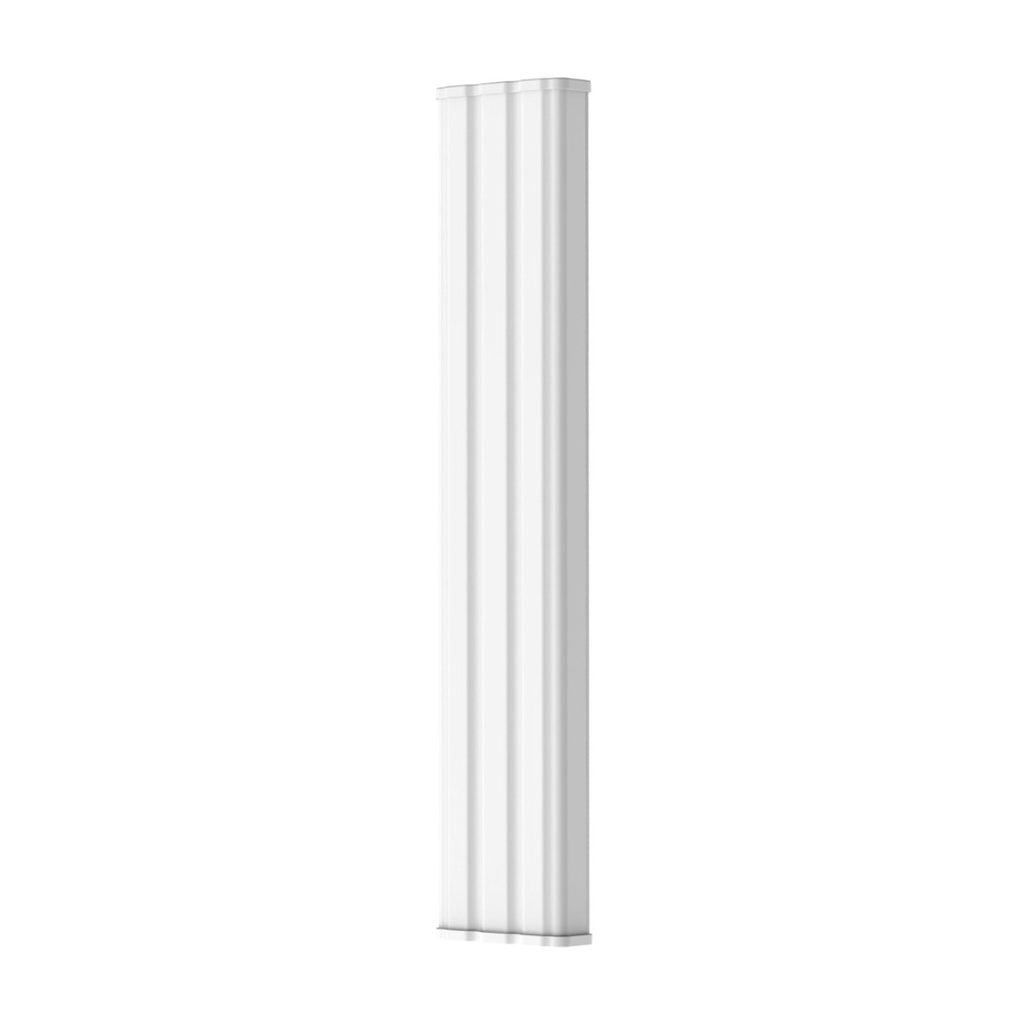

Ruijie Can be used with the bridge base station RG-AirMetro550G-B,90 degrees

https://arcip.com.au/web/image/product.template/5635/image_1920?unique=8867584
The Ruijie RG-ANT20S-90 is a high-gain 5GHz 90-degree sector antenna, precisely engineered to optimize the targeted coverage of your RG-AirMetro550G-B base station for robust point-to-multipoint networks.

288.00 288.0 AUD 288.00 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ruijie
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-ANT20S-90
Barcode
6971693278530
Tags
RG-ANT20S-90 5GHz 90-Degree Sector Antenna for AirMetro550G-B
Ruijie

Features

  • Specifically designed for use with Ruijie RG-AirMetro550G-B wireless bridge base station
  • Provides 90-degree sectorial coverage for optimized signal distribution in a specific direction
  • Operates on the 5GHz frequency band to minimize interference and maximize throughput
  • High gain (20 dBi) for extended range and strong signal propagation in PtMP scenarios
  • Robust outdoor-grade construction with IP66-rated weather resistance
  • Easy integration with standard N-Type Female connector(s)
  • Optimized for Wireless Internet Service Providers (WISP), outdoor surveillance, and campus networks with targeted coverage needs
  • Enhances connectivity and capacity for multiple client CPEs within its sector

Specifications

Antenna Characteristics
Frequency Range5150 - 5850 MHz
Antenna TypeSector (Directional)
Gain20 dBi
Horizontal Beamwidth90°
Vertical Beamwidth6° (typical)
VSWR< 2.0
PolarizationDual-Linear (Vertical and Horizontal)
Input Impedance50 Ohms
Physical & Environmental
Connector Type2 x N-Type Female (for MIMO)
MaterialUV-Stabilized ABS / Aluminum Radome
Ingress ProtectionIP66
Operating Temperature-40°C to 70°C
Dimensions (L x W x D)(Approx.) 600mm x 180mm x 60mm
Weight(Approx.) 2.5 kg
MountingPole Mount (Included Clamp)
Wind SurvivalUp to 200 km/h

Professional Overview

The Ruijie RG-ANT20S-90 is a high-performance 5GHz sector antenna, specifically engineered to optimize and enhance the capabilities of the Ruijie RG-AirMetro550G-B wireless bridge base station. This antenna is a critical component for deploying efficient and scalable point-to-multipoint (PtMP) wireless networks, providing targeted coverage and robust connectivity for various demanding outdoor applications. By operating in the less congested 5GHz frequency band, it minimizes interference from common 2.4GHz devices, ensuring higher throughput and more stable connections, crucial for Wireless Internet Service Providers (WISPs), extensive outdoor surveillance systems, and large campus networks requiring segmented coverage.

The defining feature of the RG-ANT20S-90 is its 90-degree sectorial radiation pattern coupled with a significant 20 dBi gain and dual-linear polarization for MIMO operation. This precise directional coverage allows network designers to strategically deploy multiple sector antennas around a central base station to create comprehensive 360-degree coverage in a modular fashion, optimizing signal distribution and minimizing interference between sectors. The exceptionally high gain translates into extended range and stronger, more focused signals, ensuring reliable connectivity over long distances and through challenging environmental obstacles. This significantly maximizes spectral efficiency and increases network capacity for multiple client CPEs (Customer Premises Equipment) within its defined 90-degree sector.

Designed for exceptional durability and seamless integration into challenging outdoor environments, the RG-ANT20S-90 features an IP66-rated weather-resistant enclosure. This robust construction provides superior protection against dust, heavy rain, and extreme temperatures ranging from -40°C to 70°C, guaranteeing reliable, continuous operation with minimal maintenance. The standard N-Type Female connectors (typically two for MIMO) ensure easy and secure attachment to the RG-AirMetro550G-B, simplifying installation and minimizing potential points of failure. The antenna's design emphasizes both high performance and longevity, making it a dependable choice for mission-critical outdoor wireless infrastructure.

Whether deployed for last-mile subscriber access in WISP scenarios, providing targeted coverage for numerous outdoor IP cameras, or building a scalable campus-wide Wi-Fi backbone, the Ruijie RG-ANT20S-90 offers unparalleled performance and reliability. Its ability to serve numerous clients efficiently within a defined sector makes it a cost-effective solution for expanding network reach and delivering consistent, high-bandwidth services across diverse outdoor applications. The RG-ANT20S-90 ensures that your RG-AirMetro550G-B base station operates at its full potential, providing a stable and scalable wireless communication platform with optimized coverage and capacity for a wide range of demanding network requirements.

Brand Ruijie
