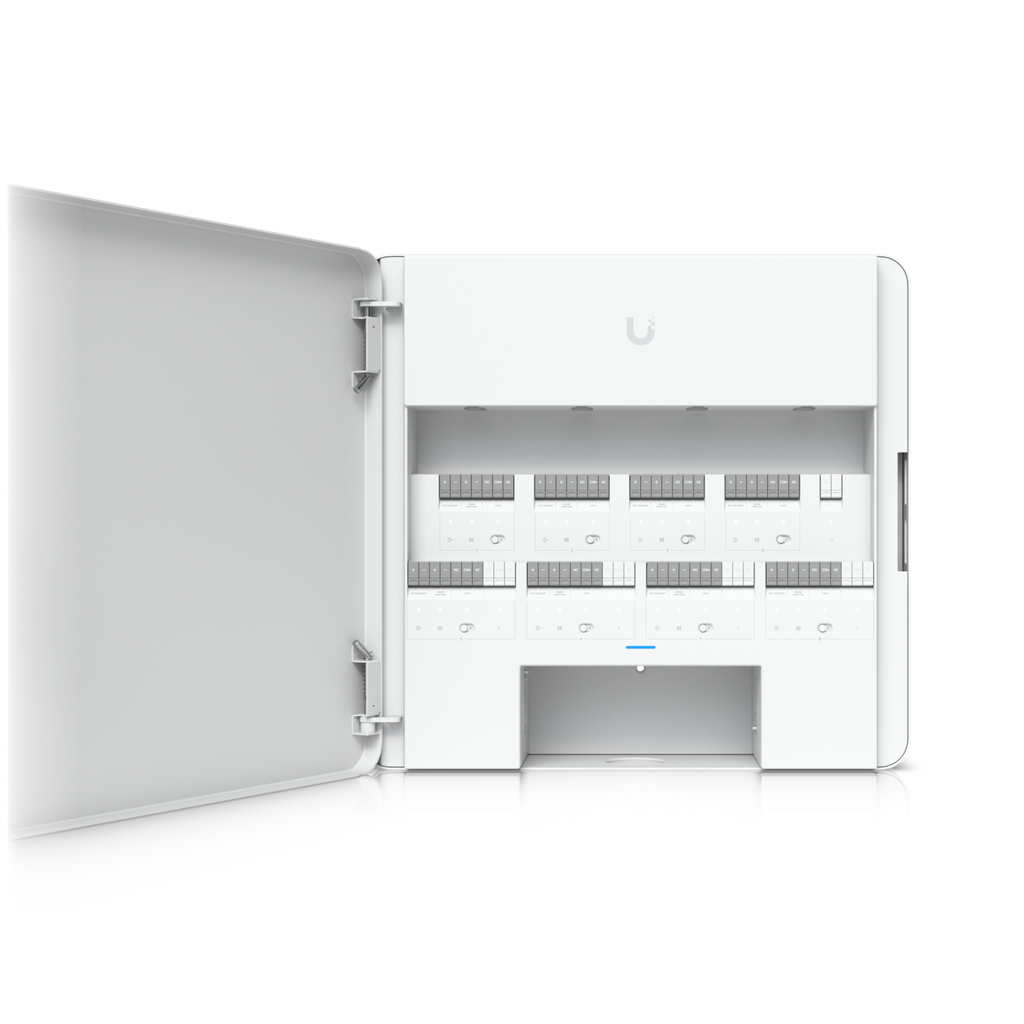

Ubiquiti EAH-8 UniFi Enterprise Access Hub, Entry/Exit Control to 8 Doors, Battery Backup Support, Lock terminals

https://arcip.com.au/web/image/product.template/3782/image_1920?unique=79aa135
The EAH-8. Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

1,888.15 1888.15 AUD 1,888.15 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • Mounting
  • Supported Doors
  • Maximum User Count
  • Input Terminals
  • Output Relays
  • Certification

This combination does not exist.

UniFi Ubiquiti UniFi Access Enterprise Deal Registration Access Control Door Controller 8 Door
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
EAH-8
Barcode
810084693117
Tags
EAH-8
Ubiquiti UniFi Enterprise Access Hub
💼

Deal Registration Required

The Ubiquiti EAH-8 ships under Ubiquiti’s deal-registration program for project pricing and deployment support. Please contact ARC IP Networks before ordering to register the deal, confirm lead time, and unlock project pricing.

EAH-8
EAH-8

Features

  • (8) Lock terminals (12V or Dry)
  • (8+8) Inputs for request-to-exit devices and door position sensors
  • (8) PoE ports for Access Readers
  • (4) AUX terminals for chimes, sirens, or door openers
  • (1) Battery backup input (32–48V)

Specifications

Overview
Dimensions379 x 355 x 105 mm /
Supported Doors8
Maximum User Count10,000
Input Terminals(8) Door exit request / (8) Door position / (1) Emergency
Power MethodUniversal input, 100–240V AC, Max. 4.4A, 50/60 Hz / 32–48V DC Lead Acid Battery, Max. 7.5A @32V
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
Mechanical
WeightDevice: 9.1 kg / Mount: 624 g
Enclosure MaterialSGCC steel housing with polycarbonate cover
Mount MaterialSGCC steel
MountingWall
Hardware
Digital Input(8) Inputs for request-to-exit devices / (8) Inputs for door position sensors / (1) Emergency
Dry Output Relay(8) Lock terminals (12V or Dry) / (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered Output RelayLock: 12V DC, 1A/ Dry / Aux: Dry only
Indoor and Outdoor UseIndoor only
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Networking Interface(10) 10/100/1000 Base-T
PoE Interface(8) PoE+ outputs, 50V DC, 30W per port (Max 190W aggregated)
Power SupplyAC/DC, internal
Max. Power Consumption240W
Max. PoE Wattage per Port30W
LEDsW/B Learn More
Buttons(1) Factory reset
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelEAH-8, Ver 01
Software
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Professional Overview

The Ubiquiti EAH-8 is a UniFi device. Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

Weighing Device: 9.1 kg / Mount: 624 g, the EAH-8 is built for reliable operation. Australian stock, fast shipping from ARC IP Networks.

Ubiquiti EAH-8: Enterprise Access Hub

The Enterprise Access Hub is part of the UniFi Access range. Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

It controls 8 doors, holds up to 10,000 users and provides 8 lock terminals.

Indoor only. The hub belongs inside the building — in a comms cabinet or above the ceiling on the secure side of the door, never on the outside face where it is exposed to weather and to anyone with a screwdriver.

It is listed to UL 294, the North American access-control standard, at the levels published below. There is no direct Australian equivalent certification for this class of product, so treat it as evidence of build quality rather than as local compliance.

Ports and interfaces

Networking interface(10) 10/100/1000 Base-T
PoE8 PoE Ports

Capacity and terminals

Supported doors8
Maximum user count10,000
Lock terminals8 Lock Terminals
Additional inputs16 Additional Inputs
Input terminals(8) Door exit request (8) Door position (1) Emergency
AUX terminals4 AUX Terminals
Digital inputs(8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency
Dry output relay(8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
Powered output relayLock: 12V DC, 1A/ Dry Aux: Dry only
PoE ports8 PoE Ports

Networking and power

Networking interface(10) 10/100/1000 Base-T
PoE interface(8) PoE+ outputs, 50V DC, 30W per port (Max 190W aggregated)
Power methodUniversal input, 100–240V AC, Max. 4.4A, 50/60 Hz 32–48V DC Lead Acid Battery, Max. 7.5A @32V
Max. power consumption240W

Power and data share the one Ethernet run, so the cable that connects the device also feeds it.

Who the EAH-8 suits

  • Multi-door sites consolidating access control onto one hub
  • Buildings where eight doors run back to a single comms room
  • Enterprise access deployments standardising on UniFi Access
  • Projects going through Ubiquiti deal registration — contact us for project pricing

Physical and environment

Dimensions379 x 355 x 105 mm (15 x 14 x 4.1")
WeightDevice: 9.1 kg (20 lb) Mount: 624 g (1.4 lb)
MountingWall
Enclosure materialSGCC steel housing with polycarbonate cover
Mount materialSGCC steel
Indoor / outdoor useIndoor only
LEDsW/B Learn More
Buttons(1) Factory reset
Operating temperature0 to 40° C (32 to 104° F)
Operating humidity5 to 95% noncondensing

Additional published specifications

Power SupplyAC/DC, internal
Max. PoE Wattage per Port30W
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

Compliance and cabling

UL 294 levelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
CAN/ULC-60839-11-1 gradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
UL 294 statementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirementsCable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

Management

Managed byAccess
Software informationThe software version can be checked at https://unifi.ui.com

Frequently Asked Questions

What is the EAH-8?

The Enterprise Access Hub is part of the UniFi Access range. Enterprise-grade access hub with entry and exit control up to eight doors and battery backup support.

How many doors does the EAH-8 control?

8. Add a hub per door beyond that.

How many users can the EAH-8 hold?

Up to 10,000.

How is the EAH-8 powered, and can it power the readers?

(8) PoE+ outputs, 50V DC, 30W per port (Max 190W aggregated). That means the hub takes power in over Ethernet and passes power out to the readers or cameras on the door, so you are not running a separate supply to each one.

Can the EAH-8 be mounted outside?

Indoor only. Mount it on the secure side of the door — an access hub on the unsecured side is both a weather problem and a security one.

What lock types does the EAH-8 support?

The lock terminal switches between wet and dry operation, dry output (8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener). Wet drives a 12 V strike or maglock directly; dry is a volt-free contact for a lock with its own power supply.

Is it certified for access control?

It is listed to UL 294 at Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I. UL 294 is the North American standard; Australia has no direct equivalent listing for this class of device.

What software manages the EAH-8?

UniFi Access, running on a UniFi console — a Cloud Gateway, Dream Machine or compatible host. The hub does not run the application itself.

What temperature range is the EAH-8 rated for?

0 to 40° C (32 to 104° F).

How is the EAH-8 mounted?

Wall.

Is the EAH-8 available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti EAH-8 in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the EAH-8 from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the UniFi accessory range, plus cloud gateways, switches, access points and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Form Factor Wall-Mount Hub
Network Connectivity Wired
Mounting Wall Mount
Supported Doors 8
Maximum User Count 10,000
Input Terminals (8) Exit Request + (8) Door Position
Output Relays (8) Lock + (4) AUX
Certification UL 294 Level I
