RF Elements UH-TP-5-24 5GHz Ultra Horn TwistPort 24dBi

https://arcip.com.au/web/image/product.template/3599/image_1920?unique=899b0d6
RF Elements UH-TP-5-24 UltraHorn — 24 dBi, 10° beam, 5.18–5.9 GHz directional horn with TwistPort. Ideal for long-range PTP backhaul. Australian stock.

911.90 911.9 AUD 911.90 incl. GST

Not Available For Sale


  • Brand
  • Frequency Band
  • Antenna Gain
  • Beam Width
  • Antenna Type
  • Connector
  • Polarization

This combination does not exist.

5 GHz RF Elements Point-to-Point 24 dBi Horn Antenna TwistPort Backhaul UltraHorn High Gain
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
UH-TP-5-24
RF Elements UH-TP-5-24 — 24 dBi UltraHorn TwistPort, 10° Beam, 5.18–5.9 GHz Directional Horn for PTP/Backhaul

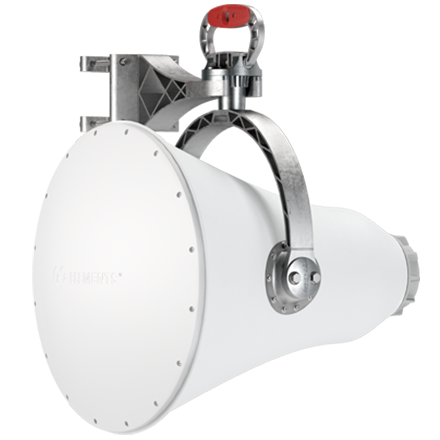

UH-TP-5-24 Overview

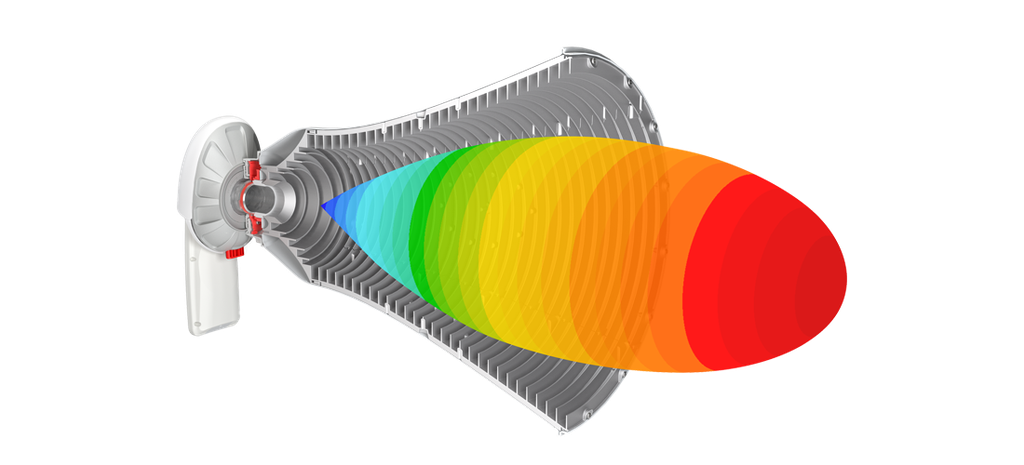

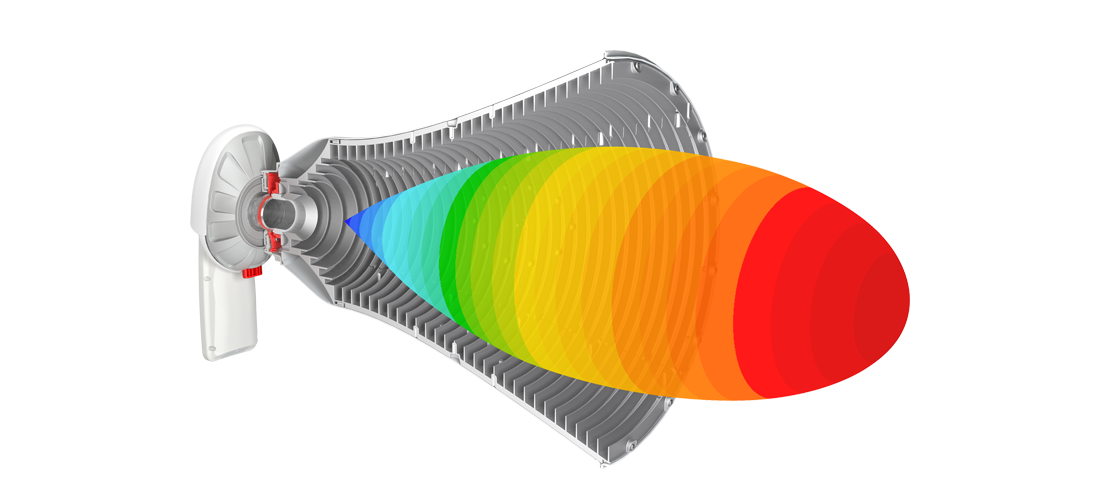

UH-TP-5-24 Beam Pattern

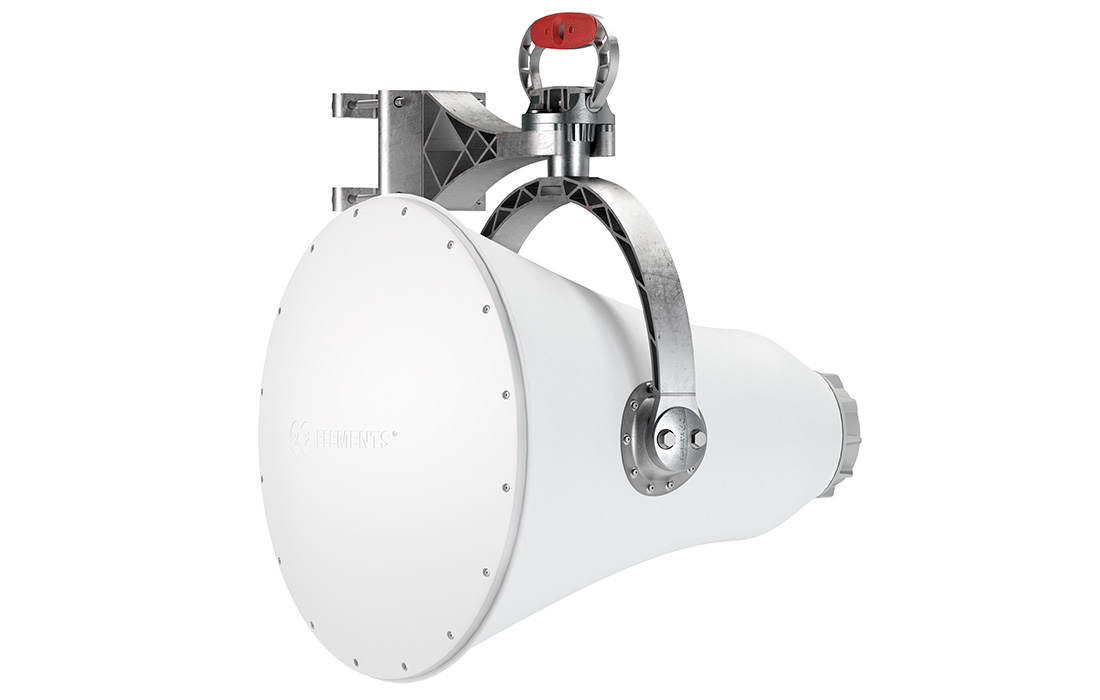

UH-TP-5-24 PTP Cover

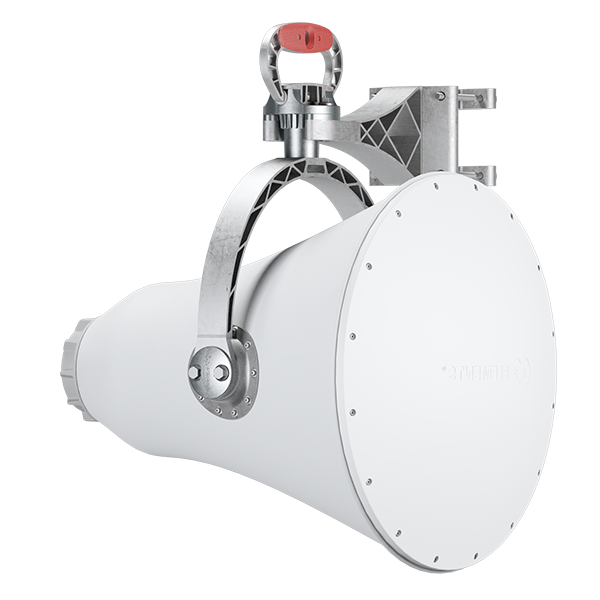

UH-TP-5-24 Left View

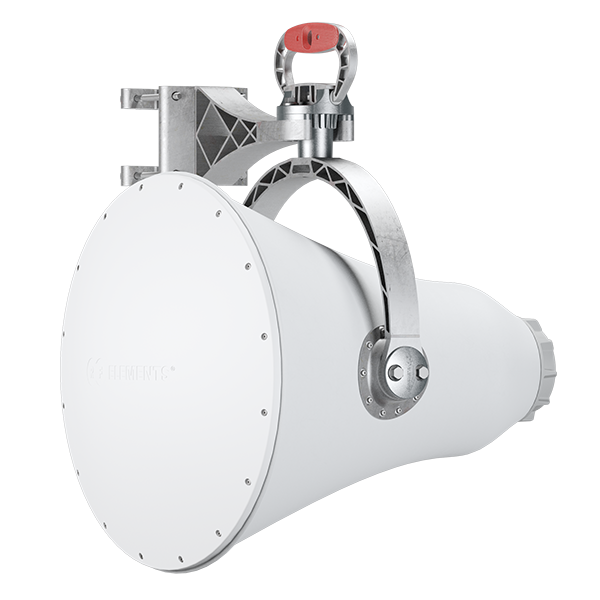

UH-TP-5-24 Right View
Key Features
  • 24 dBi gain with an ultra-narrow 10° symmetrical beam for maximum signal focus
  • TwistPort connector for tool-free radio integration with Ubiquiti, MikroTik, and Cambium radios
  • Frequency range 5.18–5.9 GHz covering all 5 GHz bands
  • Integrated weatherproof design eliminates noise from side lobes and back lobes
  • Horn antenna technology provides consistent gain across the entire frequency range
  • Excellent front-to-back ratio for superior interference rejection
  • Compact form factor compared to traditional parabolic dishes of similar gain
  • Ideal for point-to-point backhaul links up to 30+ km
  • UV-stabilised housing rated for harsh outdoor environments
  • Quick deployment with integrated mounting bracket

Specifications
ModelUH-TP-5-24
Antenna TypeDirectional Horn
Gain24 dBi
Beamwidth10° (H) × 10° (V)
Frequency Range5.18–5.9 GHz
ConnectorTwistPort
PolarisationDual-linear
Front-to-Back Ratio>35 dB
VSWR≤1.4:1
Weight~1.8 kg
Wind LoadRated for 200 km/h

The RF Elements UH-TP-5-24 UltraHorn is a high-performance 24 dBi directional horn antenna designed for demanding point-to-point wireless backhaul deployments. Its precision-engineered 10-degree symmetrical beam delivers exceptional signal focus, enabling reliable long-range links while rejecting interference from surrounding networks.

Unlike traditional parabolic dishes, the UltraHorn uses horn antenna technology to maintain consistent gain across the entire 5.18–5.9 GHz frequency range. This results in predictable performance regardless of the channel selected, making it ideal for congested RF environments where every decibel matters.

The integrated TwistPort connector allows tool-free attachment of compatible radios from Ubiquiti, MikroTik, and Cambium, eliminating pigtail losses and simplifying installation. The weatherproof housing is UV-stabilised and rated for wind speeds up to 200 km/h, ensuring long-term reliability in harsh outdoor conditions.

Engineered for professional WISP and enterprise deployments, the UH-TP-5-24 is perfect for backhaul links, tower-to-tower connections, and high-capacity point-to-point bridges. Australian stock from ARC IP Networks.

Brand RF Elements
Frequency Band 5.18-5.9 GHz
Antenna Gain 24 dBi
Beam Width 10°
Antenna Type Directional Horn
Connector TwistPort
Polarization Dual-Slant ±45°
