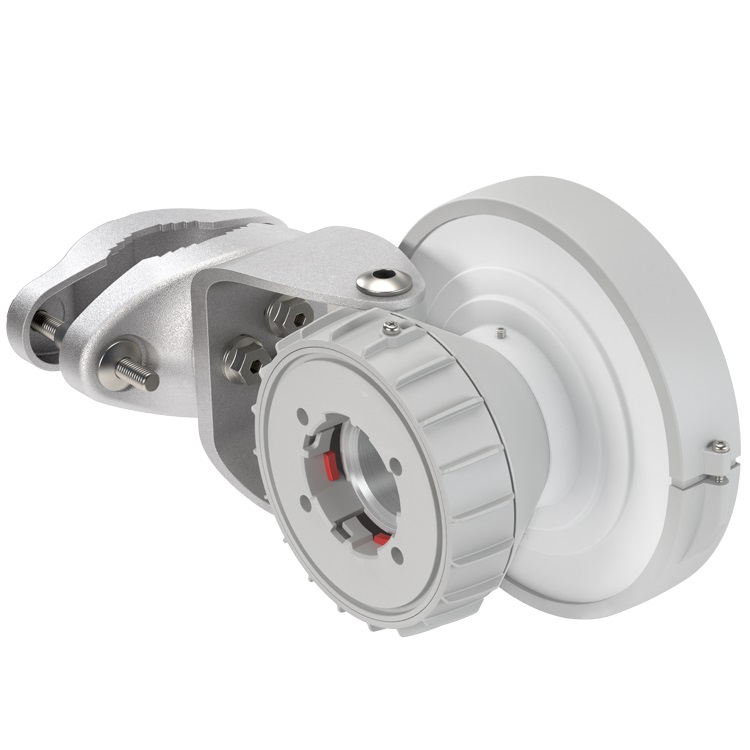

RF Elements SH-TP-5-80 Symmetrical Horn 80 degree cone coverage

https://arcip.com.au/web/image/product.template/3562/image_1920?unique=ed1b1a2
Deploy wide 80° coverage with unparalleled noise immunity using the RF Elements SH-TP-5-80. This symmetrical horn features the revolutionary TwistPort connector for easy, lossless radio integration and superior performance in dense RF environments.

132.00 132.0 AUD 132.00 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

RF Elements
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
SH-TP-5-80
Tags
SH-TP-5-80
RF Elements SH-TP-5-80 Symmetrical Horn 80 degree cone coverage

Features

  • TwistPort Connector for easy, lossless radio integration
  • Symmetrical 80° beam pattern for uniform, wide-area coverage
  • Excellent noise rejection with natural sidelobe suppression
  • Stable gain and performance across a wide frequency band (5180-6000 MHz)
  • Durable UV-resistant polycarbonate and aluminum alloy construction
  • Compact and lightweight for reduced tower load
  • Ideal for wide-area PtMP sector deployments and co-location

Specifications

Antenna Properties
Antenna ConnectionTwistPort™ - Quick Locking Waveguide Port
Antenna TypeSymmetrical Horn
Frequency Range5180 - 6000 MHz
Gain8 dBi
Azimuth Beam Width (-3 dB)80°
Elevation Beam Width (-3 dB)80°
Front-to-Back Ratio22 dB
PolarizationDual Linear H + V
Physical
MaterialsUV Resistant Polycarbonate, Aluminium Alloy, Stainless Steel
Pole Mounting Diameter30-80 mm
Operating Temperature-40°C to +60°C (-40°F to +140°F)
Wind Survivability160 km/h (100 mph)

Professional Overview

The RF Elements SH-TP-5-80 is a high-performance symmetrical horn antenna that provides a revolutionary solution to interference for wide-area Point-to-MultiPoint (PtMP) deployments. It is engineered to deliver a broad and perfectly uniform 80° symmetrical beam, making it an ideal replacement for traditional 80-90° sector antennas. This predictable coverage pattern simplifies network planning and ensures consistent signal strength for all clients within the coverage area.

The core of the SH-TP-5-80's outstanding performance is its horn antenna technology, which produces a clean radiation pattern with naturally suppressed sidelobes. This provides excellent noise rejection, allowing for unprecedented scalability through the co-location of multiple radios on a single tower without causing self-interference. For connected clients, the result is a dramatically improved signal-to-noise ratio (SNR), which enables higher, more stable modulation rates and significantly greater throughput, a crucial advantage in noisy RF environments.

Built for long-term reliability and operational efficiency, the SH-TP-5-80 incorporates the proprietary TwistPort™ connector, a quick-locking waveguide port that ensures a secure, lossless, and weatherproof connection to TwistPort-compatible radios. This system eliminates the need for failure-prone RF pigtails, simplifying installation and maximizing performance. For any WISP aiming to build a high-performance, interference-resistant network with wide coverage sectors, the SH-TP-5-80 is a premier choice.
