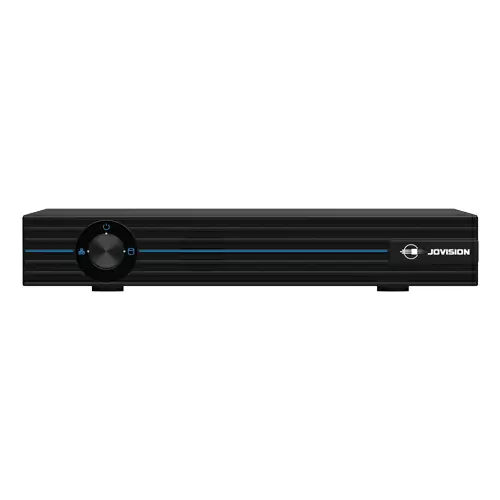

Jovision 16CH 4K NVR with HDMI Built-in Speaker Supports up to 8MP H.265+ Security System

Price:

198.00


Jovision Full-Color 3MP Security IP Camera with PoE & Audio
Jovision Full-Color 3MP Security IP Camera with PoE & Audio
137.50
137.50
Jovision Full-Color 3MP Outdoor Security IP Home Camera with PoE
Jovision Full-Color 3MP Outdoor Security IP Home Camera with PoE
82.50
82.50
Top Seller

Jovision 16CH 4K NVR with HDMI Built-in Speaker Supports up to 8MP H.265+ Security System

https://arcip.com.au/web/image/product.template/902/image_1920?unique=8867584
16CH, 4K, Supports up to 8MP, H.265+, Built-in Speaker

198.00 198.0 AUD 198.00 incl. GST

Not Available For Sale


  • Brand
  • IP Camera Input
  • Compression
  • H.D.D (SATA)

This combination does not exist.

Jovision NVR
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
JVS-ND7616-HP
Barcode
6938449002719
Tags
JVS-ND7616-HP
16CH H.265 4K NVR

Key Features

  • 16-channel 4K recording with up to 8MP camera support
  • Advanced H.265+ compression reduces storage requirements by up to 50%
  • VStar GUI interface for simplified operation and smooth performance
  • VSmart intelligent coding technology maximizes storage efficiency
  • Massive 10TB hard disk compatibility for extended recording periods
  • Comprehensive AI analytics: motion detection, region intrusion, passenger flow statistics
  • Built-in speaker system with real-time voice alarm capability
  • 4K HDMI output for crystal-clear monitoring display
  • Multiple intelligent detection modes including tripwire and scene change alerts

Specifications

ModelJVS-ND7616-HP
Video and Audio
IP Camera Input16Channel
Audio Input/ OutputIPC Audio input/Audio output through HDMI
Built-in SpeakerSupport

Bandwidth I/O

80Mbps/80Mbps

Display
Interface1 HDMI, 1 VGA
ResolutionHDMI:3840x2160@30Hz/2560x1440@30Hz/1920x1080/1440x900/1280x1024/1280x720/1024x768
VGA: 1920x1080,1440x900,1280x1024,1280x720,1024x768
Max Decoding1CH 4K 15fps;8CH@ 5.0MP/4.0MP/1080P/960P/720P 25fps
Multi-screen Display1/4/5/6/7/8/9
OSDCamera Name & Time, Recording, Alarm Detecting, Remote connection, Volume, Channel Number
Recording
CompressionH.265/H.264
Resolution1CH 4K;8CH 5.0MP/4.0MP/1080P/960P/720P
Record ModeManual, Schedule, MD
Video Detection and Alarm
Trigger EventsRecording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer
Video DetectionMotion Detection, No Video Detection
Playback and Backup
Sync Playback1CH 4K,1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080P
Search ModeChannel number / recording type / date
Playback FunctionDay View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom
Backup ModeFAT32 USB Device/Network
Network
Interface1 RJ-45 port (10/100Mbps)
Network FunctionTCP/IP, DHCP, UDP, SMTP, NTP
Smart PhoneiPhone, Android
InteroperabilityONVIF 2.4
Storage
SATA1 SATA interfaces
Capacityup to 10TB
General
Power SupplyDC 12V
Consumption≤ 10 W (Without HDD)
Working Temperature-100C~ 550C
Working Humidity10 % ~ 90 %
Dimensions260X47.5X225mm
Weight≤ 1.0kg (Without HDD)

JVS-ND7616-HP 16-Channel 4K Network Video Recorder

Professional surveillance management system delivering comprehensive 16-channel recording capability with advanced 4K resolution support and intelligent H.265+ compression technology. The JVS-ND7616-HP combines intuitive VStar GUI interface with VSmart intelligent coding, making it the optimal NVR solution for Australian commercial installations and large residential properties requiring centralized CCTV camera management and extended storage capacity.

Advanced H.265+ Compression Technology

Professional H.265+ encoding delivers superior storage efficiency while maintaining 4K image quality, essential for extended recording periods without compromising surveillance detail. This advanced compression standard reduces bandwidth requirements and storage costs significantly compared to traditional H.264 systems, making it ideal for Australian commercial installations where long-term footage retention proves critical. The intelligent encoding automatically optimizes compression based on scene complexity, ensuring optimal balance between storage efficiency and image quality for professional surveillance applications.

Intelligent VSmart Analytics Platform

Comprehensive AI-powered analytics including motion detection, regional intrusion monitoring, tripwire detection, passenger flow statistics, scene change alerts, and occlusion alarms provide automated threat assessment across all connected cameras. The intelligent analysis system reduces manual monitoring requirements while maintaining comprehensive security coverage, distinguishing between legitimate activities and potential threats. This advanced analytics capability proves essential for Australian commercial properties where multiple camera feeds require centralized intelligent monitoring and automated alert generation for effective security management.

Professional Centralized Management System

VStar GUI interface provides intuitive control over complex multi-camera installations, enabling efficient management of recording schedules, camera settings, and playback functions. The user-friendly interface simplifies professional surveillance operations while maintaining comprehensive control capabilities essential for security personnel. This centralized management approach proves particularly valuable for Australian installations where multiple operators require consistent access to surveillance functions without extensive technical training requirements.

Brand Jovision
IP Camera Input 16 Channel
Compression H.256+ / H.264
H.D.D (SATA) 1
