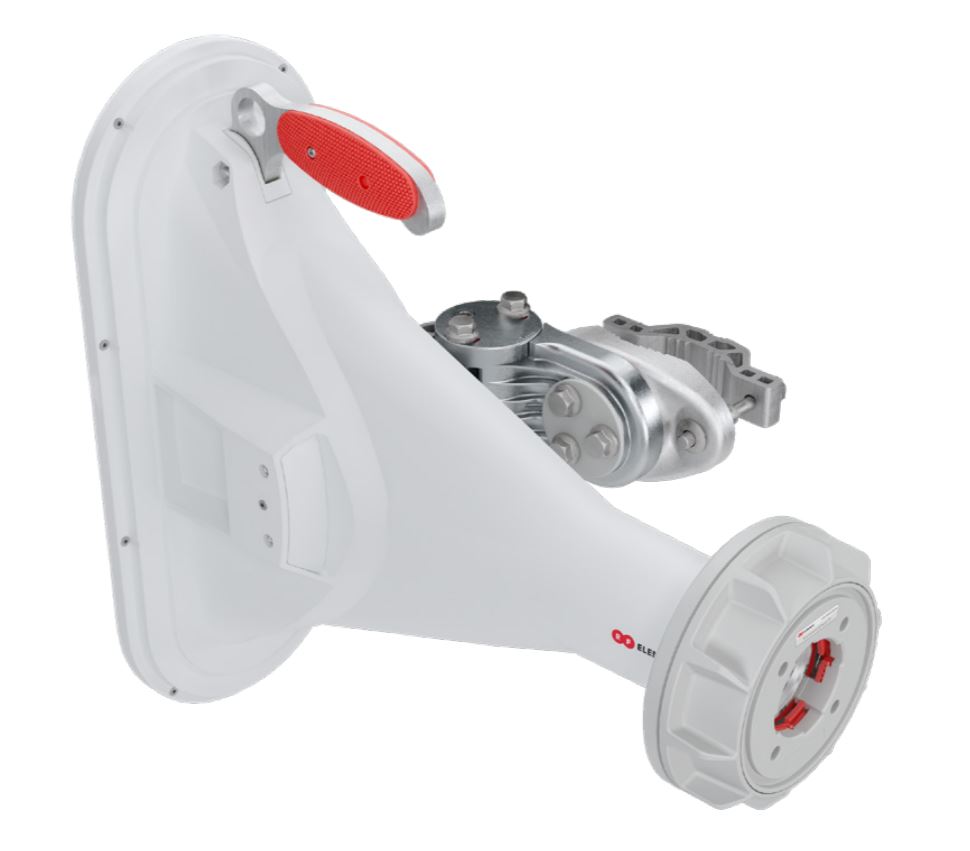

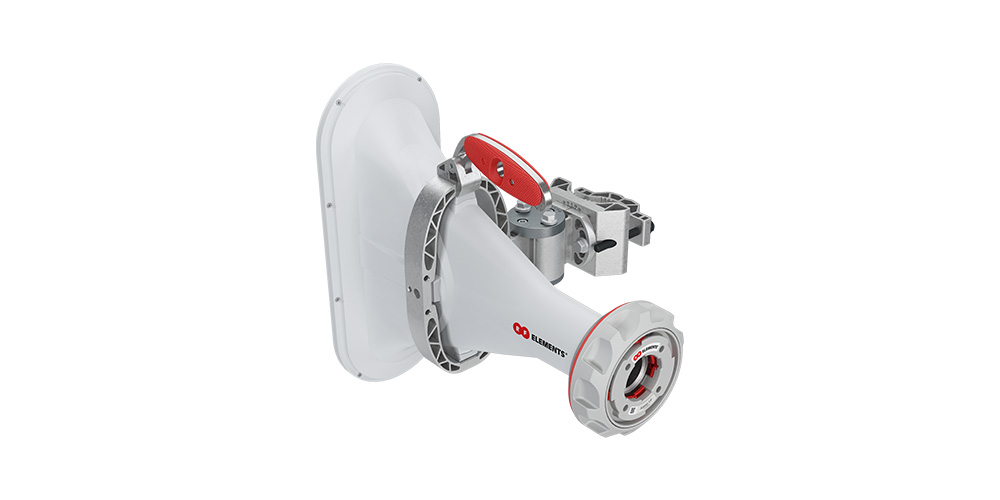

RF Elements AH90-TP 5GHz Asymmetrical Horn TwistPort 90°

https://arcip.com.au/web/image/product.template/3390/image_1920?unique=ed1b1a2
Achieve broad 90° sector coverage with exceptional noise immunity using the RF Elements AH90-TP. This 5GHz asymmetrical horn with a TwistPort connector is the ideal solution for building scalable, high-performance PtMP networks in noisy RF environments.

746.90 746.9 AUD 746.90 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

RF Elements
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
AH90-TP
Barcode
AH90-TP
Tags
AH90-TP
RF Elements AH90-TP 5GHz Asymmetrical Horn TwistPort 90°

Features

  • TwistPort Connector for easy, lossless radio integration
  • Asymmetrical 90° Azimuth / 25° Elevation beam pattern
  • Excellent noise rejection with natural sidelobe suppression
  • Stable gain and performance across a wide frequency band (5180-6400 MHz)
  • Durable UV-resistant polycarbonate and aluminum alloy construction
  • Compact and lightweight for reduced tower load
  • Ideal for wide-area coverage in PtMP deployments

Specifications

Antenna Properties
Antenna ConnectionTwistPort™ - Quick Locking Waveguide Port
Antenna TypeHorn
Frequency Range5180 - 6400 MHz
Gain13 dBi
Azimuth Beam Width (-3 dB)90°
Elevation Beam Width (-3 dB)25°
Front-to-Back Ratio25 dB
PolarizationDual Linear H + V
Physical
MaterialsUV Resistant Polycarbonate, Aluminium Alloy, Stainless Steel
Pole Mounting Diameter30-80 mm
Operating Temperature-40°C to +60°C (-40°F to +140°F)
Wind Survivability160 km/h (100 mph)

Professional Overview

The RF Elements AH90-TP is a wide-angle asymmetrical horn antenna designed to provide extensive 90° coverage for Point-to-MultiPoint (PtMP) wireless networks. Its unique radiation pattern delivers a broad horizontal beam while maintaining a focused 25° vertical beam, making it an excellent replacement for traditional sector antennas. This optimized beam shape directs RF energy precisely towards users, covering a wide area without causing the vertical signal bleed and ground interference common with other antenna types.

The defining feature of the AH90-TP is its unparalleled noise immunity. By design, horn antennas lack the sidelobes that plague traditional sector antennas. This absence of sidelobes means the antenna focuses all its energy on the main beam, drastically reducing its susceptibility to interference from adjacent RF sources. In crowded tower sites, this leads to a significantly improved signal-to-noise ratio (SNR), enabling more stable connections, higher modulation rates, and increased data throughput for all connected clients. It allows for scalable network design where multiple sectors can be co-located without performance degradation.

Integration and reliability are core to the AH90-TP's design. It features the proprietary TwistPort™ connector, a quick-locking waveguide port that ensures a secure, lossless, and weatherproof connection to TwistPort-compatible radios. This innovative system eliminates the need for RF pigtails, which are common points of failure and signal loss. Constructed from highly durable materials, the AH90-TP is built to perform reliably in the most demanding outdoor environments, making it a sound investment for any WISP aiming to build a robust and high-performance network.

Brand RF Elements
