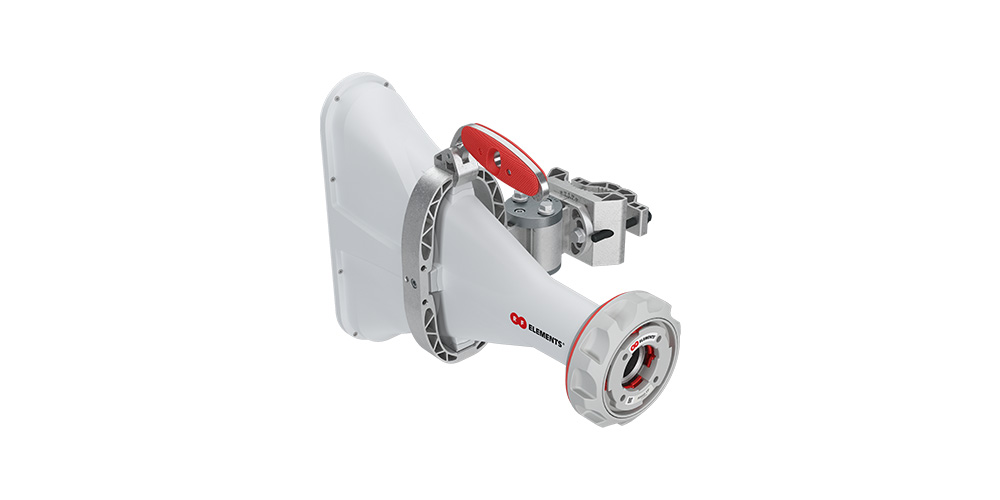

RF Elements AH60-TP 5GHz Asymmetrical Horn TwistPort 60°

https://arcip.com.au/web/image/product.template/3389/image_1920?unique=681d8aa
RF Elements AH60-TP 60° asymmetrical horn antenna with 17 dBi gain and TwistPort connector. 5180-6000 MHz, dual-slant polarization. Superior noise rejection for WISP networks.

647.90 647.9 AUD 647.90 incl. GST

Not Available For Sale


  • Brand
  • Frequency Band
  • Antenna Gain
  • Beam Width
  • Antenna Type
  • Connector
  • Polarization
  • Mounting

This combination does not exist.

5 GHz RF Elements Horn Antenna WISP Antenna Sector Antenna Asymmetrical Horn TwistPort Noise Rejection Outdoor Antenna 60°
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
AH60-TP
RF Elements AH60-TP — 60° Asymmetrical Horn TwistPort Antenna, 17 dBi, 5 GHz

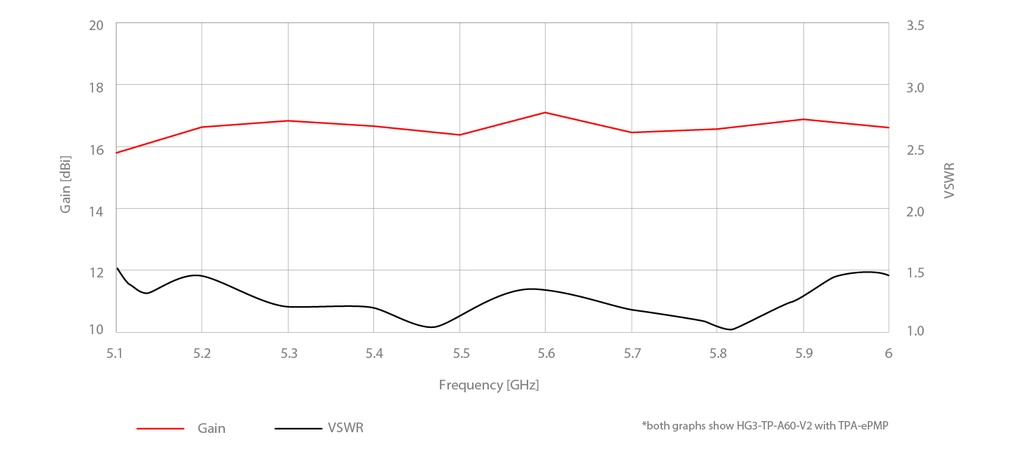

AH60-TP Gain Performance

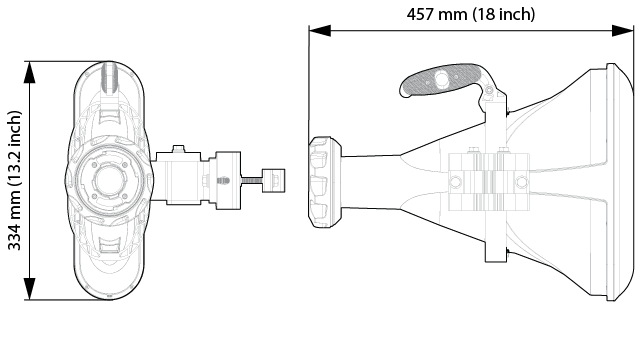

AH60-TP Dimensions

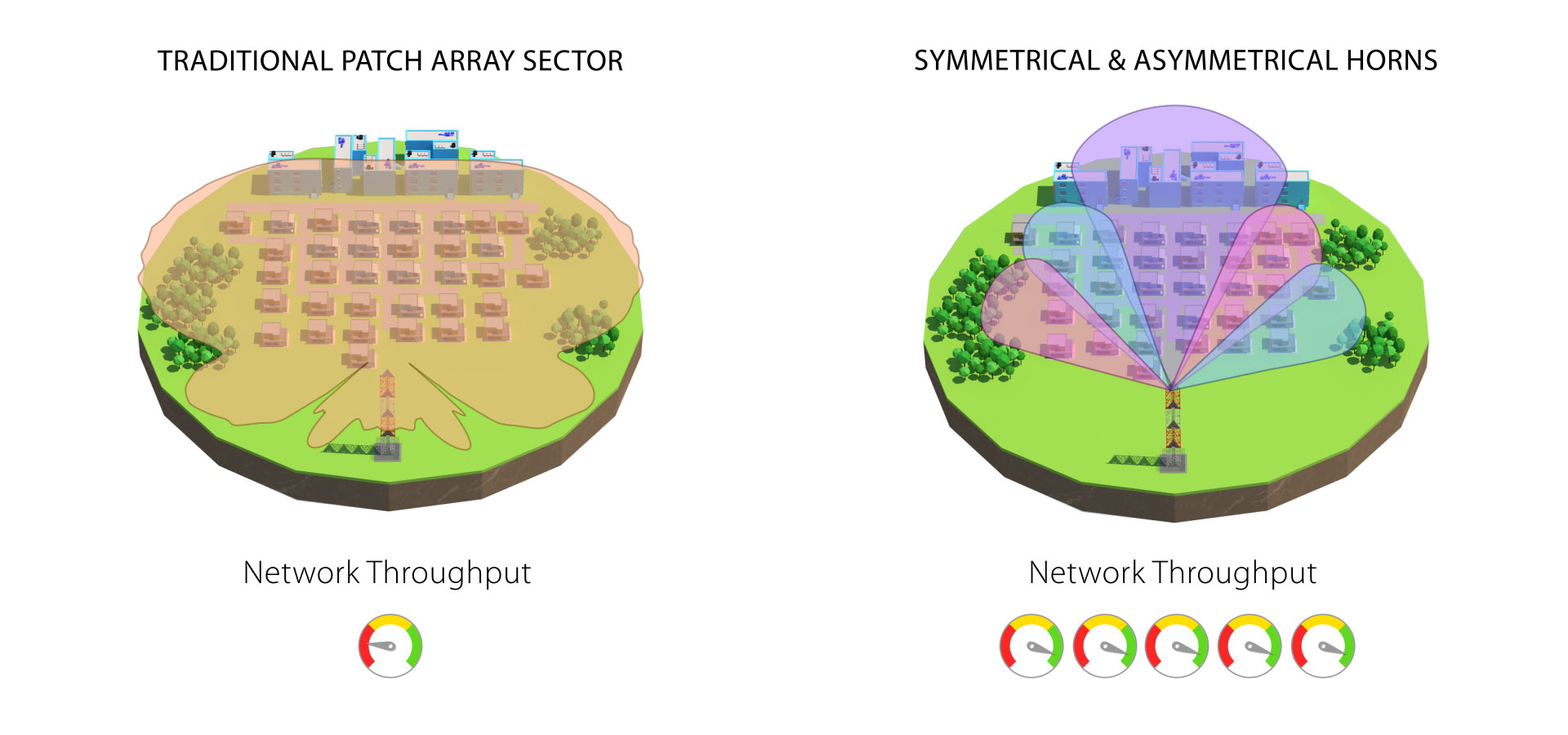

AH60-TP Scalability

Features

  • TwistPort connector for tool-less, lossless radio integration
  • 60° symmetrical beam width for wide-area coverage
  • 17 dBi gain with naturally suppressed side lobes
  • Superior noise rejection vs traditional sector antennas
  • Wideband 5180-6000 MHz frequency coverage
  • Cross-platform compatible with Ubiquiti, Cambium, MikroTik radios via TPA
  • UV-resistant polycarbonate and aluminium alloy construction
  • Stainless steel hardware for long-term outdoor durability
  • Compact and lightweight — reduces tower load and rental costs
  • Pole mount 30-80 mm with ±20° elevation/azimuth adjustment

Specifications

Antenna Properties
Frequency Range5180 - 6000 MHz
Gain17 dBi
Beam Width (-6 dB)H 60° / V 60°
Front-to-Back Ratio>30 dB
PolarizationDual-Slant ±45°
ConnectorTwistPort — Quick Locking Waveguide Port
Mechanical
MaterialsUV-Resistant Polycarbonate, Aluminium Alloy, Stainless Steel
Pole Mounting Diameter30 - 80 mm
Mechanical Adjustment±20° Elevation, ±20° Azimuth
Operating Temperature-40°C to +60°C
Wind Survivability160 km/h

Professional Overview

The RF Elements AH60-TP is a 60° asymmetrical horn sector antenna designed for broad coverage in WISP and enterprise wireless deployments. Operating across 5180-6000 MHz with 17 dBi gain, it delivers a wide 60° beam that covers large service areas while naturally rejecting interference from neighbouring sectors.

Horn antennas have inherently suppressed side lobes, giving the AH60-TP a decisive advantage over traditional patch array sectors in noisy, co-located tower environments. The front-to-back ratio exceeds 30 dB, enabling higher modulation rates, better SNR, and increased per-client throughput across the sector.

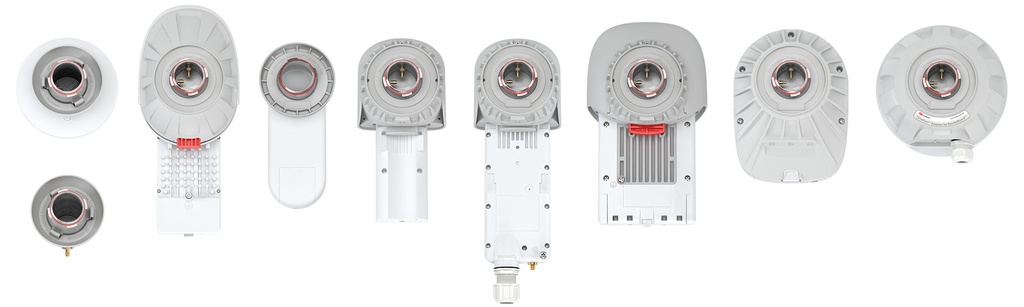

The TwistPort connector provides a tool-less, weatherproof waveguide connection to any compatible radio. A wide range of TwistPort Adaptors (TPA) extends compatibility to Ubiquiti Rocket, Cambium ePMP, MikroTik, and other popular WISP radios — making the AH60-TP a future-proof investment across different radio platforms.

Built from UV-resistant polycarbonate with aluminium alloy and stainless steel hardware, the antenna withstands winds up to 160 km/h and operates from -40°C to +60°C. Pole mount fits 30-80 mm masts with ±20° adjustment in both planes. Australian stock from ARC IP Networks.

Brand RF Elements
Frequency Band 5.18-6.0 GHz
Antenna Gain 17 dBi
Beam Width 60°
Antenna Type Asymmetrical Horn
Connector TwistPort
Polarization Dual-Slant ±45°
Mounting Pole Mount 40-80mm
